Q：What batteries are compatible with ESM-100?
A：1.48V 100Ah V3 Server Rack Battery
2.48V 50Ah Server Rack Battery
3.48V 100Ah V1/V2Server Rack Batteries can be monitored via the V3 as the master unit

Q：How to combine batteries to use ESM-100
A：Master Device: V3 （Necessary）
Slave Device: Supports V1/V2/V3
Note:Due to DiP switch address limitations V1/V2 are recommended for slave devicesin address range 2-15

Q：How to use EMS-100
A：Connect the RS485-2port between the batteries in order to communication between thebatteries and set the master and slave addresses via the DiP switch. Then connect the RS232 port between the battery and EMS-100

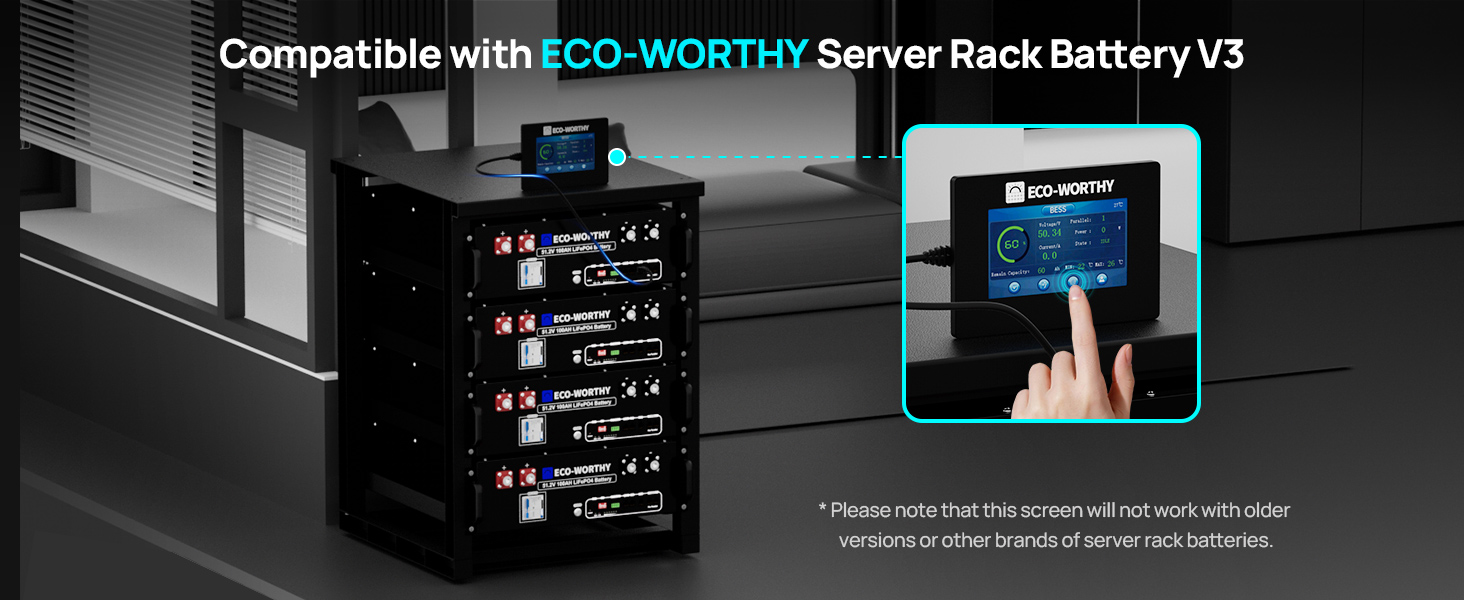

Seamlessly adapts to both the 48V 100AH Battery V3 version and all 48V 50AH versions. It requires no complicated configuration and can be quickly activated upon power - on, significantly improving deployment efficiency.

[Magnetic Attachment with Smooth Touch Interaction]

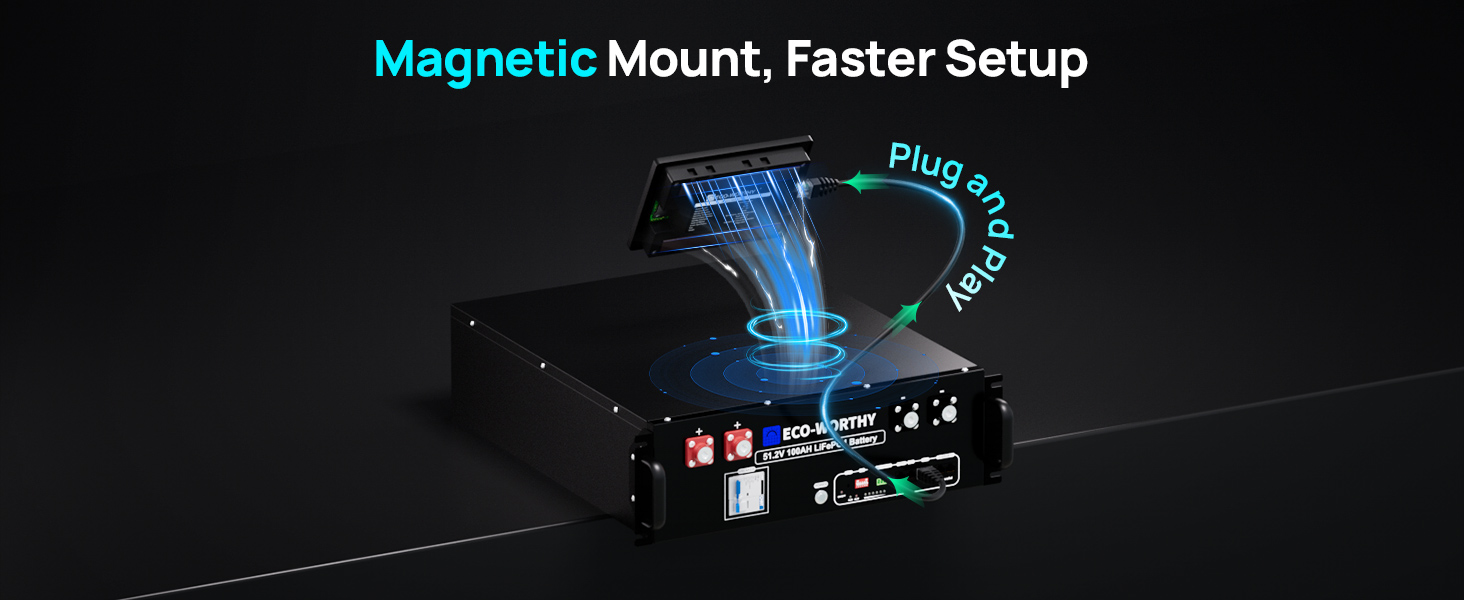

Combines an LCD capacitive touchscreen with a magnetic mounting design. It offers sensitive operation response, allows for flexible positioning, and effortlessly meets the needs of various application scenarios.

[Real - time Monitoring and Intelligent Control]

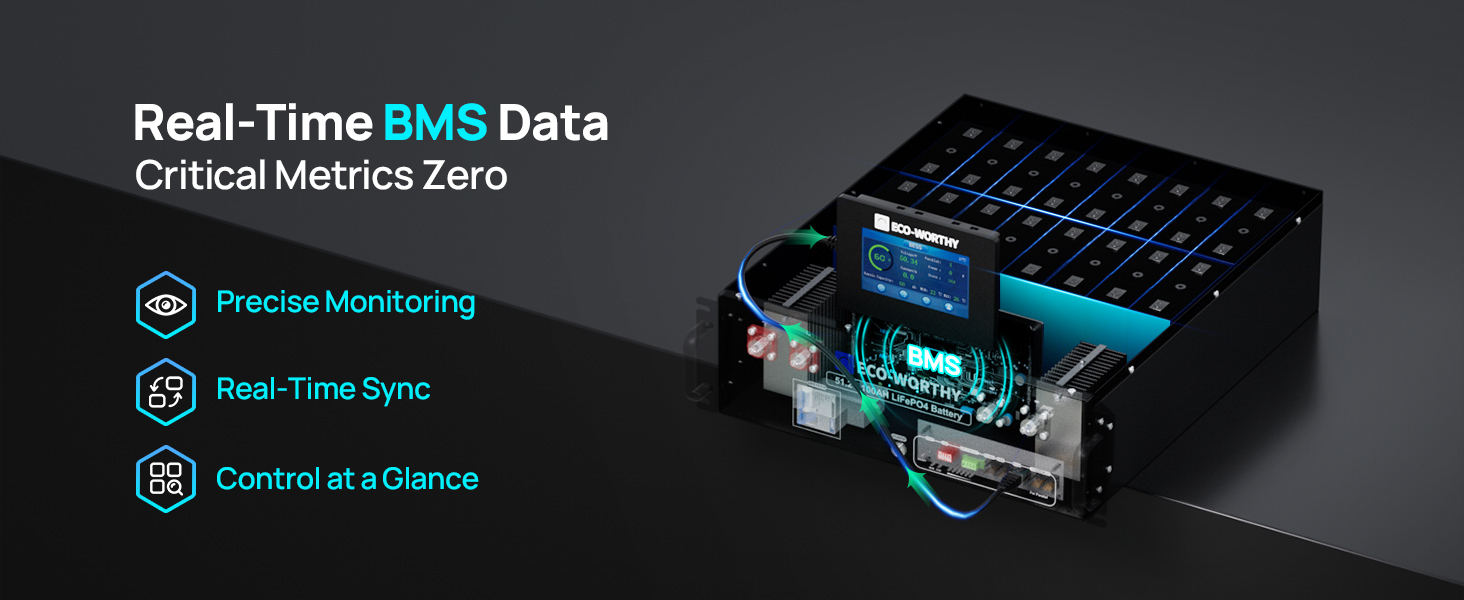

Collects BMS data in real time, presents battery parameters, protocol settings, and other information through multiple interfaces. It supports hierarchical permission management to ensure data security and precise operation and maintenance.

[Firmware Upgrades for Advanced Performance]

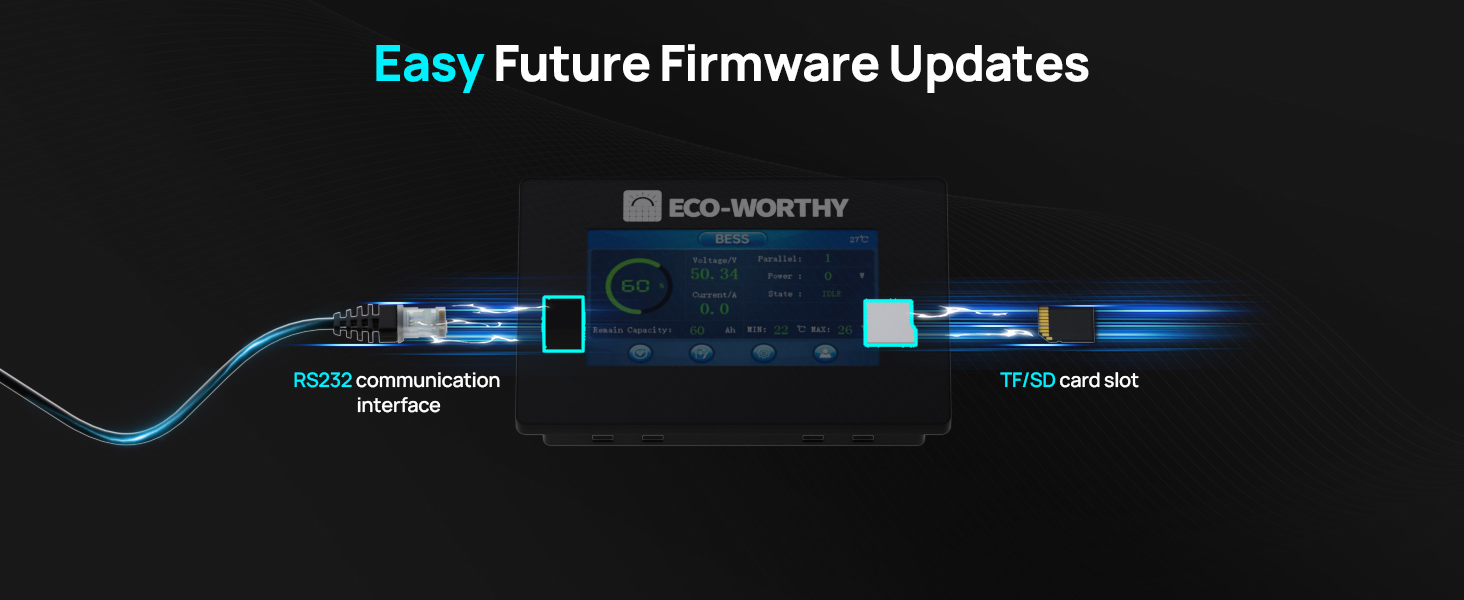

Firmware can be updated via SD card, enabling continuous optimization and iteration of functions. This ensures seamless adaptation to technological advancements and diverse user requirements.

[User - friendly Interface Design, No Learning Curve]

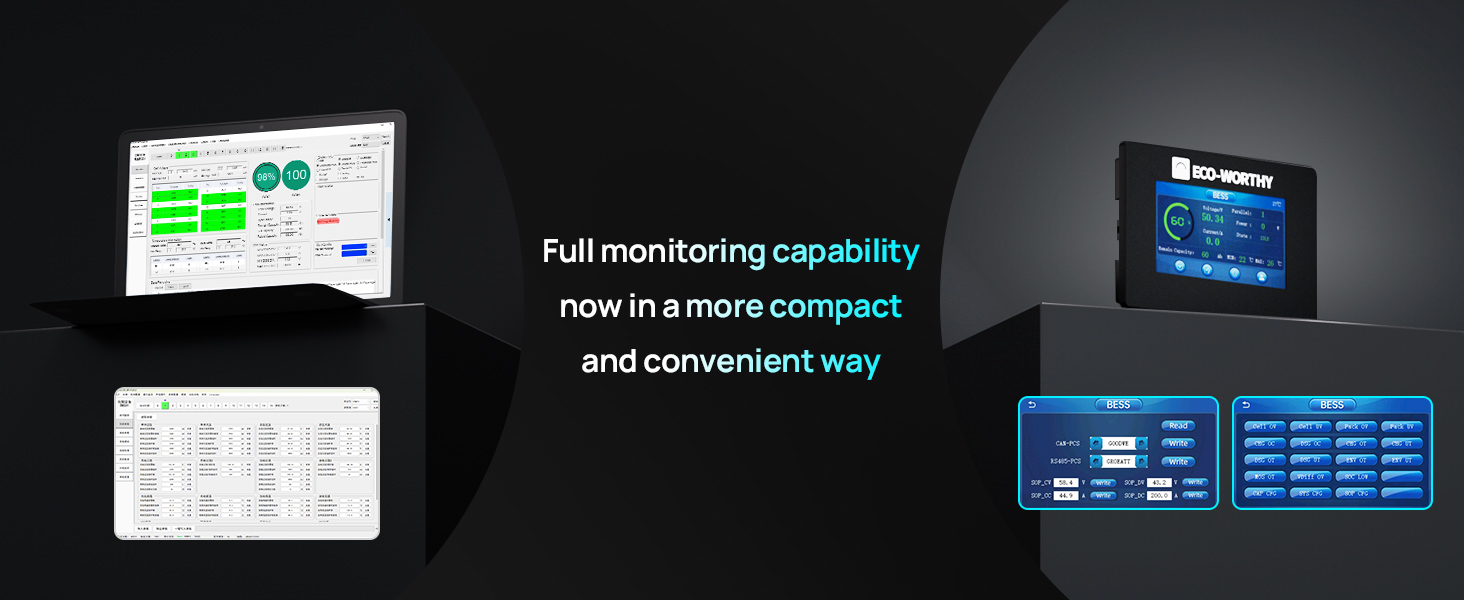

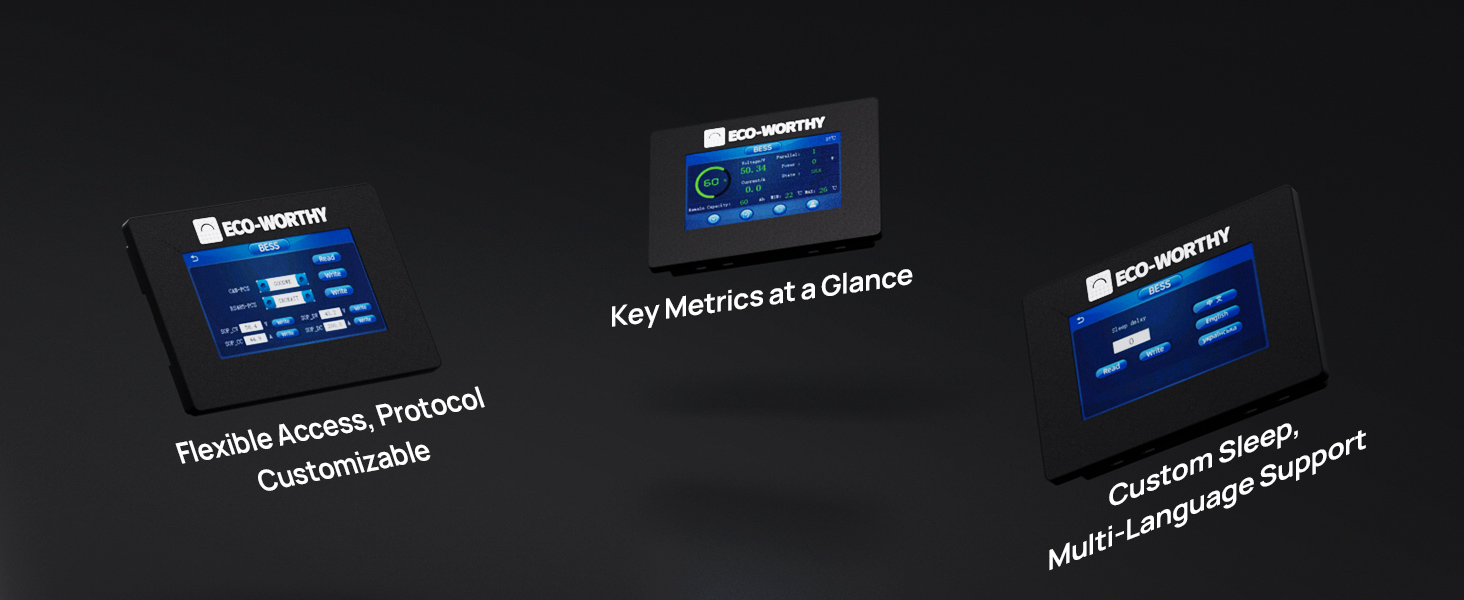

The rich visual interface covers functions such as battery parameter display and language switching. With a clear hierarchical structure, it can be quickly mastered by both novices and professionals.
