Why SIEG?

• 30+ Years experience in small machines.
• Dealer network in 50+ countries.
• 30000+ units sold every year.
• First manufacturer to use programmed brushless technology in small machines.
• Reliable quality, impressive performance, outstanding safety features.
• Spare parts support Australia nationwide.
• Dispatch orders in 2 business days. ( subject to stock availibility )
• 12 months warranty ( terms & conditions apply )

---

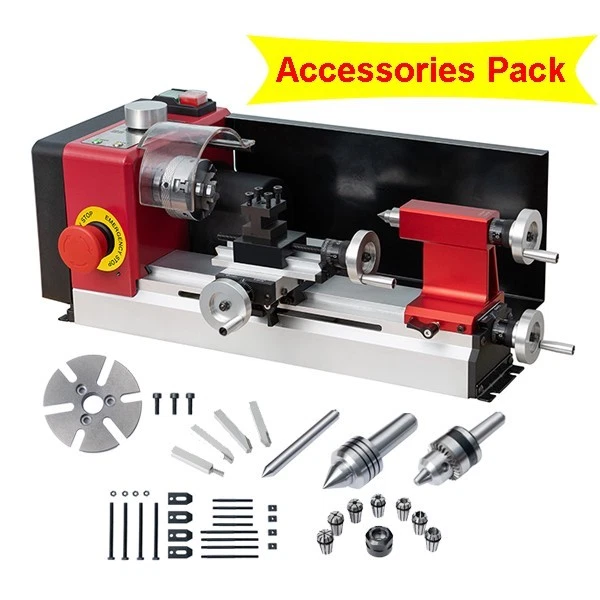

SIEG MC0 Nano Lathe – Small But Mighty Precision for Your Workshop!

Engineered for Performance:

✔ High-Speed Machining – 5,000 RPM variable speed spindle handles delicate cuts in brass, aluminum, and soft steels with ease
✔ Optimized Stability – Rigid construction ensures precise, vibration-free turning of small parts
✔ Built for Safety – Emergency stop and enclosed drive system for worry-free operation
✔ Space-Efficient – Compact footprint fits even the tightest workspaces

The Perfect Addition To:
Home garages - Finally, a lathe that fits!
Maker labs - Safe and simple for shared spaces
Small workshops - Professional results without industrial bulk
School labs - Safe enough for student projects
Professional shops - Second-op finishing station



Specifications:

Model	MC0
Swing over bed	70mm
Distance between centers	160mm
Hole through spindle	7mm
Spindle taper	ER11
Spindle thread	M14x0.75mm
Tailstock taper	MT1
Cross slide travel (X)	45mm
Carriage travel (Z)	120mm
Compound travel	50mm
Compound rotating angle	±45°
Tailstock travel	30mm
Standard Chuck Size:	Ø50mm
Chuck Clamping Range:	2 - 33mm
Motor output power	100W
Spindle speed   - Low range	150-2500±10% rpm
- High range	300-5000±10% rpm
Overall dimension	425 x 230 x 175 mm
Packing size (L x W x H)	480 x 260 x 220 mm
Weight (Net / Gross)	6/8 kg

---

SIEG Lathe Comparison
Specification	C0	C2	C3 & C3P	SC3  HiTorque	SC4 HiTorque	C6	SC6 HiTorque	SC10 HiTorque
Swing Over Bed	110mm	180mm			210mm	250mm		305mm
Distance Between Centres	125mm	300mm	350mm	400mm	510mm	550mm		700mm
Spindle Bore	10mm	20mm						38mm
Spindle Tapler	-	MT3						MT5
Tailstock Taper	-	MT2						MT3
Cross Slide Travel	50mm	65mm			100mm	110mm		155mm
Compound Travel	-	55mm			70mm	75mm		80mm
Tool Size (Height)	8mm				10mm	12mm		16mm
Power Rating	210W	400W	550W	650W Brushless	1250W Brushless	1000W	1250W Brushless	1810W Brushless
Output	150W	250W	350W	500W	1000W	550W	1000W	1500W
Range of Tread (Metric)	-	0.4-2.0mm (10 Pitches)			0.25-3.0mm (17 Pitches)	0.4-3.0mm (12 Pitches)		0.25-2.5mm (14 Pitches)
Range of Tread (Imperial)	-	-	-	-	8-24TPI (10 Pitches)	10-44TPI (8 Pitches)		12-96TPI (9 Pitches)
Weight	14kg	40kg	44kg	50kg	135kg	145kg		215kg



All above models are available in Ausee Machines & Tools. Search Online!

---

 Machines Warranty:

We warrant that for a period of 12 months from the date of delivery, machines shall be free from defects in material and workmanship. The warranty covers replacement of, but not installation

of any machine parts fail during the warranty period.

The defective parts must be returned to Ausee Machines & Tools with inbound carriage prepaid. We will inspect the same for the damage/fault once we receive the parts. If we agree to the customer's observation, we will replace or repair the part and send it back to customer at no charge. If we disagree with customers observation, we will contact the customer to find a satisfactory solution.

When your product warranty expires, you can obtain product service on a material basis at Ausee Machines & Tools, at the current rates for parts apply.

---

Terms & Conditons

Your order is important to us. We aim to dispatch within 2 working day, subject to stock availability. Customer is responsible for providing correct information either on the website or through a telephone/facsimile purchase.

Delivery and Handling Charges:
Postage/Carriage fee represent part costs towards processing, packaging and postage/carriage.
Ausee Machines & Tools reserves the right on how goods are sent.

For order weights under 25KG, we use express deliver service provided by Fastway Courier and Couriers Please for delivery address in most of major cities nationwide. This service normally take 1-5 business days depending on the area.

For PO Box, Parcel Locker and some regional and remote areas where Fastway Courier and Couriers Please will not reach, we will use Parcel Service. This service normally take 2-10 business days depending on the area.

If you are thinking of buying a machine, please be noted that all indicated postage covers most of major cities in VIC, NSW, ACT, TAS and some of the major cities in QLD and WA. If you wish to make sure if any extra postage may occur, please contact us before you buy.

On exception, if the postage/carriage will not cover our costs, Ausee Machines & Tools reserve the right on letting the customer know there will be a further charge for freight before sending out any goods.
