Milling Working Table 185*100 mm,Compound Milling Machine Work Table 2 Axis 4 Wa
Descriptions:
Milling Machine Worktable Cross Slide Table 185 x 100mm Adjustable Precision
Product Description
Brief introductions:
This milling support table is newly designed for precise drilling and milling work. It could also provide longitudinal and transverse support for trapezoidal thread spindles with large scale rings. This workbench measures 185*100 mm (0.73*0.4 inch). Its longitudinal travel length is 80mm (0.31 inch) and vertical travel of 75mm (0.3 inch).
What is the characteristics of this bench table?
First the use which is ideal for all drill stands is ideal drilling and milling machines. You will believe for precise drilling and milling the tool is indispensable.
With trapezoidal thread spindles really is accurately adjustable. What is more, The precise scale is a better working. There are 2 chip grooves fit on the working surface.
This support table is completely pre-assembled, except for the crank brackets.
Feature：
100% brand new, unopened
Made with best quality components
Ideal for all drill stands, drilling and milling machines
Indispensable for precise drilling and milling
Accurately adjustable with trapezoidal thread spindles
Precise scale for better working
2 chip grooves on the working surface
Free warranty of two years
Specifications：
Brand Name: Vevor

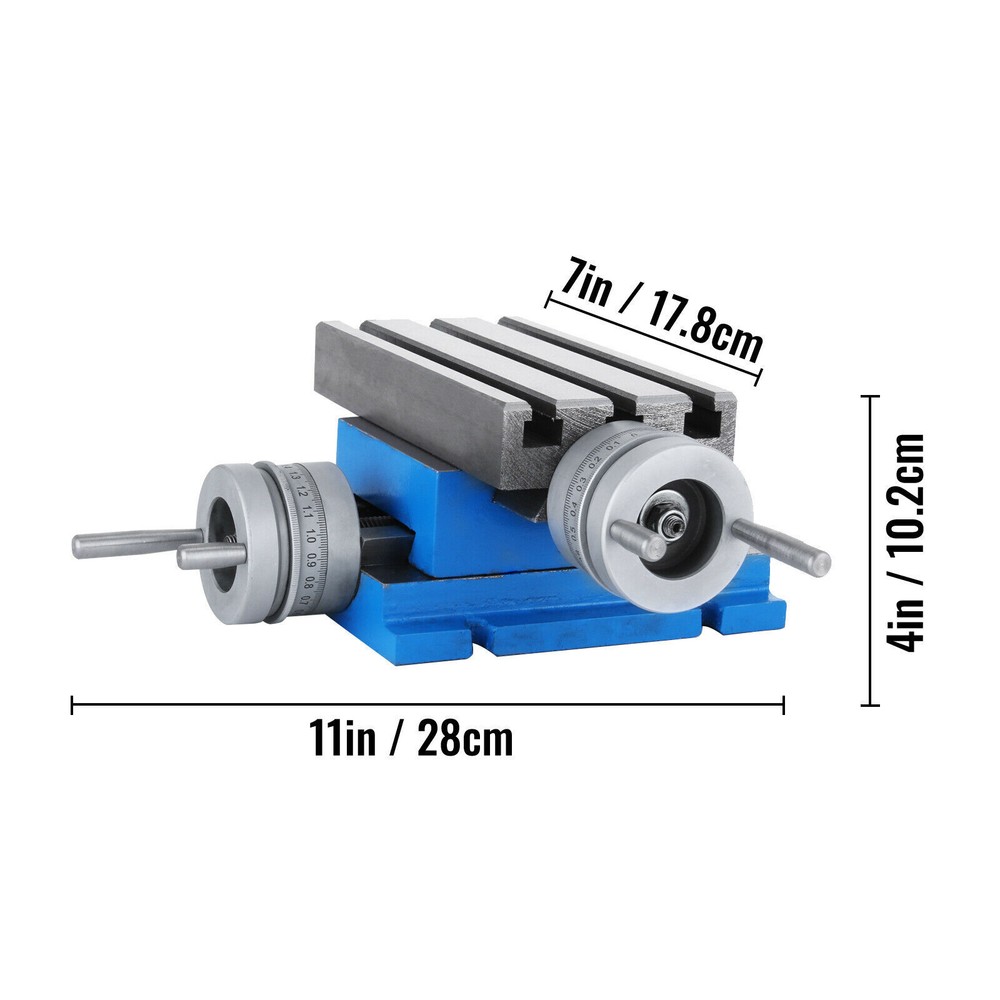

Working Table: 185*100 mm
Travel Length: 80 mm
Vertical Travel: 75 mm
T Groove length: 10 mm
Groove Interval Width: 35 mm
The spindle spacing length: 2 mm
Dial spacing length: 0.01 mm
Working Height:102 mm
Maximum workpiece weight: 30K G
Bottom size: 170 mm×130 mm
