Features:

1.Compact size of the product, easy to carry and store.

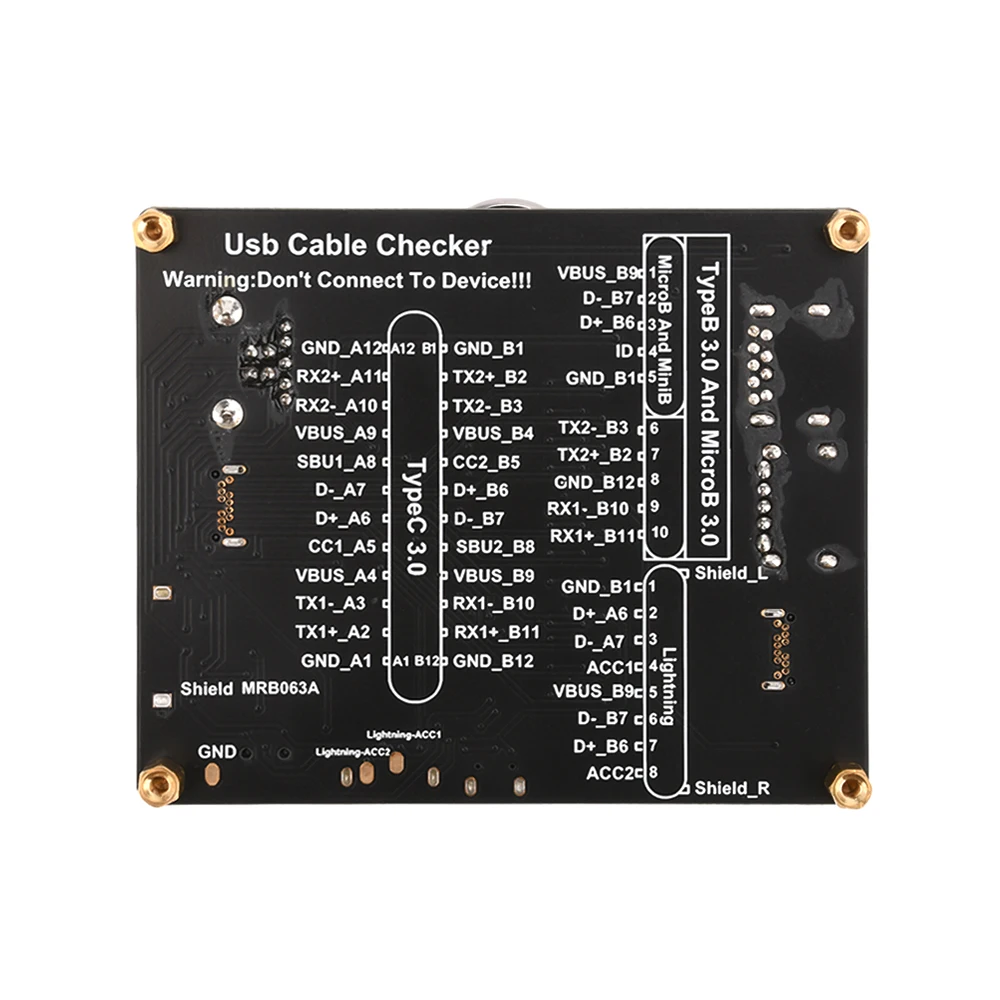

2. With LED indicators: test results are displayed through all 24 LED indicators, each pin corresponds to a LED light.

3. Supports two power modes: CR2032 coin cell or external power supply (Vin) in the range of DC3-12V, Vin provides direction connection protection.

4. The design is simple and intuitive. Users only need to insert the ends of the USB cable to be tested into the corresponding connector, the LED indicator will show the function and connection status of the USB cable. This enables the user to visualize the status of the cable (Note: the carrying capacity of the cable cannot be tested).

5.USB cable tester is a reliable tool for testing the connection status and function of USB cables.

6.Measurement types: TypeB 3.0, TypeB 2.0, TypeC 3.0/3.1/3.2, MicroB 3.0, MicroB 2.0, MiniB 2.0 and Lightning.

Product Parameters:

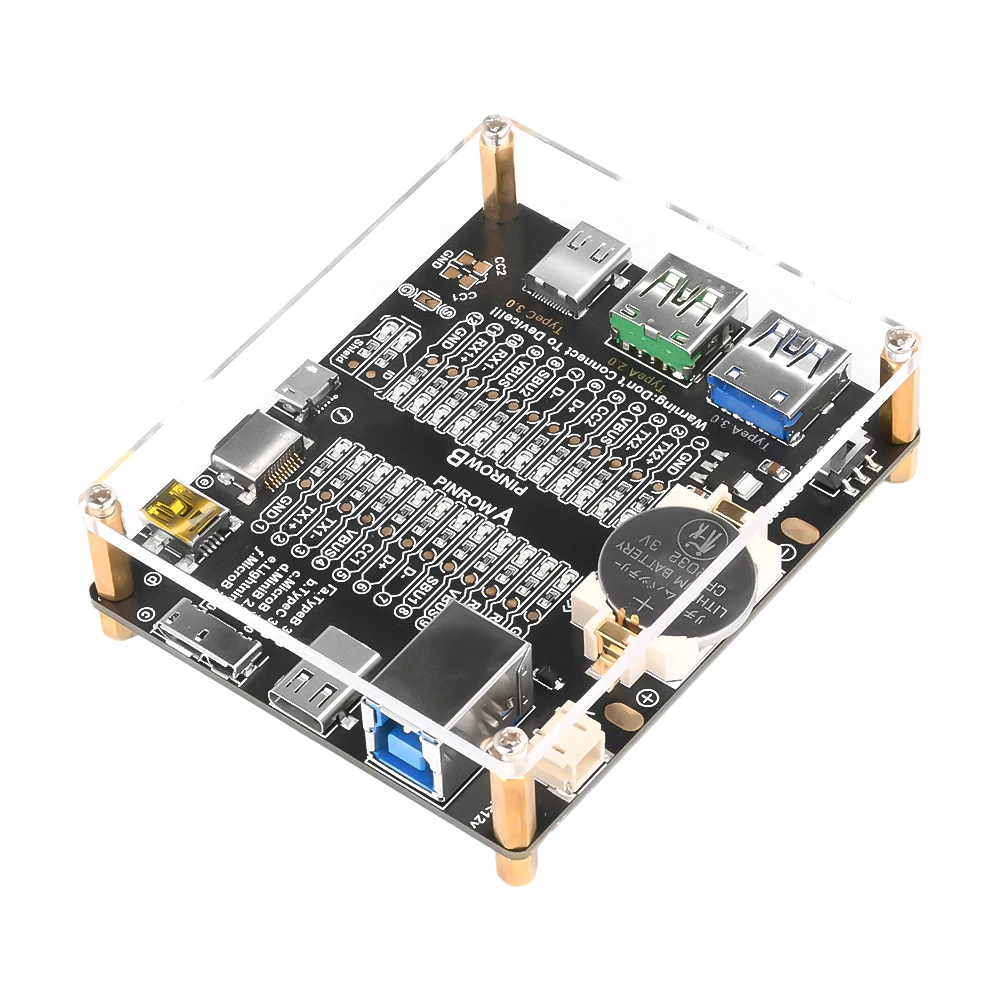

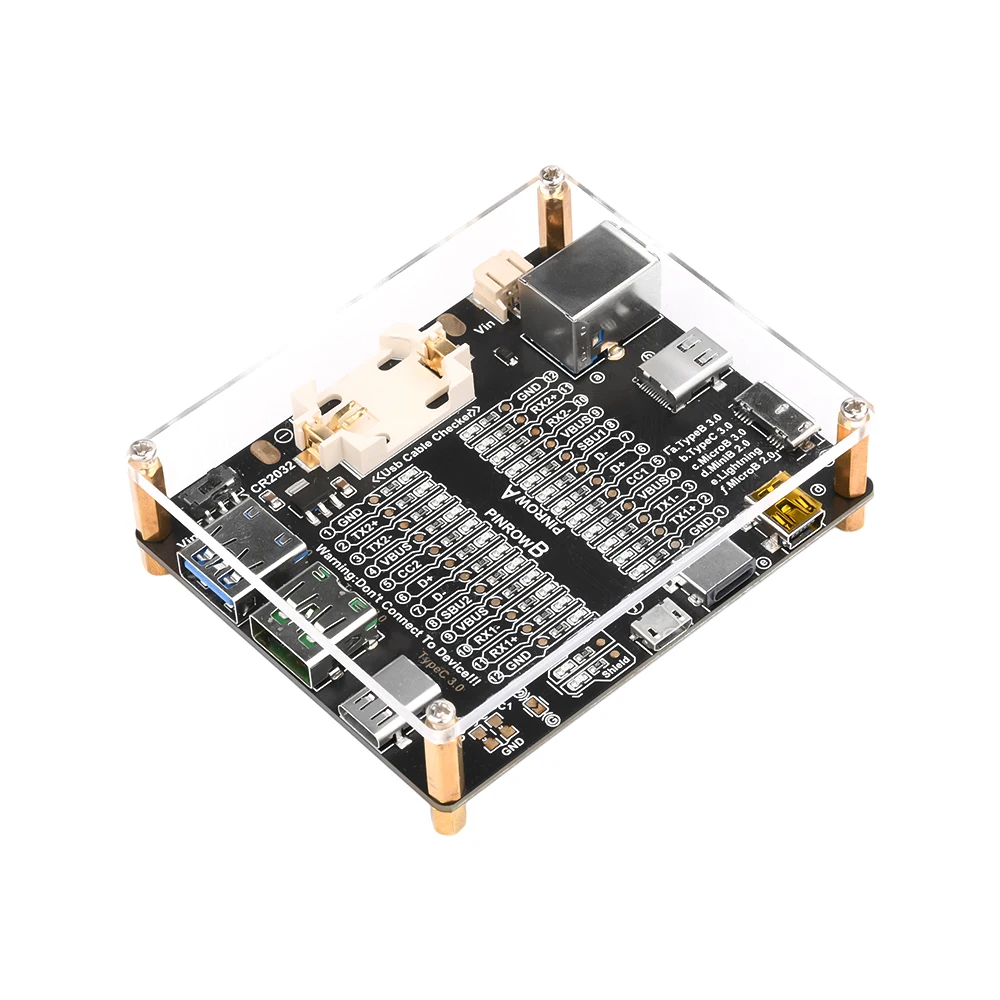

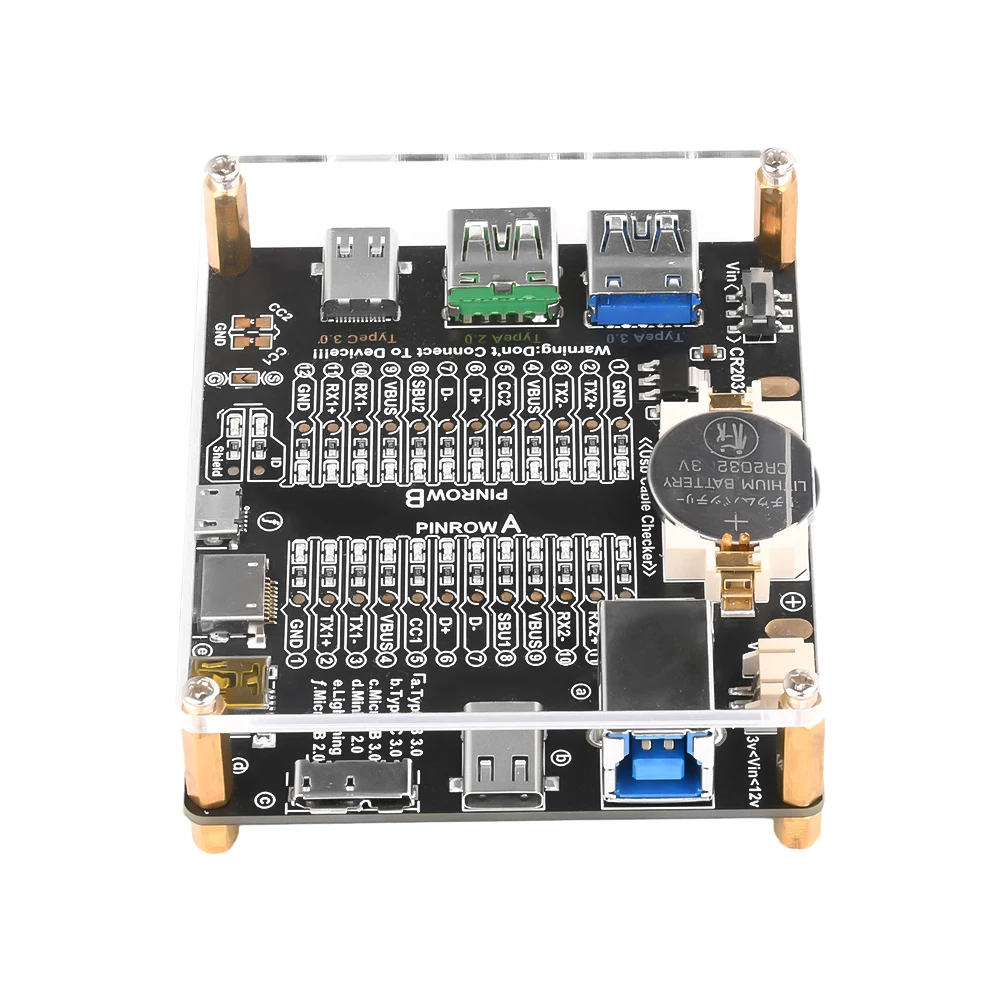

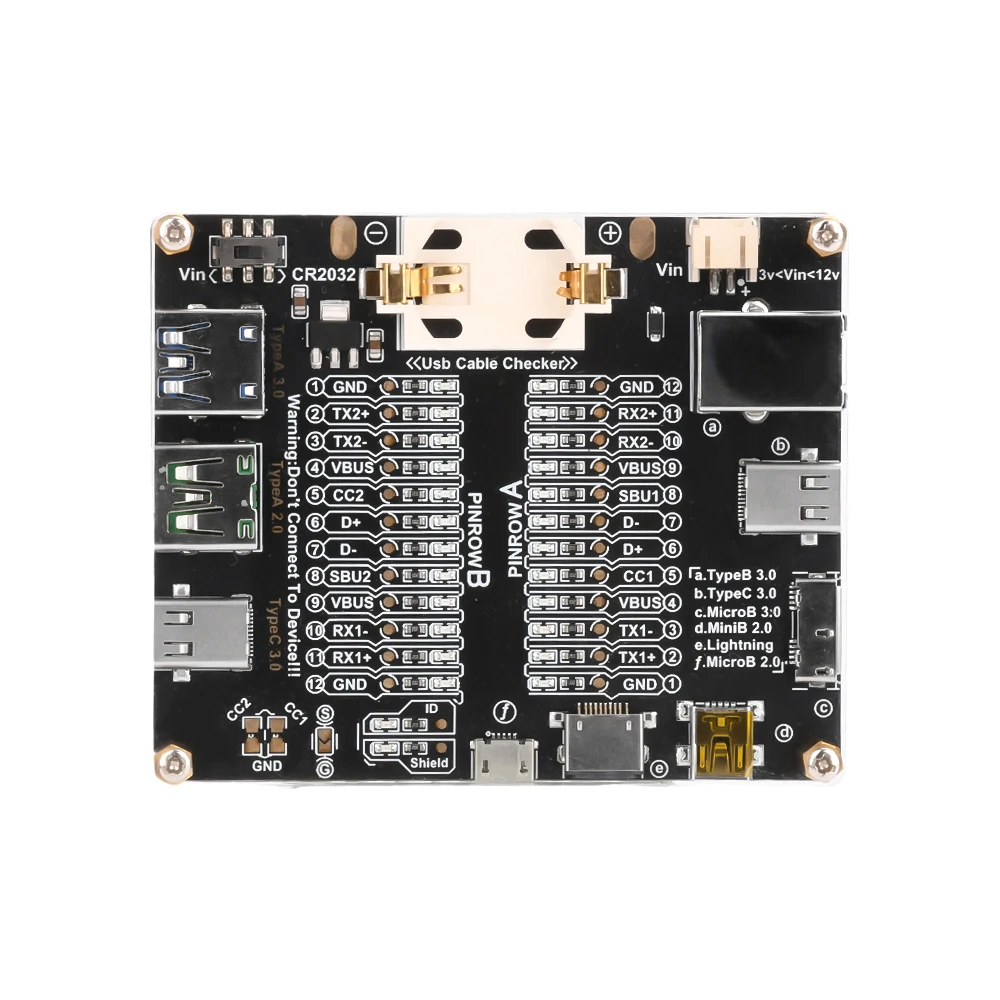

Product name: USB data cable test board

Power supply: battery powered (CR2032 coin cell) / external power supply (Vin) in the range of DC3-12V

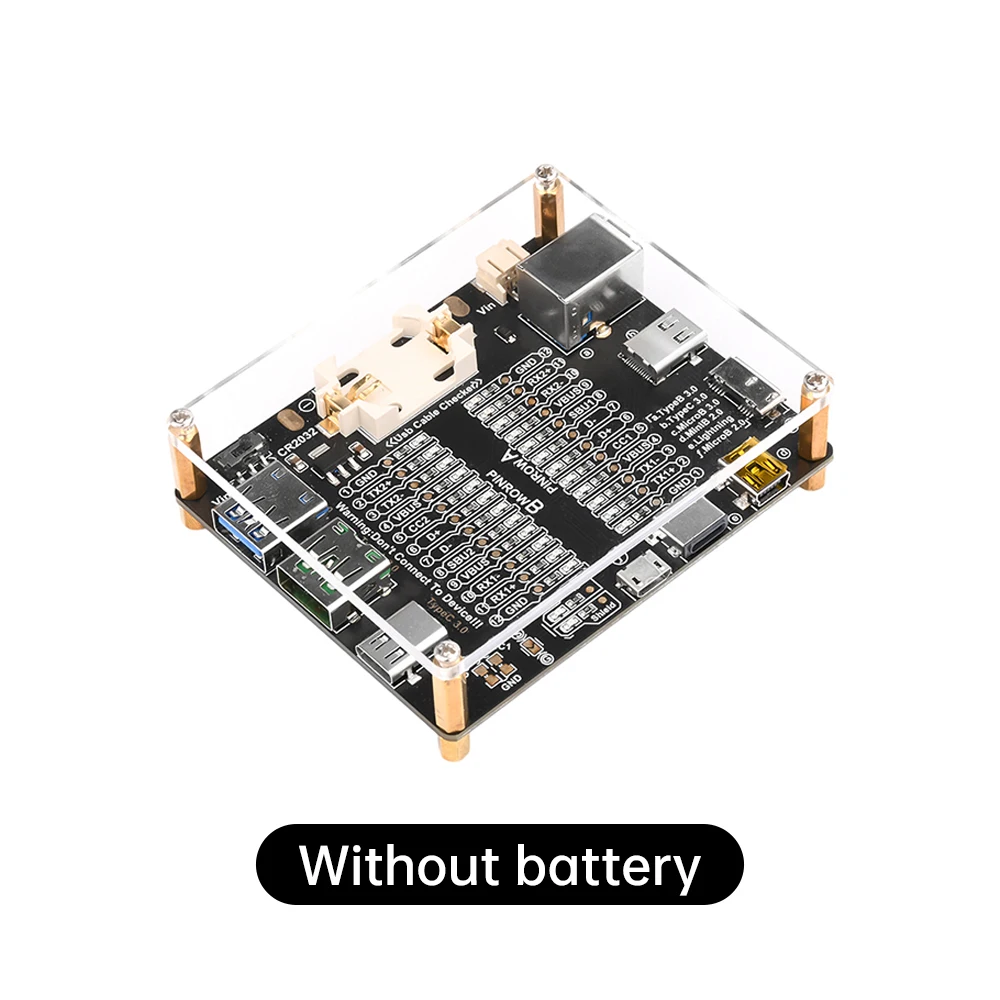

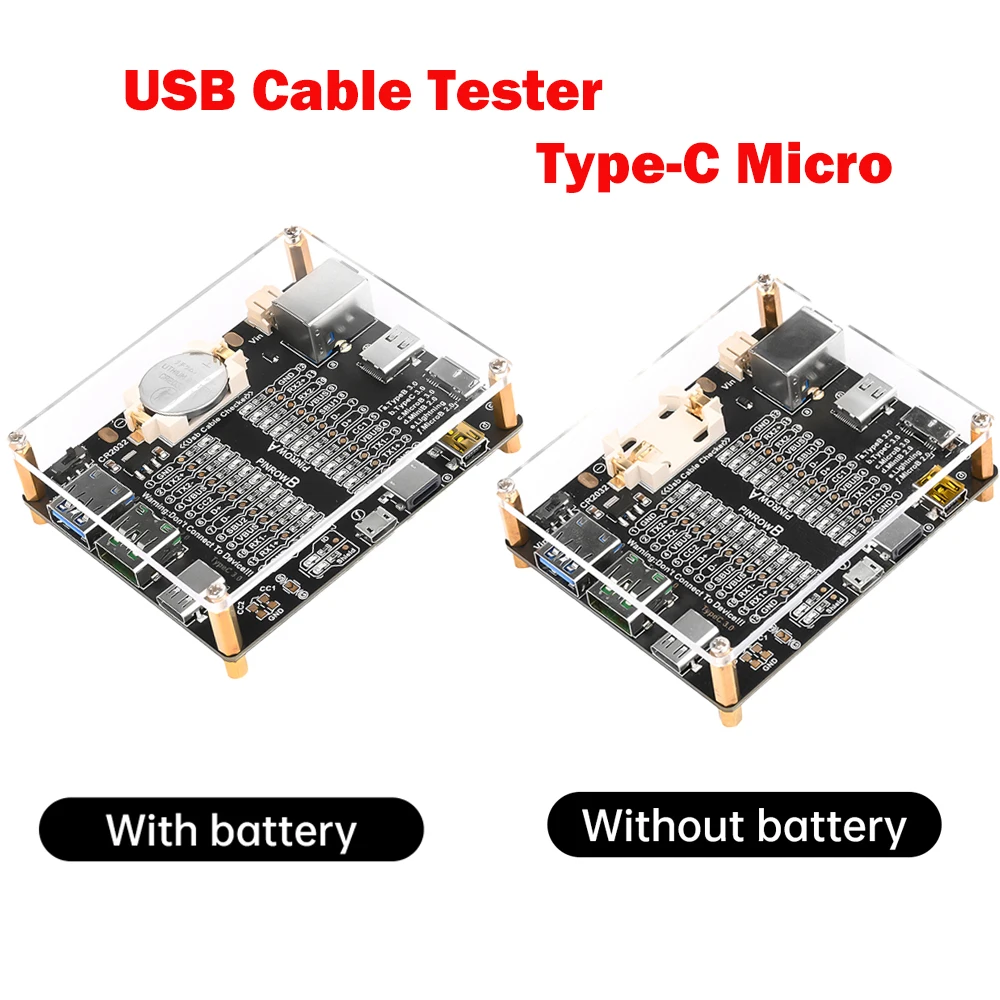

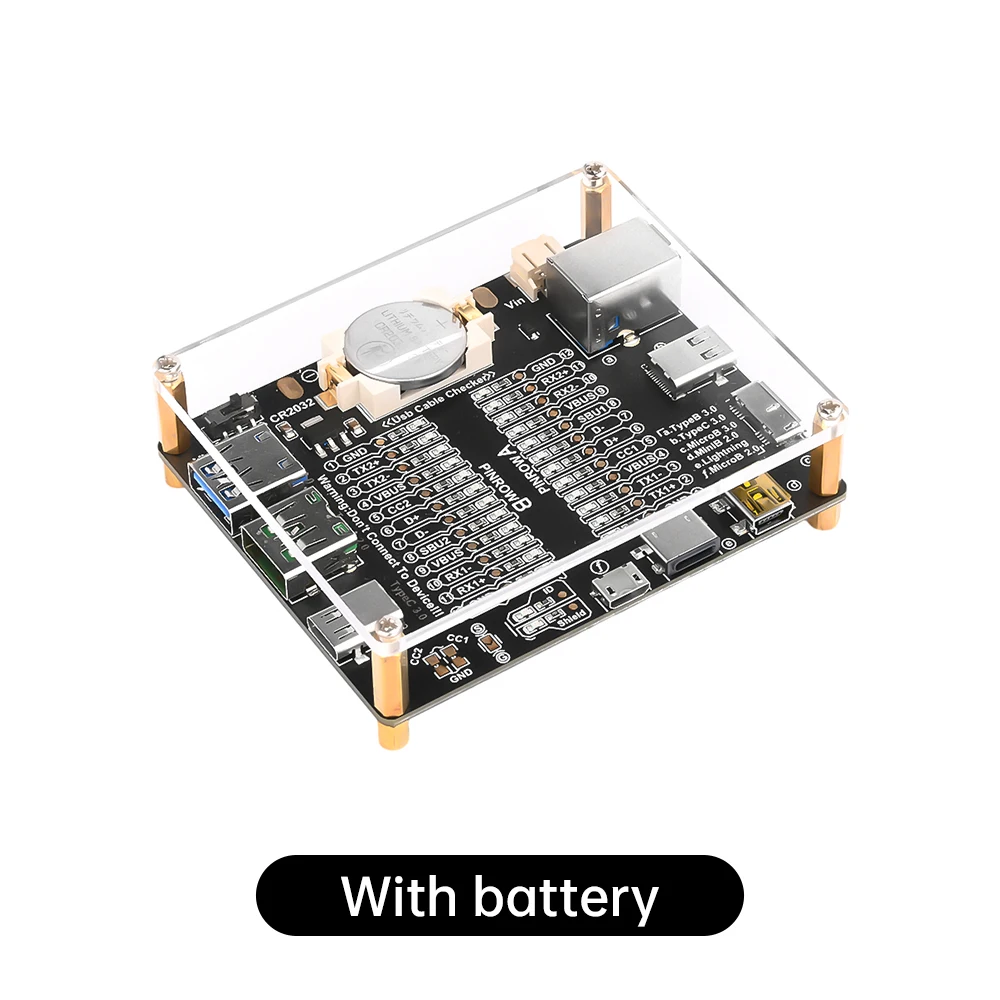

Type: with case / without case (optional)

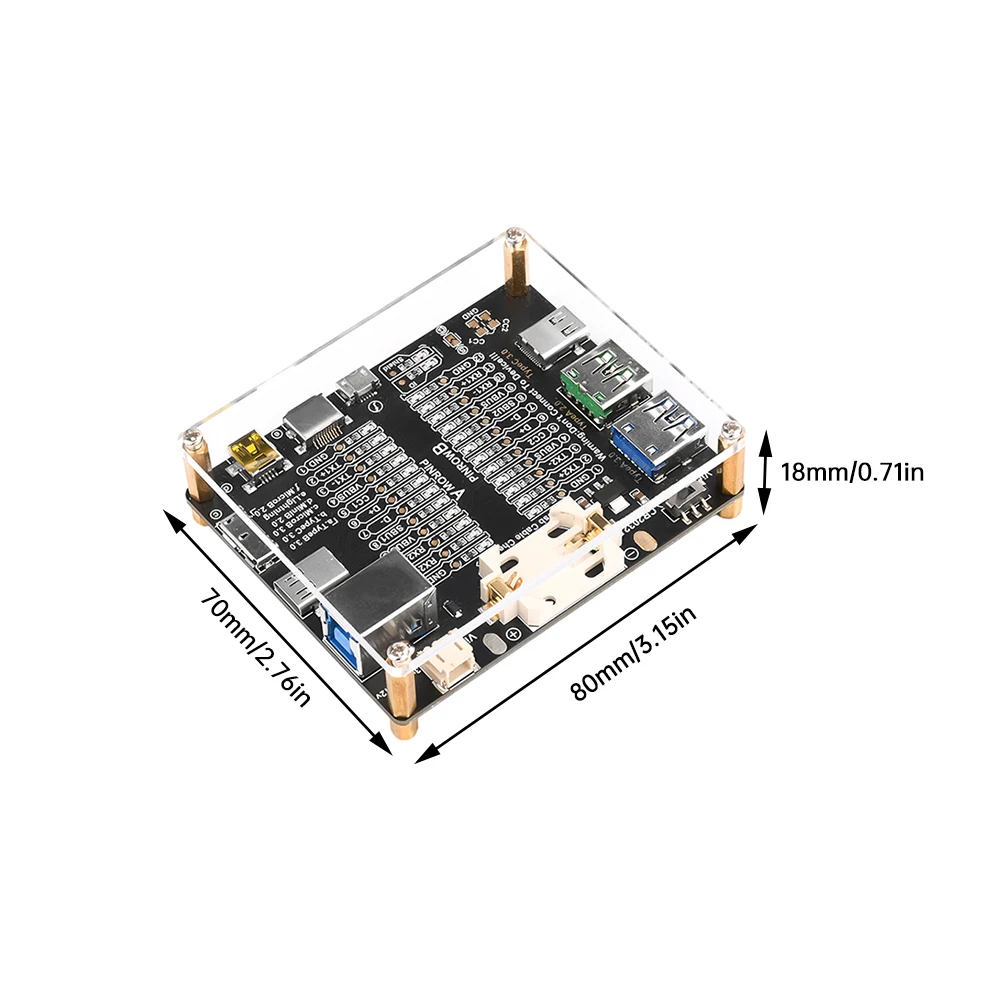

Product Size: 8.5*7cm

Product List.

USB cable test board *1
