NEW 5000W High Frequency Induction Heater Induction Heating Machine Metal Smelting Furnace +Heating coil

It is mainly used for the heating and quenching of small ferrous metal materials, and

the matching 150mL graphite crucible can reach a maximum temperature of 1600 degrees Celsius.

Easily melt iron copper gold silver aluminum metal. The customized heating ring can be used to

forge and quench steel with a diameter of less than 30mm. (The crucible heating ring with a

diameter of 70mm is sent by default. If you need to do quenching and forging, please contact

customer service to make a heating ring)

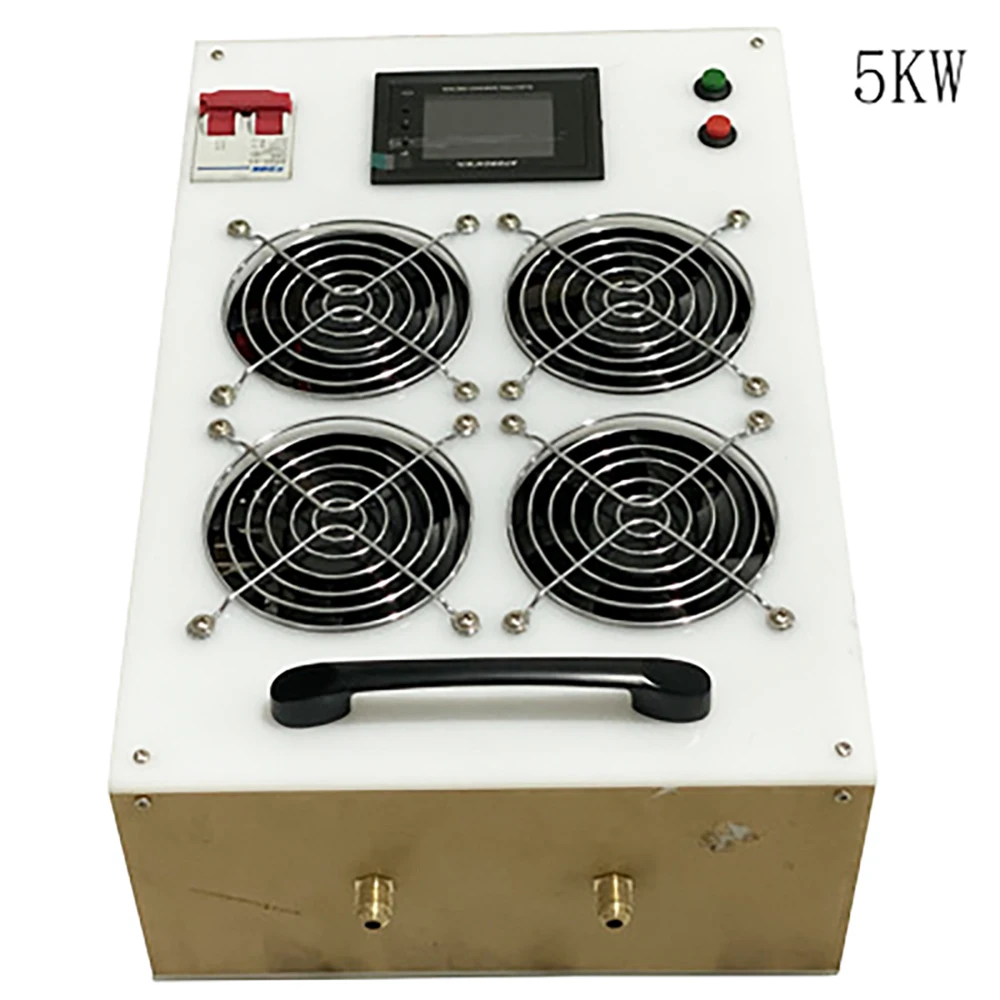

1. Adopt integrated plexiglass shell design, easy to use and carry, good heat dissipation;

2. Integrated power supply to avoid complicated wiring;

3. The heating ring is wrapped with high temperature insulation material to prevent short circuit

during heating, and the heating ring can be removed and replaced to customize a specific heating

ring;

4. Integrate internal water cooling circulation system to prevent overheating of heating ring;

(external water cooling through water pipe)

5. The top four high-power fans are used for heat dissipation;

6. Add the digital current overload protection switch, and trip the protection circuit in time if

overload occurs;

7. The large LCD screen displays the various working parameters of the system, including voltage,

current, power, motherboard temperature, etc., and can be easily switched with one key in Chinese

and English. The maximum allowable current can be set through the power meter. Enter the

overload protection mode.

8. Provide 0-600 degrees or 0-1000 degrees infrared temperature controllable version.

9. Metal key switch and foot control are added to facilitate use in different scenarios.

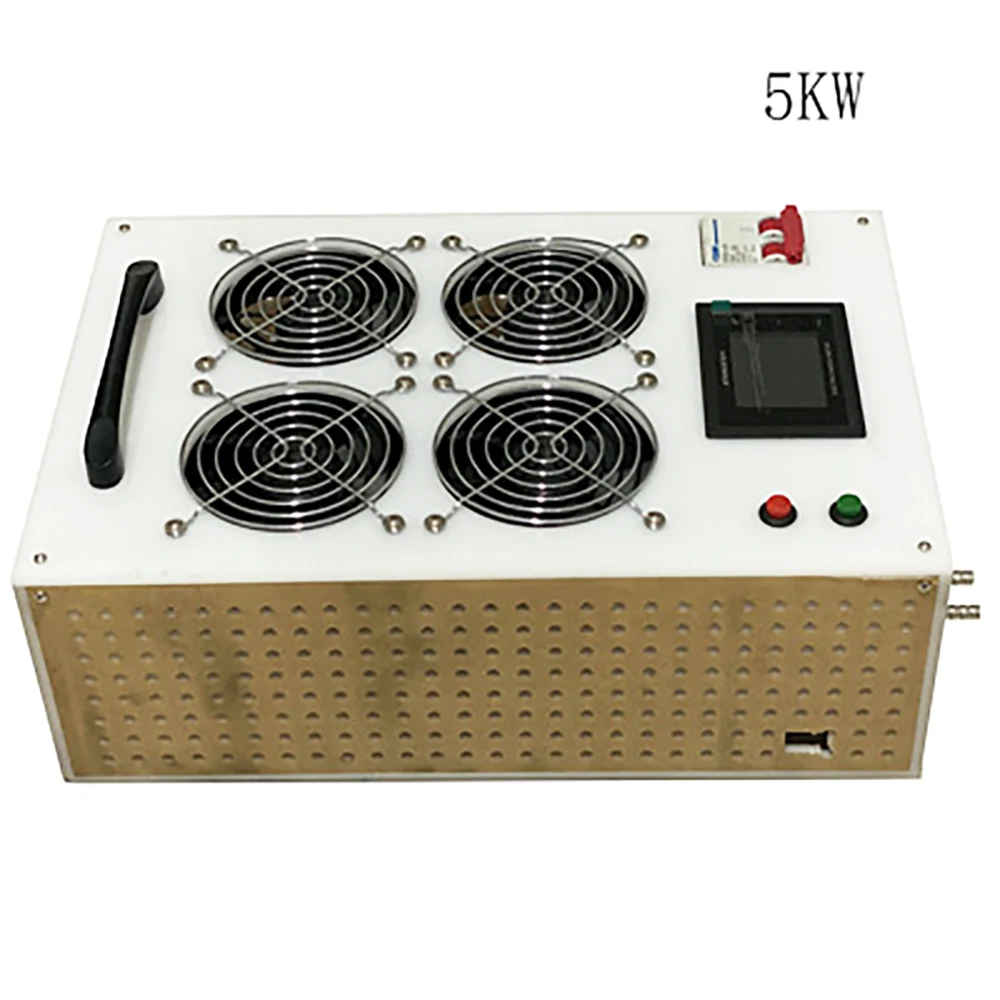

1. Overall dimensions: length, width and height 400 * 230 * 190 (unit: mm);

2. Heating ring size: 80 * 70 * 65 (inner diameter * outer diameter * height);

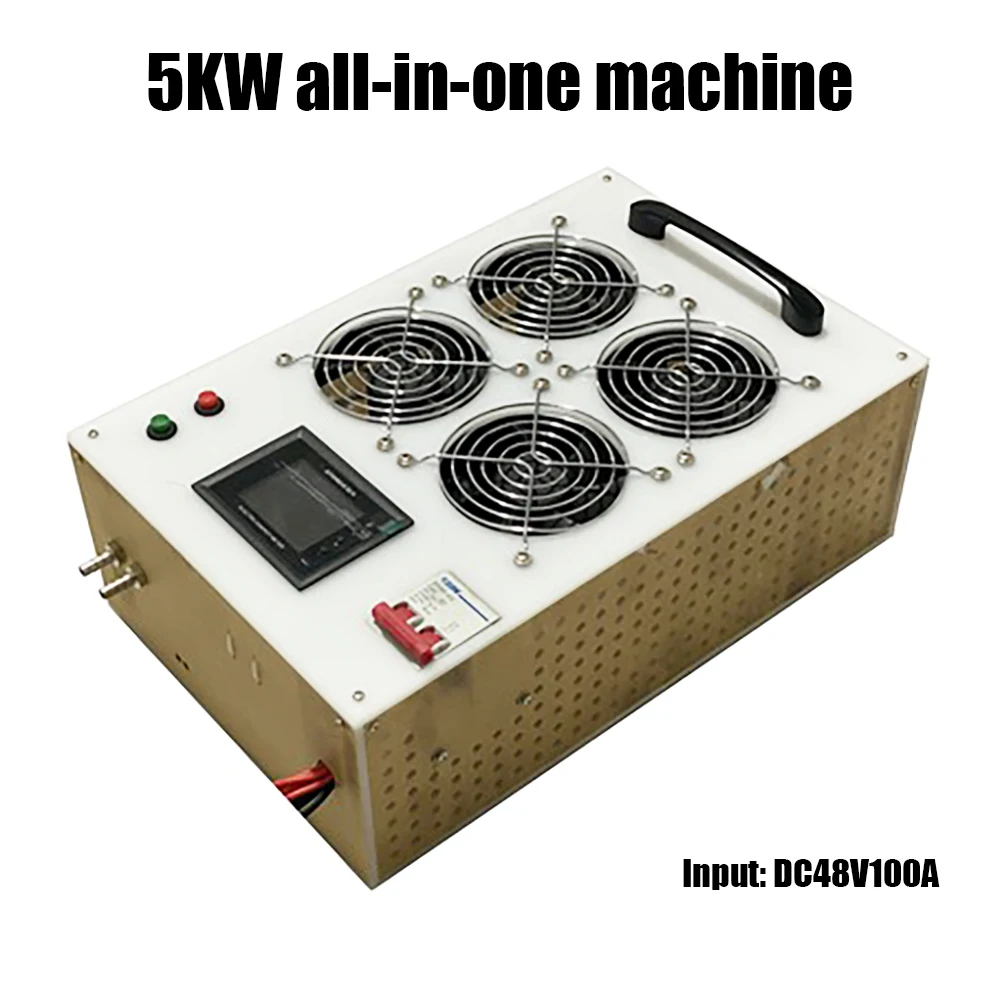

3. DC working voltage: 48V or 53.5V (the internal power supply voltage is the display voltage);

4. Maximum DC working current: 100A;

5. The maximum temperature of the metal iron directly heated within 20mm diameter is 1200

degrees Celsius, and the maximum temperature of the iron heated with the standard 70mm

diameter heating ring is about 1000 degrees Celsius;

6. The maximum temperature of the crucible is 1600 degrees Celsius, which can melt iron, gold,

silver, aluminum, copper and other metals;

7. Packing weight: 6KG;

8. Net weight of host: 4KG;

9. Packing size: 50cm * 40cm * 30cm;

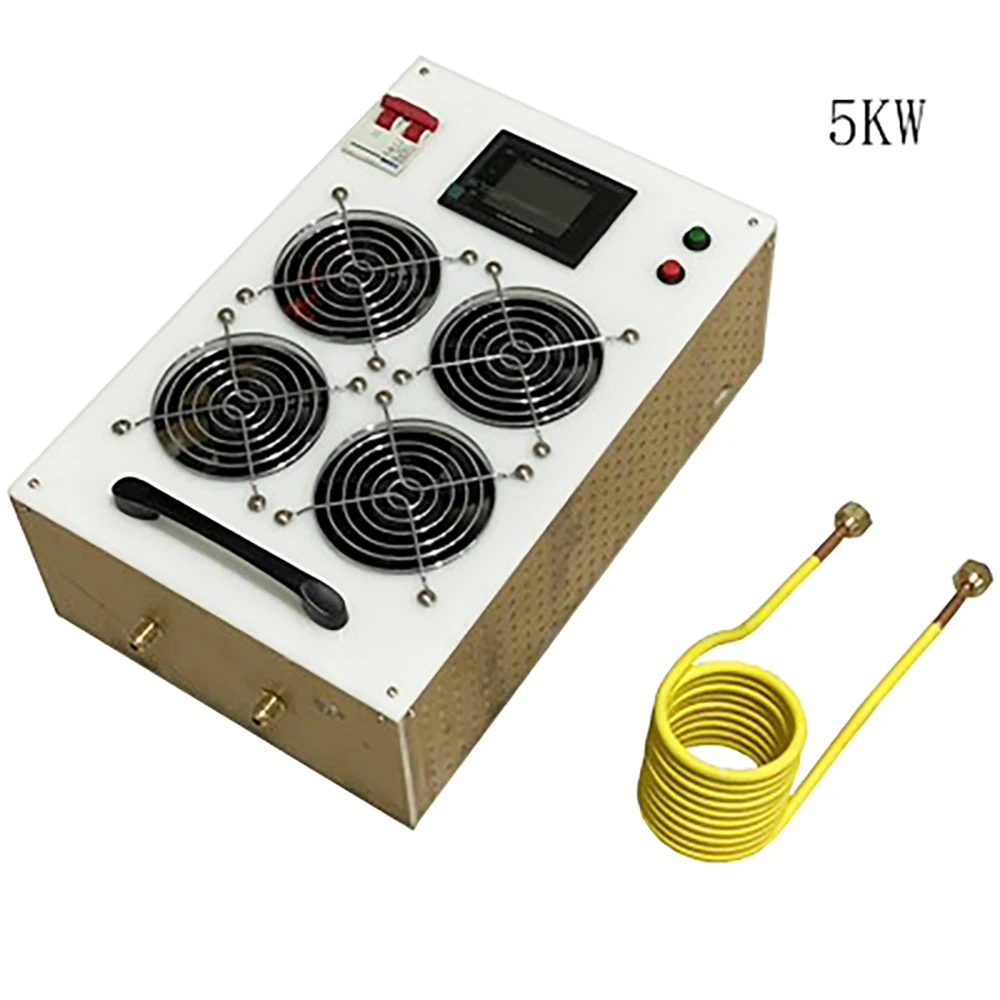

Integrated induction heating machine*1

（without power supply,Need to bring your own DC power supply)

Copper tube*1
