1. Connect one end of the water tube to the nozzle of the wet model trimmer and the other end to the tap, open the valve
2. Connect the waste-disposal tube to the unit

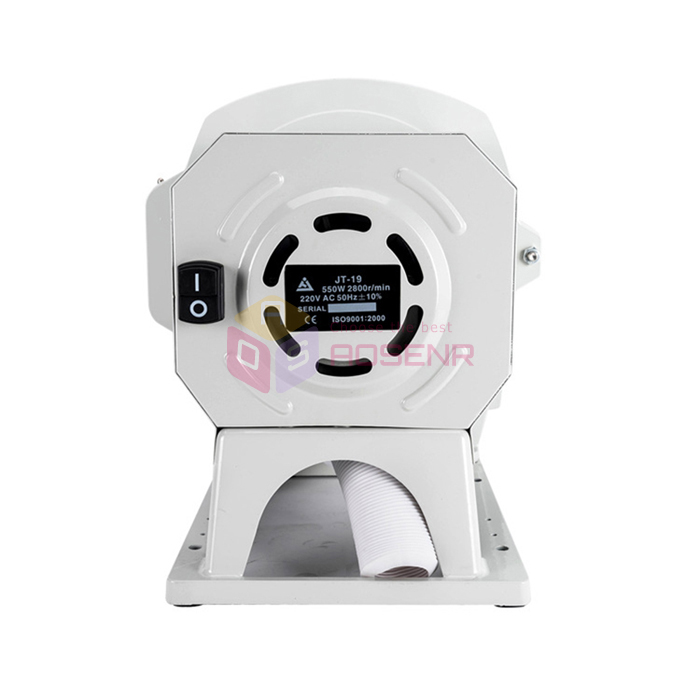

3. Connect the power cord, and switch on the power switch (O=off, l=on)
4. When braking, it is normal to hear clicking before the sand tablet stops. If the sand tablet makes unusually loud noises, remove it, and use the included hex-wrench to adjust the screw on the back cover (18)

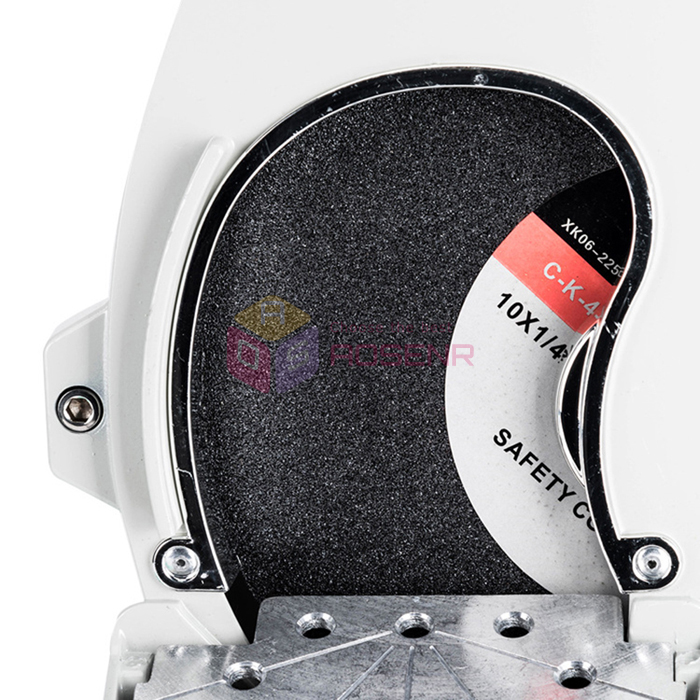

5. To check if you need to replace the abrasive disk, rotate the disk by hand and estimate: if the platform jumps more than 2mm, change the disk. After replacing the disk, make sure to tighten the ring on the platform 8 (closest to the outside of the sand tablet)
Specifications:
Voltage: 220V/50Hz±10% , 110V/60Hz±10%
Power: 500W
Rotational Speed: 2800 rpm
Dimensions: 44×35×35cm
Weight of the dental trimmer: 20kg
Trouble Killing:
If there is some abnormal noise when working on
Possible reason：① Axon is loosing ② Disc is not plain enough。
How to solve it：①Dissemble the disc⒃ with spanner，make the snap
Ring tightly；② change the disc。
The machine does not work when power on
Possible reason：① fuse get burnt；② motor get burnt；③ switch get wrong。
How to solve it：① change the fuse（22） which inside the socket；② change the motor；③ change the switch
Pacakge Includes:

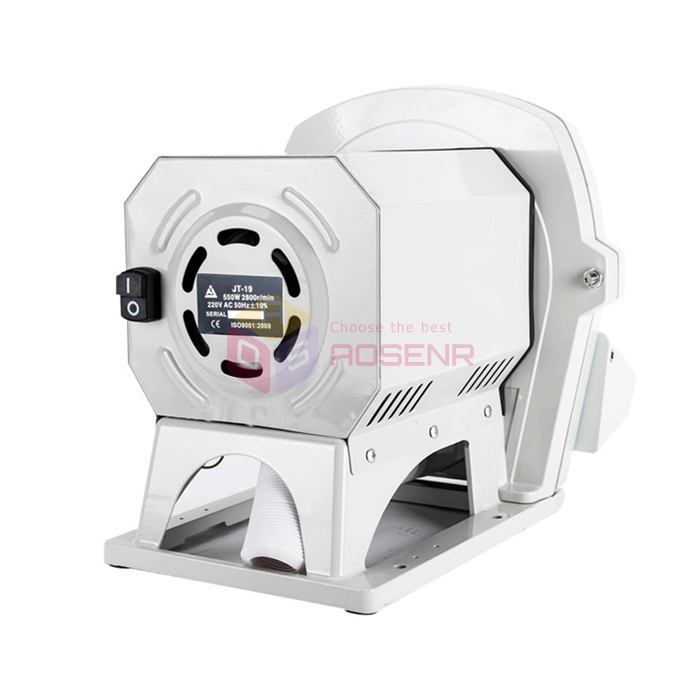

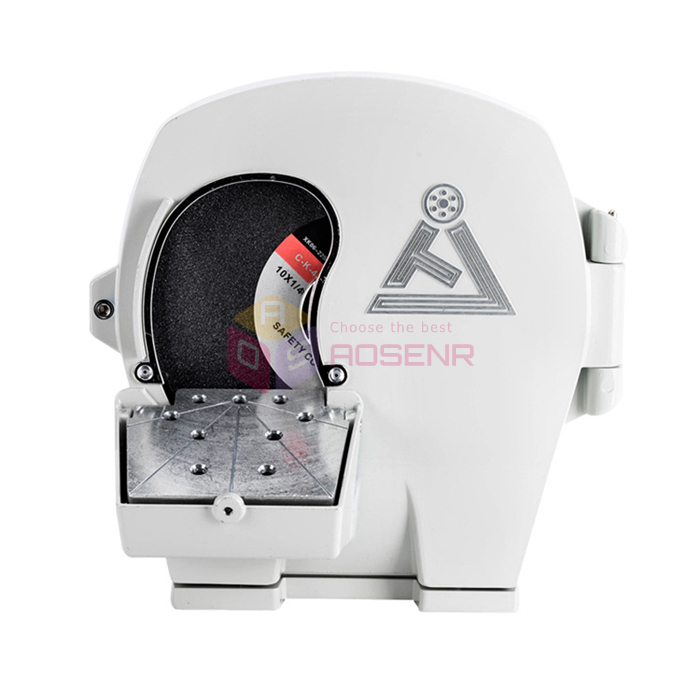

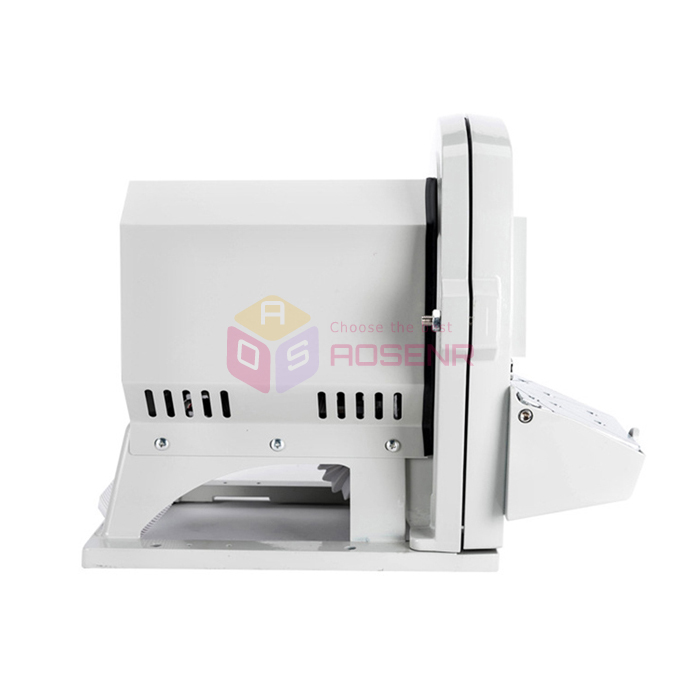

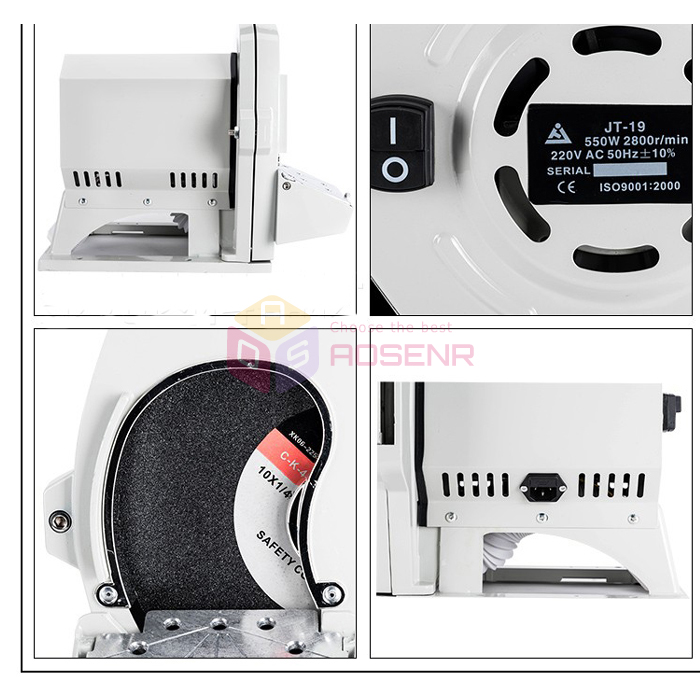

1x JT-19 Dental Wet Model Trimmer
