Description

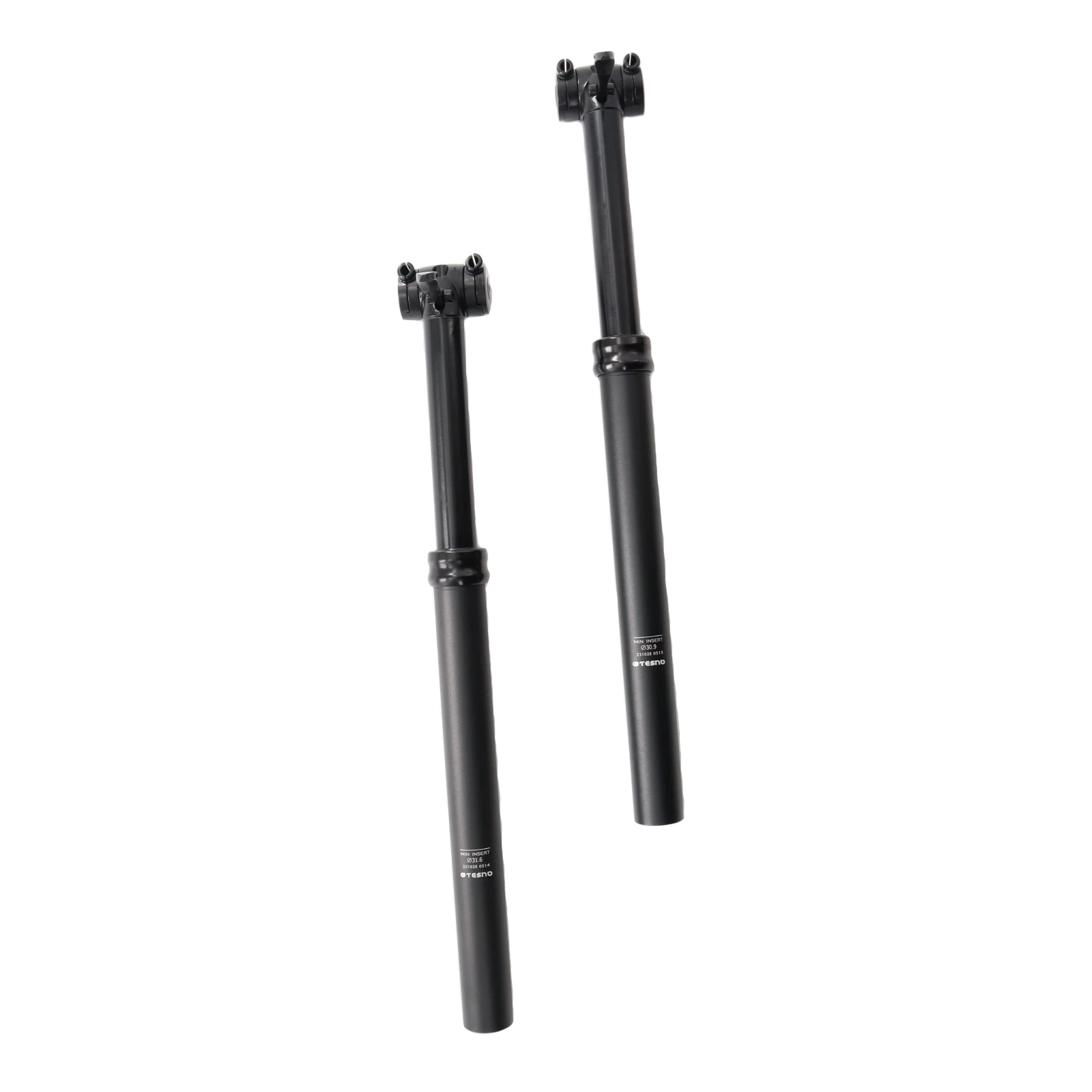

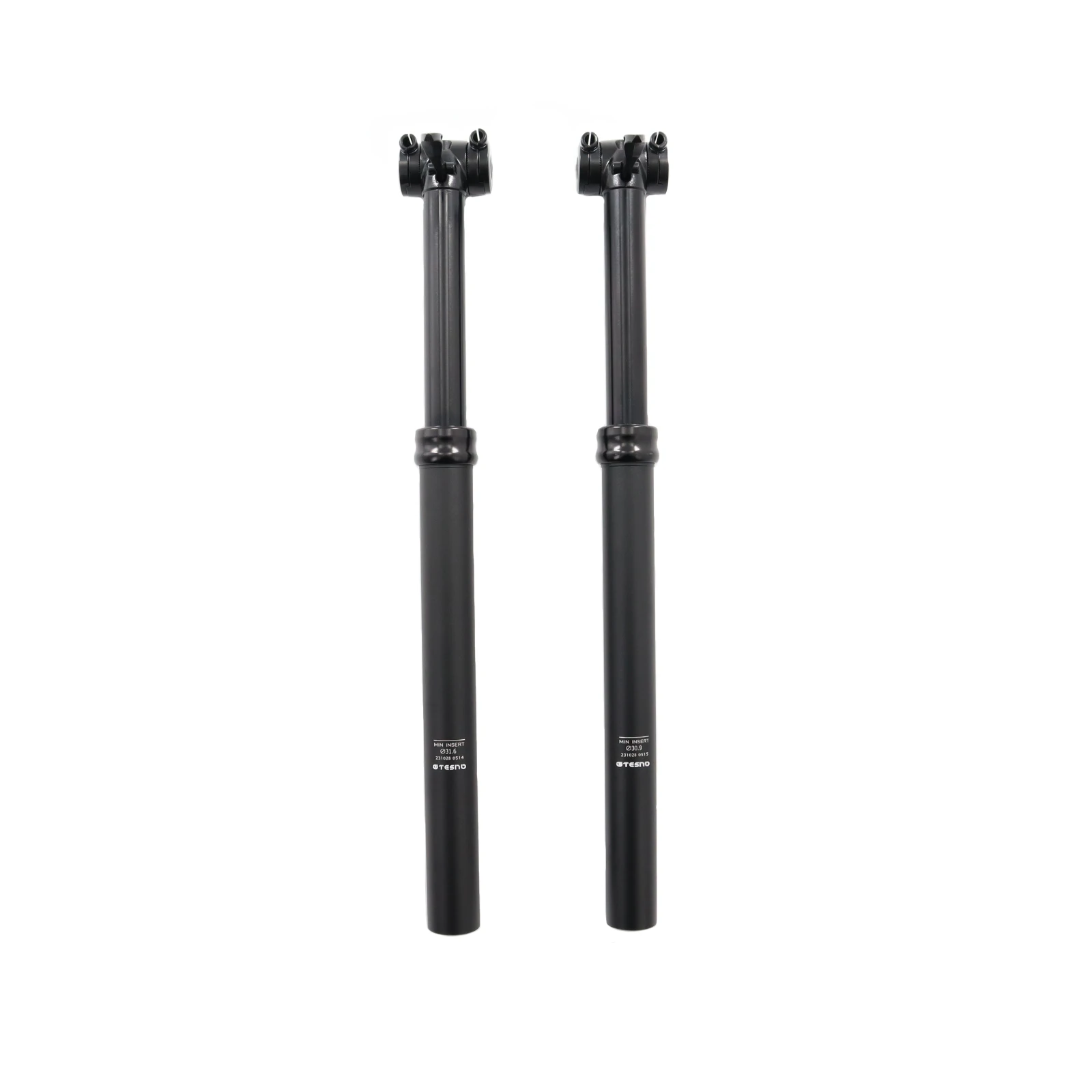

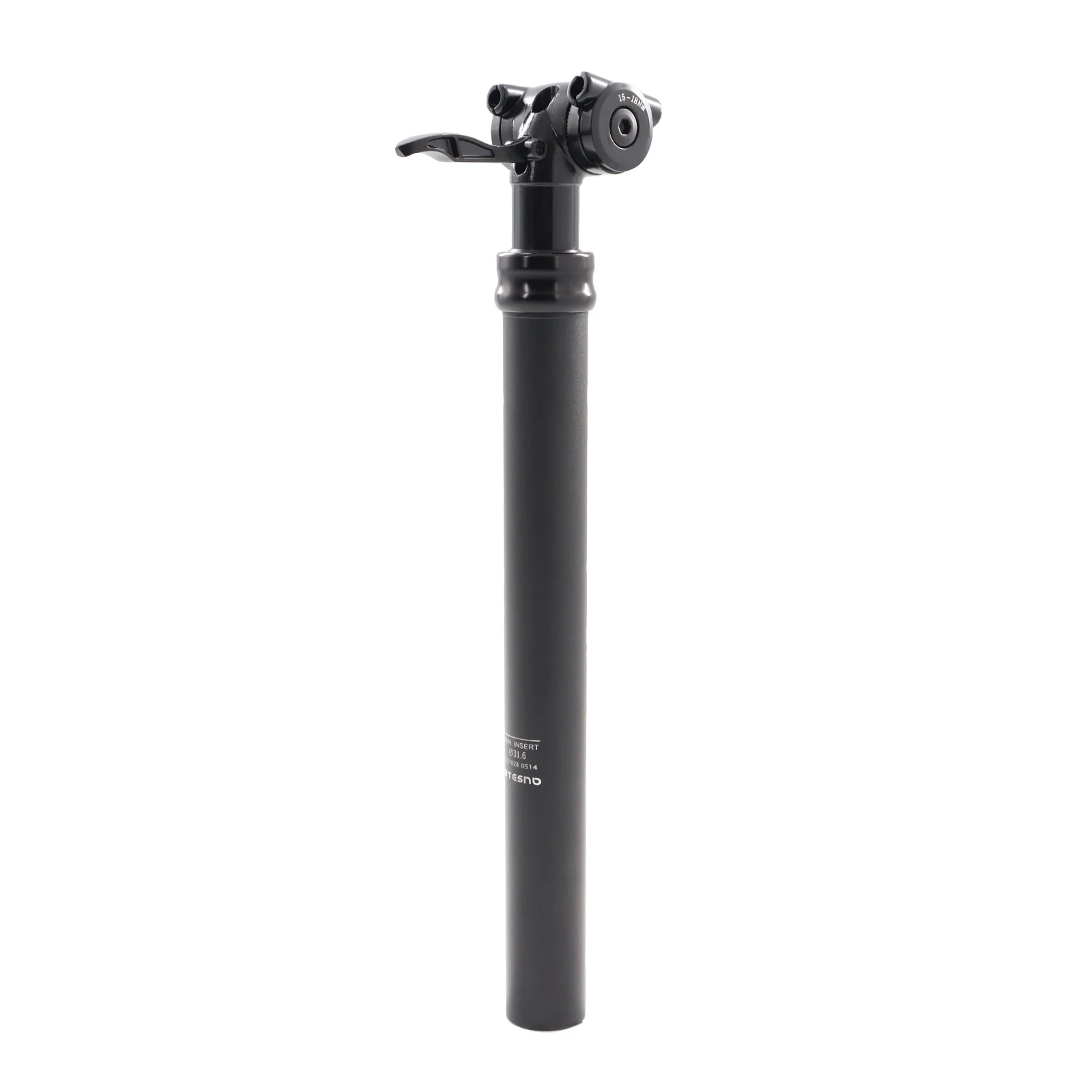

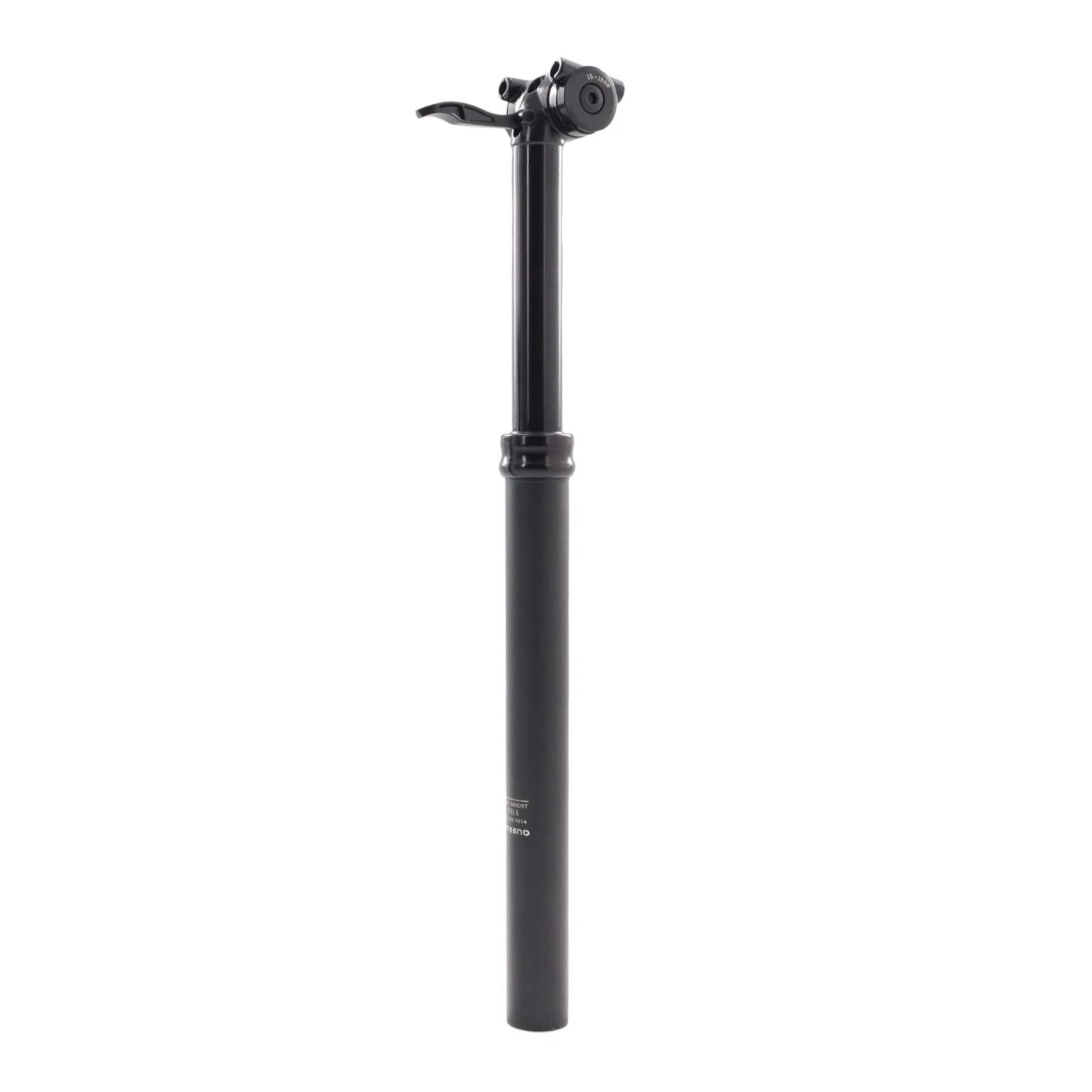

Product name:TESNO Bicycle Seatpost Adjustable Dropper Seat Post Seat tube Manual Travel Height Suspension MTB Road Hydraulic 30.9/31.6mm
Brand name: TESNO
Diameter: 30.9mm/31.6mm
Color: Black
Material:High strength aluminum alloy

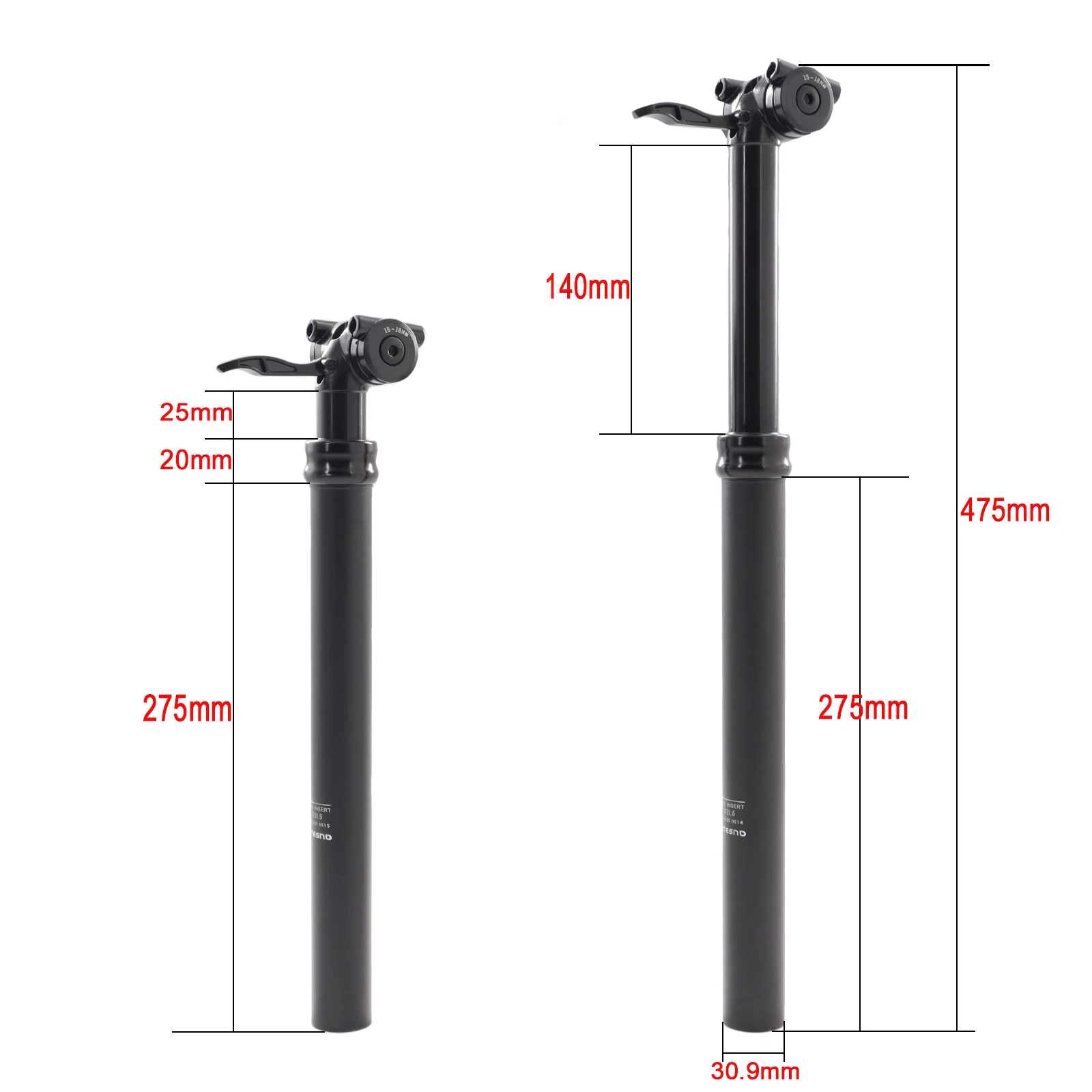

Travel: 100-120MM by order
Lifting Mechanism: Gas spring
Shock Absorbing Mechanism: Gas spring + spring

Installation Method

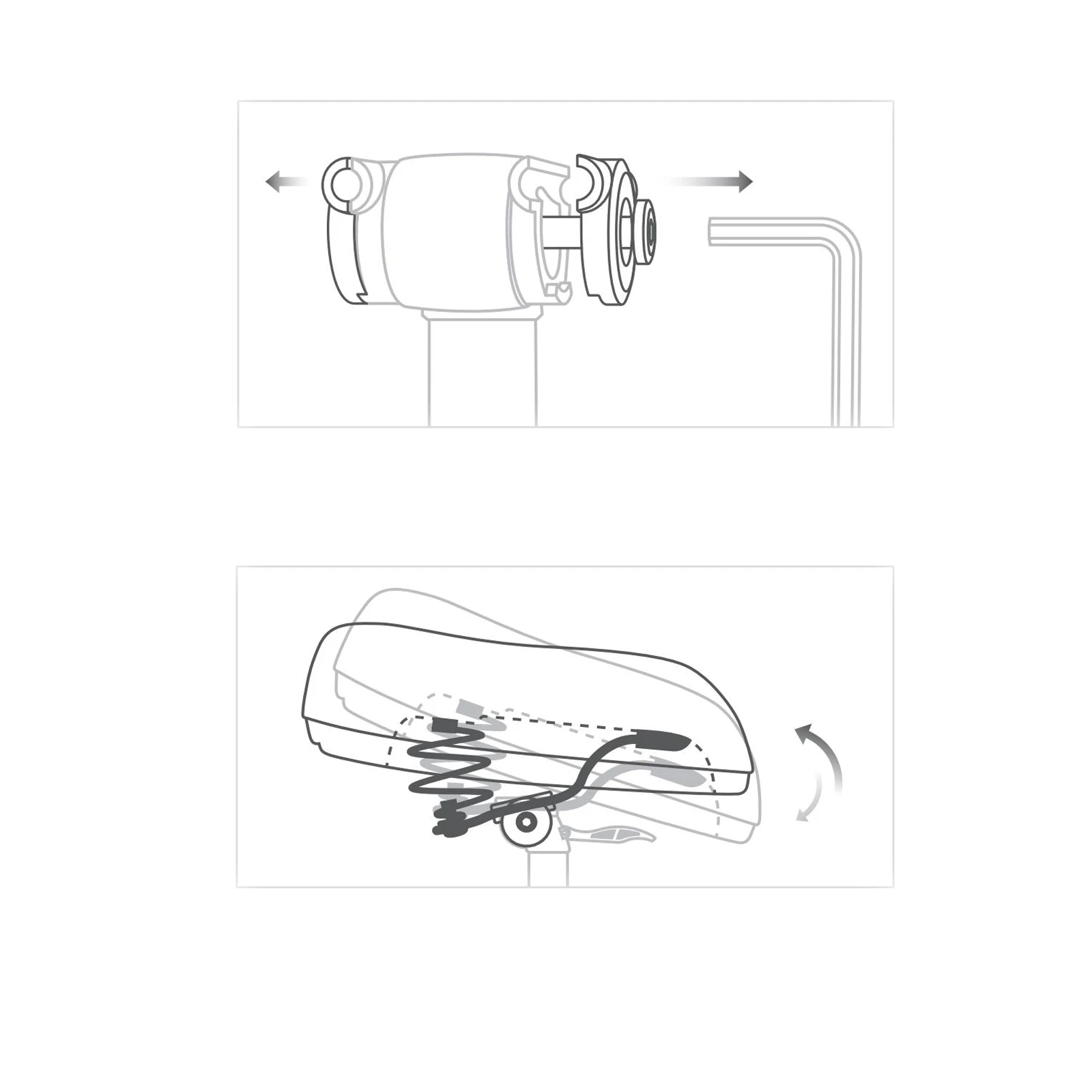

1.Use a size 5 hex wrench to loosen the seat post screw, leaving a gap for installing the seat.

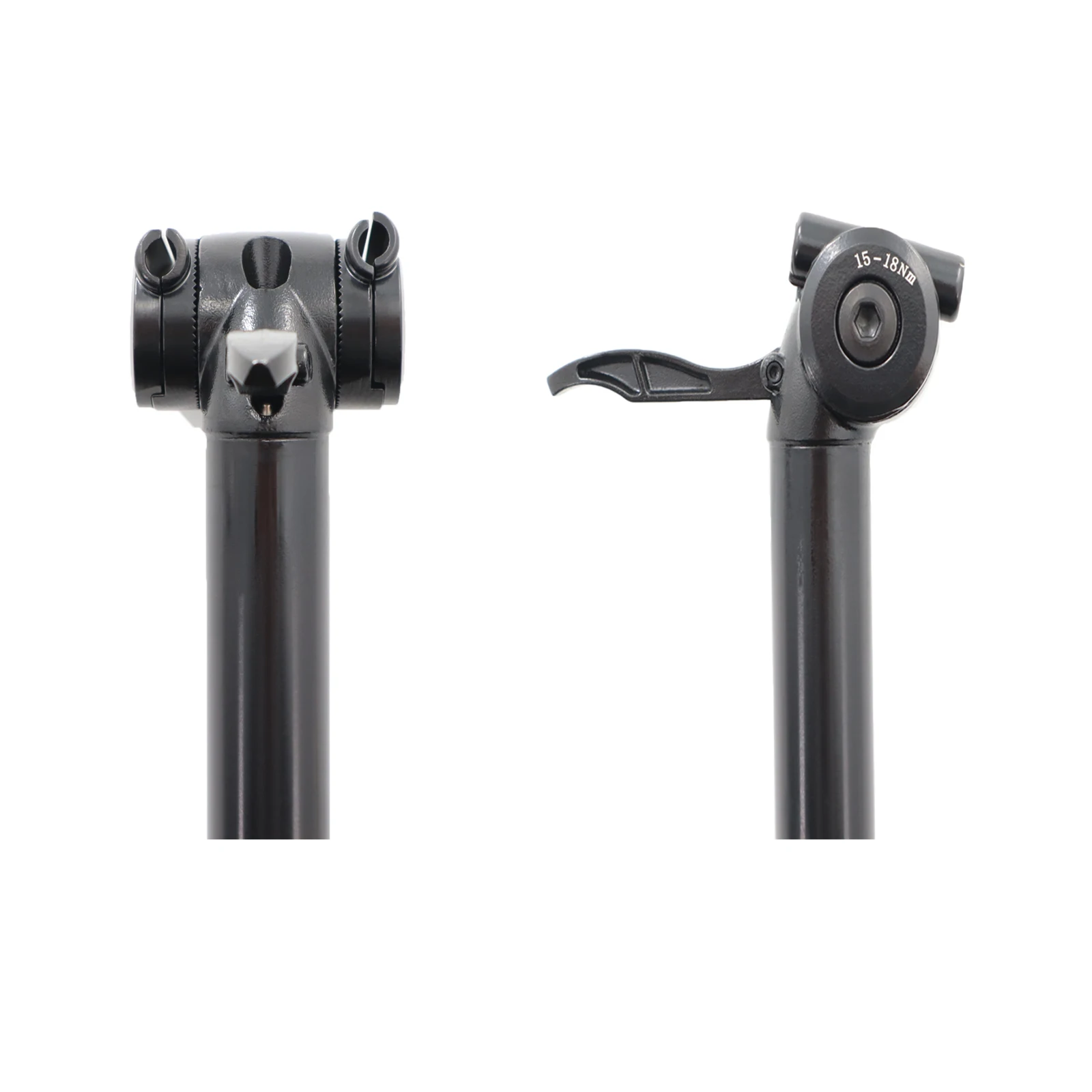

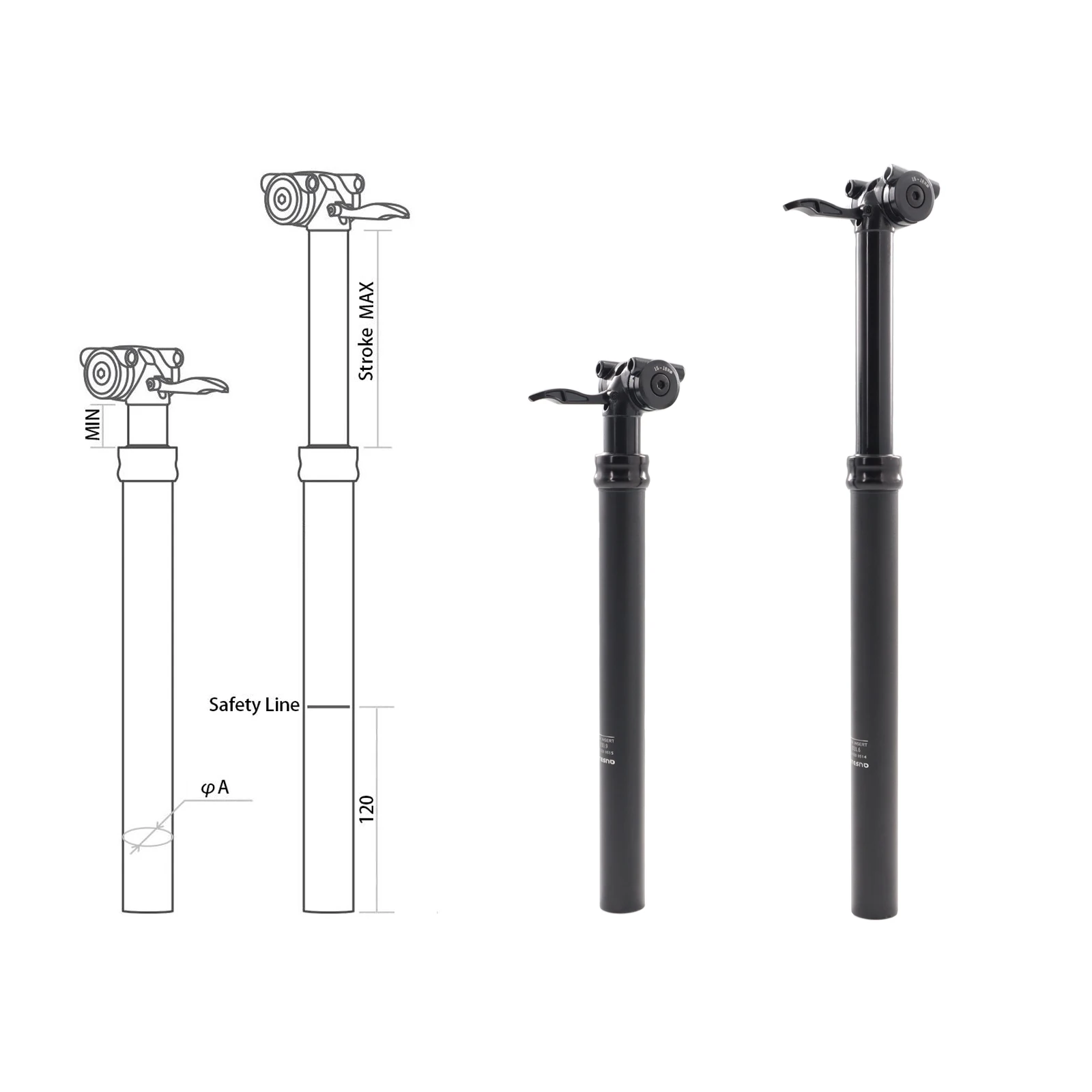

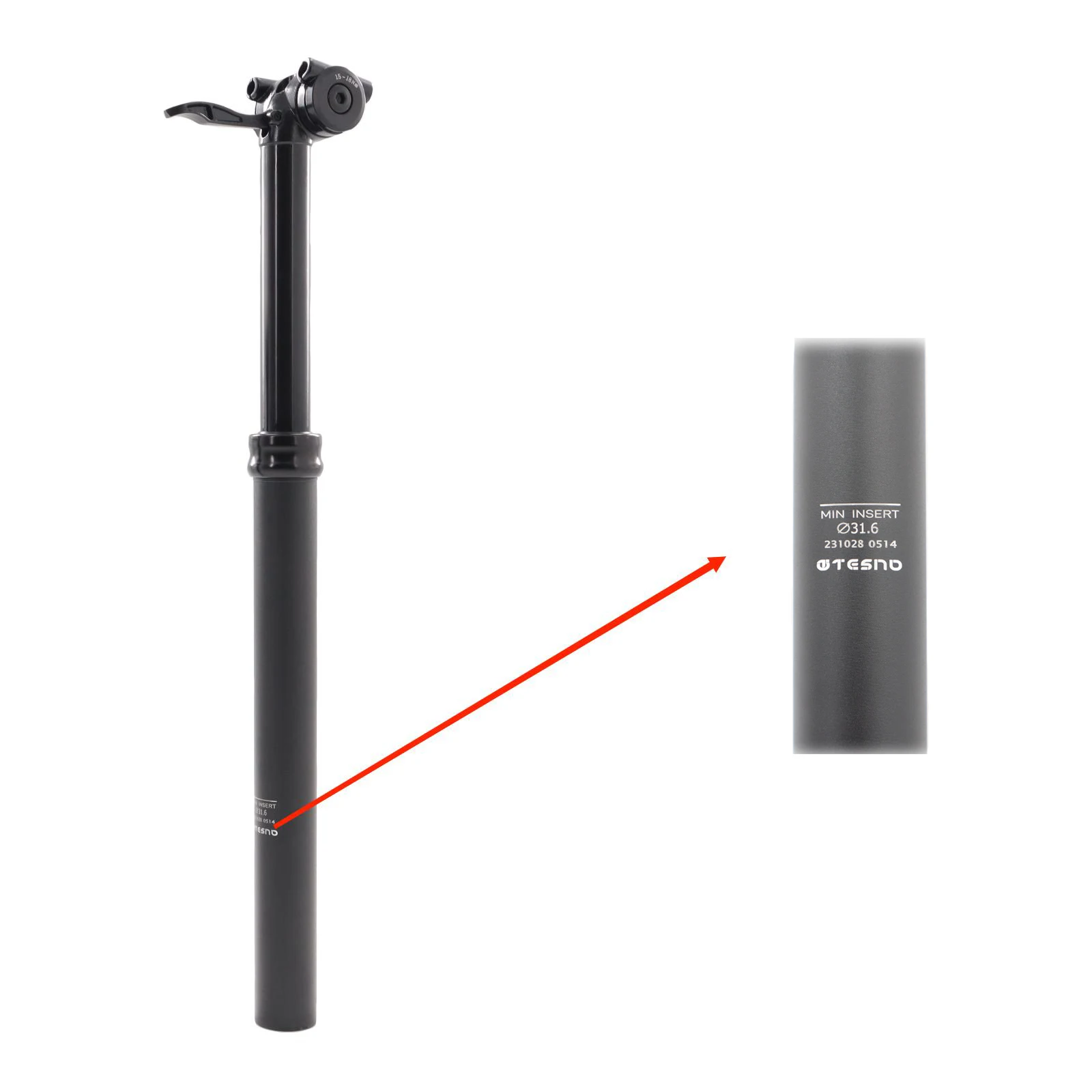

2.The seat support wire should be secured within the groove of the seat post. Slightly turn inwards (without fully tightening) the screws at both ends of the seat post. Rotate and adjust the seat cushion angle to the appropriate position. Afterward, tighten the screws at both .Recommended locking force15-18NM.When installing the saddle tube, insert the middle tube not less than the safety line position

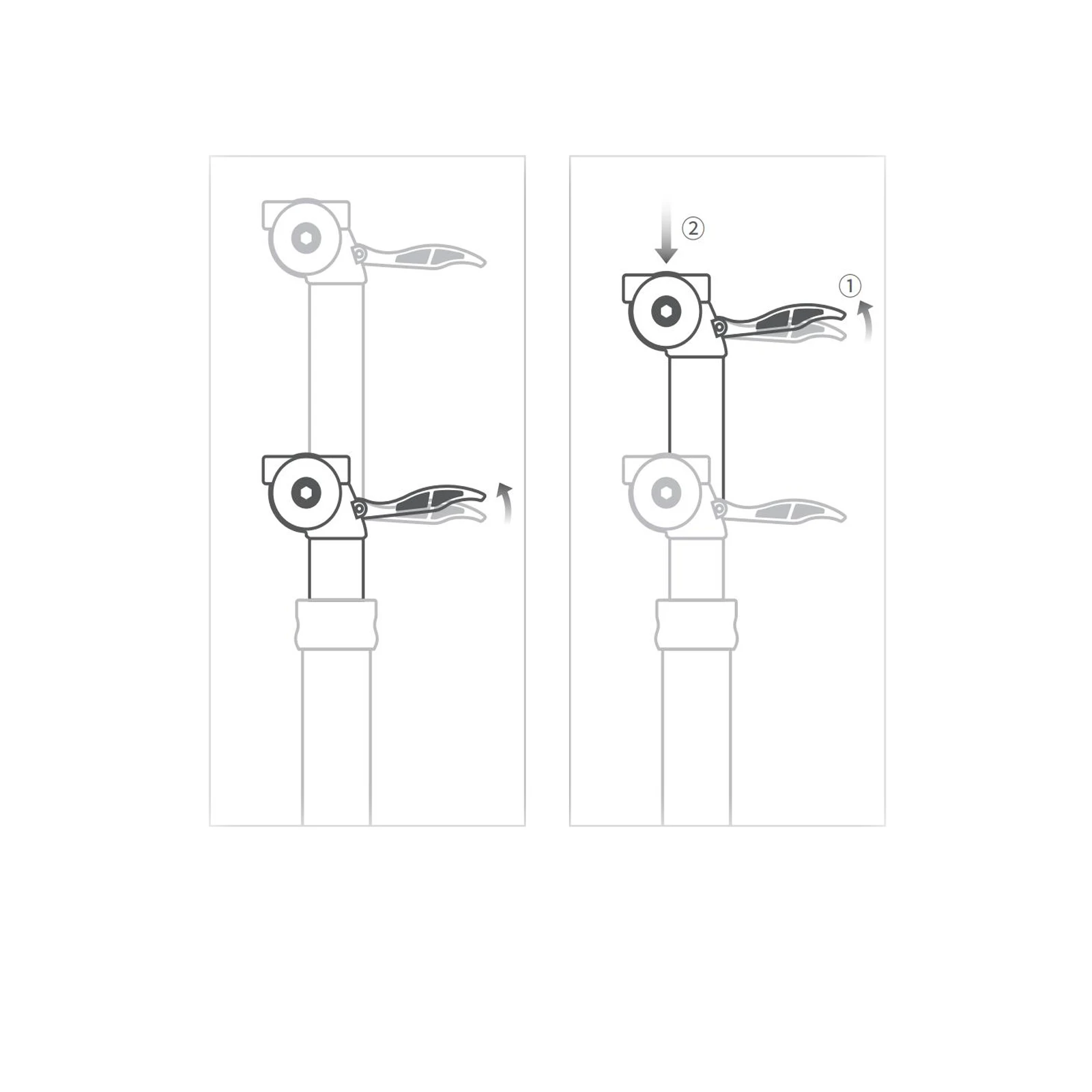

Elevation Adjustment

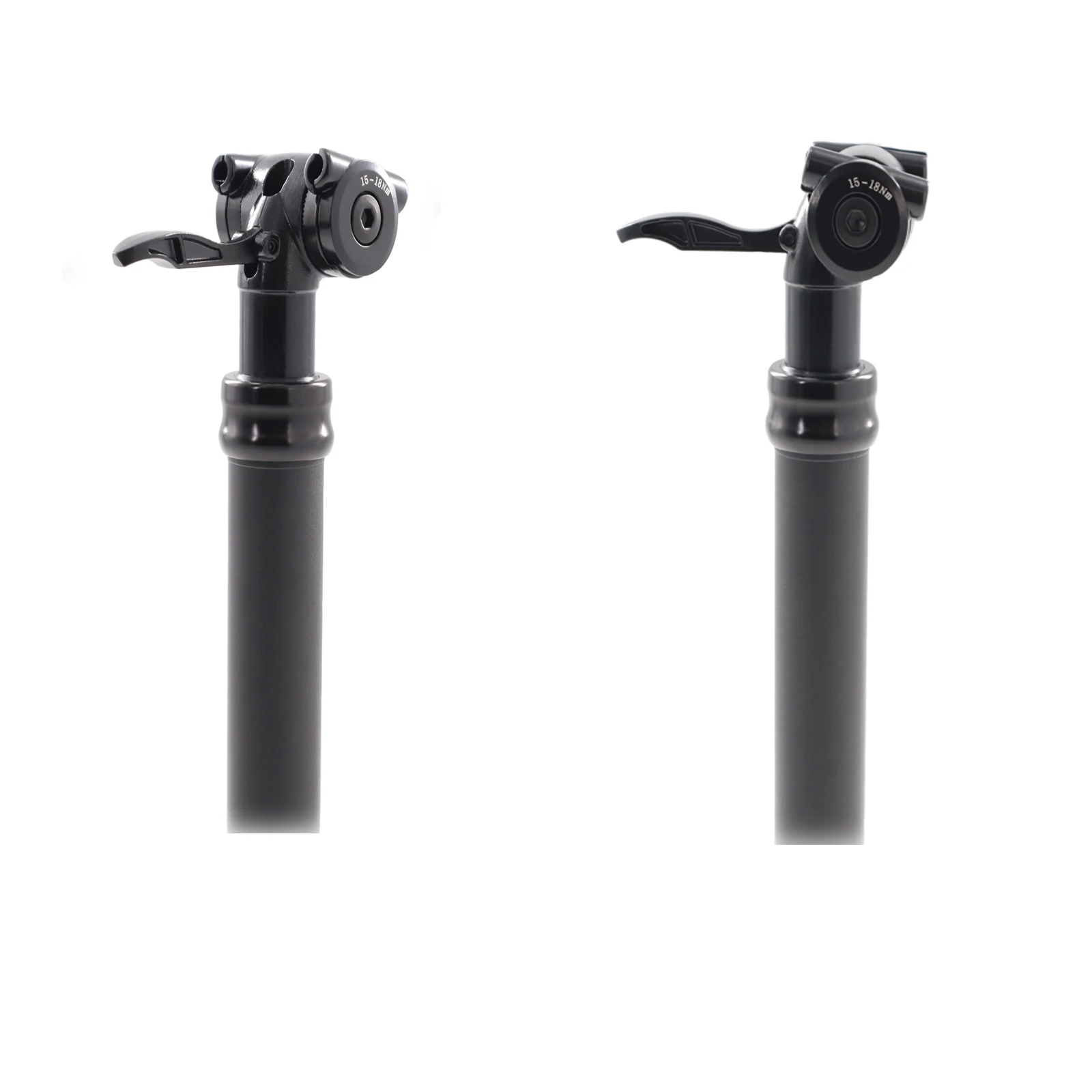

Raising Adjustment: Push the adjustable seat post handle upwards, and the seat post will automatically rise.
Lowering Adjustment: While pushing the adjustable seat post handle upwards①, apply force downwards from the top②. The seat post will retract downwards. Release the handle when it's at the desired position.
