DESCRIPTION
|
|
|
|
<span style="font-family: arial, helvetica, sans-serif;" data-mce-style="font-family: arial, helvetica, sans-serif;"><span style="font-size: 12pt;" data-mce-style="font-size: 12pt;">促销8</span></span>
|
Model
|

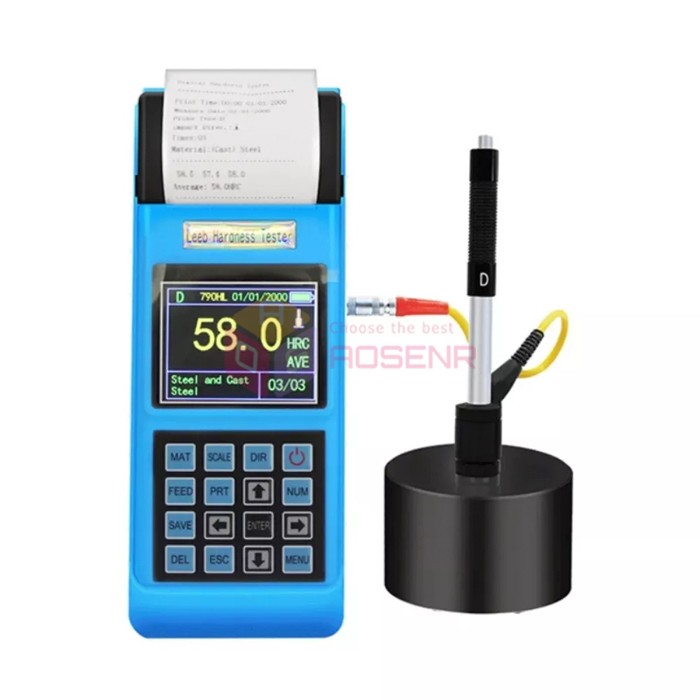

JH300 leeb hardness tester
|
|
Measuring range
|

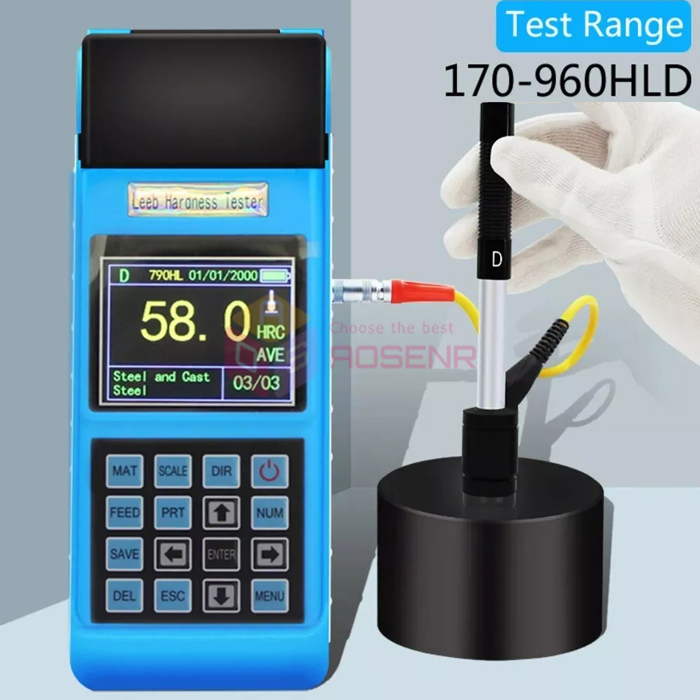

HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7)
|
Impact
Directions
|
Up, down, horizontal, slanting up, slanting down
|
|
Measuring Materials
|
Steel and cast steel, alloy tool steel, stainless steel
gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass) an alloy of copper and tin, copper (bronze), forged steel
|
|
Standards
|
ASTM A956,DIN50156-1,GB/T17394-1998
|
Hardness
Scales
|
HL,HB,HRB,HRC,HRA,HV,HS.
|
|
Tensile Strenght
|
374 to 2652 N/m 2
|
|
Display
|
128*64 digital matrix LCD
|
|
Memory
|
600 groups max.(relative to impact times 32~1)
|
|
Interface
|
USB2.0
|
|
Battery
|
3000mA Li rechargeable battery
|
|
Size
|

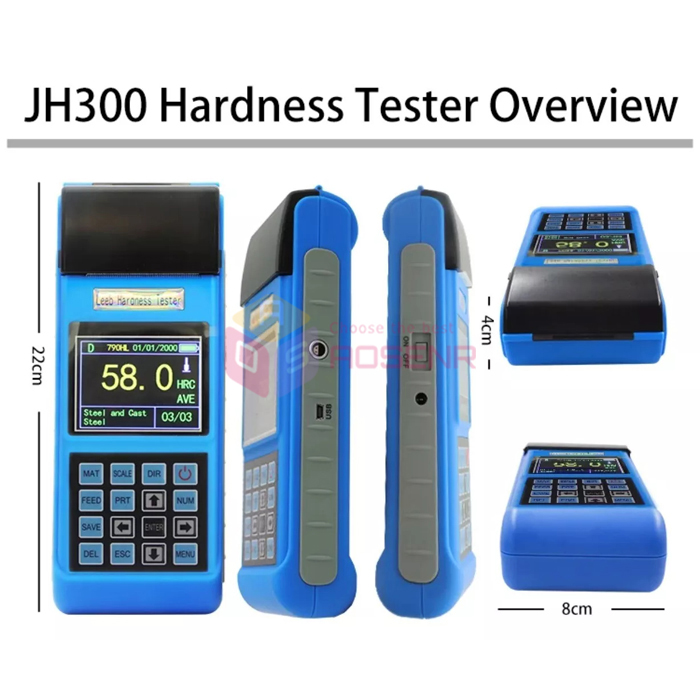

206*80*36.5mm
|
|
Print Function
|
Mini Printer
|
|
Work Voltage
|
9V/500mA.
|
Main Features
1.Large screen(128×64 dot matrix LCD), showing all functions and parameters.
2.Test at any angle, even upside down.
3.Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.

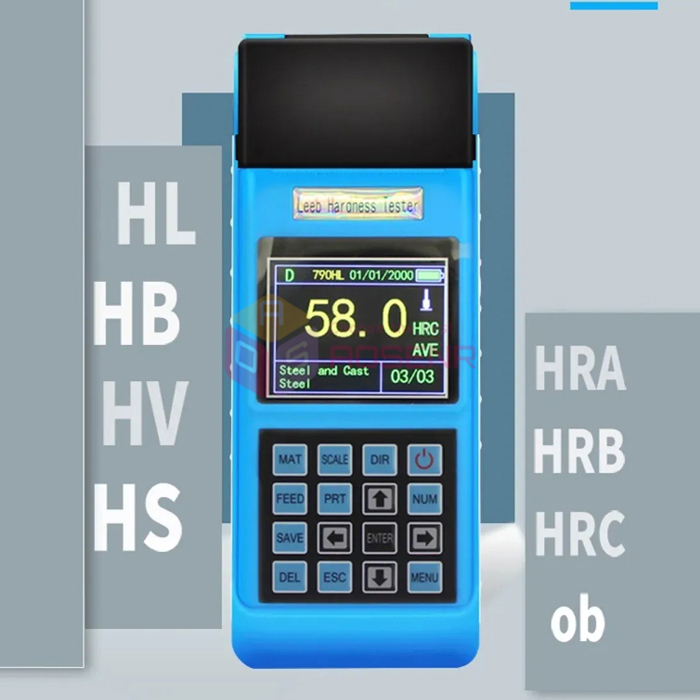

4.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.
5.Seven impact devices are available for special application. Automatically identify the type of impact devices.
6.Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
7.Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
8.Battery information indicates the rest capacity of the battery and the charge status.
9.User calibration function.

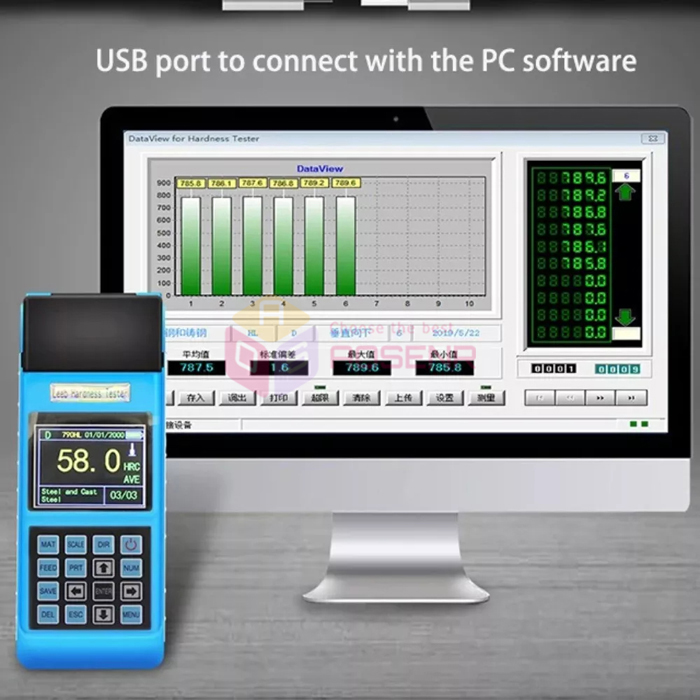

10.USB port with the PC humanity multi-functions data proceeding software.
11.Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
12.NI-MH rechargeable battery as the power source. Charge circuit integrated inside
Package Includes :
1x Main Unit

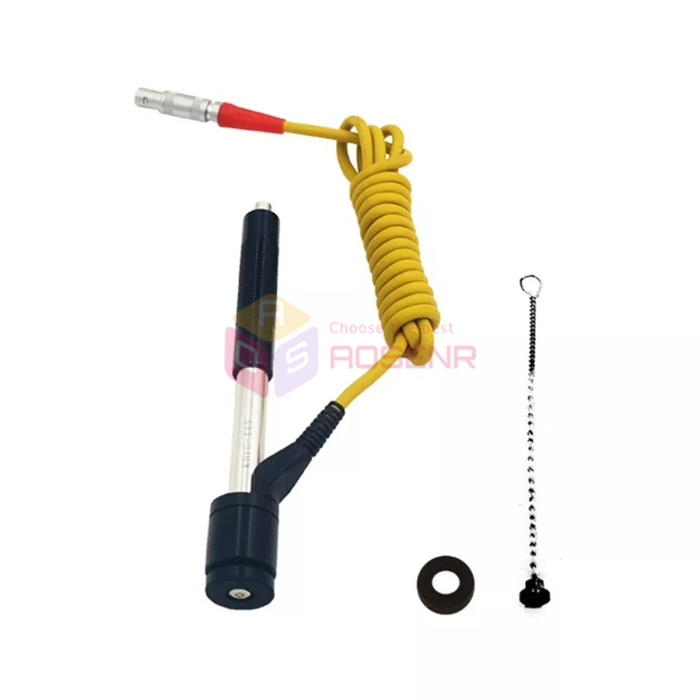

1x D type impact device
1x Standard test block
1x Cleaning brush (I)
1x Small support ring
1x Battery Charger
1x Manual
1x Data Pro software
1x Communication cable

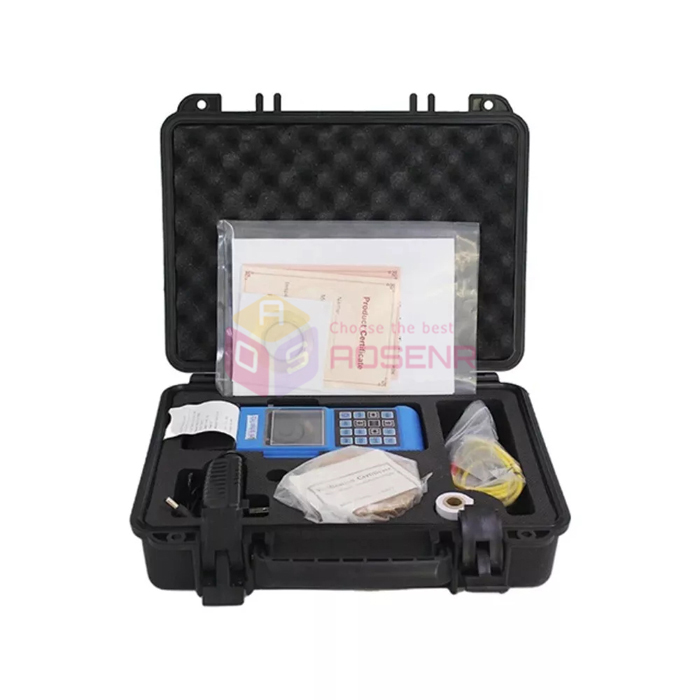

1x Instrument case
|
|
|
|
|
|
|
