DESCRIPTION:
Description:
The digital display viscometer is suitable for measuring the viscosity and rheology of various fluids. It is widely used to determine the dynamic viscosity and structural viscosity of mineral oil, lubricants, adhesives, paints, fuels, inks, etc. Ideal instrument for measuring fluid viscosity in chemical, pharmaceutical, food, fuel, adhesive and other industries.
This instrument is a digital viscometer. The motor drives the rotor to rotate at a constant speed through a variable speed. When the rotor rotates in the liquid, the liquid will produce a viscosity moment acting on the rotor, and the viscous moment is also larger; on the contrary, the lower the viscosity of the liquid, the smaller the viscous moment. The viscous moment acting on the rotor is determined by The sensor detects it, and the viscosity of the measured liquid is obtained after computer processing.
This instrument uses microcomputer technology, which can easily set the range (rotor number and speed), digitally process the data detected by the sensor, and clearly display the rotor number, speed, and measured value set during measurement on the display screen The viscosity value of the liquid and its percentage of full scale.
NDJ-5S is equipped with 4 rotors (No. 1, 2, 3, 4) and 4 speeds (6, 12, 30, 60 rpm), 16 combinations of which can measure the measurement range The viscosity of various liquids.
The main technical parameters:
|

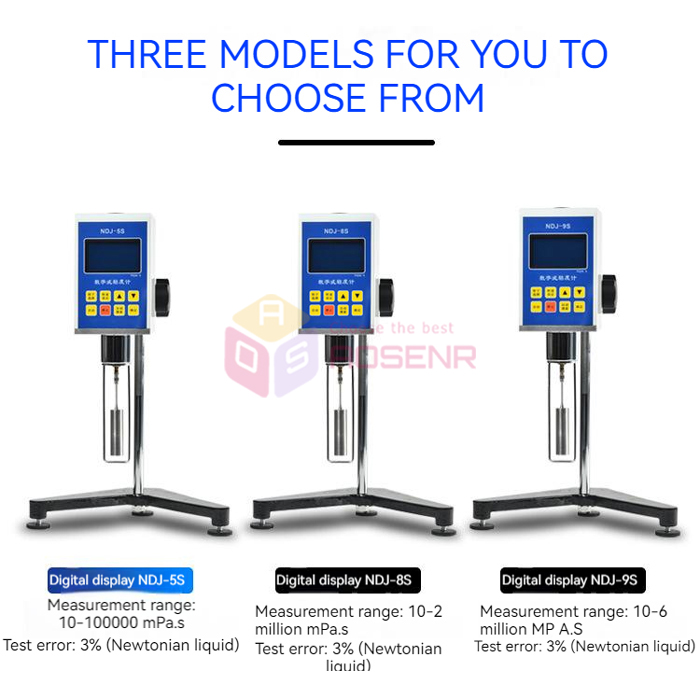

Model
|
NDJ-5S/NDJ-8S/NDJ-9S
|
|
Measuring range
|
NDJ-5S (10-100000 mPa.s)
NDJ-5S(10-2 million mPa.s)
NDJ-5S(10-6 million mPa.s)
|
|
Rotor specifications
|
No. 1-No. 4 rotor, optional No. 0 rotor can measure low viscosity to 0.1mPa.s
|
|
Rotor speed
|
6, 12, 30, 60 rpm
|
|
Automatic file
|
Can automatically select the appropriate rotor number and speed
|
|
Operation interface selection
|
Chinese /English
|
|
Stable reading cursor
|
The reading is basically stable when the vertical bar and square cursor is full
|
|
measurement accuracy
|
±3% (Newtonian liquid)
|
|
Power supply
|
110V/60Hz, 220V/50Hz
|
|
working environment
|
Temperature 5°C~35°C, relative humidity not more than 80%
|
|
Dimensions
|
370×325×280mm
|
|
Net Weight
|
6.8kg
|

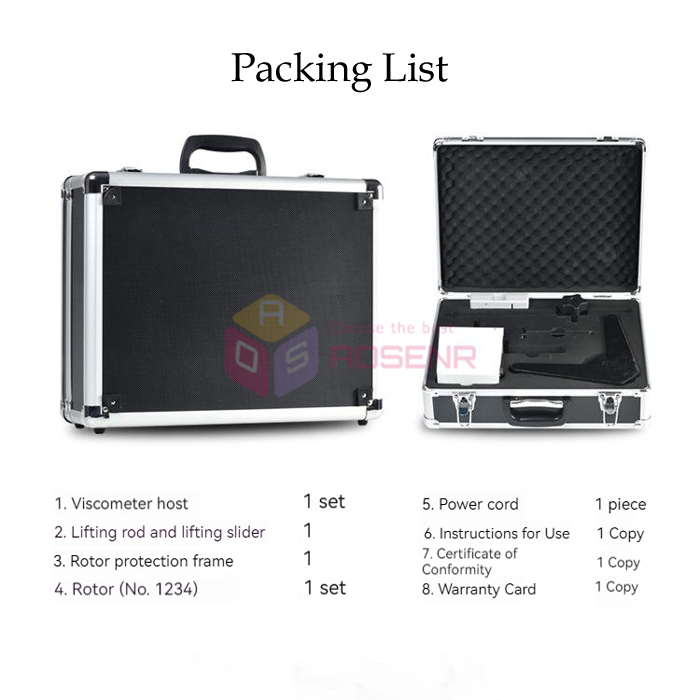

Package Includes:
1 X Digital Display Viscometer
|
