TANKE
FOUR PISTON DUAL BRre makes the brake pads more balanced
FRONT AND REAR HYDRAULIC DISC BRAKES
Hydraulic brake, bilateral brake piston, thickened anti wear oil pipe, aluminum alloy brake brake

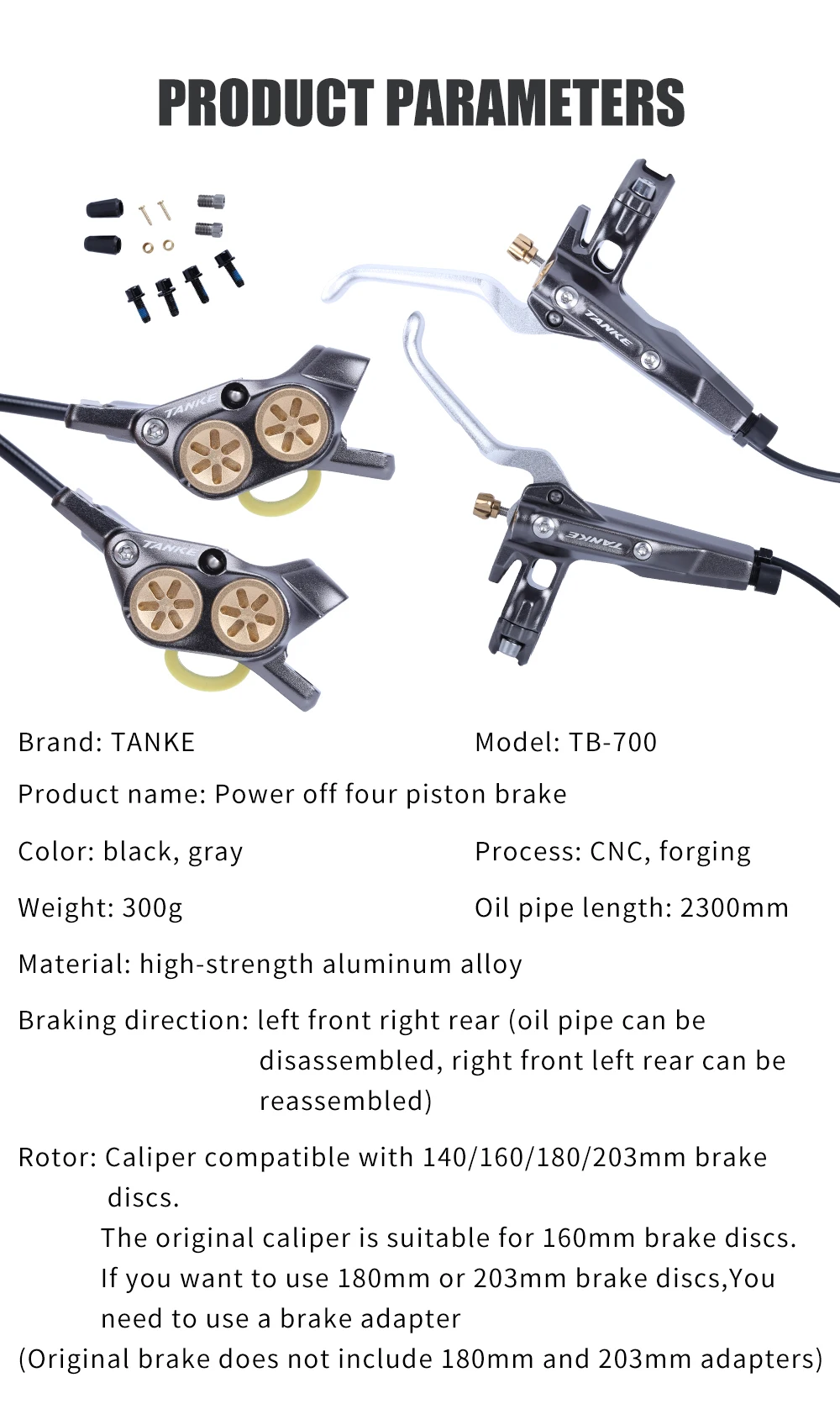

PRODUCT PARAMETERS
Brand: TANKE
Model: TB-700
Product name: Power off four piston brake

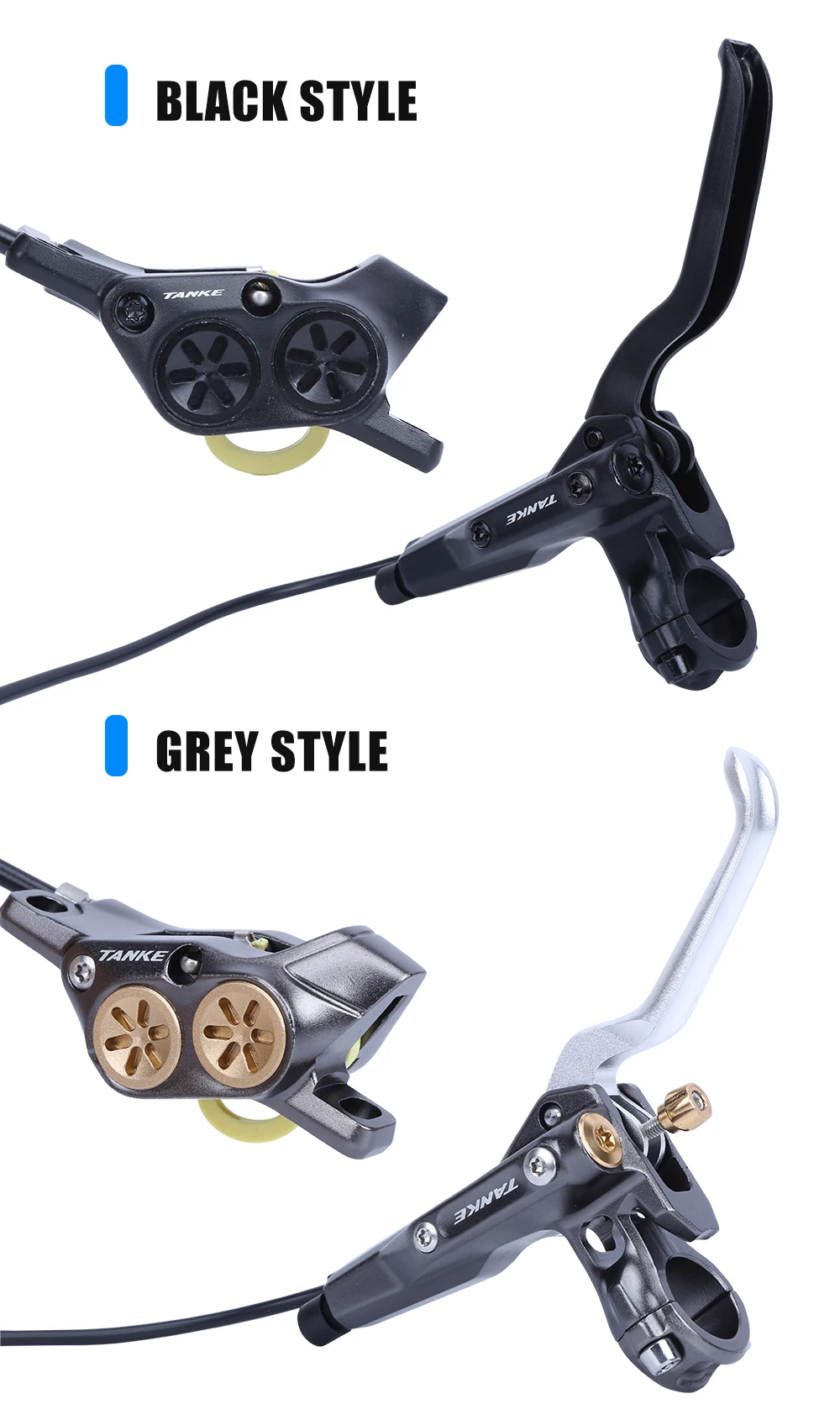

Color: black, gray
Process: CNC, forging
Weight: 300g
Oil pipe length: 2300mm
Material: high-strength aluminum alloy
Braking direction: left front right rear (oil pipe can be disassembled, right front left rear can be reassembled)
Rotor: Caliper compatible with 140/160/180/203mm brake discs.
The original caliper is suitable for 160mm brake discs.
If you want to use 180mm or 203mm brake discs,
You need to use a brake adapter
(Original brake does not include 180mm and 203mm adapters

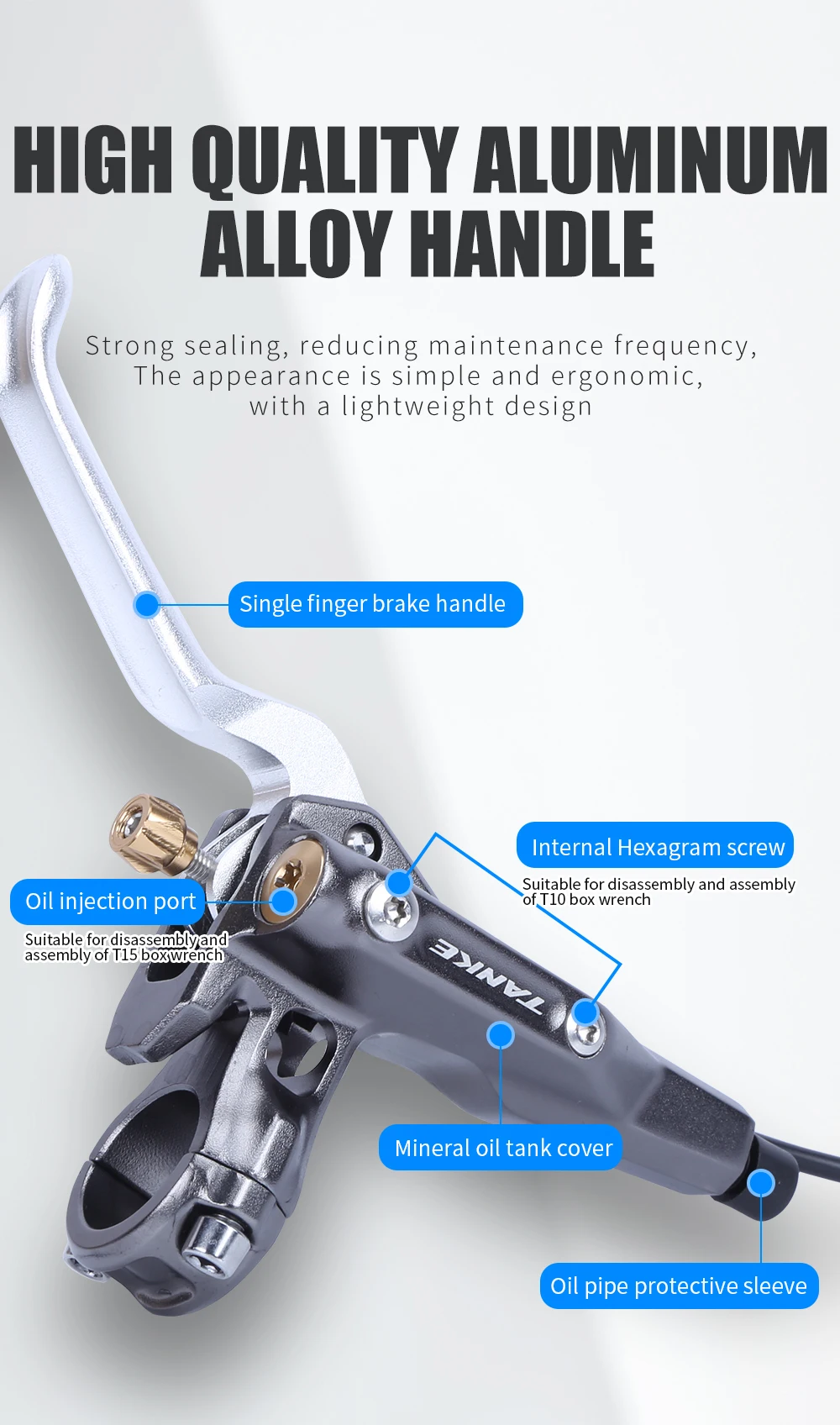

HIGH QUALITY ALUMINUN ALLOY HANDLE
Strong sealing, reducing maintenance frequency, The appearance is simple and ergonomic, with a lightweight design
Single finger brake handle
Internal Hexagram screw
Sutable for disassembly and assembly T10bawrench

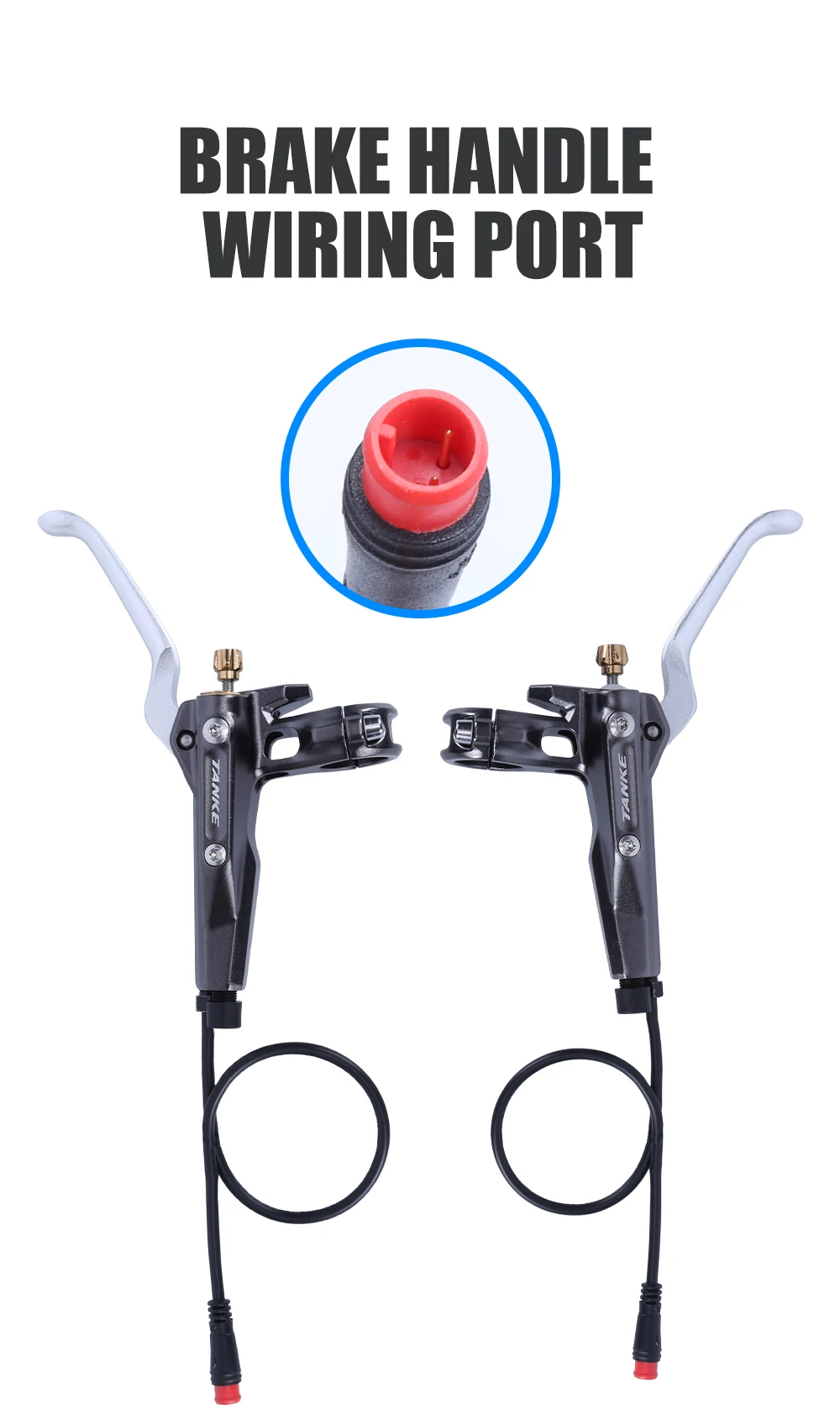

BRAKE HANDLE WIRING PORT

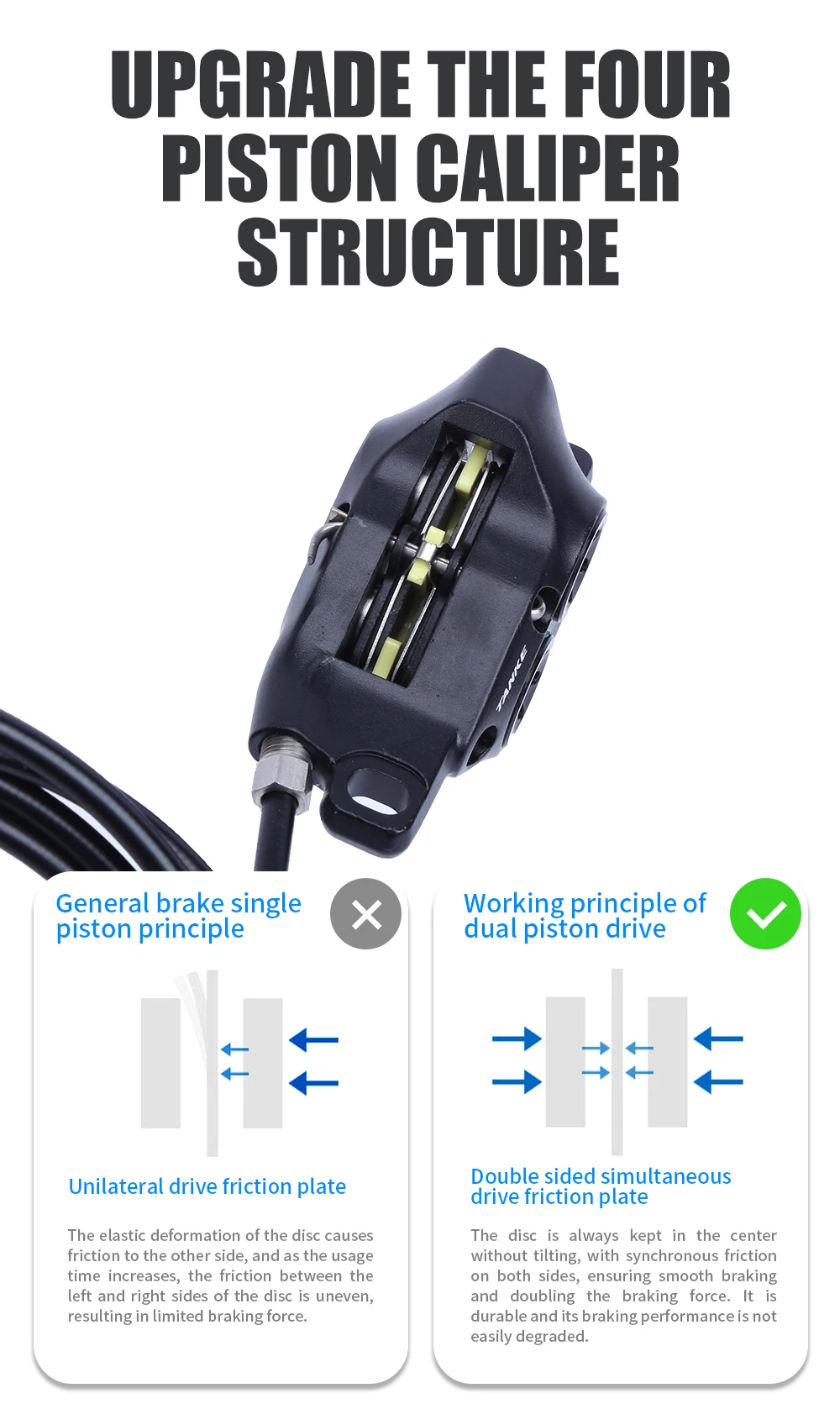

UPGRADE THE FOUR PISTON CALIPER STRUCTURE
General brake single piston principle
Unilateral drive friction plate
The elastic deformation of the disc causes friction to the other side, and as the usage time increases, the friction between the left and right sides of the disc is uneven, resulting in limited braking force.
Working principle of dual piston drive
Double sided simultaneous drive friction plate
The disc is always kept in the center without tilting, with synchronous friction on both sides, ensuring smooth braking and doubling the braking force. It is durable and its braking performance is not easily degraded.

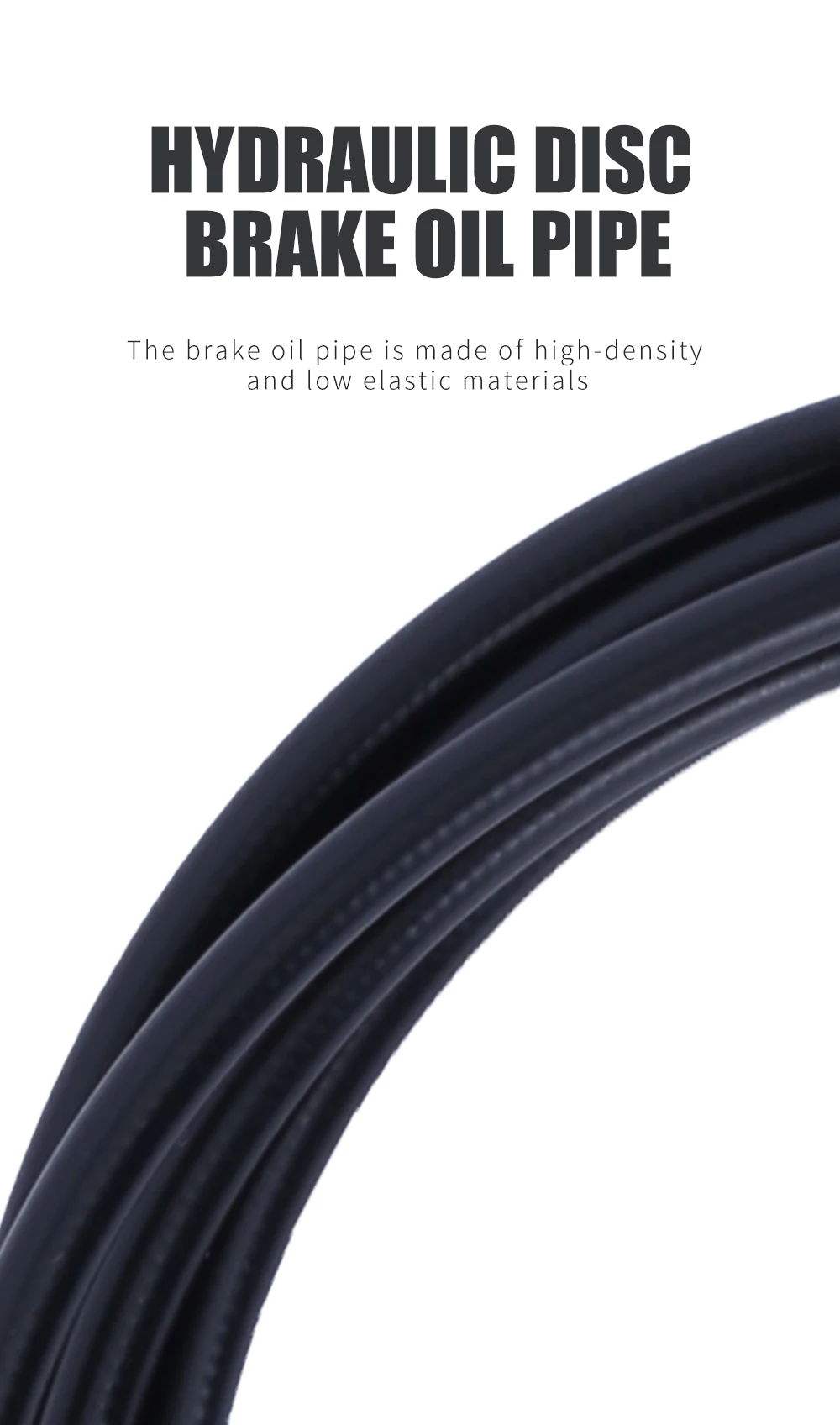

HYDRAULIC DISC BRAKE OIL PIPE
The brake oil pipe is made of high-density and low elastic materials
