Description
ER-TFT1.06-1 is an 1.06 inch ips tft display panel featuring a resolution of 96x160 pixels. It utilizes the GC9107 display driver IC and a 4-wire serial spi interface for communication,with soldering type FPC,no connector is needed.
The IPS (In-Plane Switching) technology used in this display provides wide viewing angles and excellent color reproduction, making it easy to view from various angles without distortion. The display has a high contrast ratio of 800:1, making it capable of rendering deep blacks and vibrant colors. It also has a high brightness of 400cd/m2.
For those who use a 8051 microcontroller, we have also prepared a detailed tutorial that includes interfacing information, demo code, and a development kit. You can find this information at the bottom of the page.We hope that these resources will make it easy for you to get started.
What's included in the package ↓
Num | Accessory Name | Qty |
1 | 1.06 inch TFT LCD 96x160 Pixels Display | 1 |

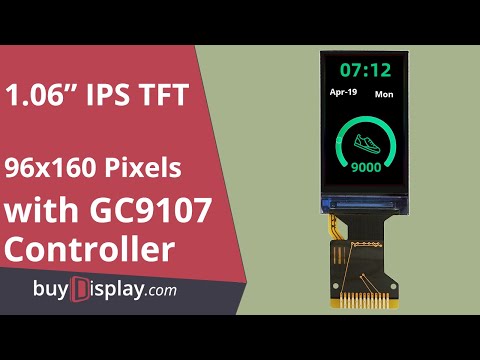

Vidoe_ER-TFT1.06-1
1.06 inch 96x160 IPS TFT LCD Display 4-Wire SPI GC9107 Controller
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/1-06-inch-96x160-ips-tft-lcd-display-4-wire-spi-gc9107-controller
Datasheet for TFT LCD Display,Controller
Format Documents Name Language Update Date Size
ER-TFT1.06-1 Datasheet English Jul-07-2023 645K Controller GC9107_Datasheet English Jan-01-2021 2.5M
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| ER-TFT1.06-1 Datasheet | English | Jul-07-2023 | 645K |
| Controller GC9107_Datasheet | English | Jan-01-2021 | 2.5M |
Tutorial - 8051 Microcontroller
Format Documents Name Language Update Date Size
8051 Interfacing and Demo Code English Jul-20-2023 283K
N/A N/A N/A
| Format | Documents Name | Language | Update Date | Size |
|---|---|---|---|---|
| 8051 Interfacing and Demo Code | English | Jul-20-2023 | 283K |
| N/A | N/A | N/A |
| Gross Weight (kg) | 0.0180 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2023. |
| Part Number | ER-TFT1.06-1 |
| Display Format | 96x160 Pixels |
| Interface | 4-Wire Serial SPI |
| IC or Equivalent | GC9107 |
| Appearance | RGB |
| Diagonal Size | 1.06" |
| Connection | FPC-Soldering |
| Outline Dimension | 16.12(W)x29.76(H)x1.52(T)mm |
| Visual Area | 14.82x24.04mm |
| Active Area | 13.82(W)x23.04(H)mm |
| Character Size | No |
| Dot (Pixel) Size | No |
| Dot (Pixel) Pitch | 0.143x0.144mm |
| IC Package | COG |
| Display Type | TFT-LCD Color |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Response Time(Typ) | 20ms |
| Contrast Ratio(Typ) | 800:1 |
| Colors | 4K/65K/262K |
| Viewing Direction | IPS |
| Viewing Angle Range | Left:80.0, Right:80.0 , Up:80.0, Down:80.0degree |
| Brightness(Typ) | 400cd/m2 |
| Backlight Color | White Color |
| Backlight Current (Typ) | 40mA |
| Power Supply(Typ) | 3V |
| Supply Current for LCM(Max) | No |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ER-TFT1.06-1 |
