Fitment：
Floor Heating Mat-Radiant Floor Heating Mat is one of the most robust, versatile, easy to install floor heating systems available on the market today. The resin coated fibreglass re-enforcing mesh is designed to protect the heating cable and add strength to the layer of thinset or mortar.
The re-enforcing mesh can be cut, turned, flipped, or in part removed, to accommodate any room size or shape. While the MESH can be cut, the heater wire MUST NOT be cut or shortened.
Elements are ETFE insulated and covered by a tough outer jacket, providing the ultimate dialectic and mechanical strength.
Heater wire is less than 5/32" thick, ensuring minimal effect to finished floor height.
Heater wires are pre-spaced at 3” intervals – providing optimal heat distribution.
Mats are 20” wide, and available in various lengths.
Watt density: 12w/sqft.
Voltage: 120v.
Ambient Temp Range +32 to +104°F (0 to +40°C).
Floor limit range: +41 to +104°F (+5 to +40°C).
Dimensions: H 4.8” x W 3” x D 1”.
Load: 15Amps (1800w@120v).
Built-in Class A GFCI.
Voltage: 120v.
If the heating cable is cut or damaged during installation the Monitor will immediately alert the installer by means of a loud alarm and red flashing light. We still recommend an ohms test is carried out before, during and after installation.
If the alarm sounds we suggest contacting a professional to identify the damaged area and make the repair.
Early warning system, avoiding costly repairs in the future.
Connects directly to the heater - Live, Neutral and Earth.
Provides peace-of-mind during installation.
Offers real-time continuity monitoring.
Includes loud alarm and flashing light.
Works with all floor heating systems.
Includes 2xAAA batteries.
Floor Sensor-The Floor Sensor is a reliable and accurate temperature sensing probe designed to measure floor temperatures when connected to a thermostat. Thermostats’ default setting is Dual Sensing (Air/Floor), meaning the floor sensor will need to be installed and connected.
The thermostat can be set to measure AIR only, but for optimal control and comfort we recommend installing the floor sensor and using the thermostats default ‘Dual Sensor’ setting.
Installs directly between heating wires for accurate temperature readings
Used in conjunction with Thermostat to limit floor temperature
Resistance: 8 to 12 K OHM measures 68˚F to 86˚F (20˚C to 30˚C)
Neutral polarity making for simple connections
15ft length allows for optimal placement
Connects directly to thermostat
Sensor type: NTC 10 K OHM
Description:
Comfort- Enjoy the Warmth easy-to-install Electric Floor Heating System. Heating Kit Includes: 30 Sqft (120 volt) Self-Adhesive Heating Mat, Cable monitor/Alarm, For installation under Tile, Laminates and more.
Easy To Install - The 3" Pre-spaced Electric Floor Heating Mat can be cut & turned, flipped or rotated - providing warmth where needed.
With Self-adhesive mesh on one side and double sided tape on the other, the mat adheres to the sub-floor and lays flat even when flipped.
DO NOT CUT or shorten red heater wire.
Heating wires MUST be embedded in a self-levelling underlayment, thinset or mortar.
Technical Info- Mat Size: 30 Sqft (20"wide x 18.3ft long).
Voltage: 120, Amps: 3.0, Watts: 360 @ 12w/sqft.
The Dual wire technology with aluminium shield, reduces electromagnetic fields (EMF) to ultra-low levels.
Heating wires are 1/8" in diameter, ensuring minimal effect on finished floor level.
Package Included：

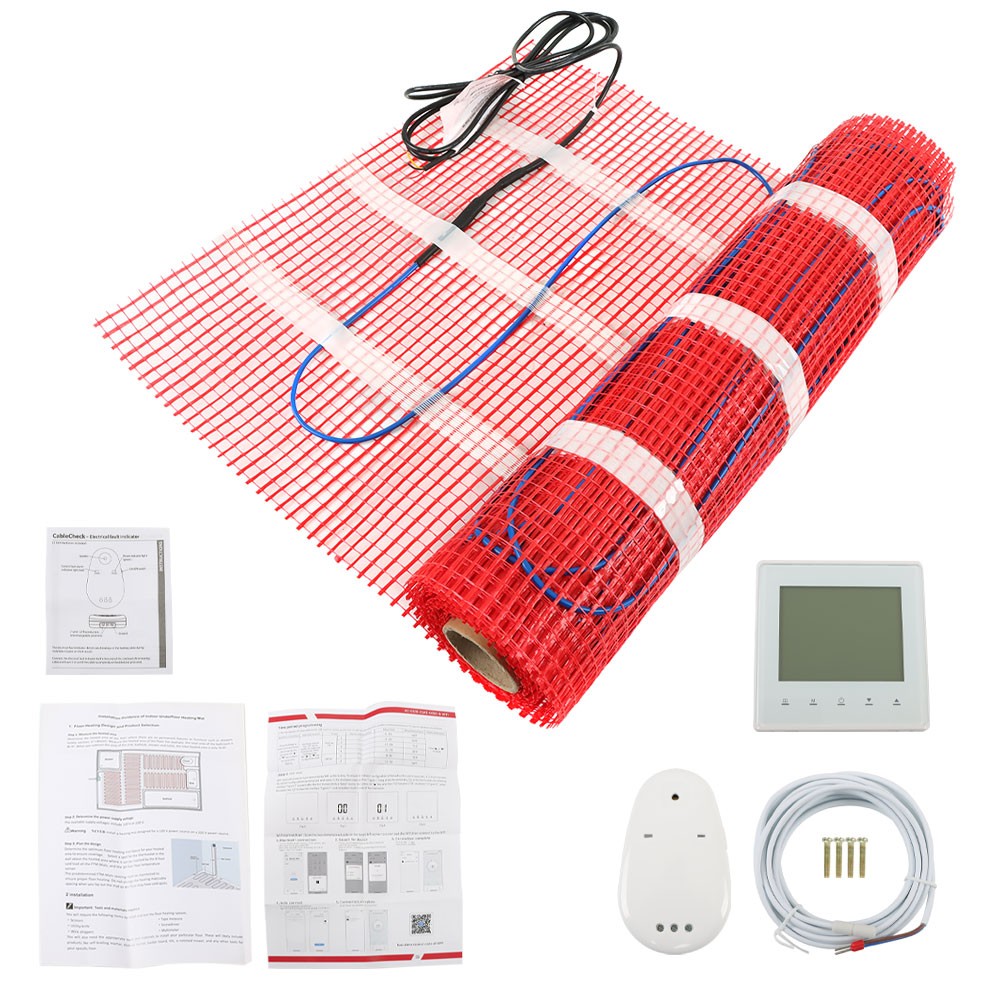

30 Sqft Mat Kit
As The Picture Shows
