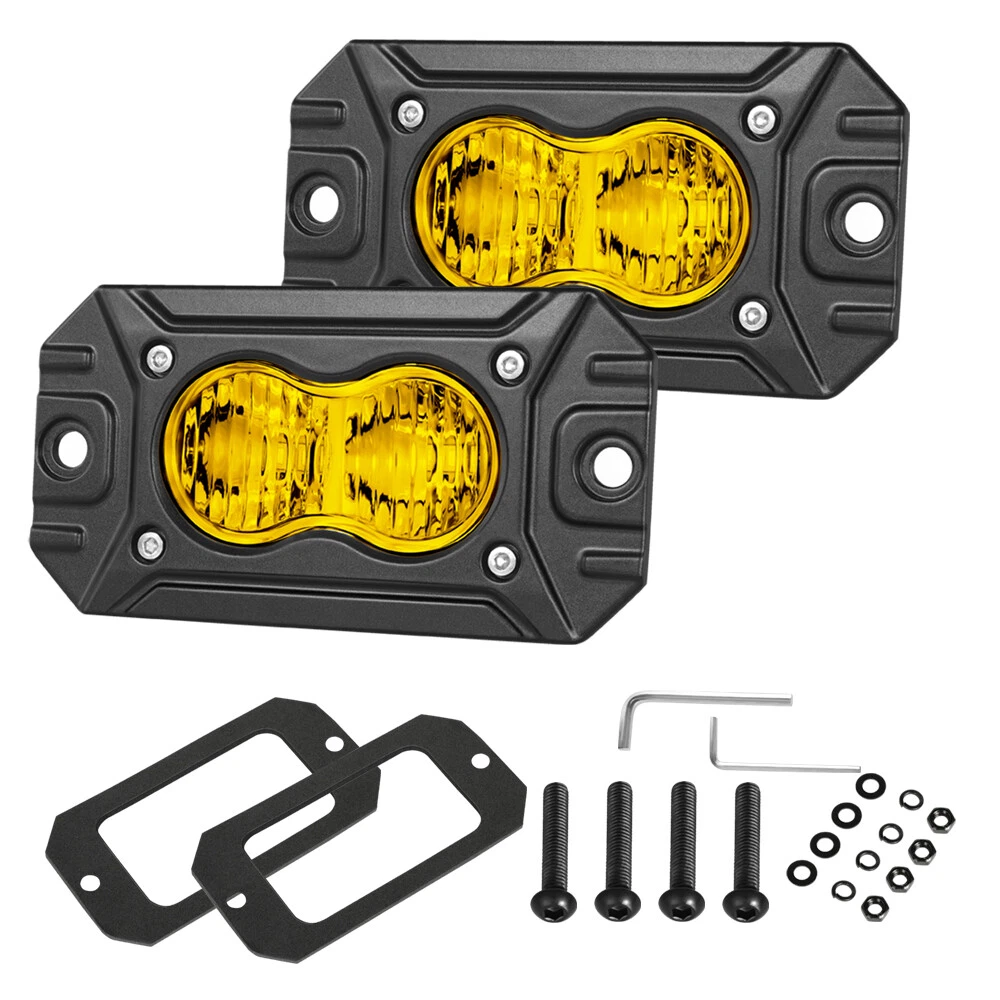

Amber Wide Cornering LED lights are a compact 4.4-inch x 2.3-inch form factor, making them a versatile yet powerful light that can be mounted in a variety of locations on your vehicle. Amber lenses are ideal for fog and dust, as amber light has a longer wave length, which means less refraction and better visibility through murky conditions. On top of that, they’re encased in a durable powder coated aluminum housing and are waterproof for up to 9 feet of submersion.
Flood / Wide Cornering Lens Pattern, Maximum trail coverage in a single light.
The Flush Mount LED Work Lights features the same quality, fit, and finish , at an attractive price point. The Flush mount led light bar is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.
Specifications:
LED Power: 40W/Pair
Light Angle : 120° Flood Beam, Maximum trail coverage in a single light
Voltage: DC 9-30V
Compatiblility Both: 12V- 24V vehicles
Waterproof rate: IP 68
LED: 4Pcs high intensity 10W LED Chip
Theoretical Lumens Output: 4000LM
Color Temperature: 3000K Amber
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
Material: Diecast aluminum housing + stainless steel brackets + PC Len + aluminum substrate circuit board + led chips,
Working temperature: -40~85°C
Accessories: Screws + Paper model
Size(W+D+H): 4.4x2.3x1.8inch (Approx)
Weight: 0.75kg/1.65LB (Per Pair Including Box)
Certification: CE, RoHs, FCC
- Finish： Powder-Coated
Lifetime: Over 50,000
Beam oattern: Flood beam
Nominal power: 40W
Light mode: nice clean amber light
Input voltage: DC 12V-24V
Connection method: Red Black Wire line, 16inch & #18
IP rating: IP68
Glass materials: PC,
Housing materials: Aluminum, Aluminum alloy heat sinks， add in 50% faster heat dissipation
Mounting materials: Stainless steel
Feature: Easy to install, Snugly to car body. Perfect Cool Looking, Upgrade your love car right now. High Efficient Performance & Durable , Multi-Purpose , pretty decent quality foe the price. Excellent Brightness
Used as: Rear Backup lights, Front Bumper Driving Lamp, Front Grill Auxiliary lamp, Front Headlight, auxiliary back up lights on my truck,
Position: Backup Reverse Grill Mount, Roof Rack Mount, Front Bumper Mounts, Fog Pocket Mounts, Rear lights. User-friendly Mounting
Wire Protection: Sealed with rubber loop, well protection for inner parts and wires
EASY INSTALLATION:
1. Use the template to mark the position
2. Cut the hole according to the light size
3. Put the light in and fix it with 4 bolts
Note: EVA paper model with tape, cut the hole and avoid damage to the car paint
Features:
SUPER BRIGHTNESS - 4.4Inch Square Flush Mount LED Work Lights contain 4 pcs qualified LED chips, 40 watts & 4000 lumens of output power, set emit 3000k cool amber beam through the unique LED optical reflector designed, The flood beam pattern delivers expansive close-range visibility, making it ideal for outdoor adventures and worksite applications.
Flush Mount Design & Paper Model - the flush Mount LED pods are designed to meet the needs of night producing farther beam of light, can be used from work/driving/off road lights to rear bumper mounted backup lights, The included paper model allow you to cut the shape then align the mount bolts to holes, the low profile light bar is able to be installed in various points around the vehicle and hidden for a cleaner finish
IP68 PERFORMANCE - 6063 Die-cast aluminum housing for strength and durability. Upgrade PMMA lens surface and excellent sealing technology to get IP68 rated make led light bar waterproof,dust-proof ,rust-proof,anti-corrosion, so that our led pod light can resist harsh environments.
LONG LIFESPAN - In order to get best heat dissipation, our led light pods takes 6063 aluminum which can performance best heat dissipation and best seal ability alloy as the heat sink and casing. The aluminum fan shape design, makes it dissipate heat more faster and effective. Extend lifespan up to 50,000 hours.
AFTER-SALE WORRY FREE - Package includes 2Pcs 4.4Inch Flush Mount LED Work Lights + Paper Model + necessary mounting accessories + 3 year warranty and response within 24-hours good after-sales service! This LED light pod is great for off road driving lights, daytime running lights, or fog lights on your motorcycle, truck, ATV, or UTV and can also be used for industrial lighting, marine lighting, and tractor lighting.
Multi-Purpose Applications:
Front Bumper Light
Fog Light
Behind Grille Light
Backup Light
Package Included:
2Pcs 4.4Inch Flush Mount LED Work Lights
Necessary Mounting Accessories
paper model
Installation:
1. Test the light to make sure it can work properly. (Red line is positive, black line is negative.)
2. Install the hex nuts on the bolts, And twist the spring meson .
3. Make the bolts go through the mounting holes And set into the spring meson, And then tighten the hex nut.
4. Connect the power line to the corresponding power connector.
5. Make sure the light is installed steadily, And then start the power.
Fitment:
