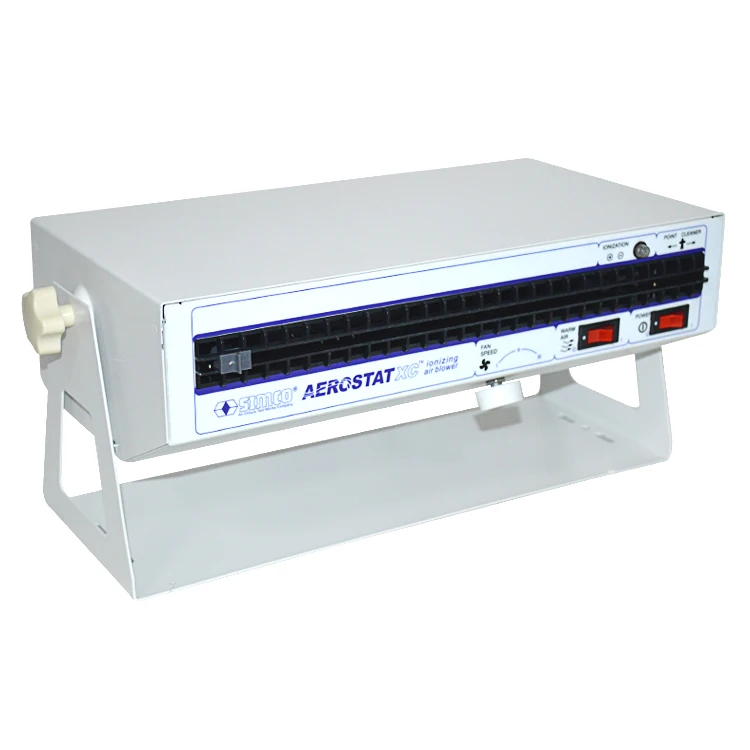

220V Ionizing Air Blower Anti-Static Ion Fan Simco XC Eliminate Static Electricity ColdAir(25W )/ Warm Air( 430W)

Product parameter：

Input voltage: 220V AC 50Hz 25W (warm air open 430W)

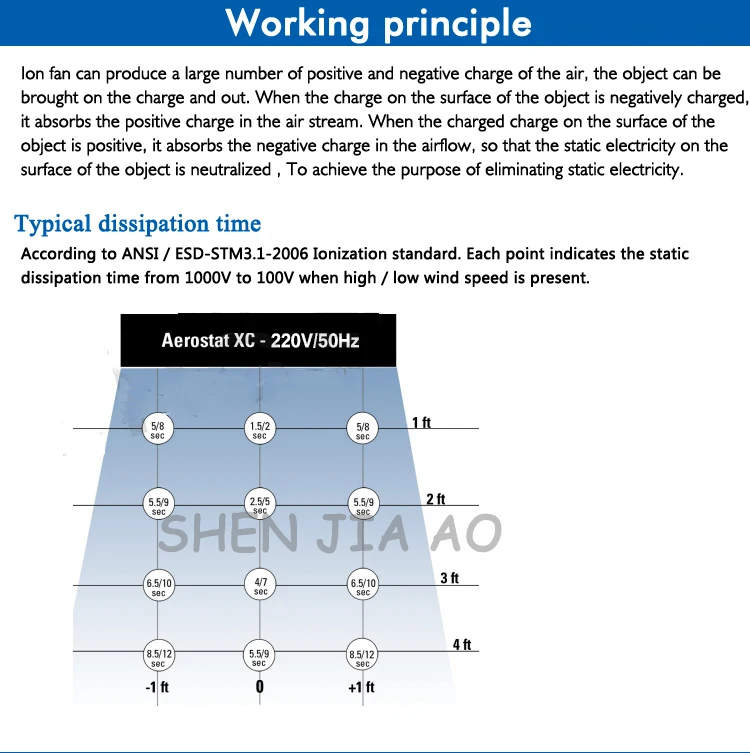

Dissipation time: from 1000V to 100V @ 30cm working distance, less than 1.5 seconds (maximum air volume)

Ion technology: AC ionization

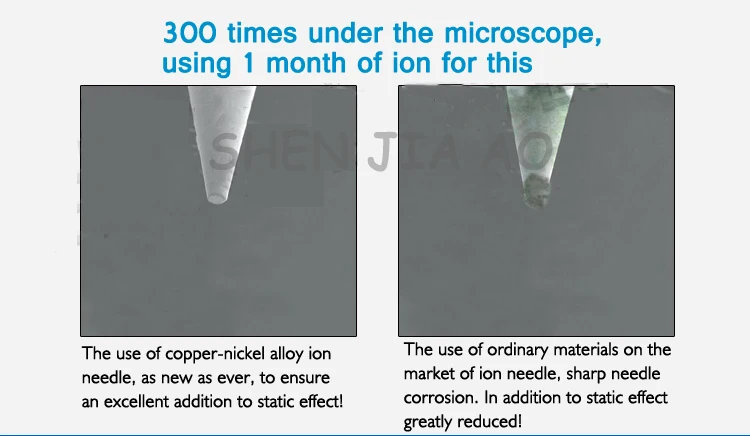

Electrostatic needle material: copper nickel alloy

Air volume output: low -70cfm, medium -95cfm, high-120cfm

Coverage: 90 * 150cm to 75 * 180cm

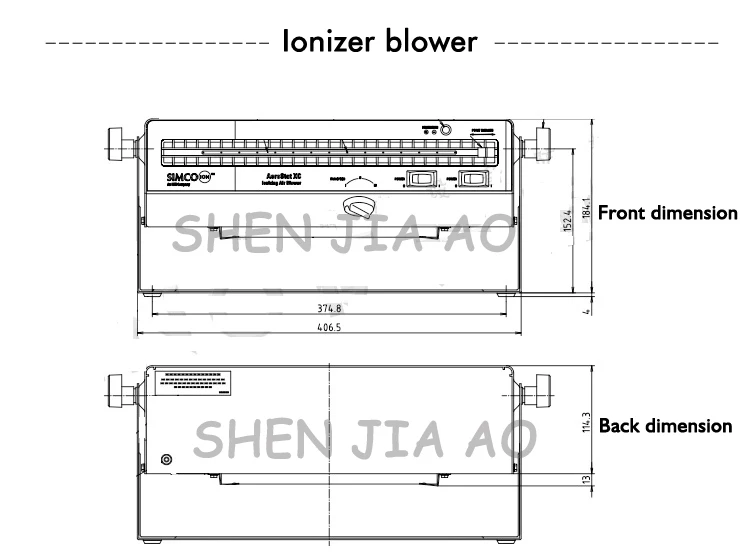

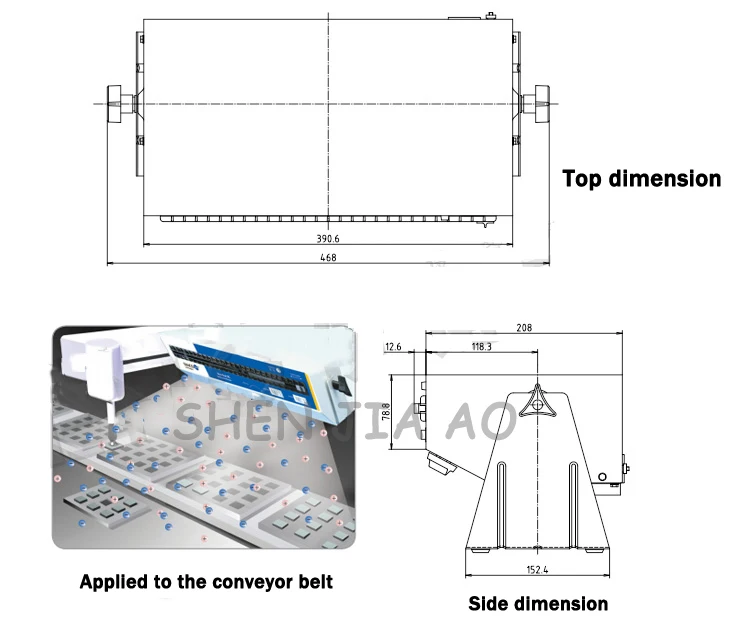

Volume: 39.1 * 11.4 * 20.6cm

Weight: 7.9kg

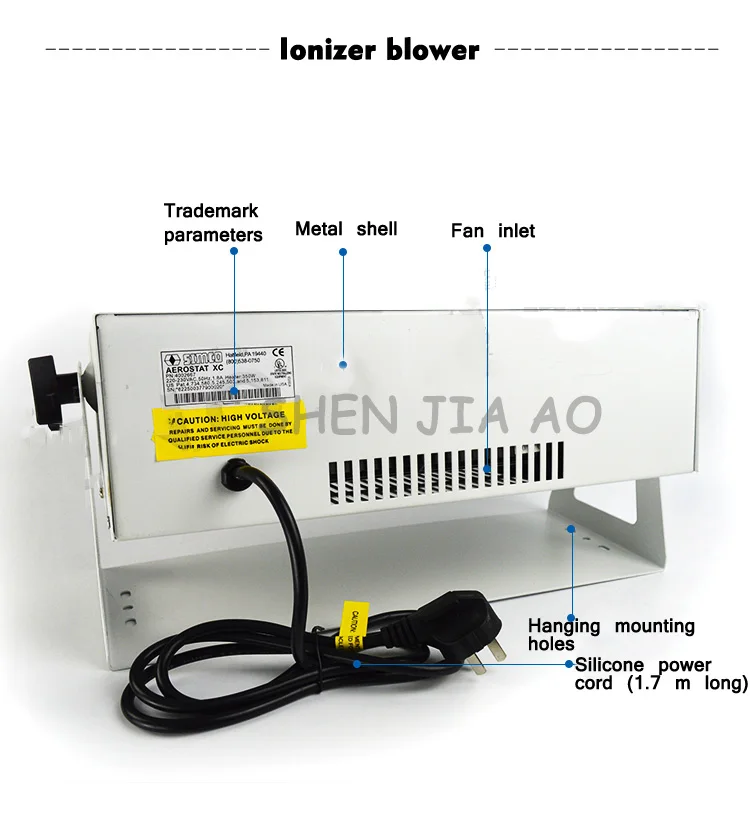

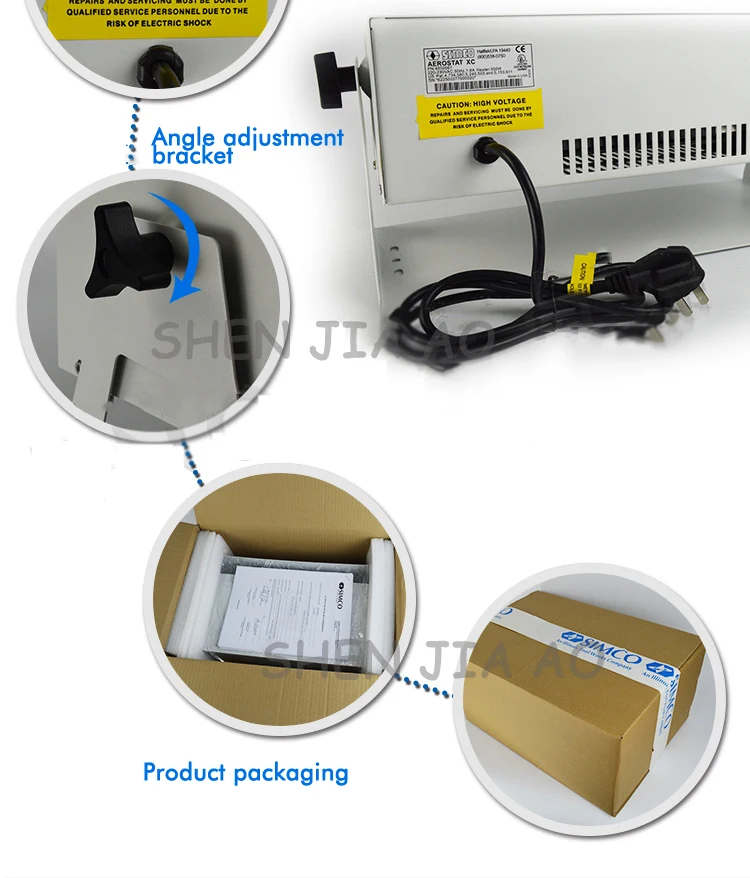

Installation: fitted with metal bracket / seat

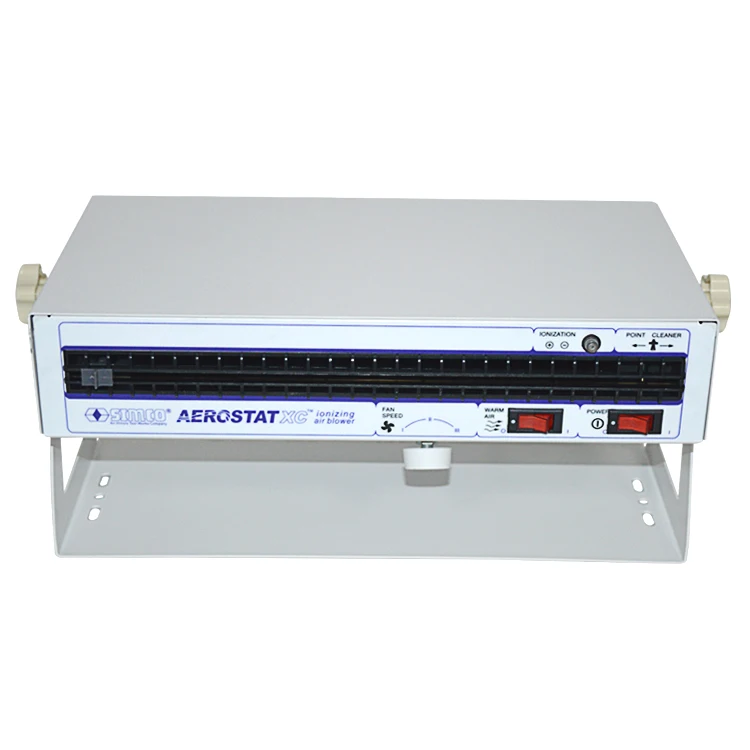

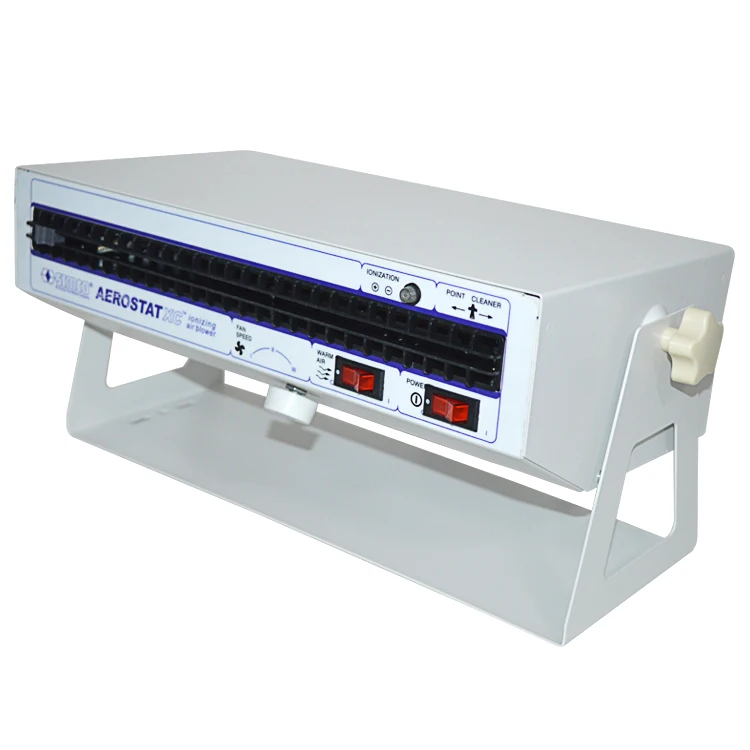

The SIMCO-XC horizontal ion blower is a special equipment for eliminating static electricity. It can generate a large amount of airflow with positive and negative charges, which can neutralize the charge on the object.

1.The ion fan with large air volume and wide range can be installed on the workbench or suspended.

2.Quickly eliminate static electricity, the ion balance voltage is 0V±10V, and the wind speed can be continuously adjusted. It has a heating function.

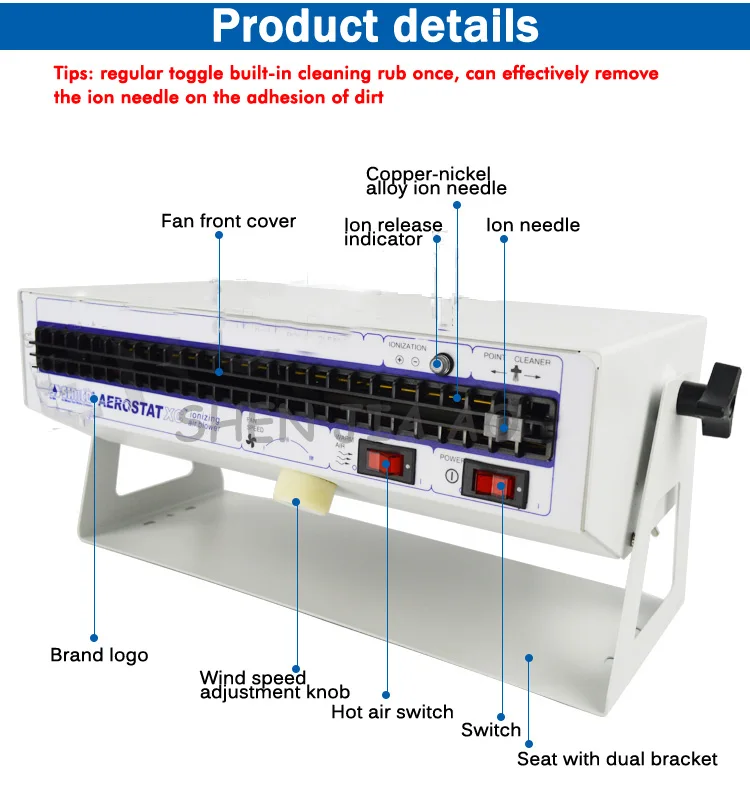

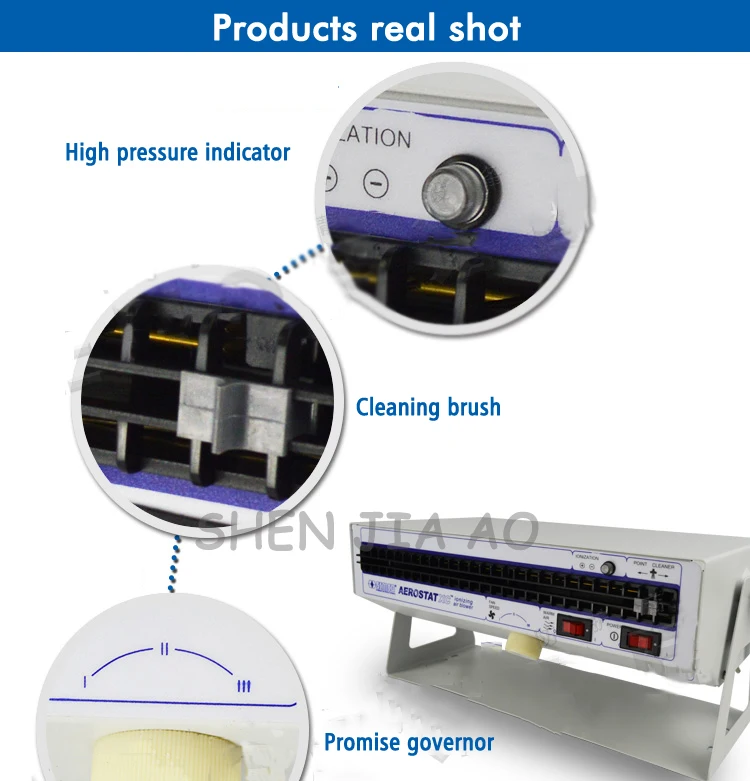

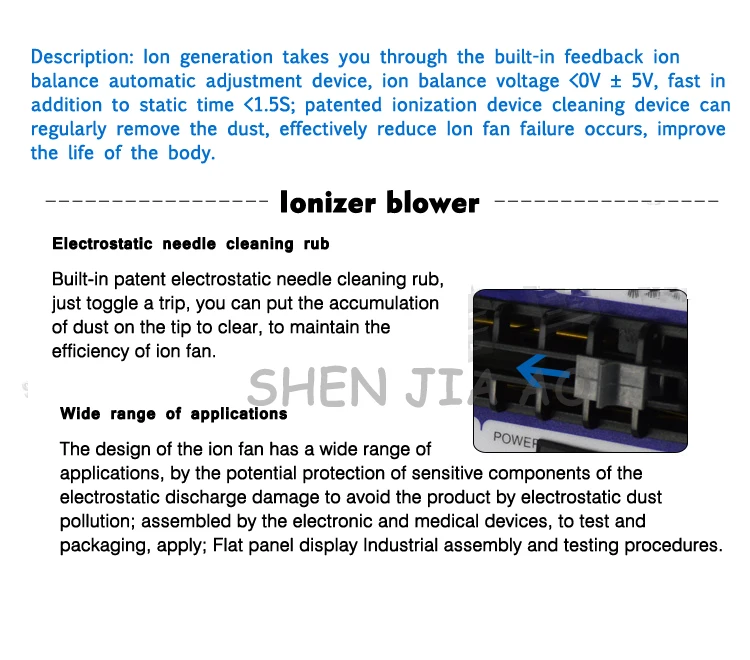

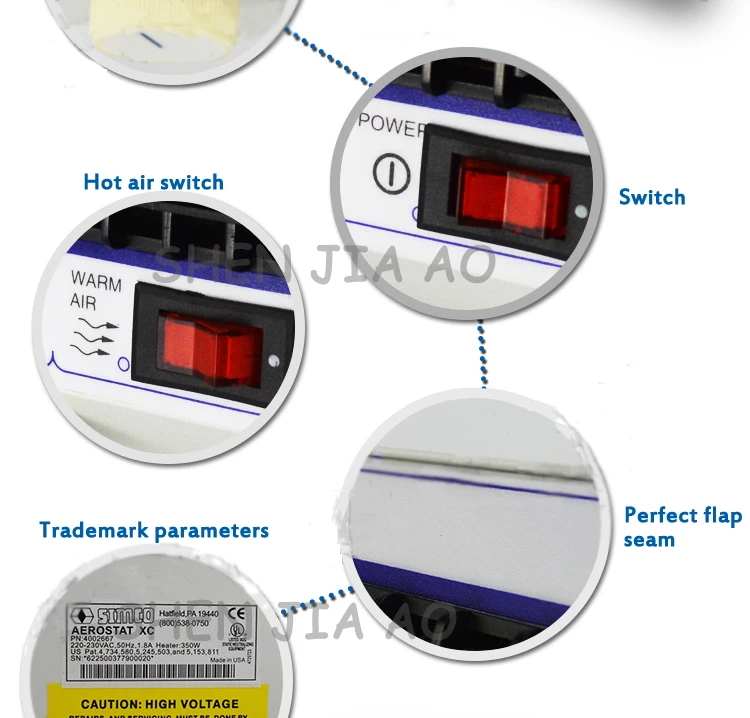

3.Equipped with ion needle cleaner, ion generating indicator, built-in fan and high voltage power supply.

When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized to achieve The purpose of eliminating static electricity. The simco horizontal ion fan provides wind power with a wide range of cross flow fans. The wind power can be adjusted within a large range by the speed control switch.

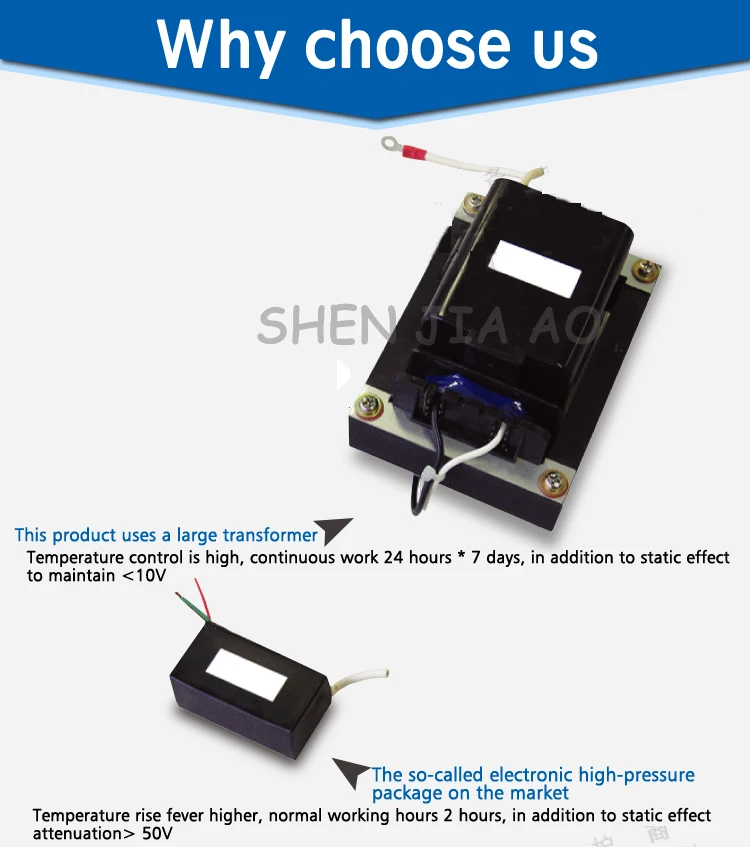

Ionization device:The ionization device forms a stable high-strength electric field under the action of the low current and high voltage generated by the high-voltage generator. The ionized air forms ionic bodies, which are carried by the airflow to the surface of the object to achieve the purpose of neutralizing static electricity. There is a special cleaner on the ionization device, which can remove the dust on the ionization needle and keep the normal operation of the ionization device.

SIMCO-XC horizontal ion fan has a dedicated ion balance circuit, which can achieve automatic ion balance. The SIMCO-XC horizontal ion fan has a special heating circuit, which can heat the ion wind, protect the staff from the stimulation of the cold wind, and can also solve the production problems caused by static electricity, such as solving the dust collection problem caused by static electricity. Adhesion problems during product processing, small parts jumping caused by electrostatic repulsion.

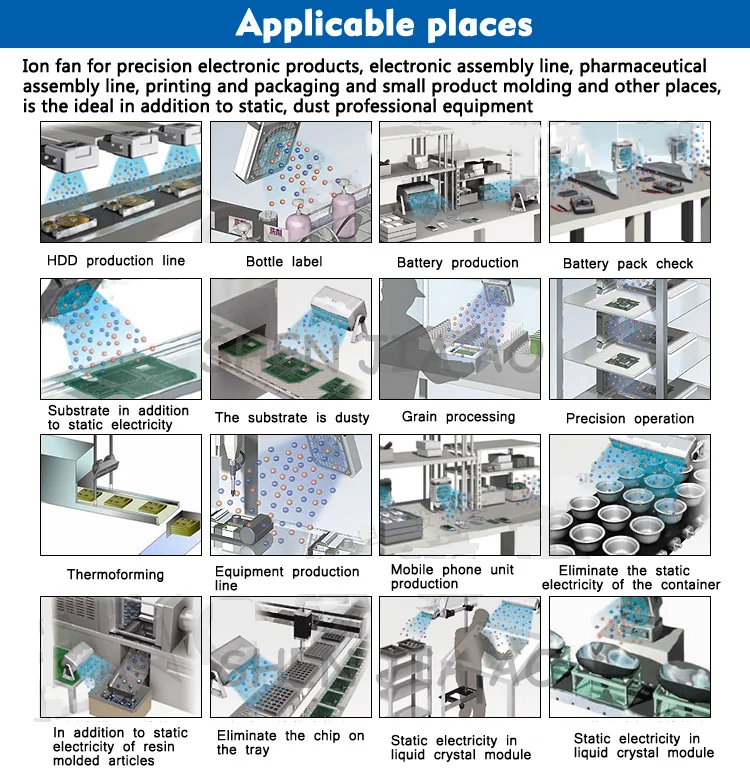

SIMCO XC horizontal ion blower can eliminate static charges in a wide range of targets or areas that are not easily accessible. It is characterized by fast elimination of static electricity, large ion wind coverage area, ion needle cleaner, ion generation indicator light, continuous wind speed adjustment, built-in fan and high-voltage power supply, and ion balance voltage of 0V±10V. It is an ideal static eliminator for precision electronic products, electronic assembly, pharmaceutical manufacturing assembly lines, printing, packaging and small product molding.

Product details page：
