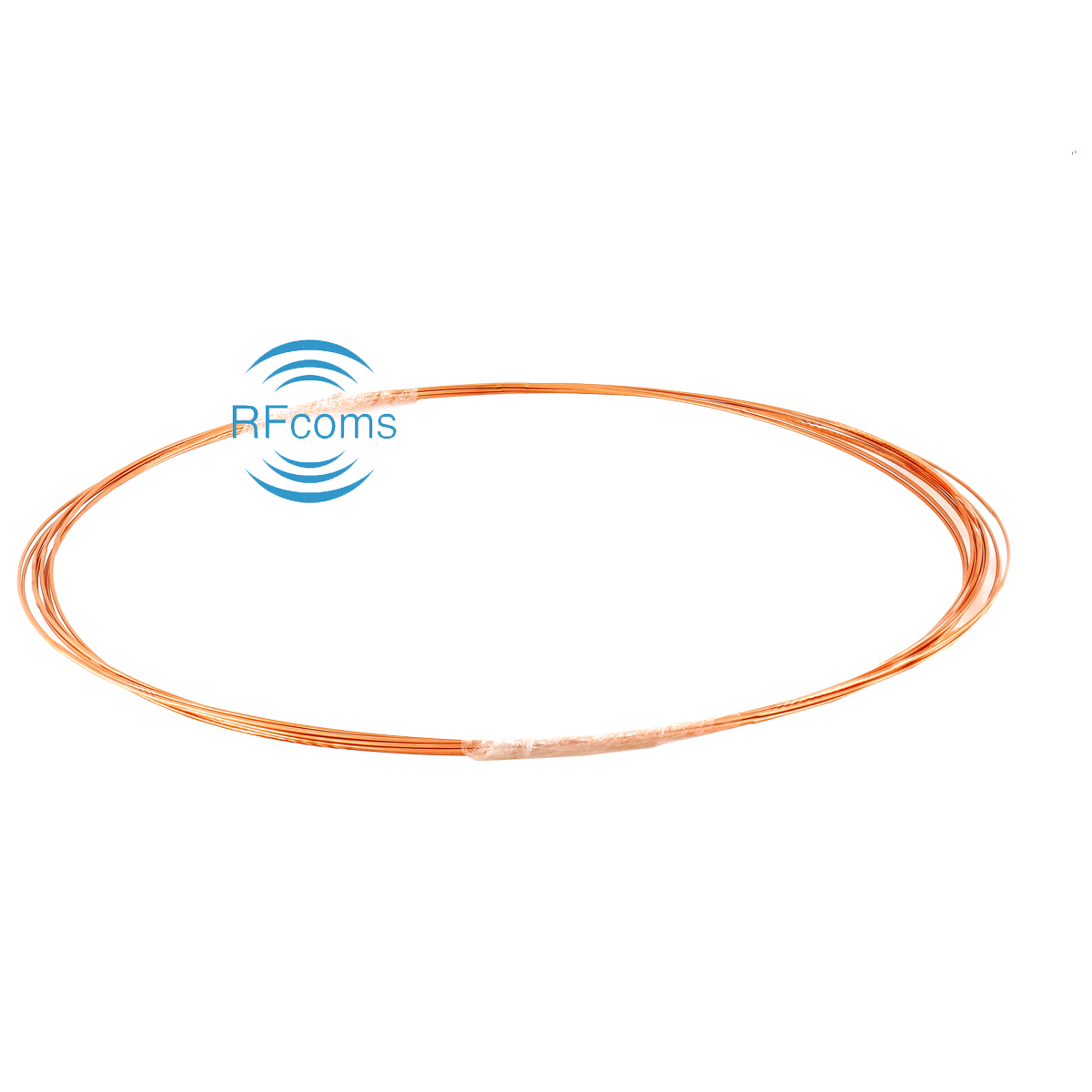

RFcoms 20Ft/6.1M one piece 047-25 047-50 Semi Rigid .047 Coaxial Cable Bare Copper 25 50 Ohm ohm RG047 Bare Copper Coax. Cable 0.047"  RF Coaxial cables

Construction Specification：
Description Size（mm) Tol. Materials
1 Center conductor 0.52 ±0.01 Silver Plated Copper Clad Steel
2 Dielectric 0.92 ±0.05 Extruded PTFE
3 Outer conductor 1.19 ±0.05 Bare Copper Tube

Mechanical&Environmental Specifications：
Bend Radious:installation (mm) 3
Bend Radious:repeated (mm) 12
Weight (g/m) 9 max. Temp, Operating&Installation (ºC) -65～165
Temp, Storage (ºC) -65～165

Electrical Specifications
Characteristic Impedance(ohm) 25±2
Time delay 4.7
Capacitance(pF/m) 190
Max Working Power(Vrms) 1500
Velocity ratio(%) 70
Shielding Effectiveness(dB) ＞110
Cutoff frequency(GHz) 120

Package included:

1x 20Ft/6.1M Semi rigid RG047 Cable
