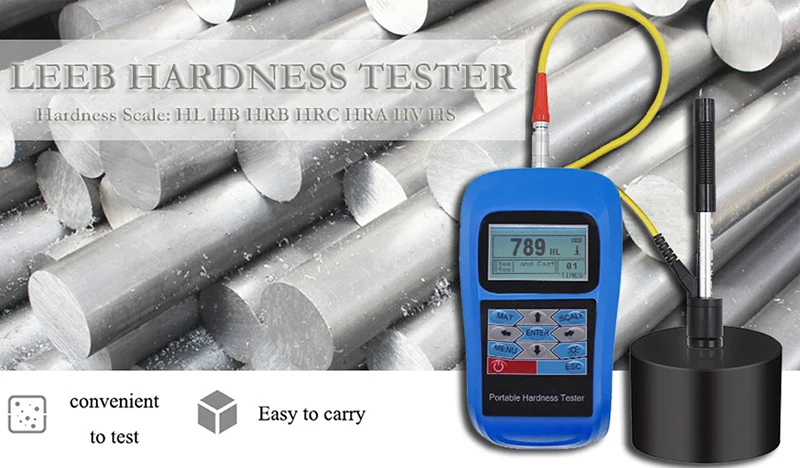

Metal Leeb Hardness Tester Gauge HL HB HRB HRC HRA HV HS Hardness Testing Tool

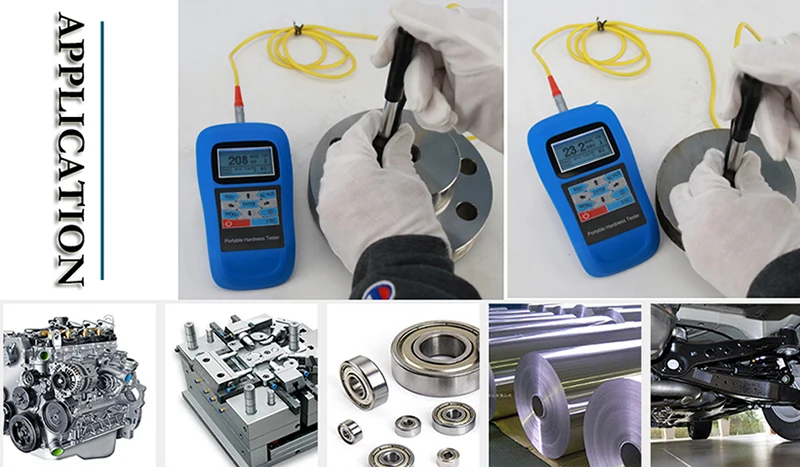

Main Application

l The assembled machinery and permanently installed parts

l Die cavity of molds

l Heavy work piece

l Failure analysis of pressure vessel, steam turbo-generator set and other equipment

l Narrow testing space where work piece installed

l Bearings and other parts

l Cases which require the test result with normalized original recording

l Material identification of the metal material warehouse

l Quick tests of large range and multi point measuring positions for heavy

 Specifications

l Measuring range: HLD（170～960）HLD

l Measuring direction: 360°

l Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS

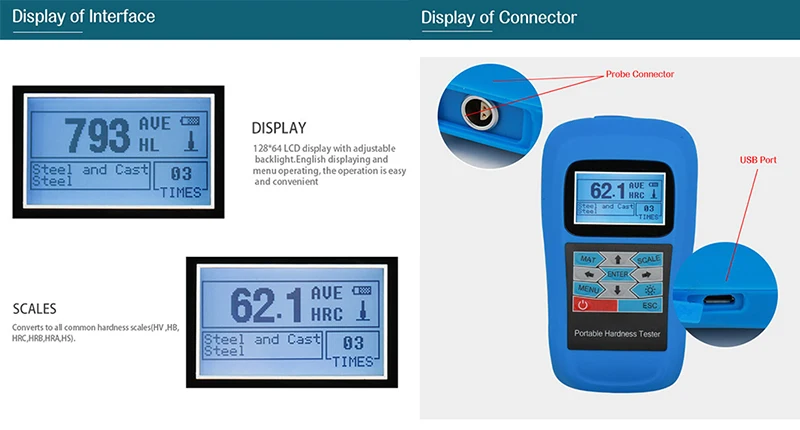

l Display: 128*64 LCD

l Data memory: MAX. 500 groups （impact times: 32～1）

l Range of upper and lower limit: the same as measuring range

l Working voltage: 2*1.5V .(Battery is not included During the shipping)

l Continuous working period: approx. 120 h (no back light on)

l    Communication interface: RS232

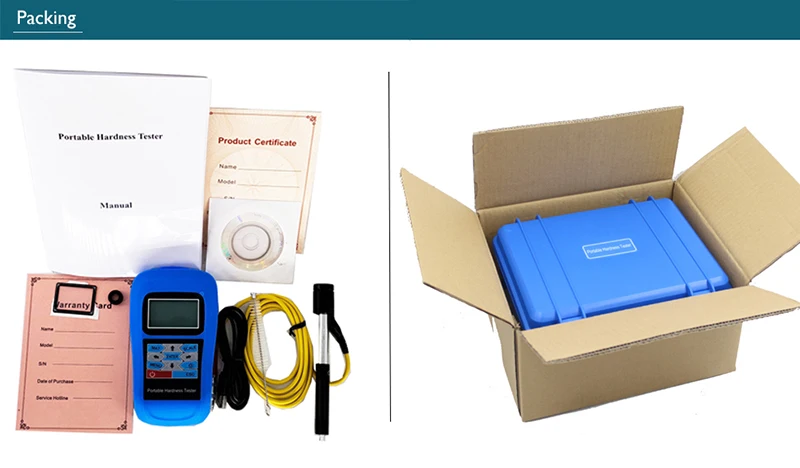

 Packing:

Main unit---- 1

D type impact device With cable--------1

Small supporting ring------- 1

Cleaning brush----- 1

test block---- 1

USB Communication cable -----1

Software---- 1

Manual-----1
