Details

Description

Max 300A 12 Volt Duty Solenoid Relay 4-Terminal for Golf Carts Heavy Duty Winch Marine in Rush SPST 12VDC 12V Solenoid Relay Nickel-Plating



Product Details

Size: 12V 4 Terminal Max 300A
Brand: LDMINDA
MPN: 12V 4 Terminal Max 300A
UPC: Does not apply
EAN: Does not apply

  • Contact Type: Spst
  • Current Rating: 300 Amps
  • Mounting Type: Bracket Mount
  • Brand: LDMINDA
  • Operation Mode: Off
  • Contact Type: ‎Spst
  • Current Rating: ‎300 Amps
  • Mounting Type: ‎Bracket Mount
  • Brand: ‎LDMINDA
  • Operation Mode: ‎Off
  • Wattage: ‎10.2 watts
  • Coil Resistance: ‎14 Ohms
  • Coil Voltage: ‎12 Volts
  • Minimum Switching Voltage: ‎12 Volts (DC)
  • Specification Met: ‎Electromagnetic
  • Manufacturer: ‎LDMINDA
  • Model: ‎Widely used in ships, winches, military vehicles, hydraulic control units, golf carts, factory machines
  • Item Weight: ‎11.3 ounces
  • Package Dimensions: ‎3.7 x 3.03 x 2.87 inches
  • Country of Origin: ‎China
  • Item model number: ‎12V 4 Terminal Max 300A
  • Exterior: ‎Nickel-Plating
  • Manufacturer Part Number: ‎3635820 ,218
  • Special Features: ‎4 Terminal, Nickel-Plating, Max 300A, 12VDC, 12 Volt
  • Date First Available: September 7, 2022

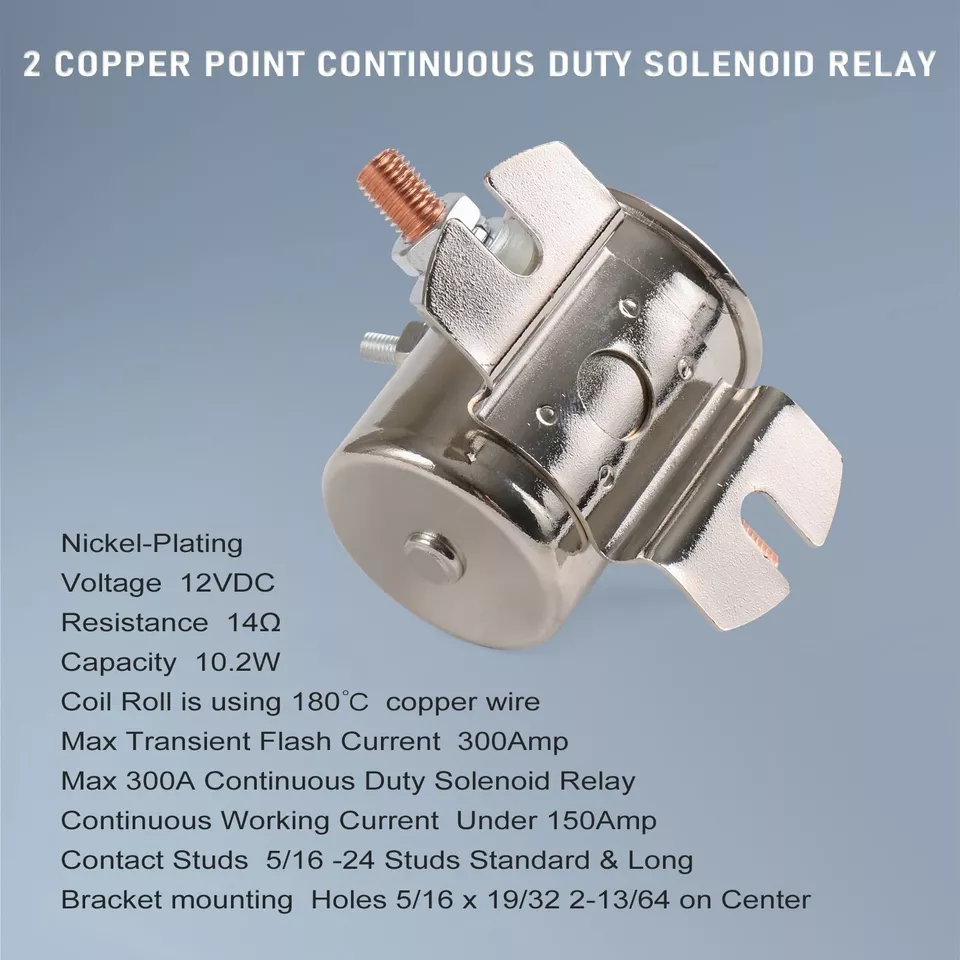

  • Specification4-pole battery isolation solenoid valve: Voltage: 12VDC; Resistance: 14; Capacity: 10.2W; Maximum transient flash current: 300Amp; but Working Current recommend under 150 Amp,Bracket:Straight;Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center
  • Materials4 Terminal Max 300A 12 Volt With 2 Copper Point Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180C copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment.The Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment.

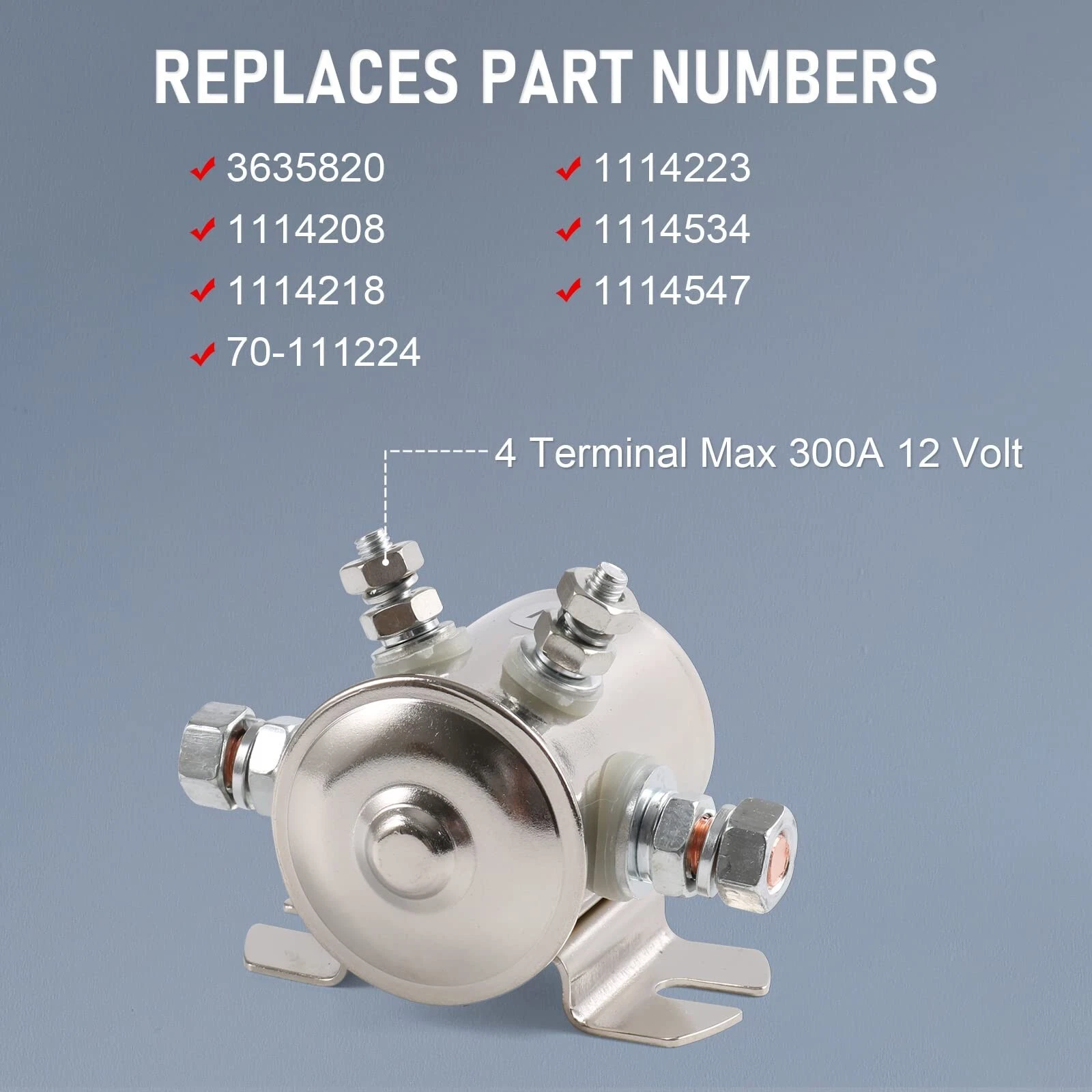

  • Replaces Parts NumberThis Duty Solenoid Relay Replacement For 70-111224, 3635820, 1114208, 1114218, 1114223, 1114534, 1114547

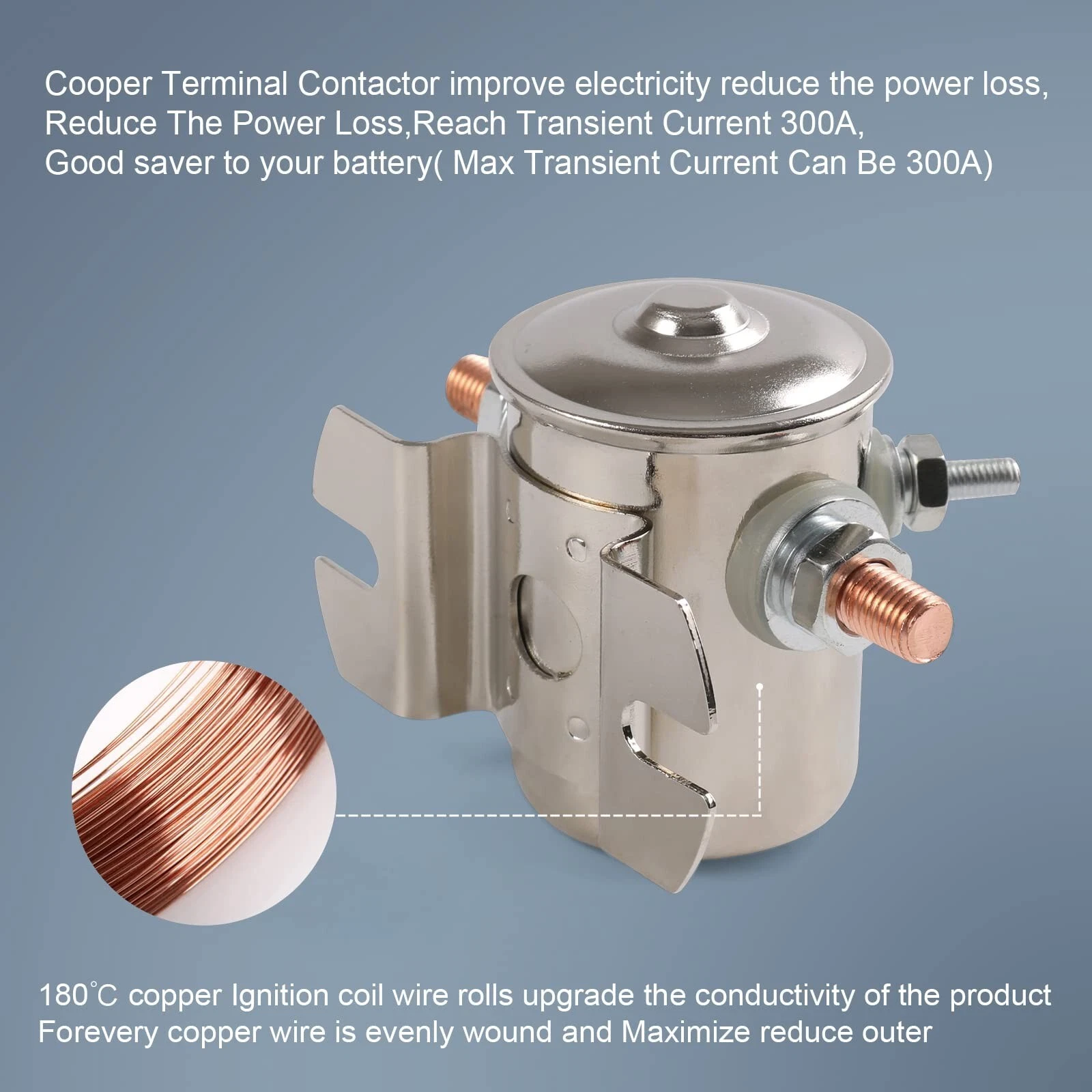

  • Function good saver to your battery ( Max Flash Current 300A). Copper Terminal Contactor Improve Electricity - Reduce The Power Loss,Reach Transient Current 300A; Max Transient current can be 300A, but Continuous Working Current recommend under 150 Amp. Continuous Work is 5 minutes, must cool down in 20 seconds.
  • NoteUsually with 80Amp as working current, need Break off 20 seconds after 5 minutes Continuous working.
