Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 3 YEAR MANUFACTURER

Description:

Merit M-8S Power Sequencer is the perfect low-cost AC power solution for any rack mount system where power sequencing is desired.

Install an M-8s in to the top slot of your rack, and the six delayed outlets in the rear panel will power up sequentially and protect all your equipment up to a 15-amp load.

Includes 3 delayed outlet banks - each with 2 outlets - plus 2 unswitched outlets.

Features:

• Power Sequencing
• Prevents excessive inrush currents.
• Six sequenced rear panel outlets (in three groups), two unswitched rear panel outlets, and one front panel unswitched outlet.
• Momentary and maintained sequencing via rear panel terminal block or front panel switch (momentary only).
• Noise Filtration
• Noise filtering to reduce radio frequency and electromagnetic interference.
• Surge Protection
• Ensures equipment stays safe.
• 9 Total Outlets
• Eight rear panel outlets and one front panel convenience panel outlet.
• 15 Amp Rating
• 15 amp rating, with circuit breaker.
• "Protection OK" Indicator
• Front panel indicator LEDs for Outlet Banks, Protection OK and Power Status.
• Wall Wart Spacing
• Rear outlets have been spaced to accommodate even the bulkiest of wall warts and adapters.
• All settings and configurations available on rear panel.

Specifications:

• Maximum AC Current Rating 15 Amps, 120 VAC (Thermal breaker)

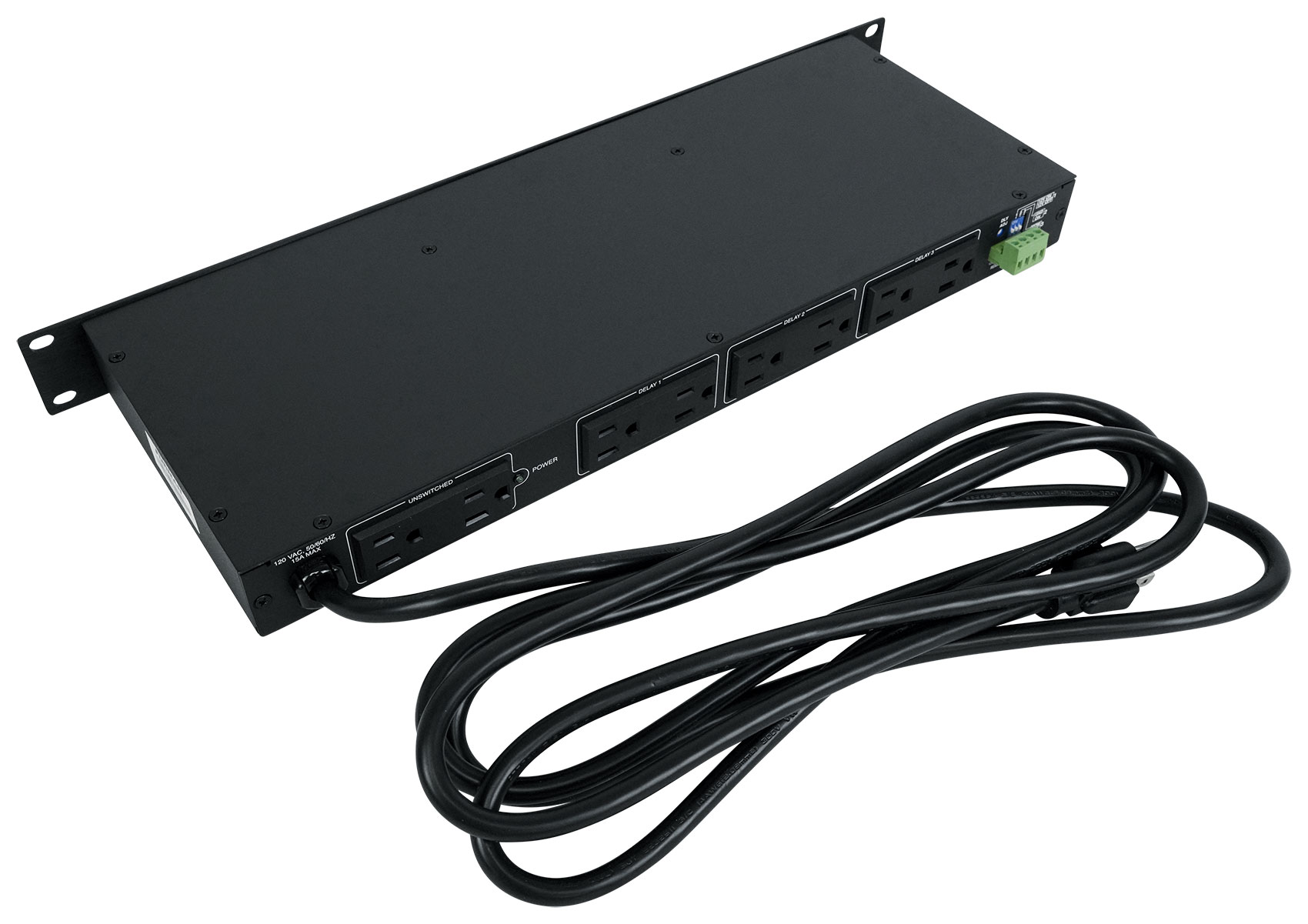

• AC Cord 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
• Convenience Outlet (Front Panel) 1 Un-switched NEMA 15-5R

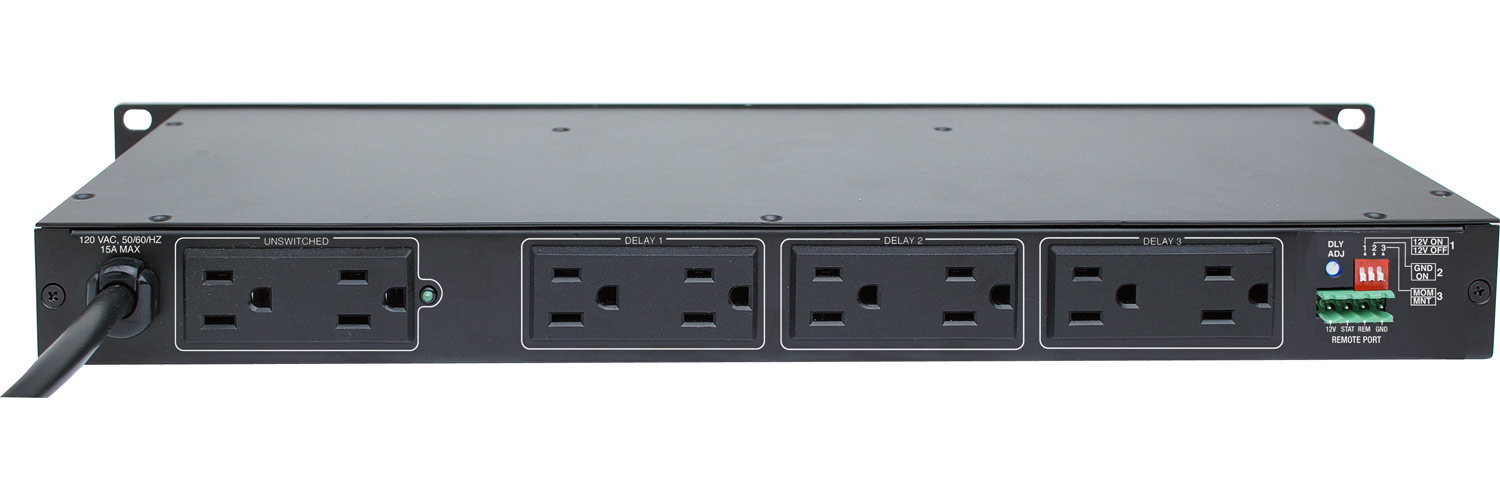

• Rear Panel Outlets 2 Un-switched NEMA 5-15R (1 duplex)
• 6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
• AC Surge Protection Merit Class (sacrificial)
• Spike Protection Mode Line to neutral, zero ground leakage
• Max Continuous Operating Voltage 130V RMS
• Max Clamp Voltage 500 Volts Peak
• Peak Impulse Current 12,000 Amps
• Energy Rating (2 X 820µS) 225 Joules
• AC Filtering Pi LCR Filter
• Noise Attenuation >26dB, 100 Khz to 1 MHz
• Operating Temperature Range 5C (40F) to 40C (105F) degrees
• Humidity Range <90% rH (Relative Humidity)
• Rocker Switch Front panel, Sequence (ON, OFF)
• Thermal Circuit Breaker Front panel, push to reset

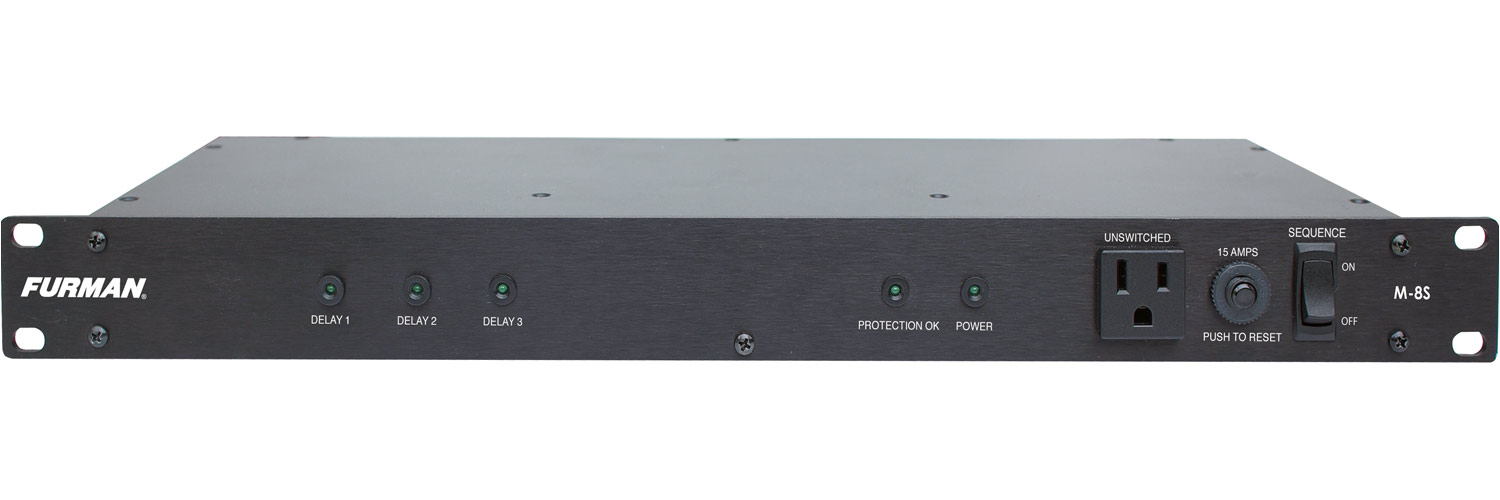

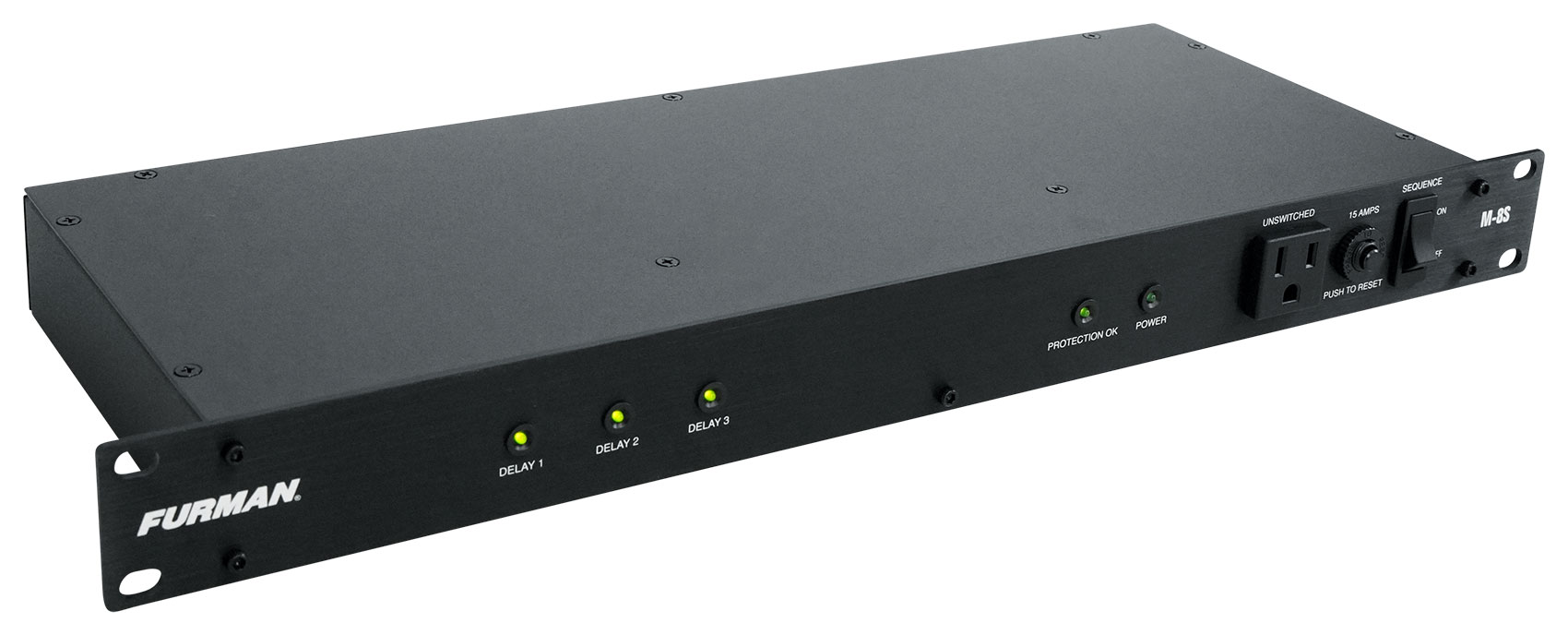

• Front panel indicators Delay 1, Delay 2, Delay 3, Power, Protection OK
• Control/Status/Triggering (Rear Panel) Rear Panel DIP Switches: 12V Mode On/Off,
• GND Mode On, Momentary/Maintained
• Potentiometer Rear panel, time calibration fine tune delay adjust
• Remote Terminal +5-30VDC In, 12VDC (12mA) Out
• Remote Terminal Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
• Size 1.75" X 19.00" X 6.5" (HWD) - ANSI 1RU
• Mass 5.3 lbs.
• Power Consumption (No Load) 5 Watts
• Safety Agency C/CSA/US

General

• FamilyMerit Series
• Line Voltage120 (Volts)

Shipping Info

• Length: 21.9 (Inches)
• Width: 9.4 (Inches)
• Height: 3.4 (Inches)
• Weight: 7.65 (Lbs)
• Unit of Measure: Each
• UPC: 654061041078
• Master Pack Qty: 6
