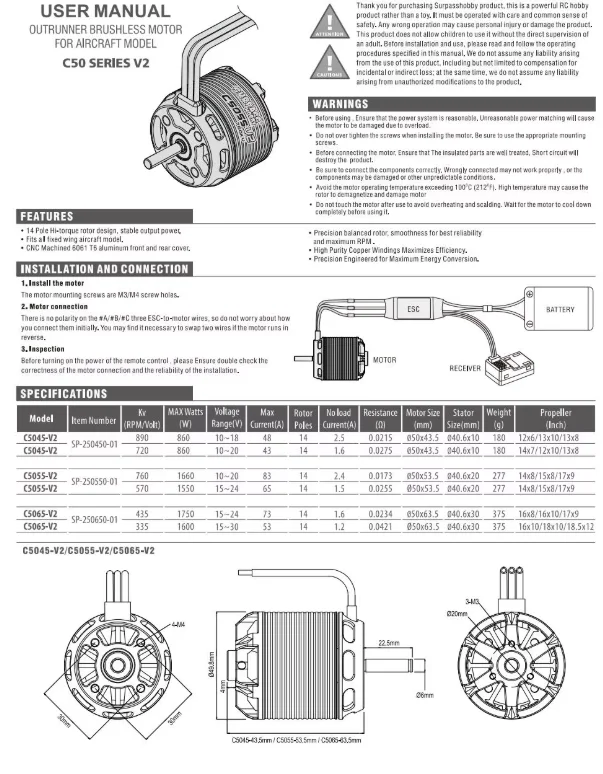

Surpass Hobby C5045/ C5055/ C5065-V2 Outrunner brushless motor:
1.14 Pole Hi-torque rotor design, stable output power.
2.Fits all fixed wing aircraft model.
3.CNC machined 6061 T6 aluminum front and rear cover.
4.Precision balance rotor, smoothness or best reliability and maximum RPM.
5.High purity copper windings maximizes efficiency.
6.Precision engineered for maximum energy conversion.

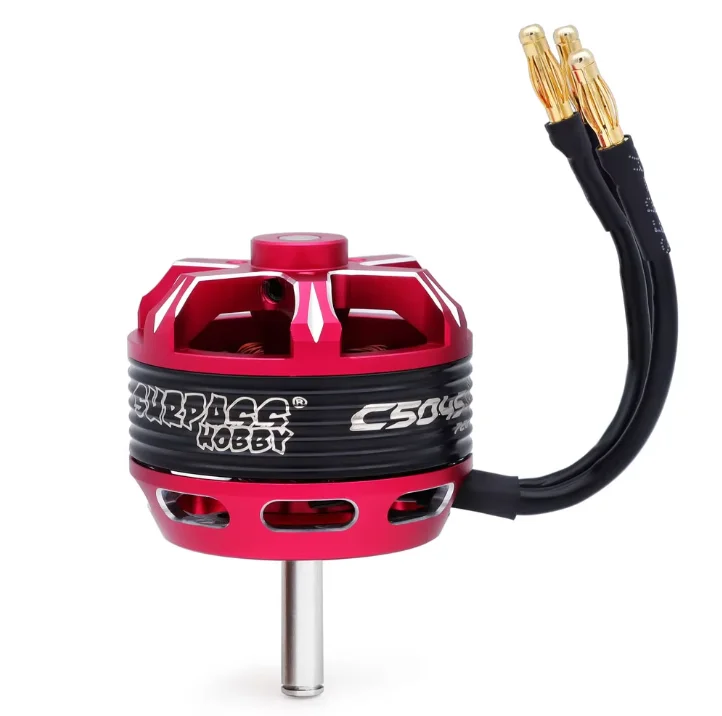

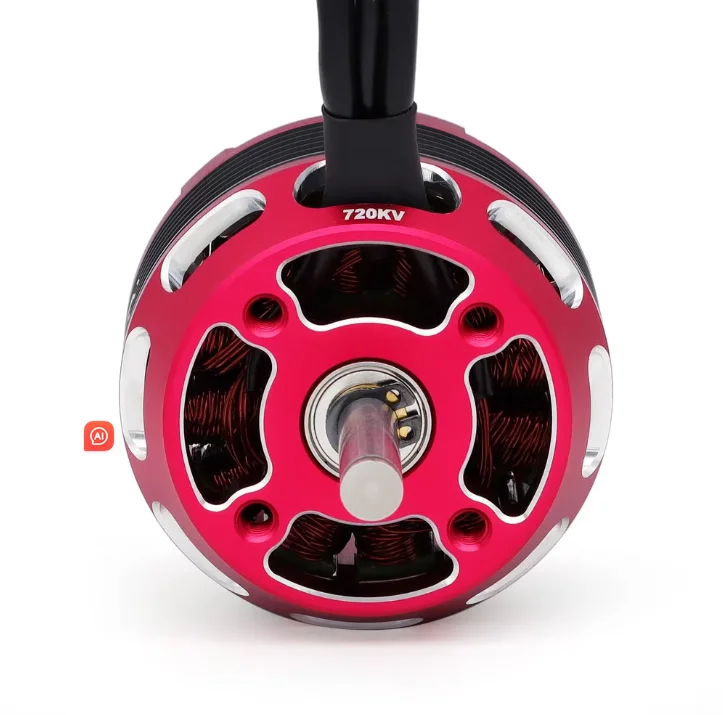

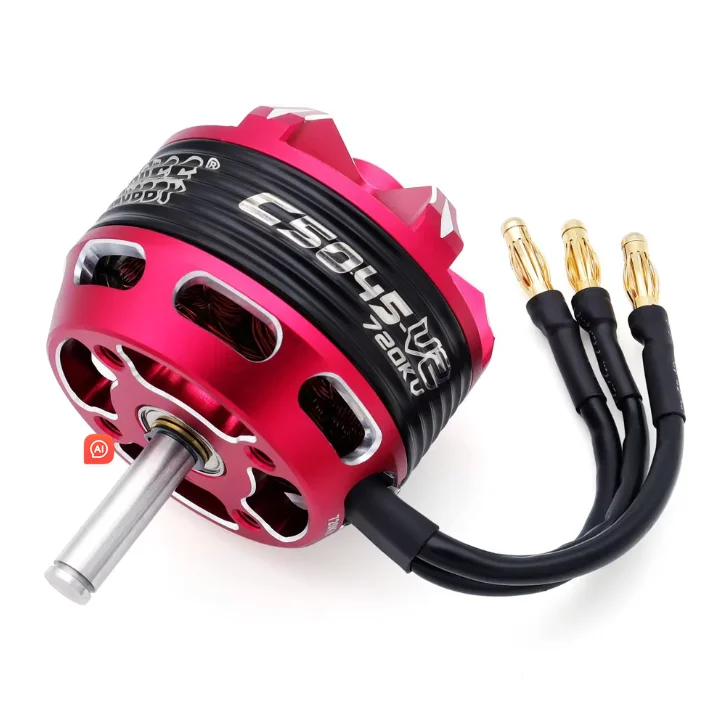

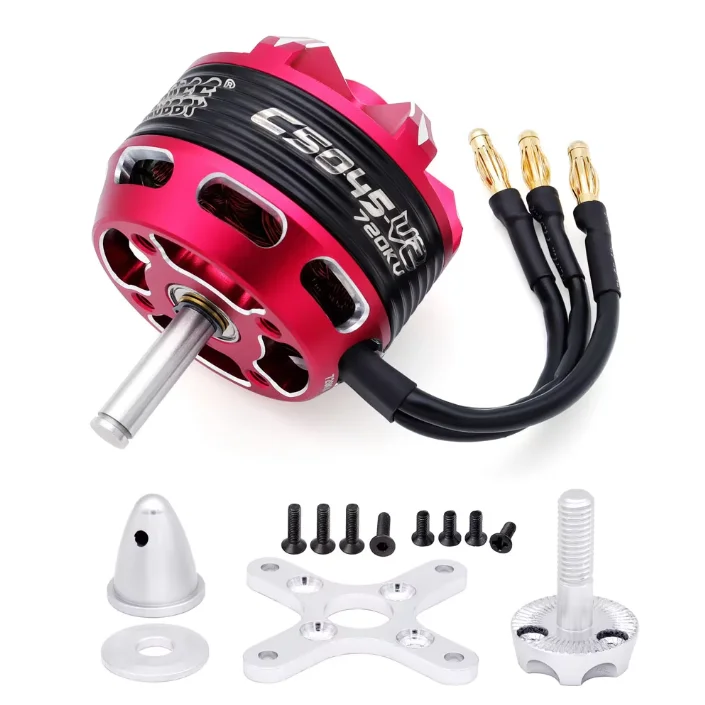

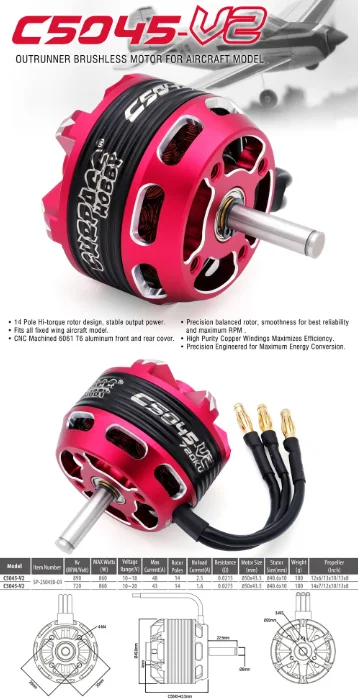

C5045-V2 KV720 brushless motor:
Kv(rpm/volt): 720;
Max watts(w): 860;
Voltage range(V): 10~20;
Max current(A): 43;
Rotor poles: 14;
No load current(A): 1.6;
Resistance(Ω): 0.0275;
Motor size(mm): φ50*43.5;
Stator size(mm): φ40.6*10;
Weight(g): 180;
Propeller(inch): 14x7/ 12x10/ 13x8;

C5045-V2 KV890 brushless motor:
Kv(rpm/volt): 890;
Max watts(w): 860;
Voltage range(V): 10~18;
Max current(A): 48;
Rotor poles: 14;
No load current(A): 2.5;
Resistance(Ω): 0.0215;
Motor size(mm): φ50*43.5;
Stator size(mm): φ40.6*10;
Weight(g): 180;
Propeller(inch): 12x6/ 13x10/ 13x8;

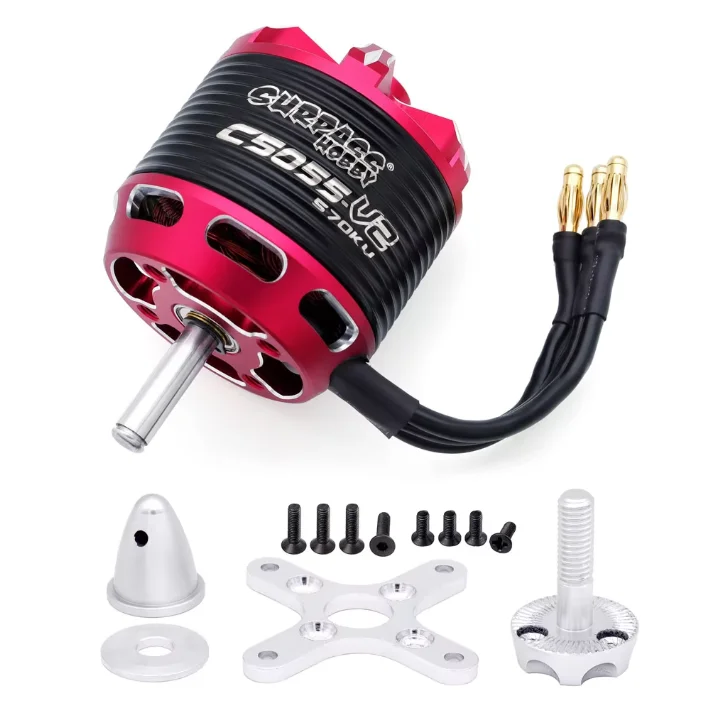

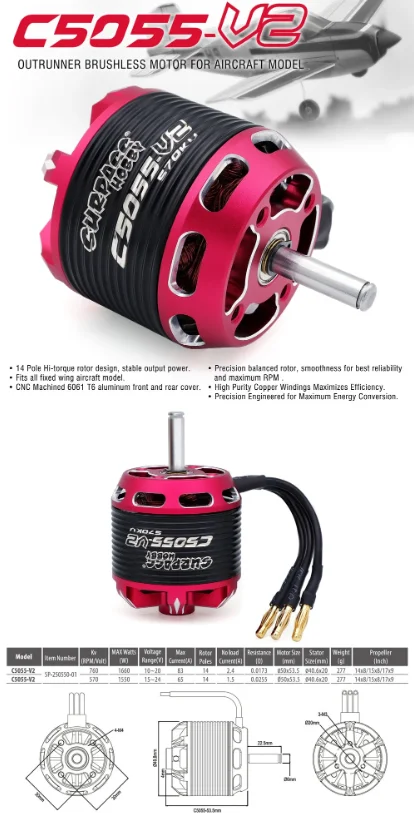

C5055-V2 KV570 brushless motor:
Kv(rpm/volt): 570;
Max watts(w): 1550;
Voltage range(V): 15~24;
Max current(A): 65;
Rotor poles: 14;
No load current(A): 1.5;
Resistance(Ω): 0.0255;
Motor size(mm): φ50*53.5;
Stator size(mm): φ40.6*20;
Weight(g): 277;
Propeller(inch): 14x8/ 15x8/ 17x9;

C5055-V2 KV760 brushless motor:
Kv(rpm/volt): 760;
Max watts(w): 1660;
Voltage range(V): 10~20;
Max current(A): 83;
Rotor poles: 14;
No load current(A): 2.4;
Resistance(Ω): 0.0173;
Motor size(mm): φ50*53.5;
Stator size(mm): φ40.6*20;
Weight(g): 277;
Propeller(inch): 14x8/ 15x8/ 17x9;

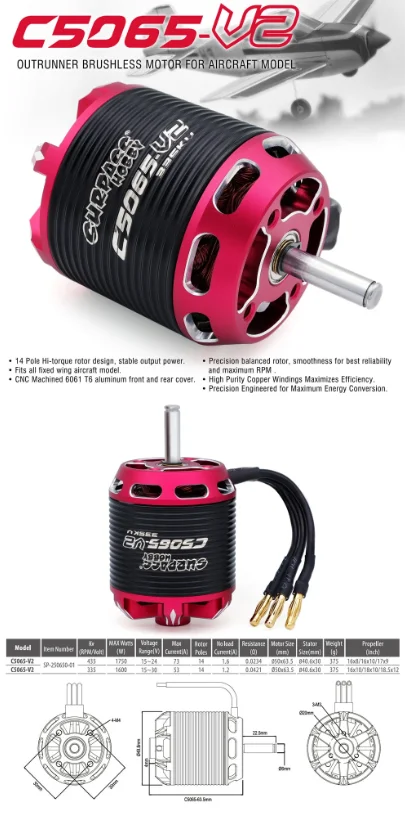

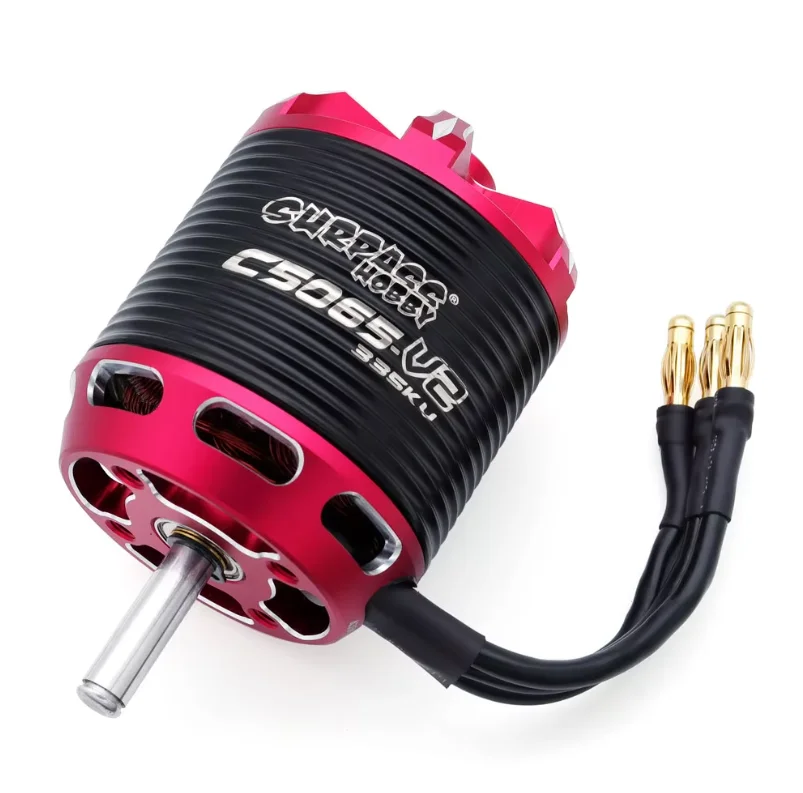

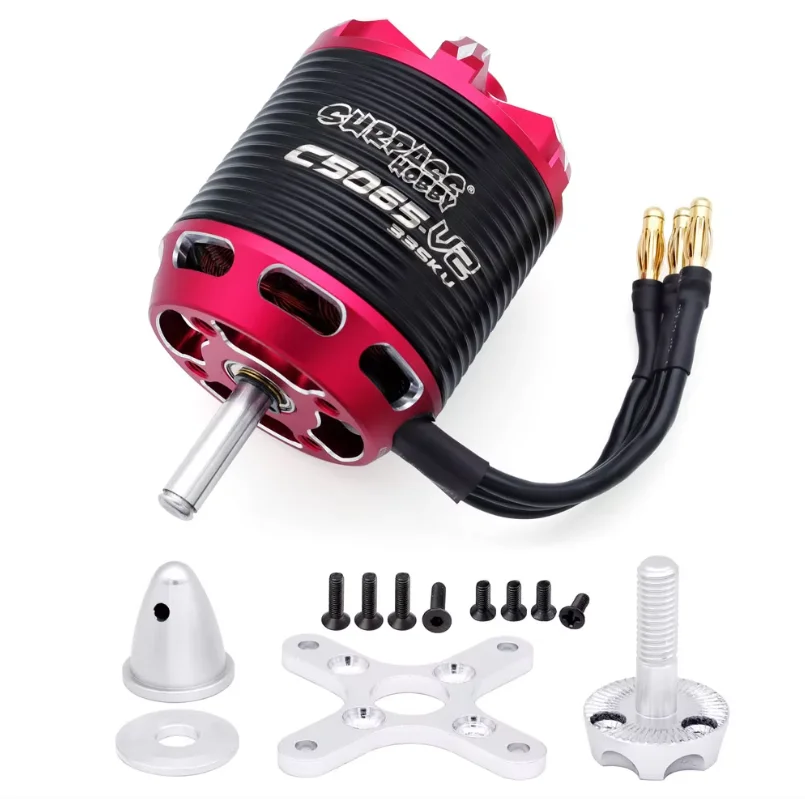

C5065-V2 KV335 brushless motor:
Kv(rpm/volt): 335;
Max watts(w): 1600;
Voltage range(V): 15~30;
Max current(A): 53;
Rotor poles: 14;
No load current(A): 1.2;
Resistance(Ω): 0.0421;
Motor size(mm): φ50*63.5;
Stator size(mm): φ40.6*30;
Weight(g): 375;
Propeller(inch): 16x10/ 18x10/ 18.5x12;

C5065-V2 KV435 brushless motor:
Kv(rpm/volt): 435;
Max watts(w): 1750;
Voltage range(V): 15~24;
Max current(A): 73;
Rotor poles: 14;
No load current(A): 1.6;
Resistance(Ω): 0.0234;
Motor size(mm): φ50*63.5;
Stator size(mm): φ40.6*30;
Weight(g): 375;
Propeller(inch): 16x8/ 16x10/ 17x9;
