MITR CE Certificated Lab Vertical Planetary Ball Grinding Mill Machine 0.4L Micro Lab Ball Mill For Nano Powder Grinding

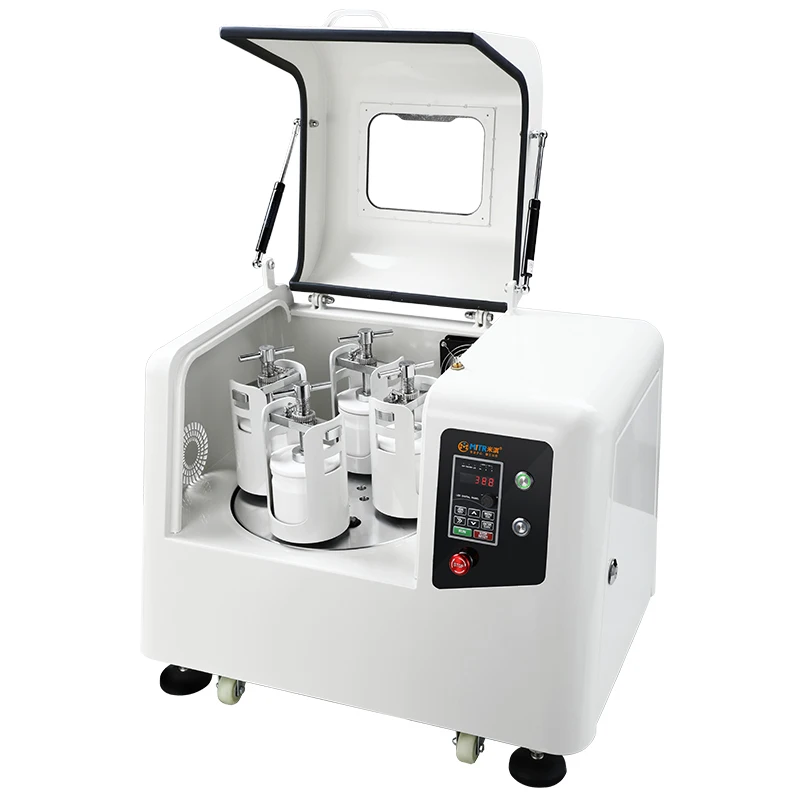

YXQM Series Planetary Ball Mill
YXQM Series Medium Production Planetary Ball Mill is a transitional testing equipment from the experimental end to the production end. It has the characteristics of full functions, high efficiency and low noise. It can four pots grinding and produce 4 sample materials at a time.
The extremely high centrifugal forces of Planetary Ball Mills result in very high pulverization energy and therefore short
grinding times.
Suitable for all industries where the quality control process places the highest demands on purity, speed, fineness and
reproducibility.
This series of grinding mill can be equipped with vacuum jars, which can grind samples in a vacuum state. It is very suitable for research tasks such as scientific research institutions, universities, and corporate laboratories from the experimental end to the production end to verify the feasibility of mass production, as well as routine tasks such as mixing and homogenizing soft, hard, brittle or fibrous materials.
All-round High-efficiency ,Nanoscale Grinding
-Lossless size reduction to sub-micron range
-Wet grinding produces particle sizes in the nanometer range (<100 nm)
-Variable speed from 10 to 800 rpm, speed ratio 1:2
-Batch processing of 2-20kg samples, 4 samples can be processed at the same time
-Oil seal silent invention patent design, low noise and longer service life
(Patent number: CN 2016 2 0215835.8; Patent number: ZL 2014 2 0375569.3)
-Can store 3 modes and 15 plans
-Power-off protection memory self-start function
-Can be used for dry grinding, wet grinding, vacuum grinding, and atmosphere-protected grinding
-The machine stops when the lid is opened, and the safety automatic gear lock prevents loosening, ensuring safety.
-Equipped with rollers and swivel feet, it is easy to use the
rollers when transporting and moving, and the swivel foot bracket will
not move during operation.

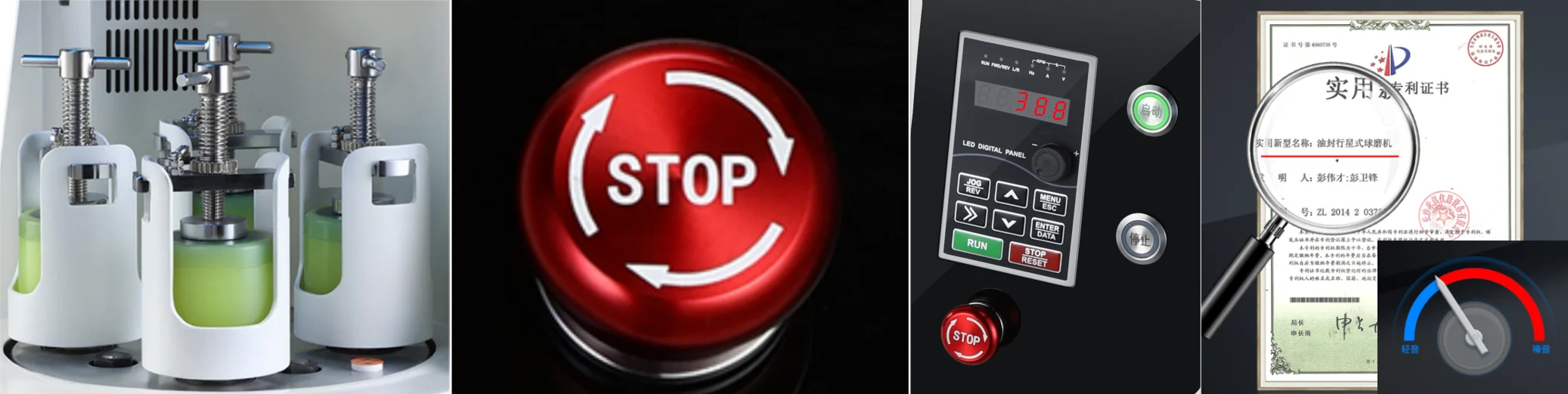

Pay attention to safety

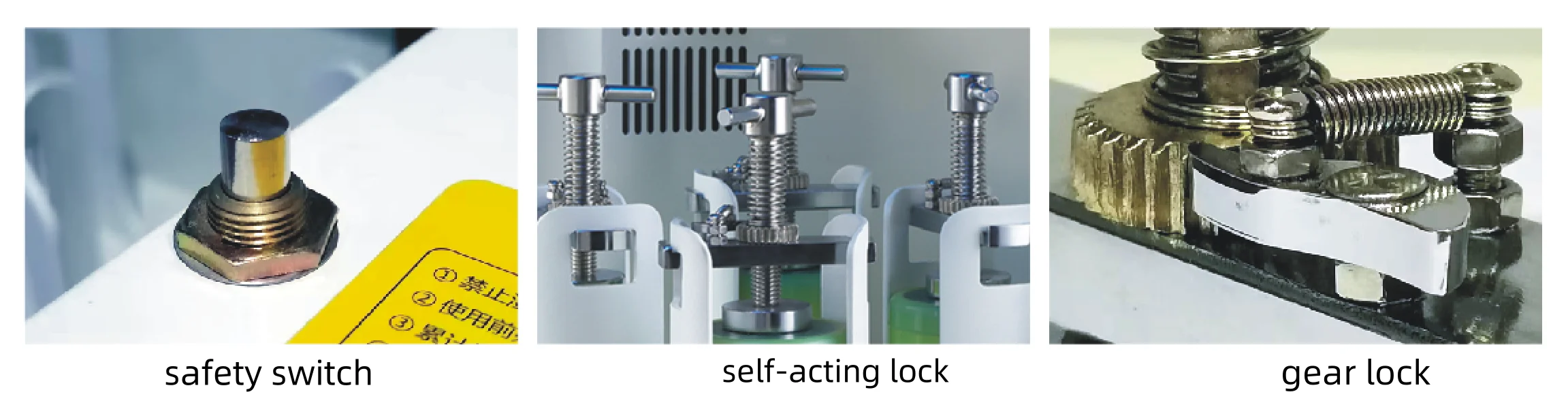

The machine stops when the lid is opened, and the automatic gear lock to prevent loosening
The YXQM series of planetary ball mills are safe to operate. They
are equipped with a safety switch device. The machine will stop when the
cover is opened and the equipment cannot start running when the cover
is opened. This ensures the safety of the operator and prevents
accidental injuries.
The self-acting lock can prevent the tank from loosening
during operation, ensure safety and avoid damage to the core components
of the equipment.
Wet nano-grinding with the YXQM series
Wet grinding is used to obtain particle sizes below 5 µm, as small
particles tend to get charged on their surfaces and agglomerate, which
makes further grinding in dry mode difficult. By adding a liquid or
dispersant the particles can be kept
separated.To produce very fine particles of 100 nm or less
(nano-scale grinding) by wet grinding, friction rather than impact is
required.
This is achieved by using a large number of small grinding
balls which have a large surface and many friction points. The ideal
filling level of the jar should consist of 60 % small grinding balls.

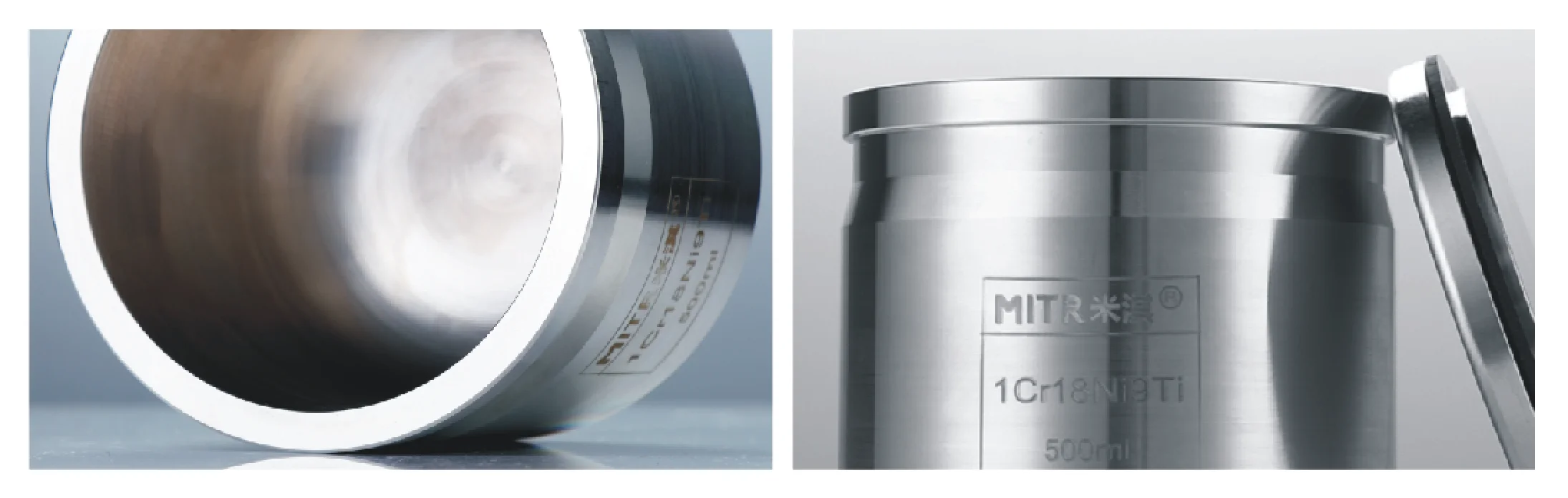

Innovative & Outstanding Grinding Jar
The jar is made of refined molds or high-precision polishing, with
extremely high smoothness of the inner and outer walls, and the bottom
adopts a large R angle design that is more difficult to make, which can
effectively reduce the phenomenon of materials sinking to the bottom
during the grinding process.
The jar opening adopts a more ergonomic grip step to prevent
hands from slipping and make it easier to take/put down the grinding
jar.

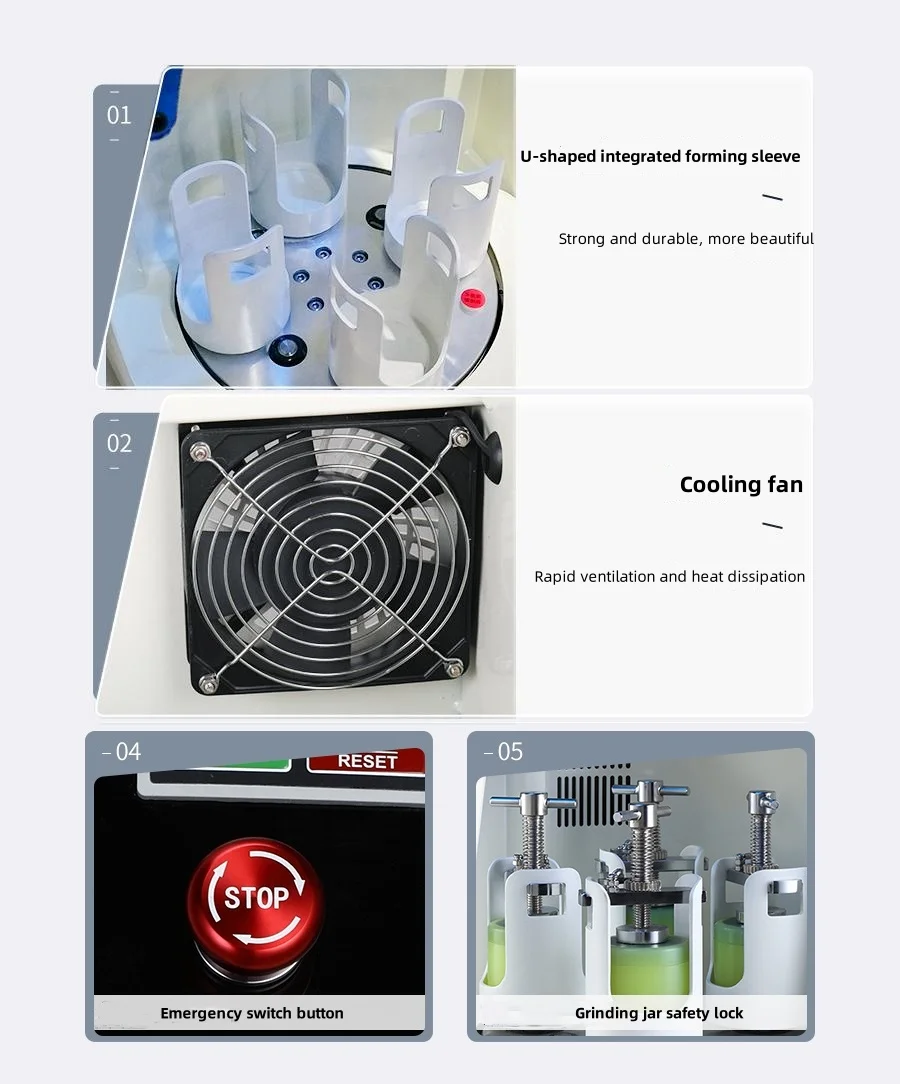

Product Details
Grinding Materials
Planetary ball mills are ideal for metal oxides, alloys, carbon fiber, ceramics, charcoal, chemical products, clay minerals,
coal, coke, compost, concrete, electronic scrap, fibers, glass, gypsum, hair, catalysts, cellulose, cement clinker, bentonite,
bones, hydroxyapatite, iron ore, kaolin, limestone, minerals, ores, paints and varnishes, paper, pigments, plant materials,
polymers, quartz, seeds, semi-precious stones, sewage sludge, slag, soil, tissue, tobacco, waste samples, wood, etc.
Product Paramenters
|
Applications
|
Crushing, mixing, homogenizing, colloid grinding, mechanical alloying, mechanochemistry
|
|||
|
Field of application
|
New energy, geology/metallurgy, glass/ceramics, engineering/electronics, building materials, environment/recycling, agriculture,
chemistry, biology |
|||
|
Feed material
|
Soft, hard, brittle, fibrous-dry or wet
|
|||
|
Size reduction principle
|
Impact force, friction
|
|||
|
Material Feed Size
|
< 5 mm soil<10 mm
|
|||
|
Final Fineness *
|
Used for colloid grinding, the sample is less than 0.1 micron
|
|||
|
No. of Grinding Stations
|
4
|
|||
|
Grinding method
|
Can be dry grinding, wet grinding, vacuum grinding, atmosphere protection grinding
|
|||
|
Grinding jar material
|
Stainless steel, carbide, zirconium oxide, aluminum oxide, silicon carbide, silicon nitride, polyurethane, nylon,
polytetrafluoroethylene, agate |
|||
|
Speed ratio
|
01:02
|
|||
|
Operation Mode
|
3 types: unidirectional, alternating forward and reverse, multi-stage
|
|||
|
Storable SOPs
|
15
|
|||
|
Time setting
|
Run/stop time: 0-9999 minutes
|
|||
|
Power protection
|
Power-off protection memory self-start function
|
|||
|
Model
|
YXQM-8L
|
YXQM-12L
|
YXQM-16L
|
YXQM-20L
|
|
Grinding jar capacity
|
500-2000ml
|
1000-3000ml
|
1000-4000ml
|
1000-5000ml
|
|
Vacuum jar capacity
|
500-2000ml
|
1000-3000ml
|
1000-4000ml
|
1000-5000ml
|
|
Revolution speed
|
5-320r/min
|
5-320r/min
|
5-230r/min
|
5-230r/min
|
|
Rotation speed
|
10-640r/min
|
10-640r/min
|
10-460r/min
|
10-460r/min
|
|
Power
|
1.5KW
|
1.5KW
|
3KW
|
3KW
|
|
Voltage
|
Single phase, 220V/50Hz or three phase, 380V/50Hz;
|
Three-phase, 380V/50Hz
|
||
|
Dimension(W x H x D)
|
820 x 560 x 780mm
|
990 x 660 x 870 mm
|
||
|
Weight
|
191kg
|
193kg
|
230kg
|
288kg
|
