VOLKSWAGEN PASSAT B6 (3C) — VR6 3.6L / 2.0 TFSI / TDI (2005-2008):
• Passat Sedan 3.6L VR6 BLV 3597cc 280HP 12V (2006-2008)
• Passat Wagon 3.6L VR6 BLV 3597cc 280HP 12V (2006-2008)
• Passat 2.0 TFSI AXX 1984cc Turbo 200HP 12V (2005-2008)
• Passat 2.0 TDI BKP/CBBB 1968cc Turbo Diesel 140HP 12V (2005-2008)
• Passat 1.9 TDI BXE/BKC 1896cc Turbo Diesel 105HP 12V (2005-2008)

SKODA SUPERB SEDAN (3T4) — 1.6 / 2.0 TDI (2008-2015):
• Superb 2.0 TDI 16V 103kW BKD/CFFB/CLJA 12V (2009-2015)
• Superb 1.6 TDI 77kW CAYC 12V (2010-2015)
• Superb 2.0 TDI 125kW CBBB/CFGB 12V (2008-2015)

SKODA SUPERB ESTATE (3T5) — 1.6 / 2.0 TDI (2009-2015):
• Superb Estate 2.0 TDI 16V 103kW BKD/CFFB/CLJA 12V (2009-2015)
• Superb Estate 1.6 TDI 77kW CAYC 12V (2010-2015)
• Superb Estate 2.0 TDI 125kW CBBB/CFGB 12V (2010-2015)

SKODA YETI (5L) — 2.0 TDI (2009-2011):
• Yeti 2.0 TDI 81kW CFHA/CLCA 12V (2009-2011)
• Yeti 2.0 TDI 103kW CBDB/CFHC/CLCB 12V (2009-2011)
• Yeti 2.0 TDI 125kW CEGA/CFJA 12V (2009)

FITS / Replacement Part Numbers:

OEM PART NUMBERS:
• Volkswagen: 021903026L / 021-903-026L / 021903026LX / 021-903-026LX
• Volkswagen: 021903026G / 021903026GX
• VW/Audi: 03G903023 / 03G-903-023 / 03G903023X / 03G-903-023-X
• VW: 03L903023E / 03L903024J
• 0121715003 / 0-121-715-003 / 0121715103 / 0-121-715-103
• 0121715047 / 0986081230 / 0-986-081-230 / 0986045350
• Hella: 8EL012426001 / 8EL-012-426-001 / 8EL738211701
• TG17C019 / 439558 / 437555 / 440253 / FG18T033 / FGN18T033
• 2542783 / 2542783C / 2542783D
• Lucas: LRA02931 / LRA2931
• Chrysler: 04801715AA
• Mercedes: HVW0001540202 / 000-154-02-02

SPECIFICATIONS:

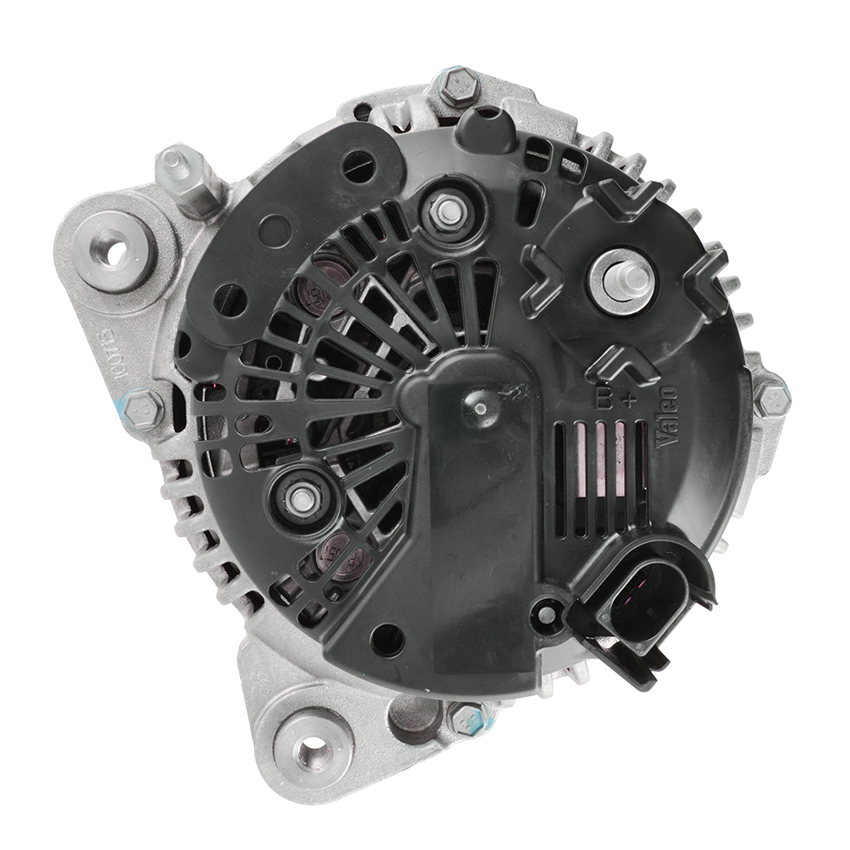

• Product: Alternator
• Unit Type: TG17C019 Permanent Magnet (PMA)
• Voltage: 12V
• Amperage: 180A
• Rotation: CW (Clockwise)
• Fan Location: Internal
• Regulator: Internal (IR/IF)

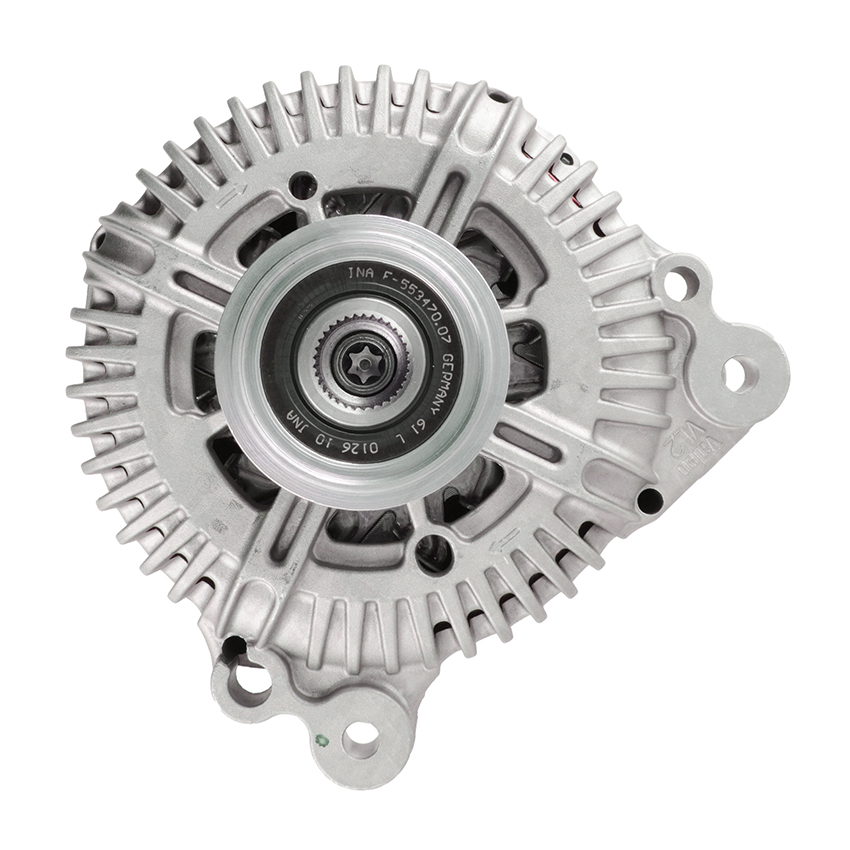

• Pulley: 6-Groove Serpentine, OD 57mm
• Housing: Aluminium
• Mounting: 4 Bolt (9mm Holes + M8x1.25)
• Polarity: Negative Ground
• Condition: New

Product Notice:
