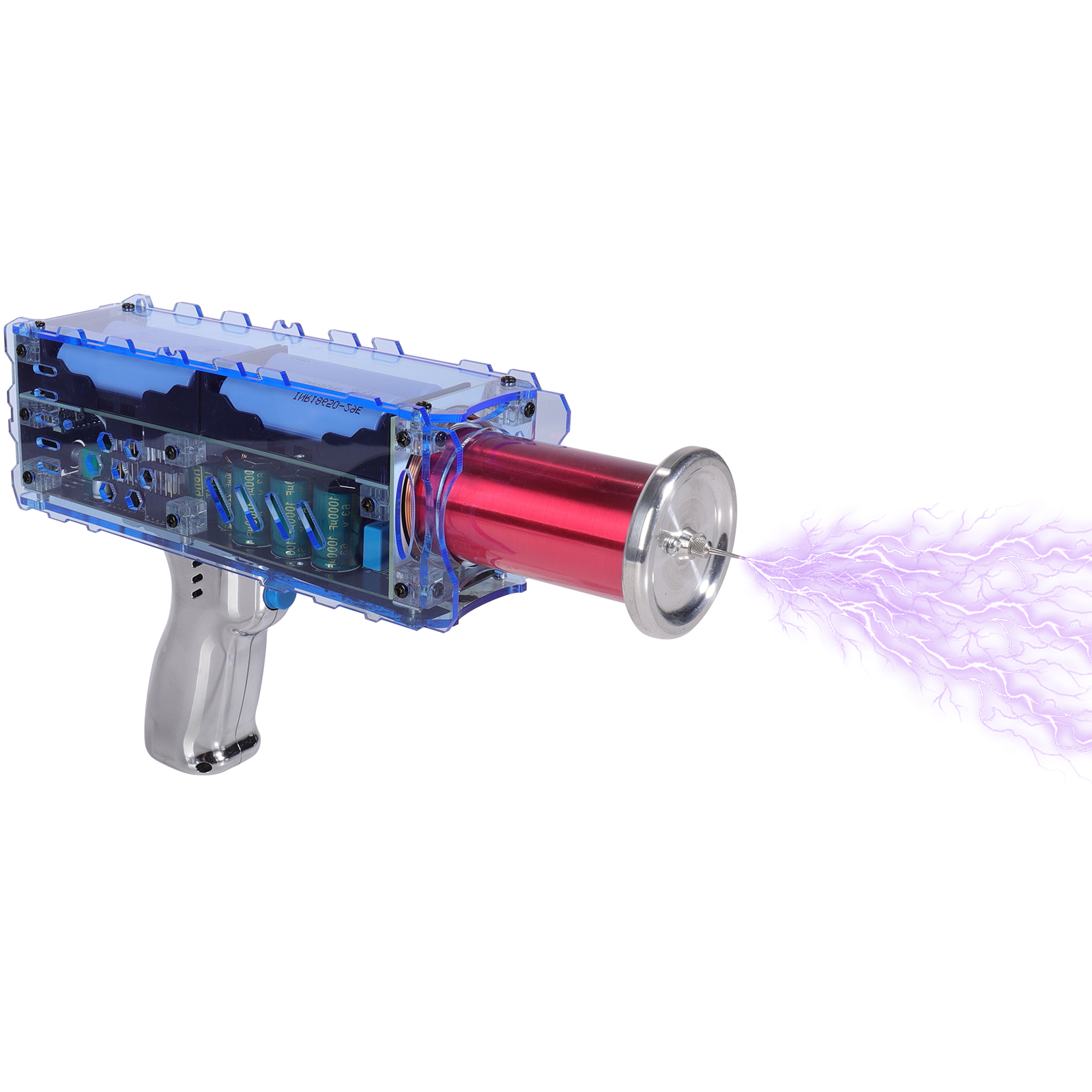

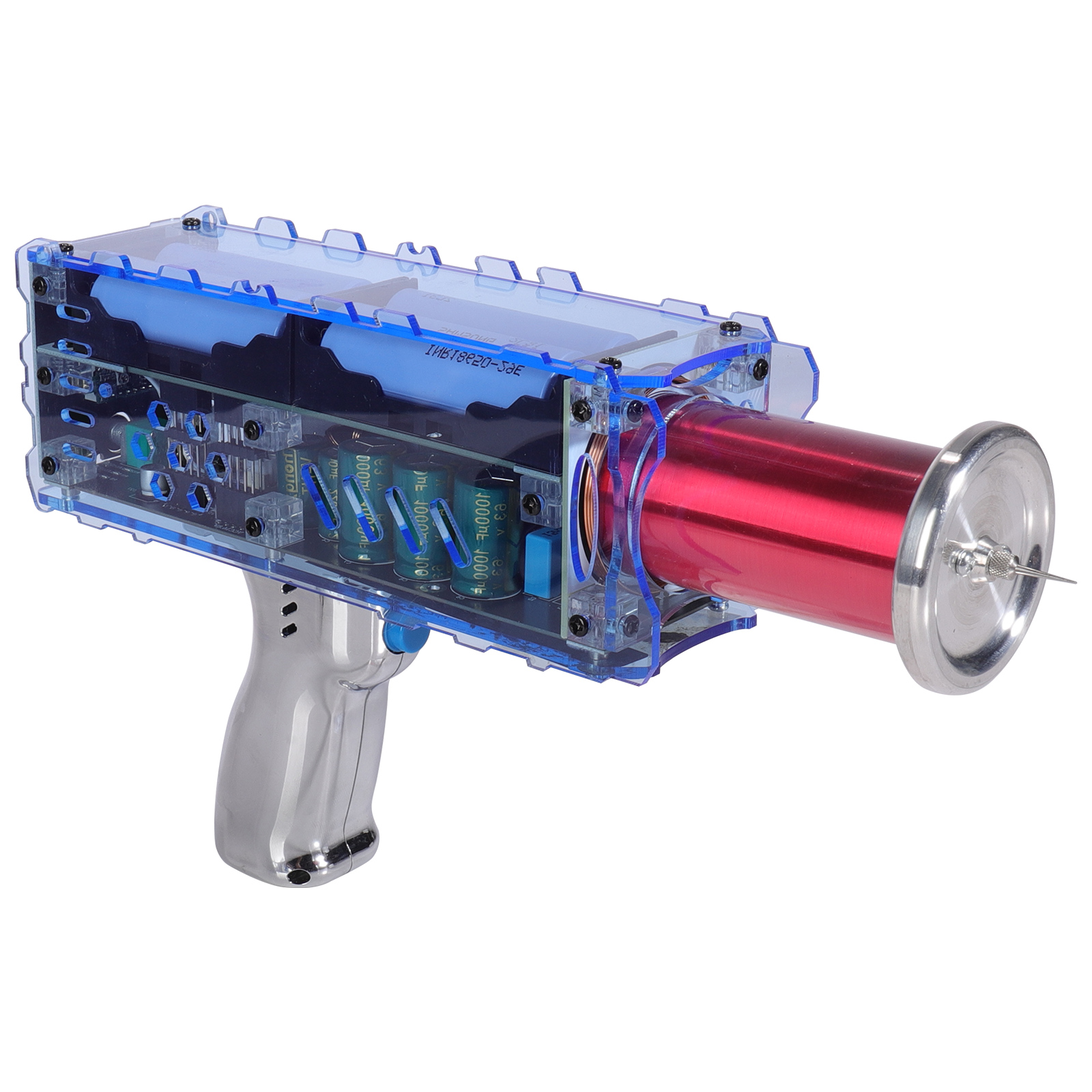

 Handheld Tesla Coil Gun Portable Mini Arc Generator for Tesla Coil Maximum 10cm The Handheld Tesla Coil is a artificial lightning generating device whose shell is assembled with transparent acrylic sheet.
It can generate beautiful artificial lightning with a length of more than 10cm, and the number of times is as high as 30000 times. Use note: Please pay attention to the battery voltage on the voltmeter during use Display, when 16.8V is displayed, it is fully charged; when displayed When around 12V, please be sure to use it after charging. No It will directly damage the battery. User needs:
1. When the user uses the device for the first time, it may happen that the arc trigger switch is pressed and the arc fails, and the LED2 on the function panel can be observed, that is, the SRT indicator is off. If this happens, the user It is necessary to turn off the power switch and turn it on again to release the protection state of the device until the RST indicator on the function panel lights up again. 2. After the RST indicator lights up again, the user needs to touch the discharge needle of the device, and then try to trigger the arc trigger switch again to assist the startup of the device. This process can be tried several times until the device can emit arcs normally. . 3. If the RST indicator suddenly turns off during use, users can try to turn off the power switch and restart the device again to restore to normal. Specification:
Power supply voltage: 12-16.8v Power supply current: Maximum 16.8v*3A Battery pack: 4s18650/16.8v (After installing the battery correctly, please charge it with a charger and activate the power board before normal use) Capacity: Default 2900mah/48wh Material: ternary Standby current: 85ma Maximum power consumption: 60W Battery life: 30,000 arcs (2hz) Arc length: adjustable - maximum 10cm Function mode: single trigger + automatic trigger Automatic trigger: 1-10hz (10 adjustable levels, 5hz defaults to 1hz per step when powered on, cyclic adjustment) Power pulse width: 0-500us (7 adjustable levels, 500us defaults to cyclic adjustment when powered on) Special function: arc shape can be fine-tuned Temperature control start condition: >70℃ triggers LED5 to light up, equipment is disabled: ≤60℃ reset Battery low voltage indication: ≤12v triggers LED6 to light up, equipment is disabled: >13V reset Electric field strength: 1m/ 1500v Magnetic field strength: 1m/~50uT Noise intensity: 1m/86db Accessory parameters: Charger: IN: 110V-240V50/60Hz OUT: DC16.8V1A Coil: diameter 40*75mm resonant frequency 1.2MHz Host size: length 280mm (including coil) width 60mm; height 165mm Coil: diameter 40*75mm resonant frequency 1.2MHz Weight 1: Net weight: 735g ± 10g (excluding packaging/charger) Weight 2: Total weight 1150g
