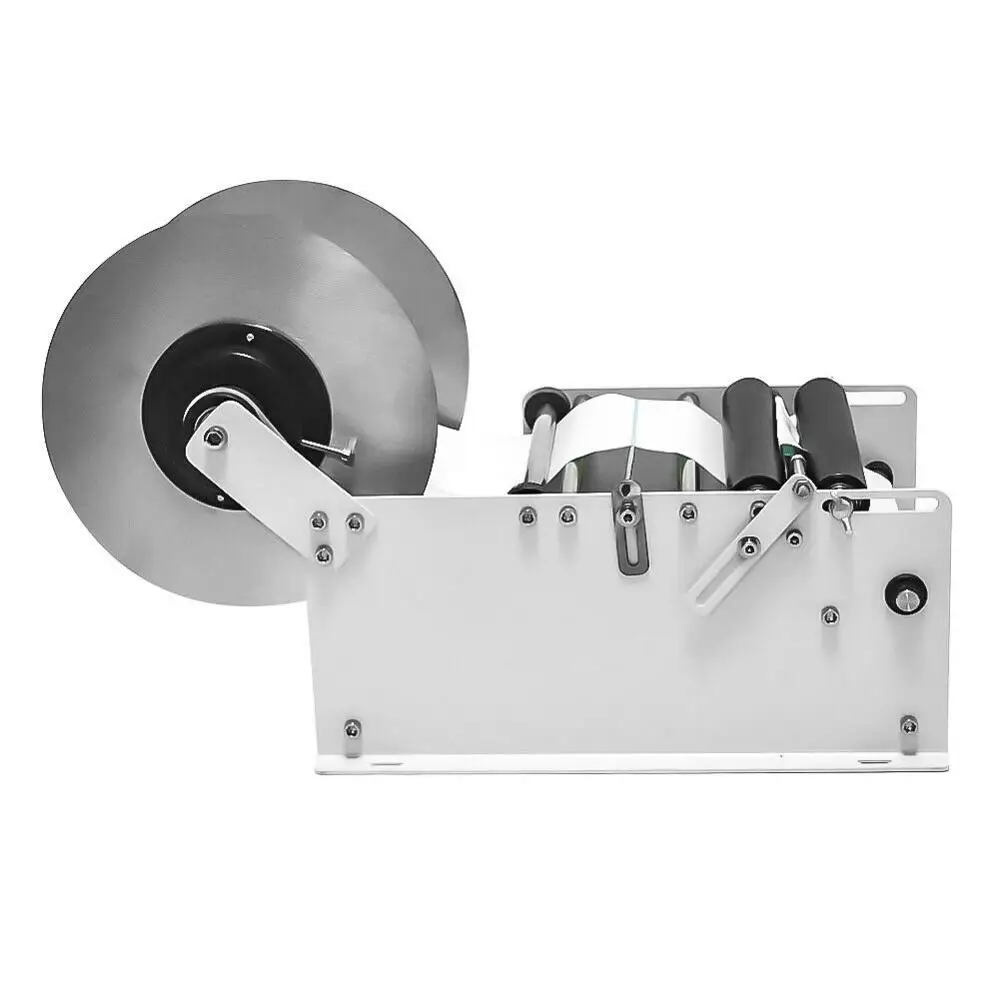

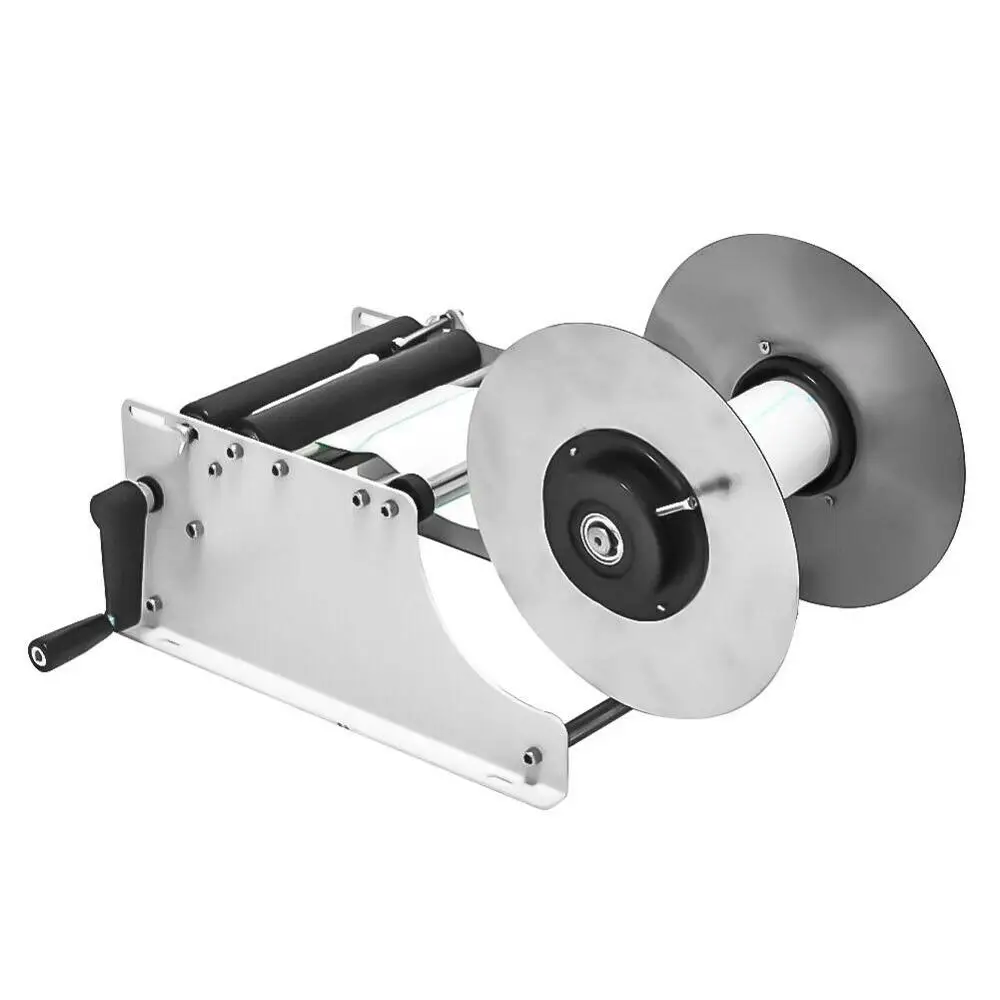

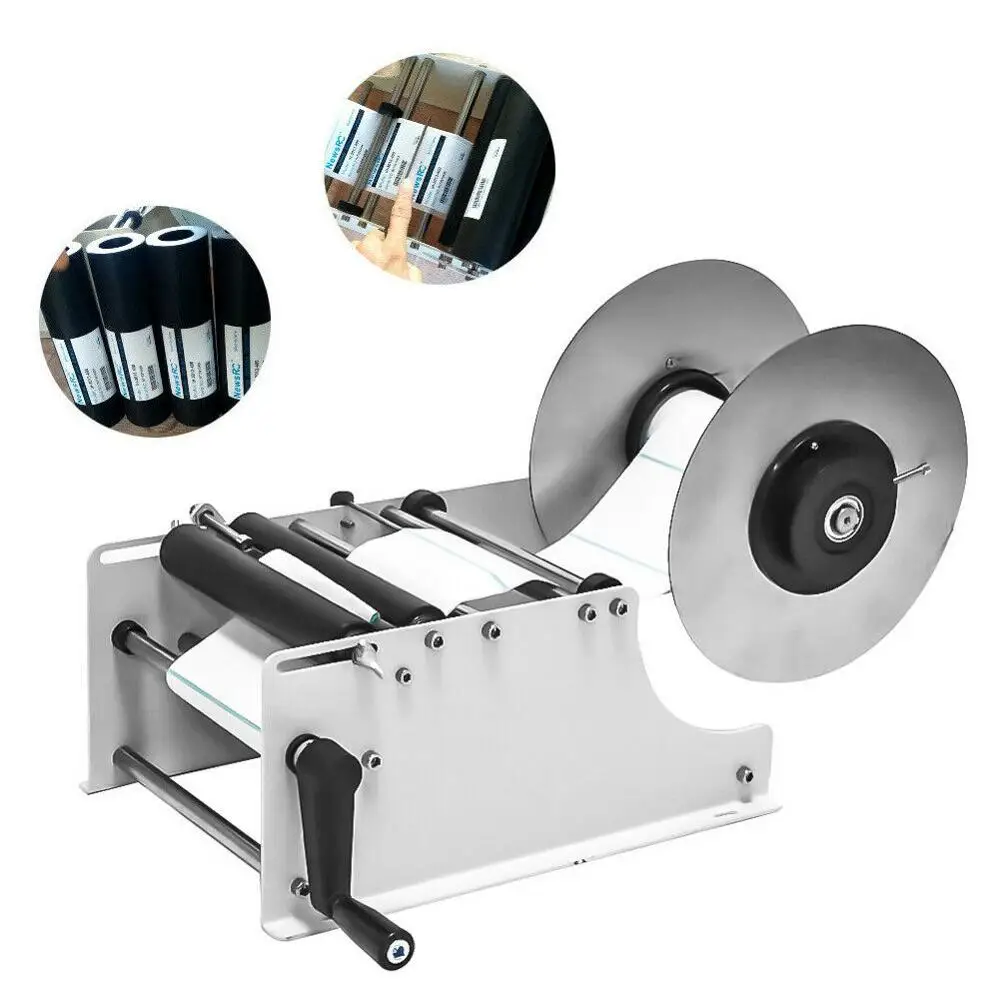

MT-30 Manual Round Bottle Labeling Machine



Application:

This machine is Suitable for round bottles like PET bottle, plastic bottle, glass bottle, metal bottle, etc. Widely used in cosmetics, beverage, foodstuff, food, medical industries. Manual labeling machine are useful for small jobs.

Note: This manual Labeling Machine is only suitable for round bottle sticker labeling, not for other purposes!





Specifications:

Model: MT-30

Speed: 20-40 times/min

Accuracy: +/-0.5mm

Label Roll inner diameter: 75mm/ 3in

Label Roll Out diameter: 275mm/ 10.8in

Bottle diameter: 15-120mm, H≤150mm

Label width: 26-130mm / 1-5in

Label Length: 25-2600mm/ 1-102in

Product size: 400×240×210mm/ 15.7×9.4×8.3in

Package size: 470×310×250mm/ 18.5×12.2×9.8in

Gross weight: 5.2kg/ 11.5lb



Please allow slight error due to manual measurement. Thanks for your understanding



Features:

1. This desktop bottle label machine can save space, and easy to use

2. Suitable for round bottles: adjust the distance between the two rolls to fit the bottle

3. Manual type: with no need for connecting power and save energy



Steps of using

1. Adjust the distance between two rolls,and put on your bottle

2. Adjust the bottle holder to fix the bottle

3. Rotate the handle to work



Package Content:

1× Manual Labeling Machine
