Ionic wind rod electrostatic eliminator Industrial new material glass film new energy rapid dust removal electrostatic rod
Item specifics:
Item specifics:
The anti-static ion bar can produce plenty of positive & negative ions, which can neutralize the products' ions that go through the ion radiation area. When the products surface
with negative ion, it will attract radiation area's positive ion; effectively neutralize the positive and negative charge within the distance of 30mm~300mm, and then completely
eliminate static electricity.
Products feature:
1. Neutralize static electricity quickly
2. Stable and safe working performance
3. Easy and convenient installation
4. The ion bar has good ground protection
Installation and operation:
*The ion bar must works with the generator together.
1. Plug the ion bar's connecting line terminal into the output plughole of the generator, and connect the ion bar's ground wire into the generator's ground pole
2. After confirm ground connection is well, plug the generator's attaching plug into the socket with ground wire(attention to the operating voltage of generator),install the bar to suitable position
3. Turn on the generator's power supply, then it can start to work.
Safety indication:
1. Operating point must connect ground well
2. Do not use the bar under inflammable and explosive environment
3. Do not repair by yourself
Installation and operation:
The bar must work with generator. Plug the bar's connecting line terminal into the output plughole of the generator, and connect the bar's ground wire into the generator's ground pole, after confirm ground connection is well, plug the generator's attaching plug into the socket with ground wire(attention to the operating voltage of generator),install the bar to suitable position, turn on the generator's power supply, then it can work.
Cleaning :
Regularly clean the bar's ion needle and copper tube wall in order to keep work with good effect.
Anti Static Ion Bar Device For Removing Electrostatic For Packing Machine
Parameter:
Ion bar length 2100mm
Output voltage: 7.0KV
Power 30W
Input voltage 220V 50Hz (If need 110V 60Hz or other special Voltage pls leave a message)
Current consumption 0.36mA/M
Working temperature 0~50 degree
Air pressure 5-7Kg
Airflow rate :10m/sec
Packing include

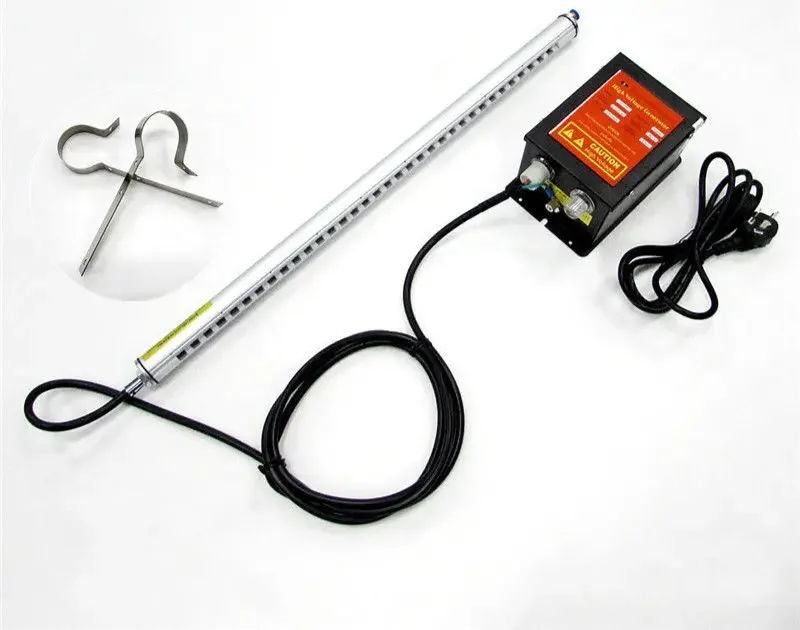

200cm ion bar+1unit 7KV Static High Voltage Generator
Ion wind rod aluminum rod within 600mm set 4KG
Ion wind rod copper rod within 600mm set 5KG
Ion wind rod stainless steel rod within 600mm set 6KG
Ion wind rod aluminum rod within 600mm set 4KG
Ion wind rod copper rod within 600mm set 5KG
Ion wind rod stainless steel rod within 600mm set 6KG
