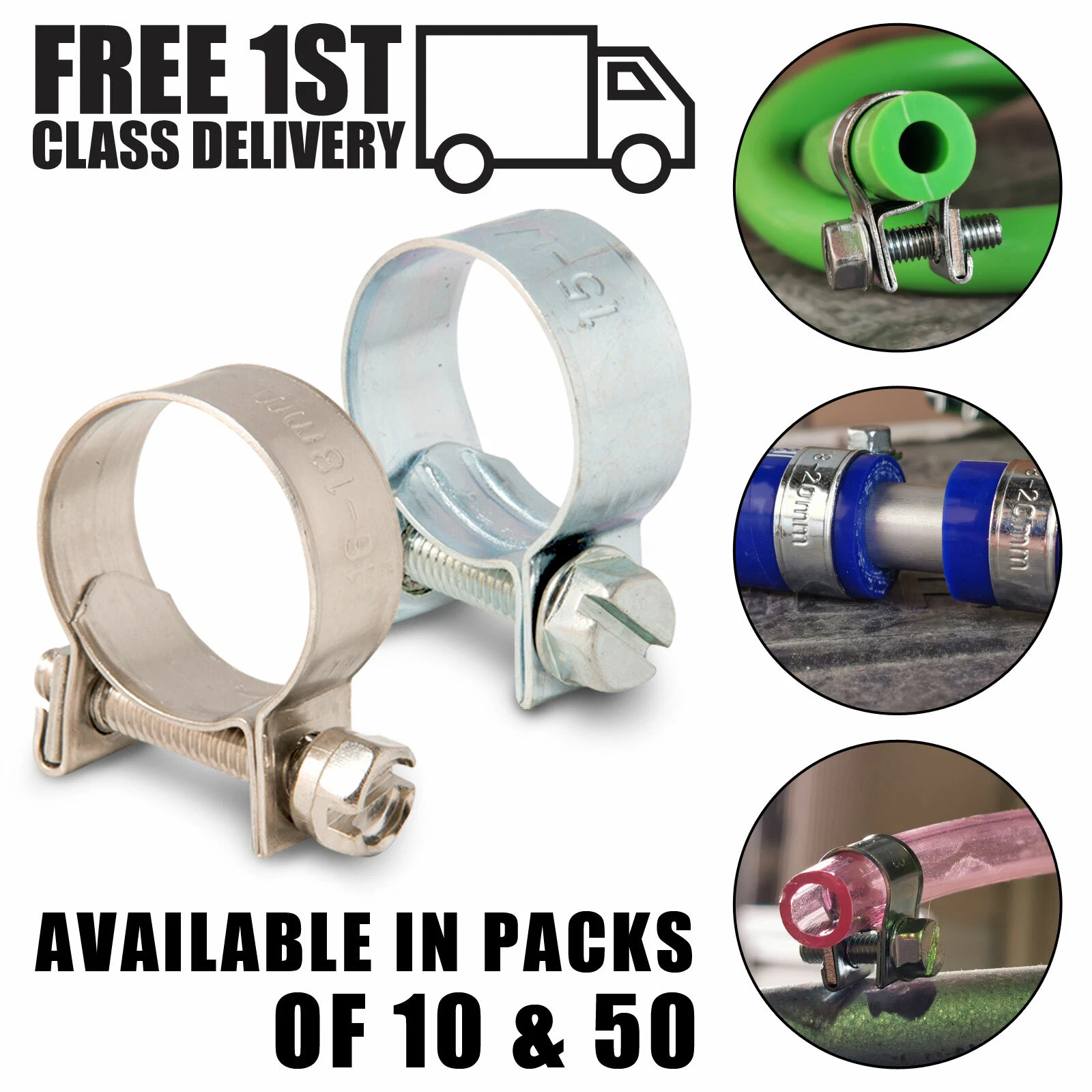

Mini Hose Clamps BZP, Stainless Steel Clamps
Item description
The Mini Clip, also known as the Nut & Bolt, fuel line or Petrol Pipe Clip, is tailor-made for many small diameter constructions where wide adjustment span is not necessary.
Key Points
- Material:
- Carbon Steel (ZincPlated)
- AISI 304 Stainless Steel
- Sizes: 7mm-20mm
- Easy to install and remove
- Very Sturdy and Durable
- They are Versatile
- Keeps the circle shape with no warping to an oval shape
Extra Tools
- Flexi Driver:
The Flexi Driver is an indispensable tool for installing clamps, thanks to its long reach and flexible neck. Please refer to the link below for more information on. - Flexi Driver Link
Other Versions
- Stainless Steel Version For a higher grade material
- Stainless Steel Link
Box Sets
- Box sets offer a cost-effective solution for buying clips in large quantities. You can also choose a Flexi Driver for easy and convenient installation.
- Box Set Link
Selecting the correct size clamp:
- Accurately measure the OUTSIDE diameter of your hose / application.
- Select the Hose Clip which size range matches the OD of your hose.
- The outer diameter of the hose tends to increase when you push the hose onto a spout or connection.
- Size Example: If the hose is 10mm outside diameter, use a 9-11mm clamp.
Applying the clamp:
- Slide Clamp about 1cm if possible, from the end of hose
- Make sure the clamp is parallel with the edge of the hose
- Use a screwdriver or the flexi driver to tighten
- make sure you do not exceed the maximum torque of the clamp
