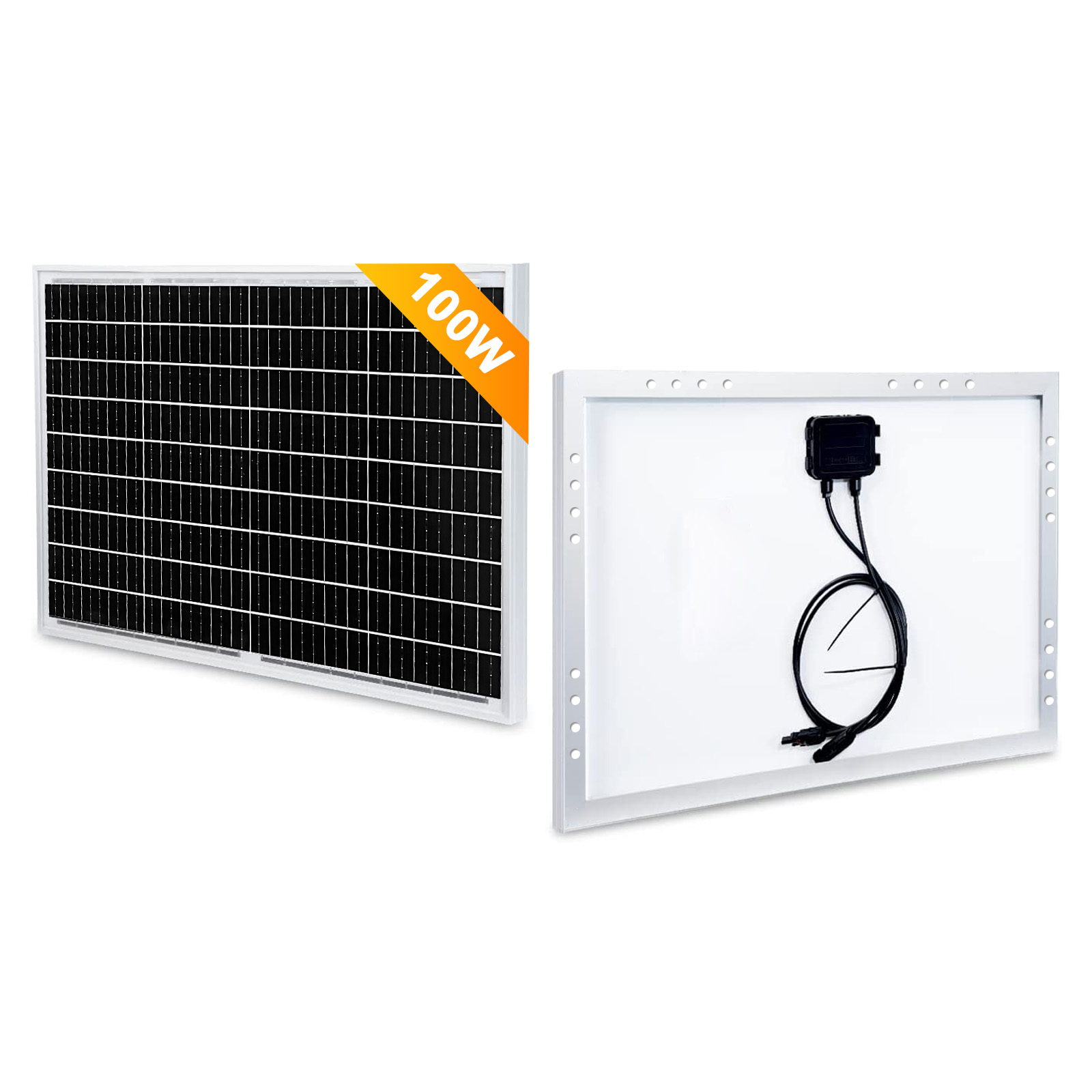

100W Solar Panel

         High Efficient Monocrystalline

         Maximum Power: 100W

         Open Circuit Voltage (Voc): 21.6V

         Maximum/Peak Voltage(Vmp): 18V

         Short Circuit Current (Isc): 6.2A

         Working Current (Iop): 5.55A

         Output Tolerance: ±3%

         Charge Voltage: 12V

         Frame: Aluminum alloy frame

         Temperature Range： -40℃ to +80℃(-40°F to +176°F)

         J-Box IP Rating: IP65

         Product size：76*58*3 cm

         Net weight: 4.58 KG

         Package size:  82.5*64.5*6 CM

         Gross weight: 4.8 KG

Package List：

100W Solar Panel *2

Features：

1. Each of our solar panels is individually manufactured from 100W 18V high quality 9BB monocrystalline silicon, which provides 23% efficient conversion with compact size and each panel has solar bracket mounting holes for easy installation.

2. The world's leading innovative design, compared to the market 400W 36V solar panels, our solar panels have very strong flexibility and practicality in terms of multiple panel installation, according to your charging equipment on the voltage requirements for DIY combination 18V/36V/54V/72V or even larger voltage can meet your different needs series or parallel installation.

3. Corrosion-resistant aluminum frame of this solar panel  provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.


FAQ

1. Does the 200W Solar Panel generate a full 200W of power?

A: In most cases, it is normal for a solar panel not to deliver its full nominal power. Some of the reasons why this happens, as well as some suggestions for getting closer to the nominal power figure, are given below:

Light Intensity

Surface Temperature

Sunlight Angle

Panel Shading

2. How much power can the 200W Solar Panel generate under normal conditions?

A: This depends first and foremost on weather conditions. Generally speaking, on a clear day with no clouds in the sky, sunlight hitting the panel at a 90° angle usually generates 120W–150W of power in the 200W panel.(If it is in summer, the outdoor temperature and light temperature are high, then the solar panel can play 100% of the power)

3. What should I know about the operating temperature, storage and use of the 200W Solar Panel?

A: The operating temperature of the Solar Panel is -20°C–85°C (-4°F–185°F). To extend the service life of the panel, ensure that the product is not exposed to external forces/impacts when not in use. The solar panel itself is made of glass and must not be dropped, pierced, bent, or sat on. These actions may break the glass and render the panel unusable.

4. Can I use a non-EcoFlow branded power plant on a 200W solar panel ?

For example(Jackery / BLUETTI / Anker )

A: Yes, but only certain types. The power supply used must be compatible with the MC4 standard in order to work properly. In addition, different brands of power plants with different manufacturing solutions may have lower power ratings and may not provide the same level of performance.
