Akasa USB 3.2 Gen 2 Internal 20-pin Connector to PCI Express Expansion Card
Compliant with PCle Gen3 x2 Lane performance
Complies with USB Attached SCSI Protocol (UASP) specification
Built-in SATA power connector for receiving extra power supply from the system
Includes optional low profile slot cover for supporting low profile cases
Upgrade to the New Generation of USB ConnectivityEasily add the latest-generation in internal 20-pin Key-A (front panel USB 3.2 Type-C) connectivity to your PC system via an available PCI-E slot on your motherboard.
Wide CompatibilityPCIe x4 expansion card fits in any PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot.
Experience High SpeedsProvides fast data transfer speeds of up to 10 Gb/s. SuperSpeed+ interface can save you a lot of valuable time as you no longer need to wait so long to complete data transfer especially those large files like HD movies or system backups. 20-pin connector supports internal USB 3.1 device such as AK-HC-11BK
Functional DesignBuilt-in SATA power connector ensures there is enough power delivery for all types of power-hungry USB devices. Includes optional low profile slot cover for supporting low profile cases
Specifications
| Application |
USB 3.2 Gen 2 PC system extension card |
| Designed for |
PC systems with spare PCIe slot |
| Ports |
Internal 20-pin Key-A x1 |
| Power Connector |
DC + 12V / SATA 15pin connector |
| Transfer Rate |
10 Gb/s (USB 3.2 Gen 2)
5Gb/s (USB 3.2 Gen 1 / USB 3.0)
480 Mb/s (USB2.0) |
| Support |
Windows 7 / 8.X / 10 / 11
macOS |
| Product Code |
AK-PCCU3-06 |
Contents
 |
 |
 |
|
| AK-PCCU3-06 |
Low Profile Bracket |
User Manual |
|

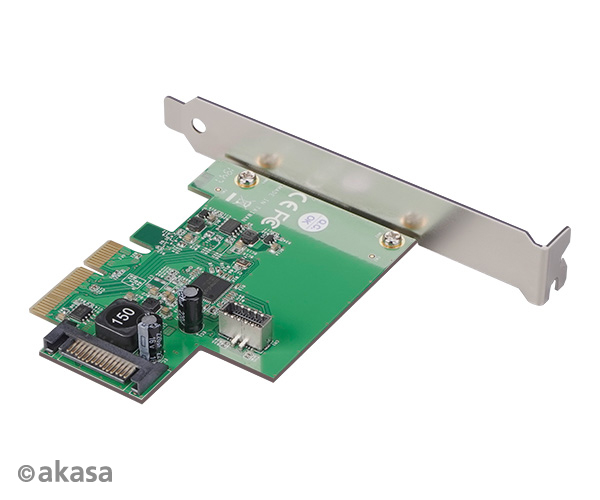

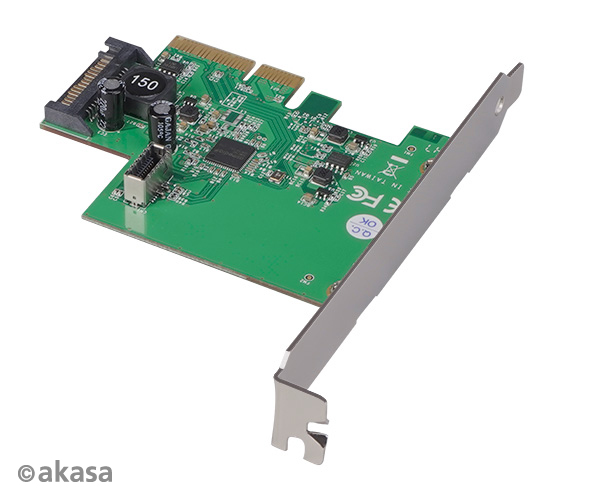

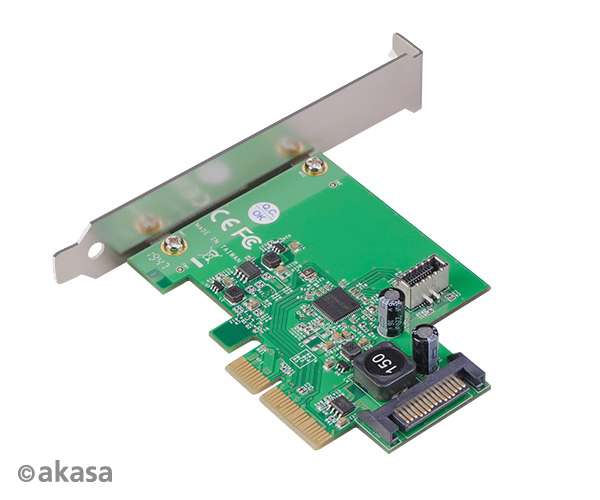

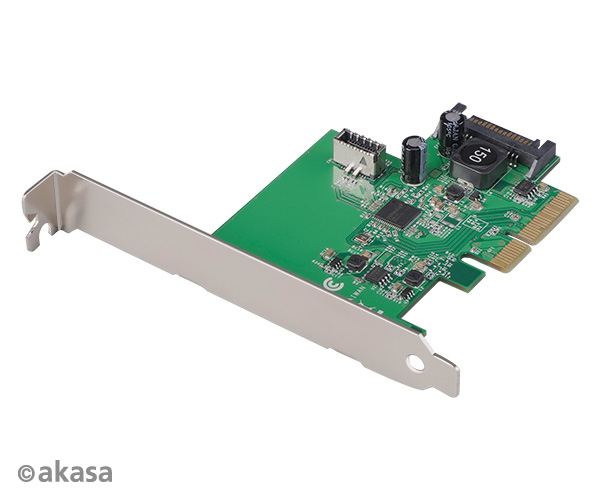

Images
|
