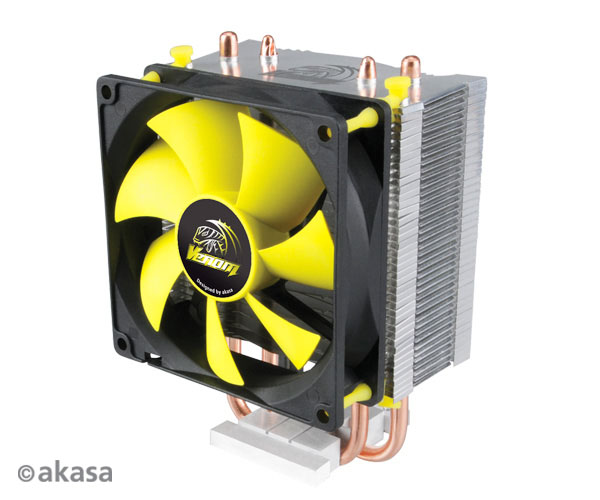

Akasa Venom Pico CPU Cooler

Venom pico is a unique cooler combining high performance with great value and striking looks.

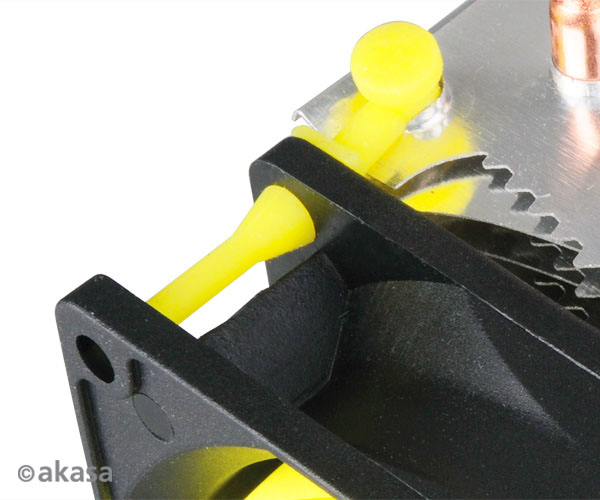

The highly effective 92mm fan in killer Viper yellow delivers vast amounts of airflow for top notch cooling. The PWM function ensures quiet operation during normal system use and performance cooling under load. Two copper heatpipes with direct CPU contact provide rapid heat transfer from CPU to high grade aluminium fins. Anti-vibration rubber fan mounting pins help to eliminate a lot of fan noise.

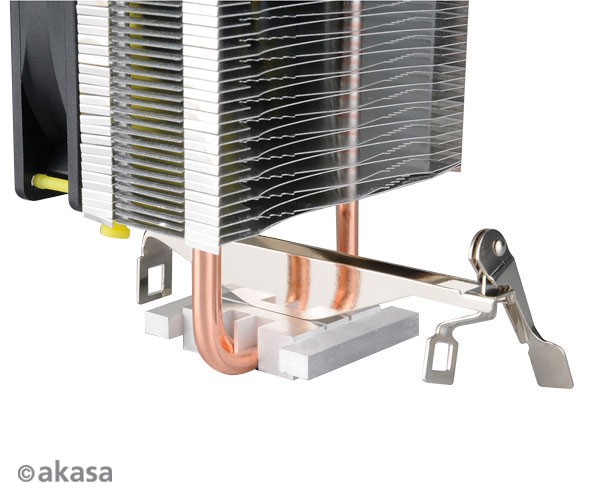

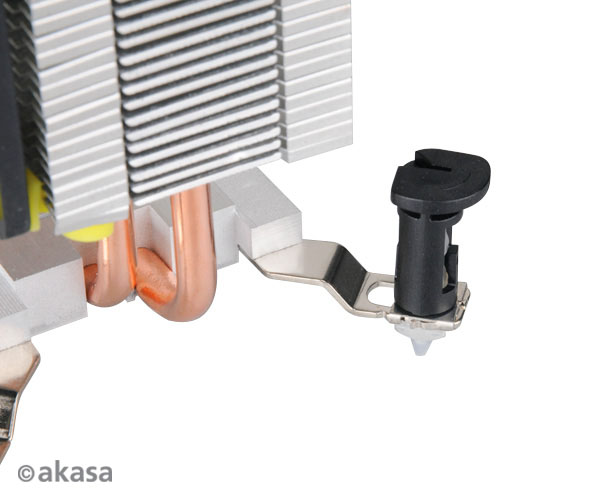

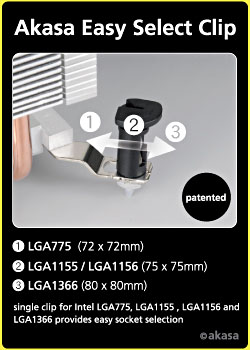

New design akasa (patented) Easy Select Clip with Intel reference push-pin retention is used for no-hassle mounting on Intel LGA775, LGA1156 and LGA1366 platforms - no backplate is needed. AMD Sockets 939, AM2, AM2+ and AM3 are catered for with a cam-lever clip for safe and easy attachment. Performance thermal compound is supplied.

Low noise 9.2cm PWM fan in killer Viper yellow
Intel push pin for reliable and easy installation

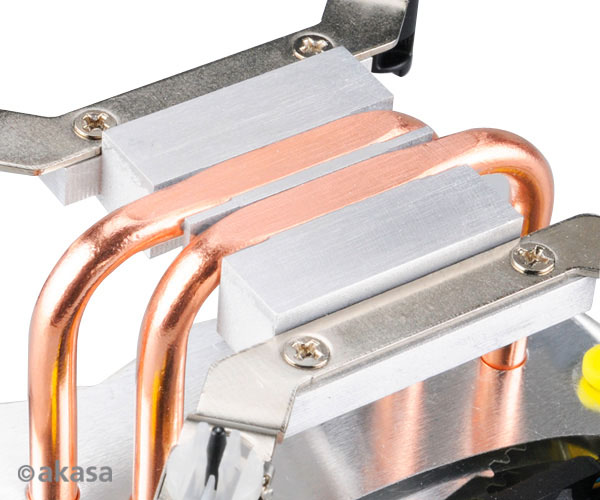

Two copper heatpipes with direct CPU contact





Socket type Intel LGA775, LGA115X AMD Socket AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 & FM2+
Cooler dimensions 138.5 (H) x 94 (W) x 76 (D) mm
Heatsink material High grade aluminium fins, copper heatpipes
Heatpipe 6mm x 2
Weight 364g
Installation Push-pins (Intel) or Screws (AMD)
Fan dimension Ø92 x 25mm
Fan speed 600 - 3000 RPM (PWM controlled)
Max airflow 57.92 CFM
Max air pressure 5.62 mm H²O
Noise level 34.2 dB(A)
Voltage rating 12V DC
Bearing type EBR
Fan life expectancy 40,000 hours
Fan connector 4pin PWM
Product code AK-CC4009EP01
Package Contents
AK-CC4009EP01 Installation manual
AMD mounting clip Thermal Compound
