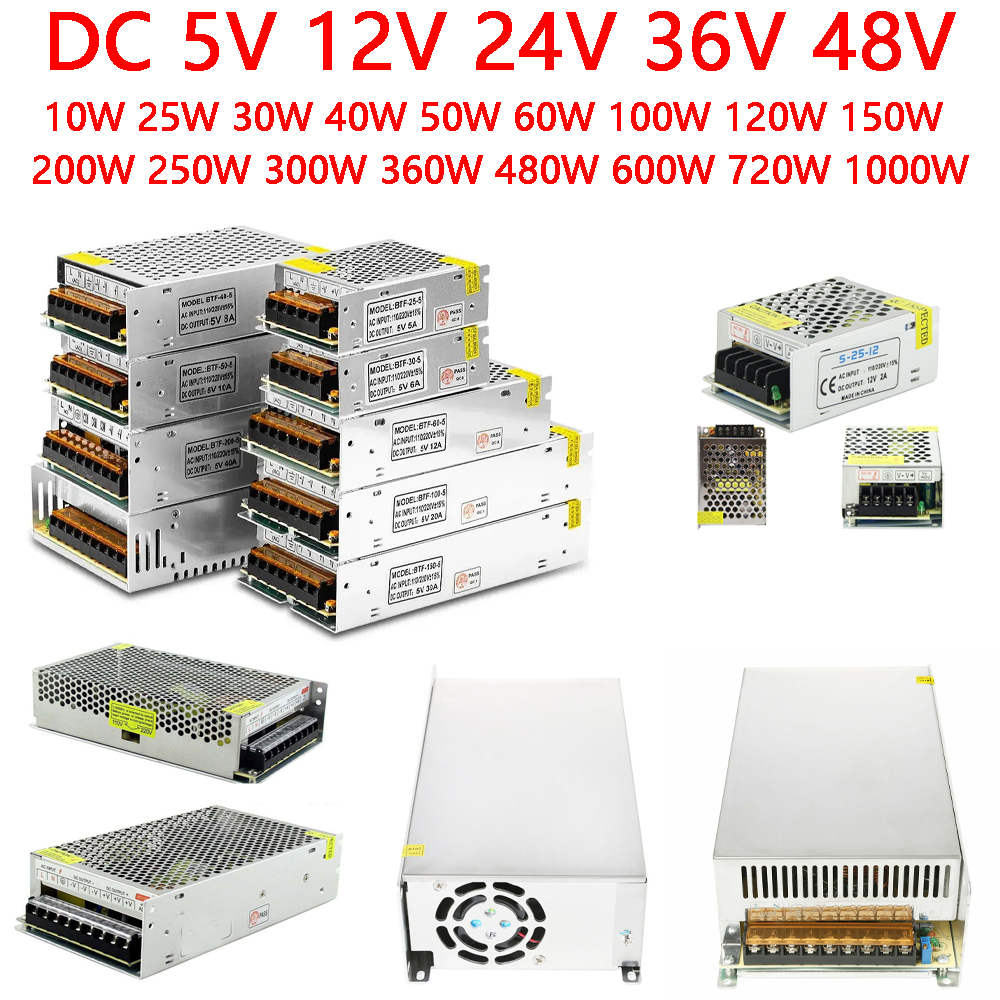

LED Light Strip Power Supply Switch DC 5V 12V 24V 36V 48V 5A 10A 15A 20A 30A 40A 50A 60A 72A 50W 60W 120W 150W 180W 250W 360W 500W 600W 720W 1000W Transformer Adapter Driver

Specifications:

  • Color：Silver
  • Material: Aluminum alloy
  • Input Voltage: AC110-220V 50/60Hz
  • Output Voltage: DC 5V / 12V / 24V / 36V / 48V
  • Power: 50W 60W 120W 150W 180W 250W 360W 500W 600W 720W 1000W
  • Item Type: Switch Power Supply Driver
  • Protection: Overload/Over-Voltage/Short Circuit
  • Connection:
  • L, N: AC Power Input
  • GND: DC Power Output "-"
  • V: DC Power Output "+"
  • + V / ADJ: Adjust Output Voltage
  • Safety Compliance: CCC / FCC / CE
  • Working Temperature: 0~40℃
  • Storage Temperature: -20~60℃
  • Environmental Humidity: 0~95% Non-Condensing
  • Applicable To: Industrial Automation, LED Display, CCTV, Radio, Computer Engineering, LED light bar, 3D printer, etc.

Package includes (By your choice):

  • 1 x Switch Power Supply Transforms AC 110V to DC 5V / 12V / 24V / 36V / 48V Adapter For LED Strip Lights

Dimension:

(Manual measurement,Maybe it has 3-8mm measurement error.)

Type (Output)

Size (LxWxH)

Intput Voltage (AC)

5V 2A 10W 85mm*38mm*30mm 85V-265V

5V 6A 30W

85mm*57mm*33mm

85V-265V

5V 10A 50W

110mm*78mm*36mm

85V-265V

5V 20A 100W

160mm*98mm*42mm

85V-265V

5V 30A 150W

162mm*98mm*44mm

85V-265V

5V 40A 200W

198mm*98mm*43mm

85V-265V

5V 50A 250W 200mm*100mm*44mm 85V-265V
5V 60A 300W 200mm*100mm*45mm 85V-265V

5V 72A 360W

215mm*115mm*50mm

110V/220V +/- 15%

12V 1A 12W

70mm*39mm*30mm

85V-265V

12V 1.25A 15W

70mm*40mm*30mm

85V-265V

12V 2A 24W

85mm*57mm*33mm

85V-265V

12V 3A 36W

85mm*58mm*38mm

85V-265V

12V 5A 60W 110mm*78mm*36mm 85V-265V

12V 8A 96W

160mm*98mm*42mm

85V-265V

12V 10A 120W

160mm*98mm*44mm

85V-265V

12V 12.5A 150W

198mm*98mm*43mm

85V-265V

12V 15A 180W

198mm*98mm*43mm

85V-265V

12V 20A 240W

200mm*100mm*44mm

110V/220V +/- 15%

12V 30A 360W 200mm*100mm*45mm 110V/220V +/- 15%
12V 40A 480W 215mm*115mm*50mm 110V/220V +/- 15%

12V 50A 600W

242mm*124mm*65mm

110V/220V +/- 15%

12V 60A 720W

245mm*125mm*68mm

110V/220V +/- 15%

24V 1A 24W 85mm*57mm*33mm 85V-265V

24V 2A 48W

86mm*58mm*35mm

85V-265V

24V 3A 72W

110mm*78mm*35mm

85V-265V

24V 5A 120W

158mm*98mm*40mm

85V-265V

24V 10A 240W

198mm*98mm*40mm

85V-265V

24V 15A 360W

198mm*110mm*50mm

110V/220V +/- 15%

24V 20A 480W 198mm*110mm*50mm 110V/220V +/- 15%

24V 25A 600W

215mm*115mm*50mm

110V/220V +/- 15%

24V 30A 720W

215mm*115mm*50mm

110V/220V +/- 15%

24V 33A 792W

242mm*124mm*65mm

110V/220V +/- 15%

36V 15A 540W

215mm*115mm*50mm

110V/220V +/- 15%

36V 20A 720W

215mm*115mm*50mm

110V/220V +/- 15%

48V 12.5A 600W 215mm*115mm*50mm 110V/220V +/- 15%
48V 15A 720W 215mm*115mm*50mm 110V/220V +/- 15%


Note:

  • This is a DC12V or DC 24V or 5V or 36V or 48V(your choose)Power Supply Unit for professional use on LED lightning, Security Surveillance System, CCTV Security Camera, IP Camera, and etc.
  • Safety design with shortage protection, overload protection and auto voltage switching.
  • Regulated voltage & current output. This is a perfect choice to use as a LED Driver for all type of LED lighting, without flickering light & ensue the life span of your LED.
  • Full range of current output is possible for LED lighting with dimmable function.
  • Voltage output fine adjustment is available for different power condition.

About Calculate Method:

  • If Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max led Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m,
    So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
  • Special Note:
  • This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable,on/off switch, or screws.
    Professional Installation of qualified electrician is highly recommended.
