AQUAFILTER HHBB10B Big Blue BB Stage Whole House Water Filter System 10" x 4.5"

Aquafilter HHBB10B Big Blue filter housing to meet all customer large-capacity filtration needs. The systems are dedicated for high flow, cold water on commercial and industrial applications. The housing are compatible with a broad range of 4 1/2” x 10" (or 4 1/2" x 10") type cartridges widely available on the market. Filter housings consist of housing sump and filter head with 1" brass inlet/outlet inserts. Filter heads are equipped with a pressure relief valve (providing ability to release air bubbles collected during cartridge replacement procedure) and two pressure gauges (providing pressure drop monitoring). This configuration enables the measurement of the pressure drop at the inlet and outlet connections. In addition, brass inlet/outlet inserts enable damage-free installation of pressure relief valve and pressure gauges.

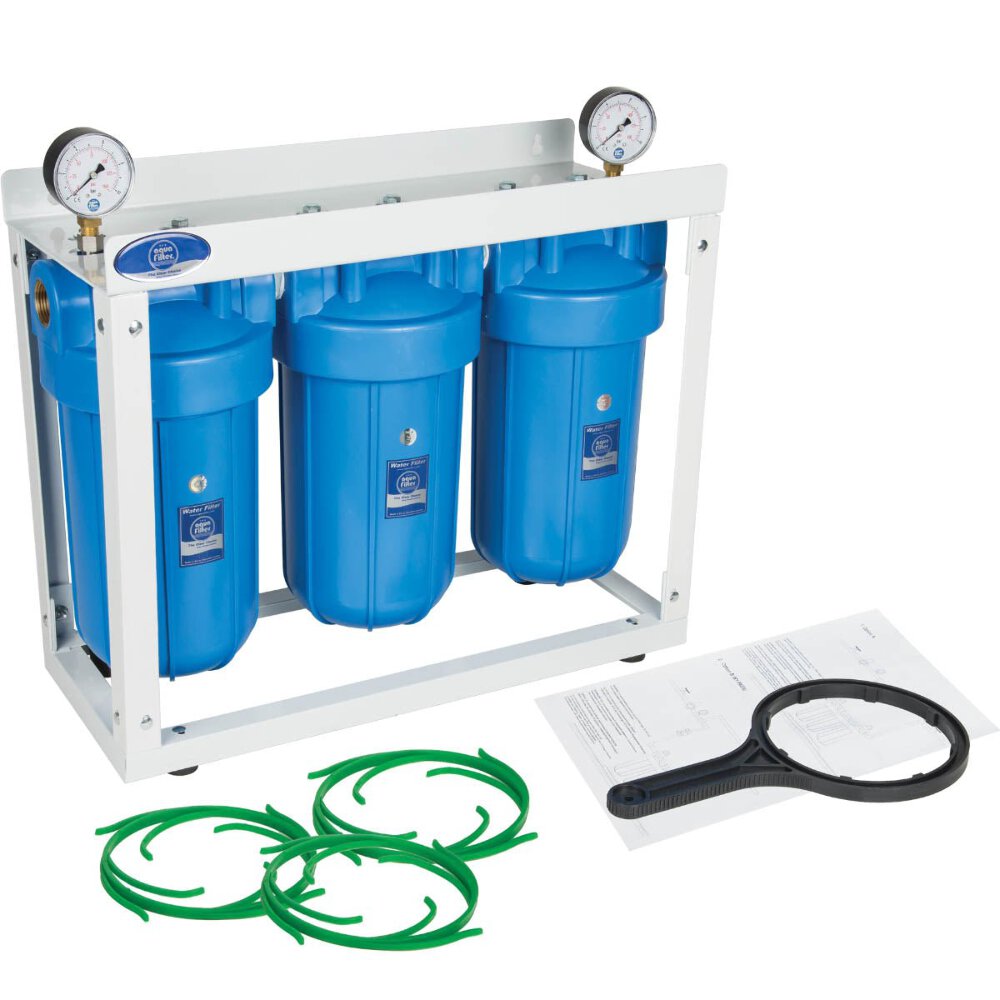

Systems include:

• metal platform
• 3 x Big Blue type filter housings
• 2 x pressure gauges (inlet & outlet)
• wrench
• 3 x antibacterial and antimicrobial filter centralizing ring

System is equipped with either 10" Big Blue filter housings in blue color, which protect filter cartridges against the phenomenon of algae growth in case the system is installed in a sunny location. The new innovative design of filter housing sumps has a more rounded bottom, which significantly increases resistance to stress (based on burst tests). The housings are equipped with pressure relief valves which allow the release of residual air trapped in the filter after replacing the cartridge. Depending on level of water contamination, system can be configured with sediment and carbon or specialty Big Blue type cartridges.

Features

• High quality
• Hand Built & Factory Tested
• Equipped with antibacterial and antimicrobial filter centralizing ring
• Ideal for family use as POE
• Heavy-duty filter housings
• Full flow 1"ports
• Large capacity housing suitable for high flow applications
• Pressure relief/bleed on inlet side of cap
• Compatible with most 4 1/2" x 10" type cartridges available on the market
• Housings are NSF approved for structural integrity and material requirements
• Manufactured from FDA CFR-21 compliant materials
• Made in EU with High Performance Components

Specifications

• Blue sump: PP
• Head filter: PP
• Inserts: brass
• Pressure relief valve: brass
• No. of pressure gauge: 2O-ring: NBR
• Thread: 1" BSP
• Maximum Pressure: 6 bar (90 psi)
• Minimum Temperature: 2ºC
• Maximum Temperature: 43ºC
