200W 120W 100W Mono System Solar Panel 12V PV Battery Charger For RV Caravan

PRODUCT DESCRIPTION

High-Efficiency Waterproof Monocrystalline Solar Panels

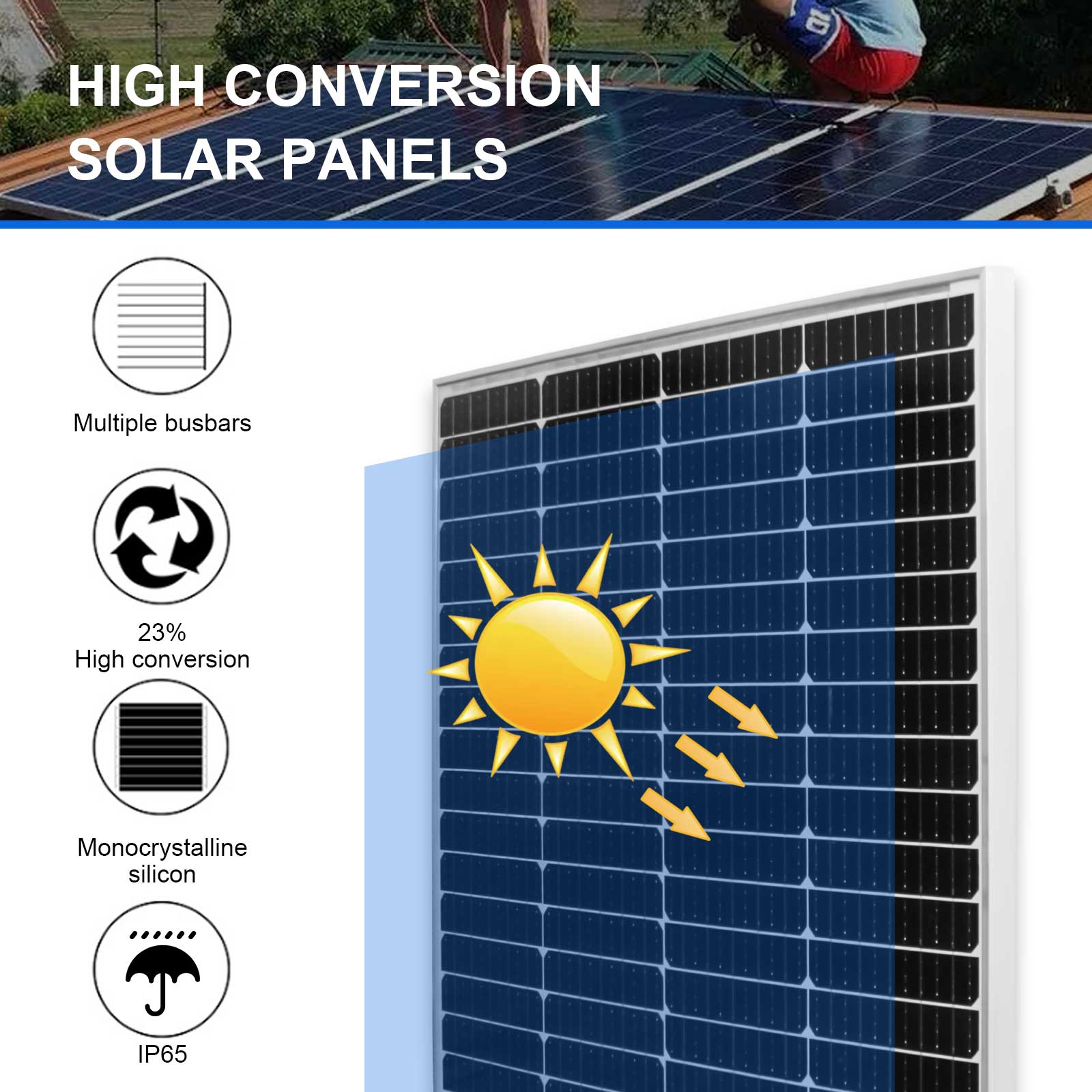

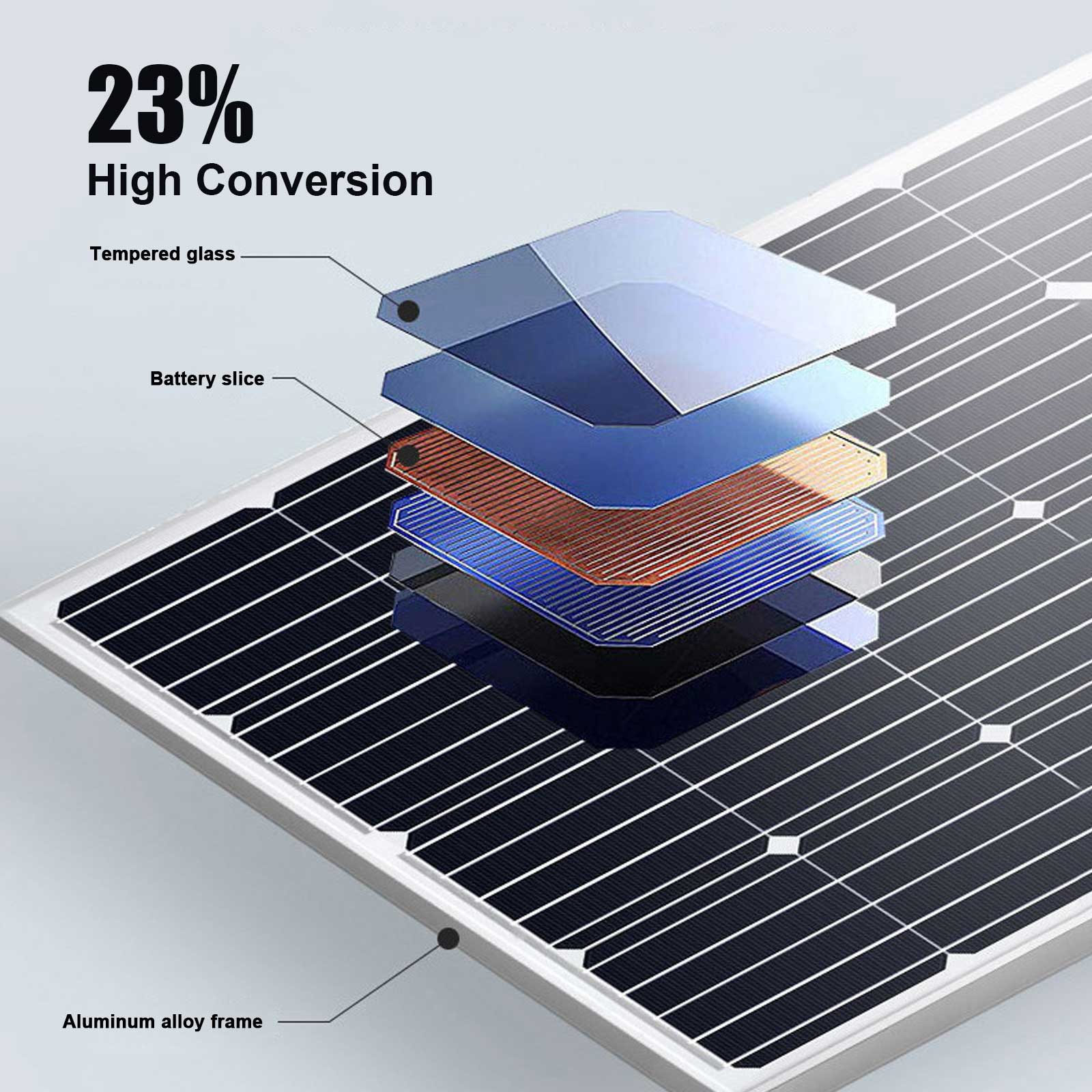

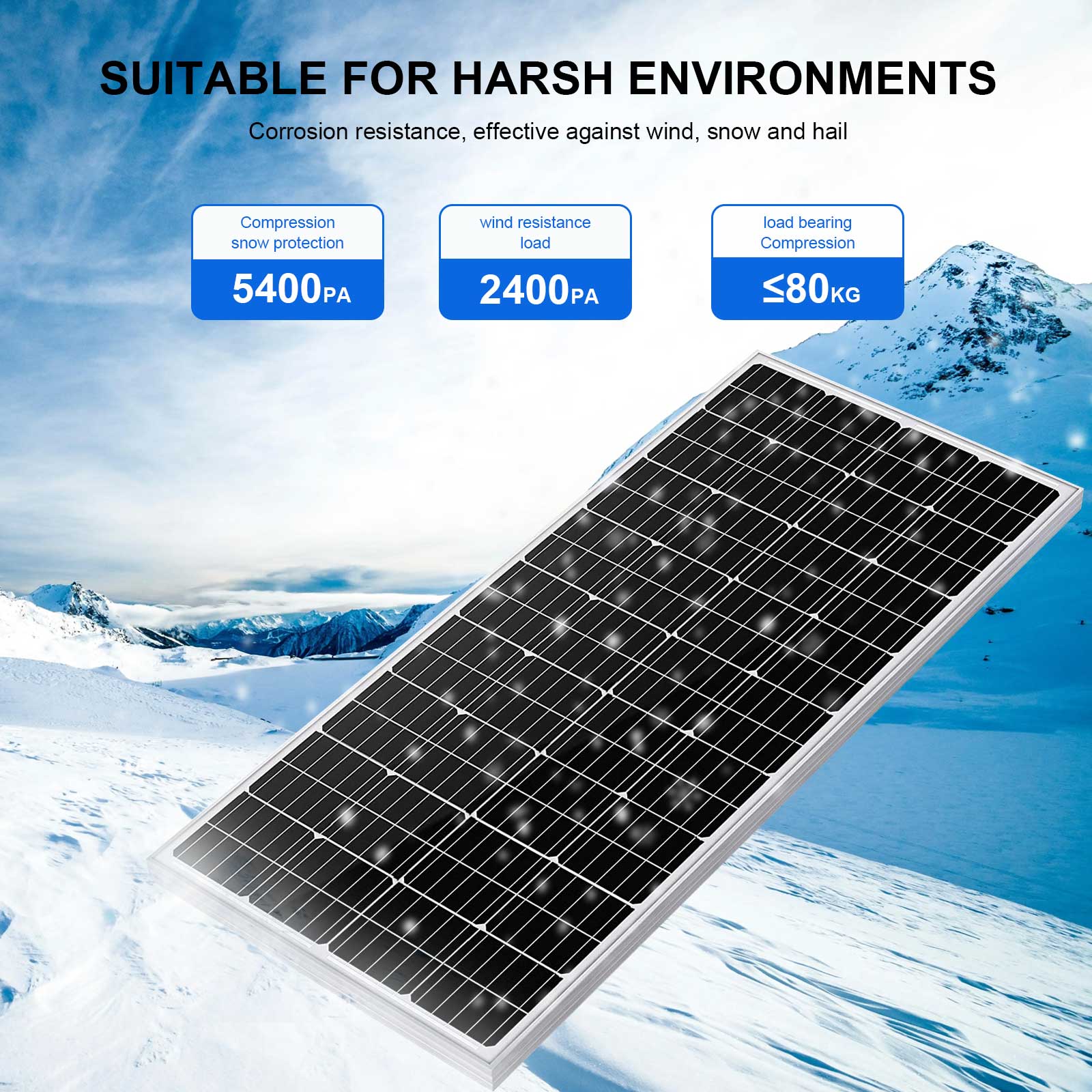

Solar panels with an efficiency of up to 23%, delivering maximum energy output even in low-light conditions. Resistant to strong winds(2400Pa) and snow loads(5400Pa). IP65 waterproof, ideal for long-term outdoor use. Lifespan of up to 10 years.

Easy Installation
Each panel comes with pre-drilled frames for simple mounting on roofs, ground, or with brackets. Compatible with solar panel mounts and Z-brackets, maintenance-free.

Applications

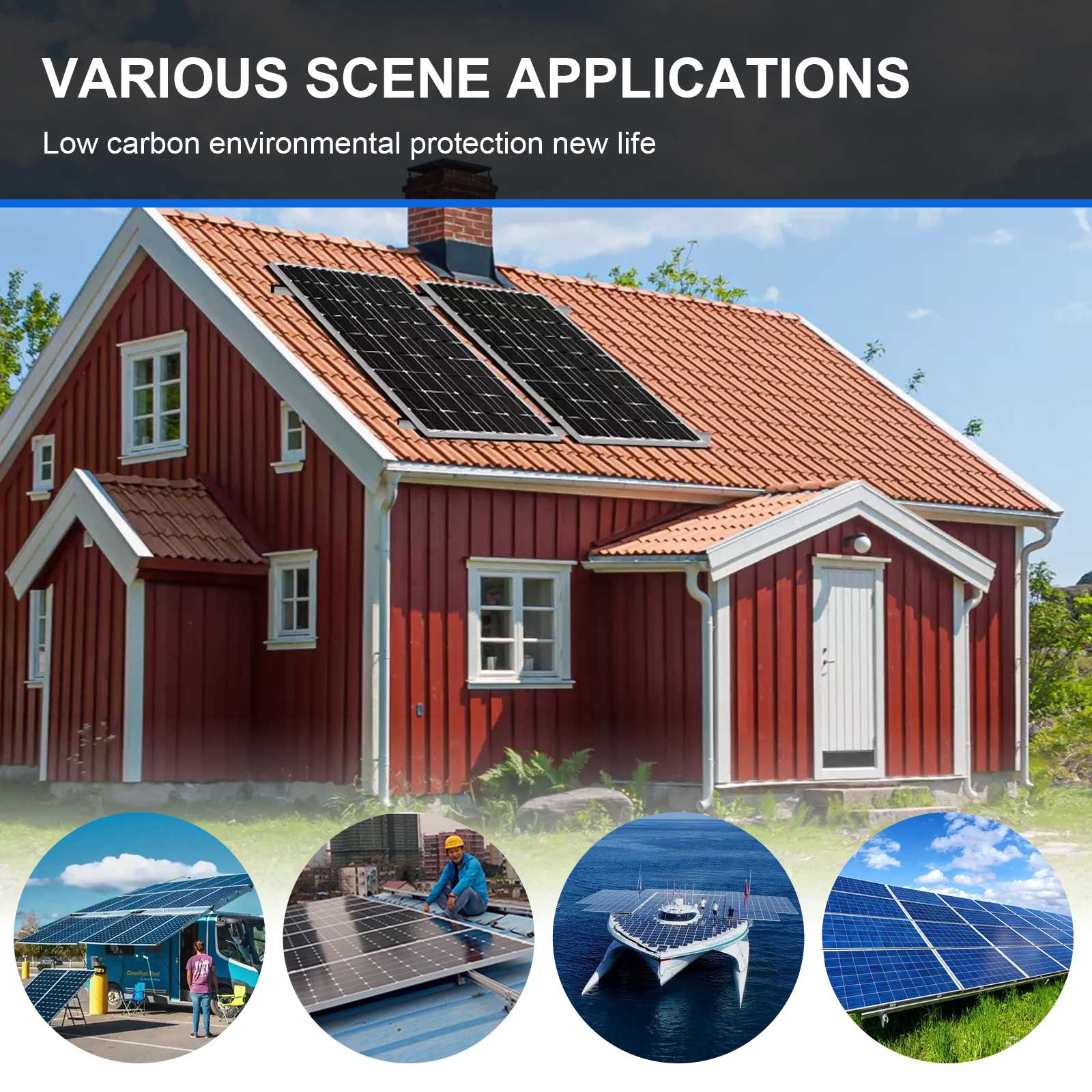

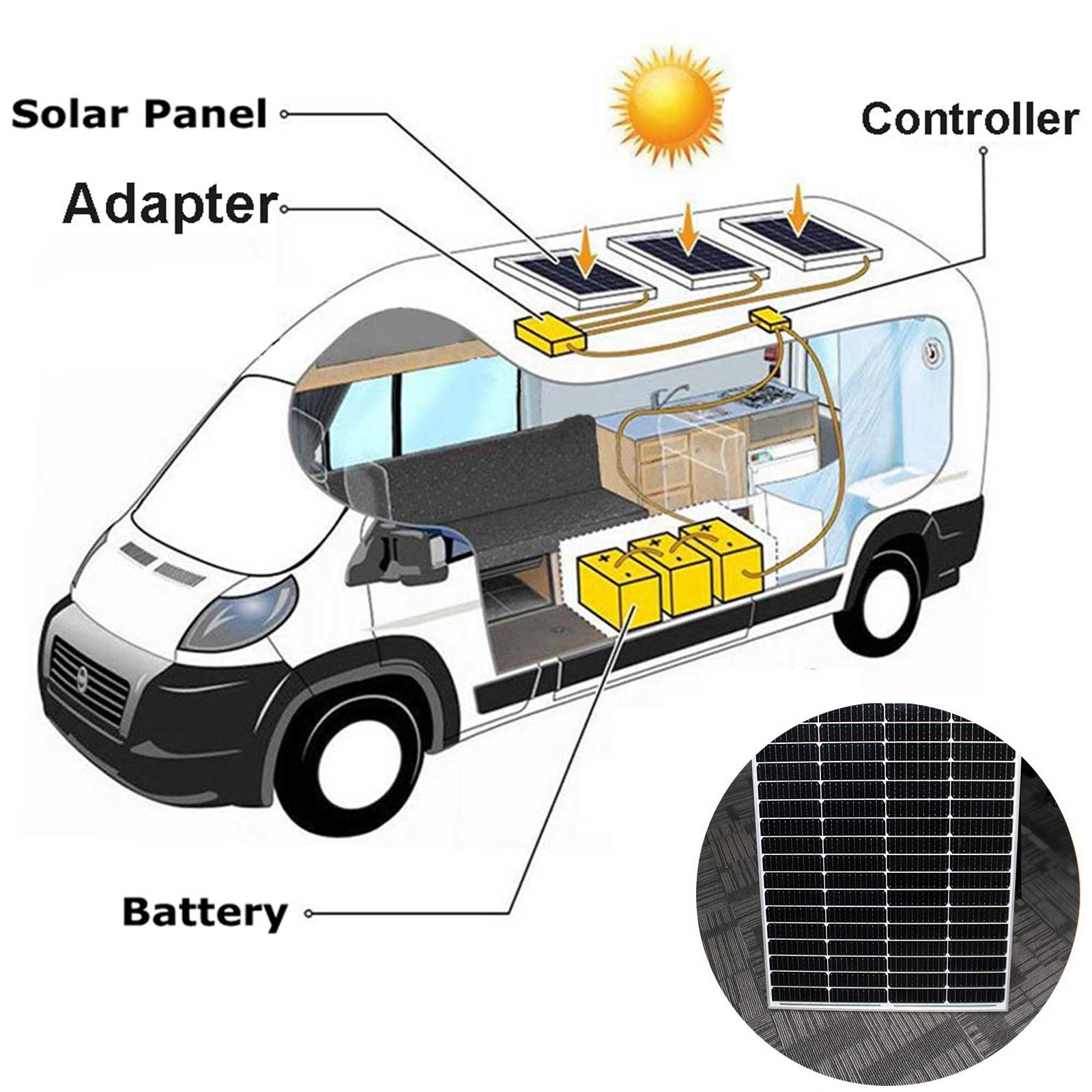

Solar panels help households reduce electricity costs, provide backup power during outages or natural disasters, and supply power for camping, RVs, and fishing boats. Ideal for farms, surveillance equipment, billboards, and other applications requiring continuous power.

Universal Compatibility

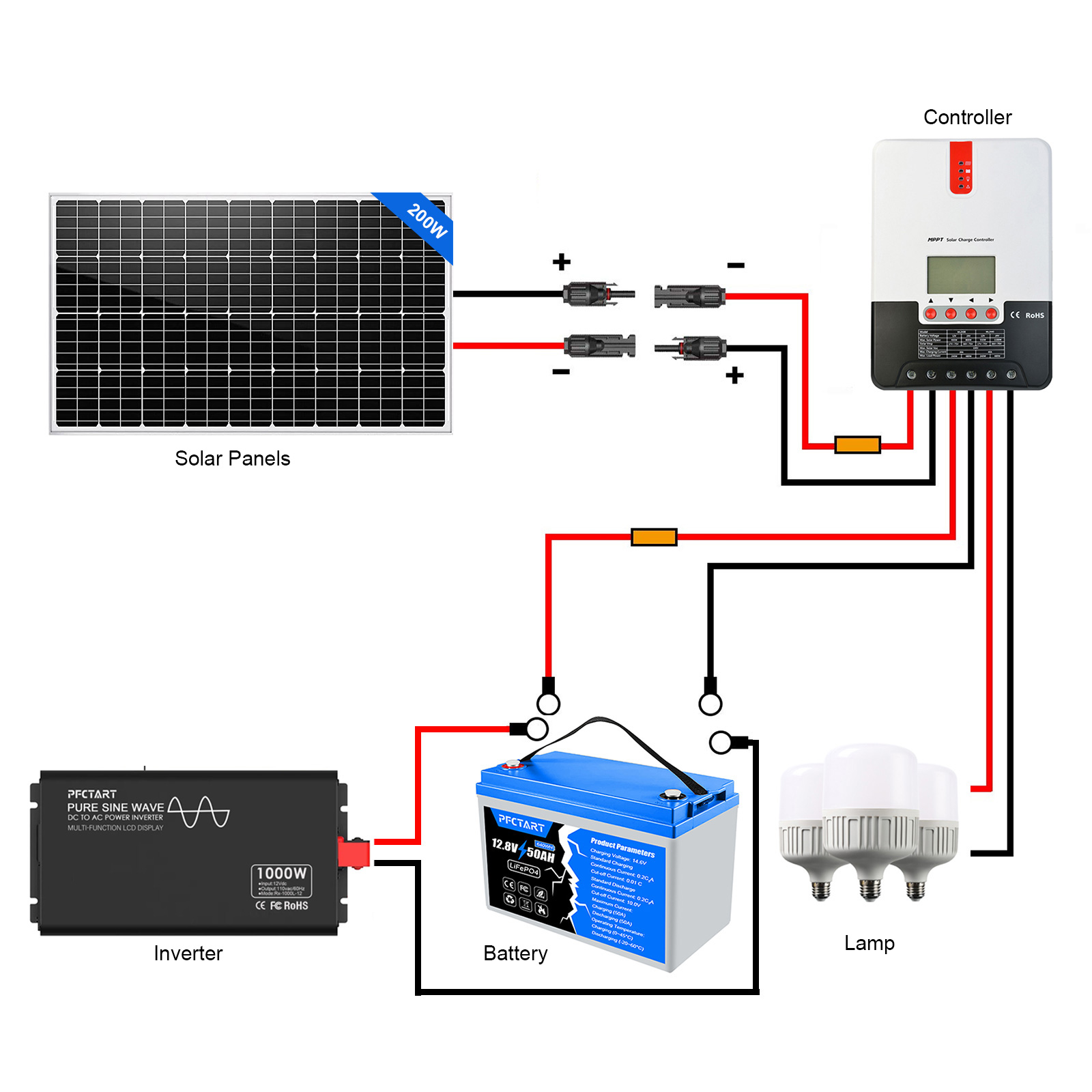

Compatible with most inverters and battery systems, suitable for off-grid and on-grid applications Home Car Caravan Camping. 1 solar panel is suitable for 12V systems. 2 panels can be connected in series for 24V systems or in parallel for 12V systems.

Specification：
100W Solar Panel

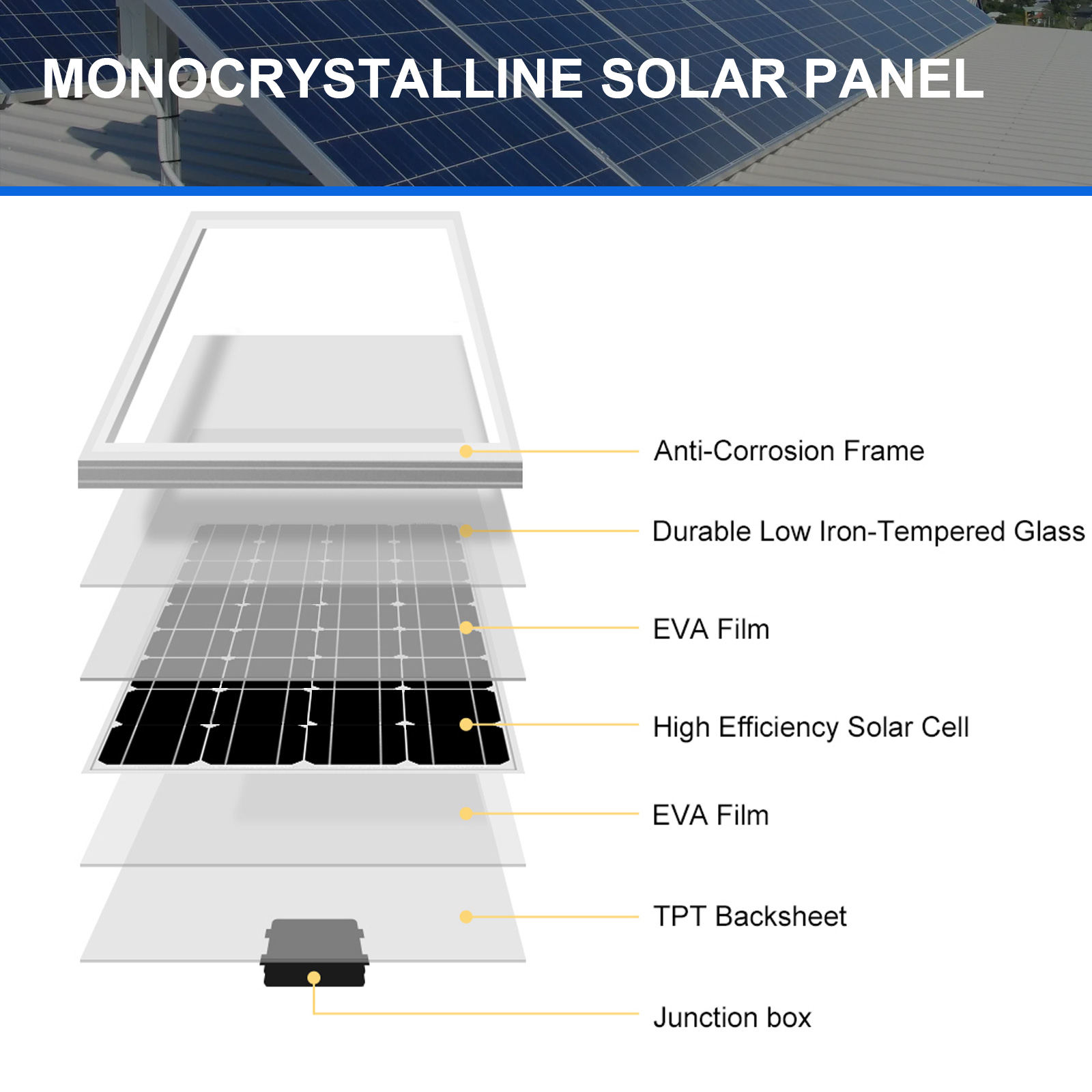

High Efficient Monocrystalline
Maximum Power: 100W
Open Circuit Voltage (Voc): 21.6V
Maximum/Peak Voltage(Vmp): 18V
Short Circuit Current (Isc): 6.2A
Working Current (Iop): 5.55A
Output Tolerance: ±3%
Charge Voltage: 12V

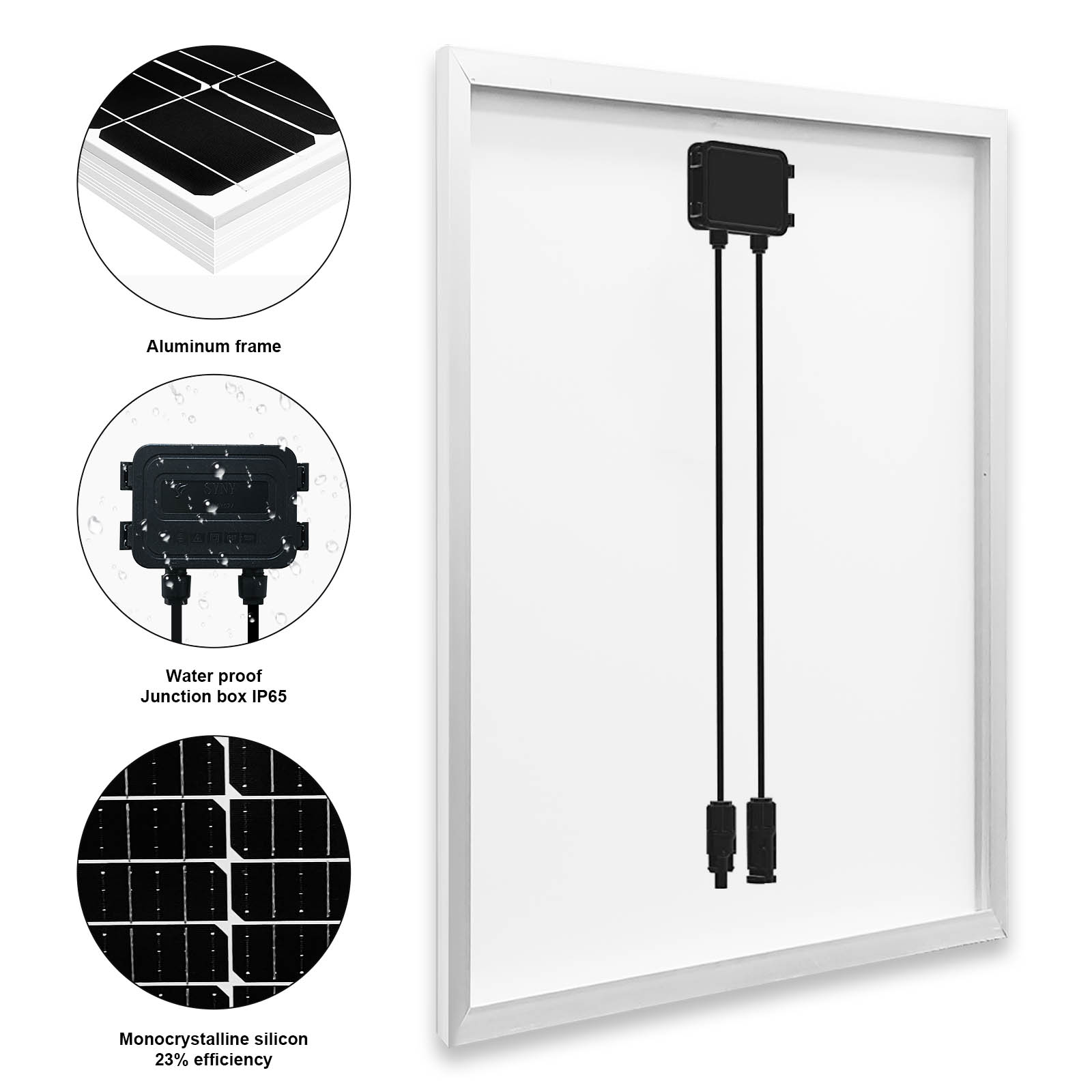

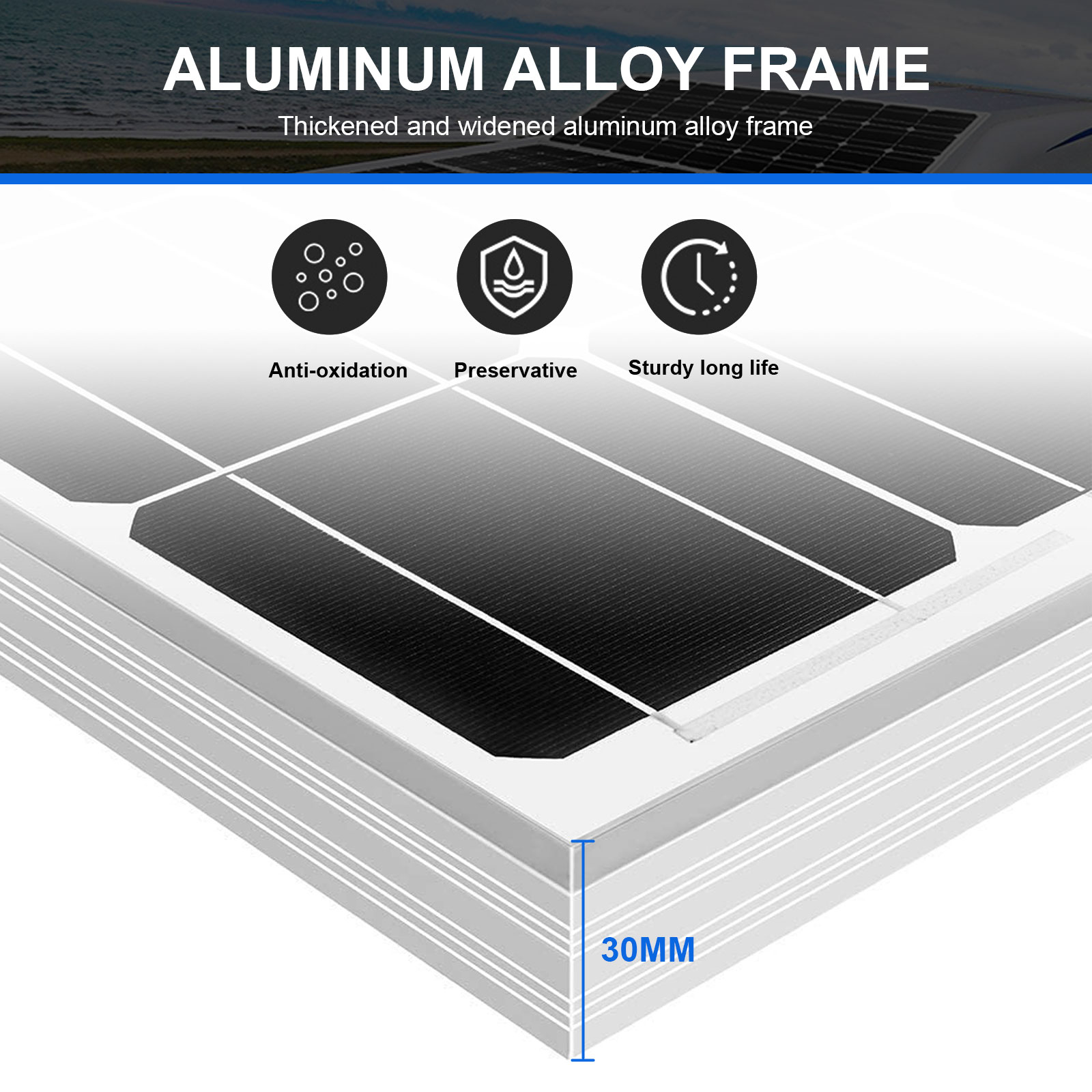

Frame: Aluminum alloy frame
Temperature Range： -40℃ to +80℃(-40°F to +176°F)
J-Box IP Rating: IP65
Product size：76*58*3 CM ( 29.92*22.83*1.18 Inch )
Product weight：4.8 kg (10.58 lbs )

120W Solar Panel

High Efficient Monocrystalline

Maximum Power: 120W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 7.2A

Working Current (Iop): 6.66A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range： -40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

Product size：76*73*3 CM ( 29.92*28.74*1.18 Inch )

Product weight：5.9 kg (13 lbs )

150W Solar Panel

High Efficient Monocrystalline

Maximum Power: 120W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 7.2A

Working Current (Iop): 6.66A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range： -40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

Product size：80*76*3 CM ( 31.49*29.92*1.18 Inch )

Product weight：7.5 kg (16.53 lbs )

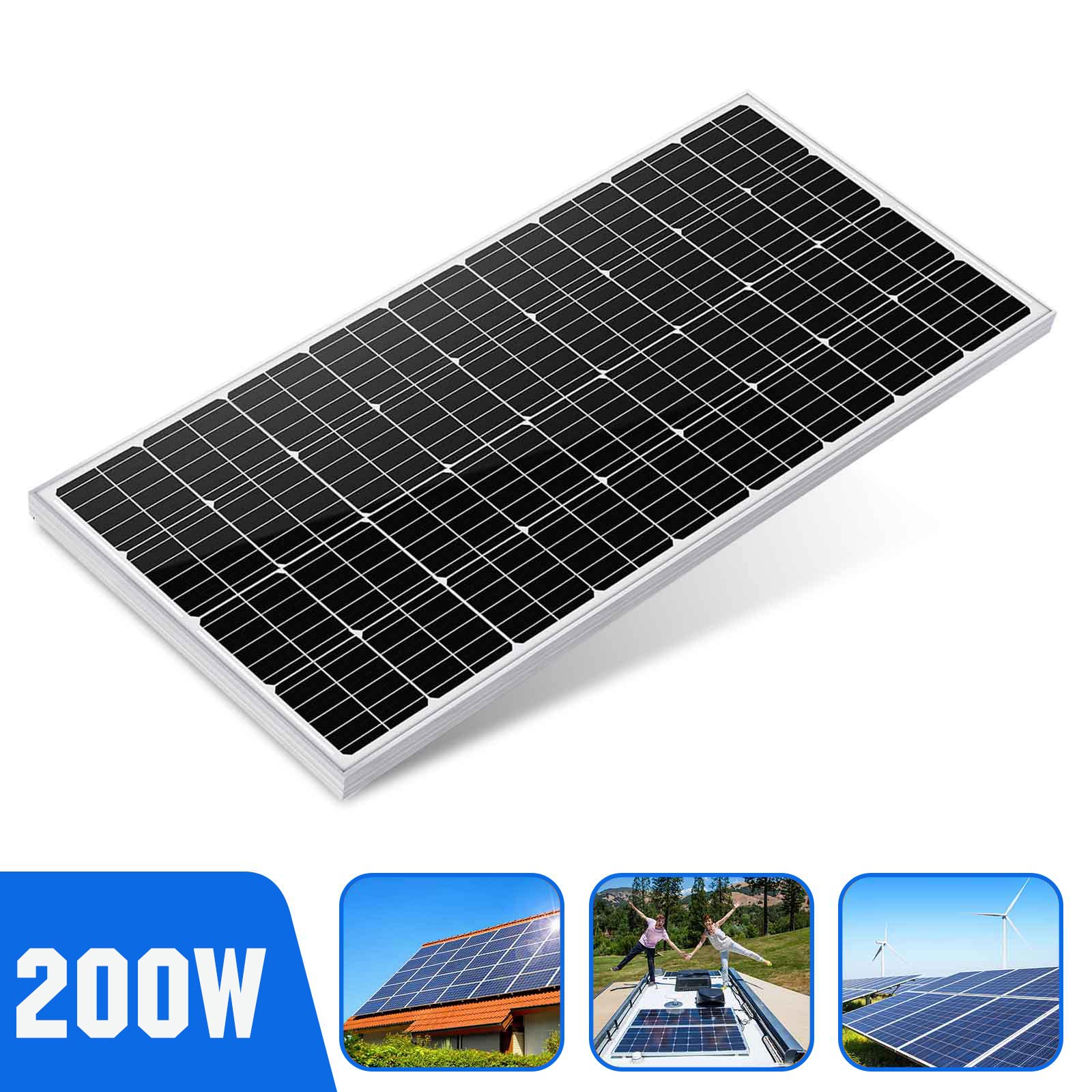

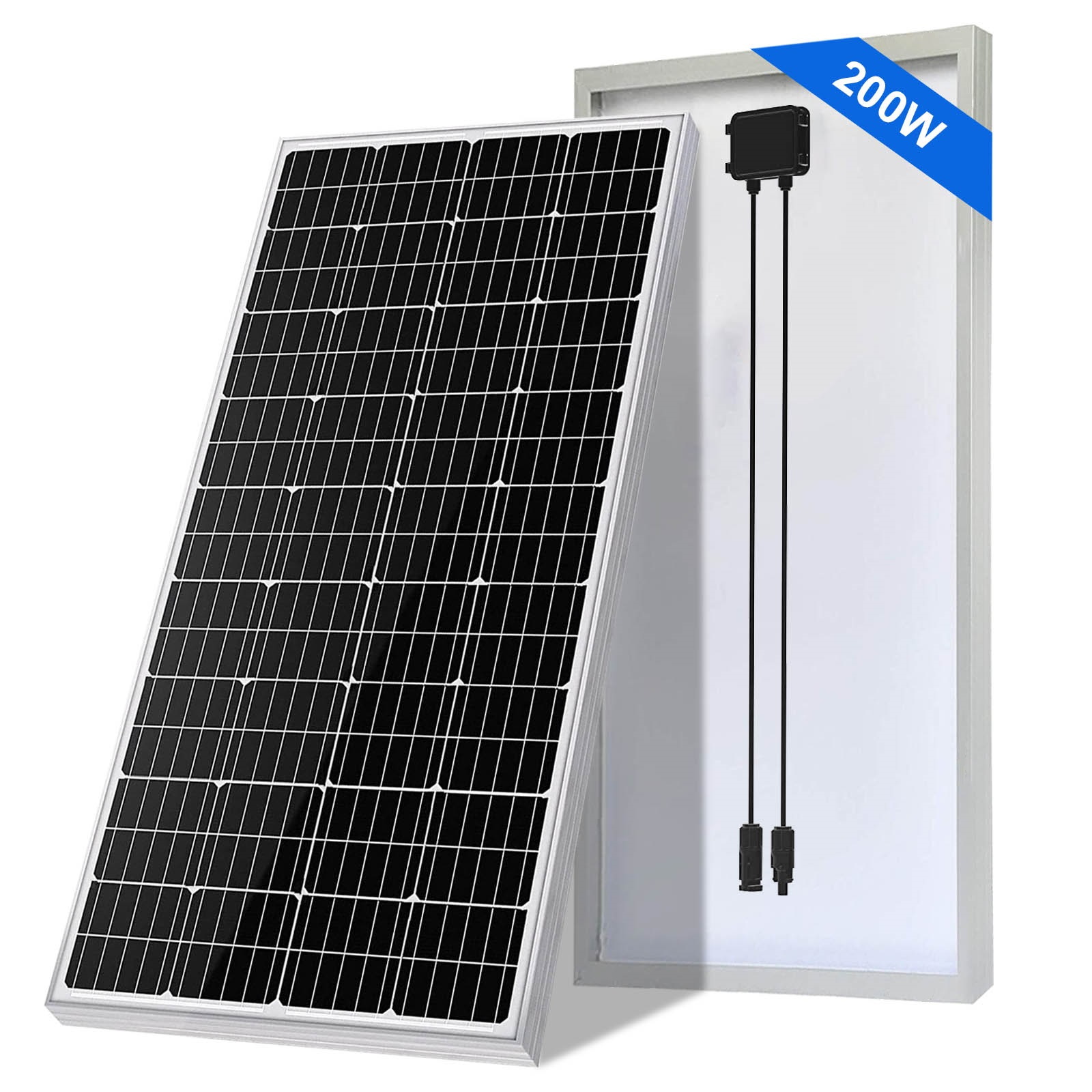

200W Solar Panel
High Efficient Monocrystalline
Maximum Power: 200W
Open Circuit Voltage (Voc): 21.6V
Maximum/Peak Voltage(Vmp): 18V
Short Circuit Current (Isc): 12.2A
Working Current (Iop): 11.11A
Output Tolerance: ±3%
Charge Voltage: 12V
Frame: Aluminum alloy frame
Temperature Range： -40℃ to +80℃(-40°F to +176°F)
J-Box IP Rating: IP65
Product size：117*76*3 CM ( 46.06*29.92*1.18 Inch )
Product weight：8.7 kg (19.18 lbs )

Packages Includes
1 x 100W or 120W or 200W Mono Solar Panel

How Many Solar Panels Do You Need To Buy?
1-4 Solar Panels For Boat power generation
1-6 Solar Panels For RV Power Generation
1-30 Solar Panels For House power generation
More Welcome to consult !
