Product Information

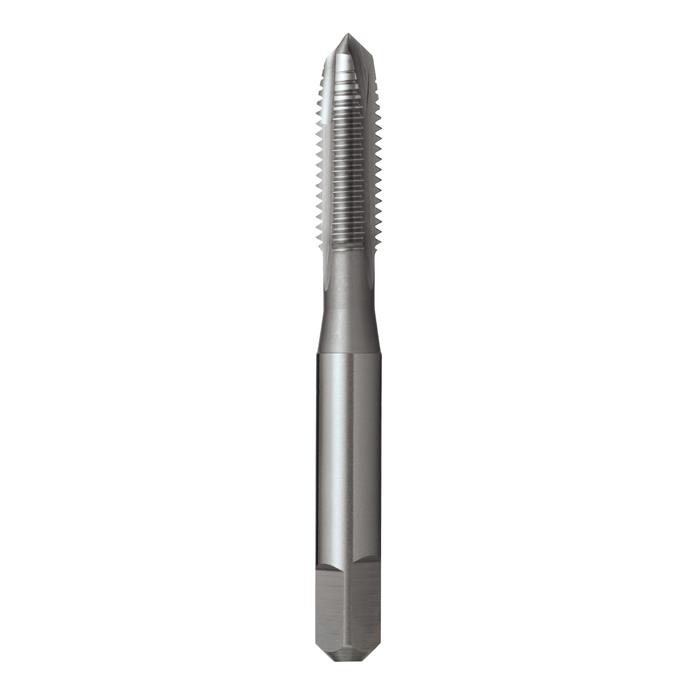

  • Gun Taps work well in many types of materials due to the shearing action of the spiral grind, they "shoot" chips forward they are very effective at clearing chips ahead of the cutting edge of the tap and pushing them out the other end of the hole
  • Features / Benefits: Gun taps are very effective for deep hole tapping. The hole being tapped should be a thru hole, or have plenty of clearance to allow for chip collection. Spiral point taps are also very popular because of their versatility. They work well in many types of materials due to the shearing action of the spiral grind
  • Also known as: Spiral flute taps
  • Cutting Fluid: Recommend the use of a cutting fluid or compound to aid in the efficiency and to prolong its working life. We recommend Alpha CDT cutting fluid (Code ATL005)
  • Thread Pitch (Metric): Pitch means the distance between the peaks of two threads along a screw, bolt, or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm
  • Specifications: Every effort has been made to ensure all specifications on our site are accurate and to the relevant standard, they should only be used as a guide. If you see any problems or wish to query something, please contact us
  • Additional Information: Click on the datasheet tab for additional information
  • Photos: All photos are for illustration purpose only. Actual product may vary due to product enhancement
  • Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
  • Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Fasteners Galore is not responsible for any loss, claim or damages arising therefrom. In developing this information, Fasteners Galore has made a determined effort to present it accurately
  • Buy with confidence: ⇒ 11+ years experience selling online, > 22,000 stock lines, > 100 million pieces ex stock in Brisbane QLD
  • Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
    • Technical Specification
    ProductHand & Machine Tap
    Product TypeGun Tap
    Tap Thread SizeM8 (8mm)
    System of MeasurementMetric
    Thread DirectionRight Hand
    Closest Size in Imperial5/16"
    Size x PitchM8 x 1.25p Coarse
    Thread Pitch1.25mm
    Thread TypeMetric - Coarse

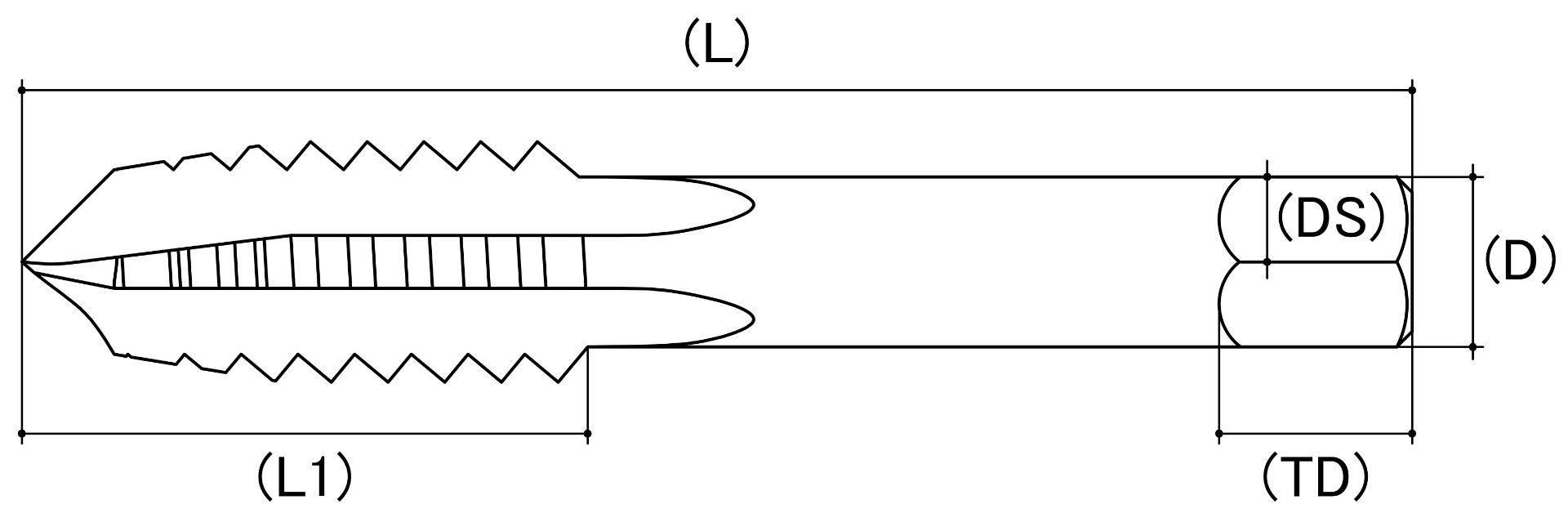

    Length L72mm
    Length L 122mm
    Tapping Drill Size6.80mm
    Working ThicknessDepths up to approx 3 x dia
    Drive Square6.30mm
    ChamferIntermediate
    Suitable ForSuitable for materials up to 1000N/mm
    PackagingSupplied in a Plastic Pack
    MaterialHSSE V3
    Country of OriginAustralia
    CoatingBright
    StandardISO529
    BrandSutton Tools
    MPNT393 0800
    UPC9311963072579
    DeliveryFree Shipping
    Package Quantity2
