Product Information
- Carbon Die Nuts are used for cleaning and resizing existing damaged threads. Used in conjunction with a wrench or spanner. Carbon is a good & economical material for general purpose / DIY use
- Difference between a Hex Die Nut and a Button Die Nut?: Hex die nuts are ideal for repairing broken or worn threads by hand. Also useful for machining new external threads in difficult to reach applications. A button die nut is used precision threading of bolts, studs, rods and other pieces that require external threading by hand. Can also be used for cleaning/repairing external threads
- Manufactured in: EU
- Cutting Fluid: Recommend the use of a cutting fluid or compound to aid in the efficiency of the Die nut and to prolong its working life. We recommend Alpha CDT cutting fluid (Code ATL005)
- Thread Pitch (Imperial):TPI stands for “threads per inch” which literally means the number of threads within each inch on a screw, a bolt, or a fastener. To determine the TPI of a screw, you simply count the number of threads contained within an inch of length. If the screw is less than an inch count upto ½” and x by 2
- Difference between UNC v BSW Threads: UNC and BSW have the same thread per inch value, except for the 1/2" size. Theoretical it would be possible to interchange them as they have the same amount of threads per inch. However due to the difference in thread angle, the connection would not be as strong as when using the proper combinations
- Specifications: Every effort has been made to ensure all specifications on our site are accurate and to the relevant standard, they should only be used as a guide. If you see any problems or wish to query something, please contact us
- Additional Information: Click on the PDF for additional information
- Photos: All photos are for illustration purpose only. Actual product may vary due to product enhancement
- Updating our site: If you see any problems with any of our specifications or you require additional information please contact us
- Disclaimer: Technical data and specifications were researched and compiled from numerous industry sources for the sole purpose of providing basic information. All material is advisory only and its use by anyone is entirely voluntary. Reliance on it for any purpose by anyone is at the sole risk of that person, and Fasteners Galore is not responsible for any loss, claim or damages arising therefrom. In developing this information, Fasteners Galore has made a determined effort to present it accurately
- Buy with confidence: ⇒ 10+ years experience selling online, > 19,000 stock lines, > 80 million pieces ex stock in Brisbane QLD
- Prices: include GST, a Tax Invoice and Free Standard Delivery anywhere in Australia
Technical Specification
| Item Type | Die Nut |
| Die Shape: | Hex |
| Thread Size | 3/16" |
| System of Measurement | Imperial |
| Thread Direction | Right Hand |
| Closest Size in mm | M5 (5mm) |
| Size x Pitch | 3/16" x 24 TPI BSW |
| Thread Pitch | 24 TPI |
| Thread Type | UNC / BSW - Coarse |

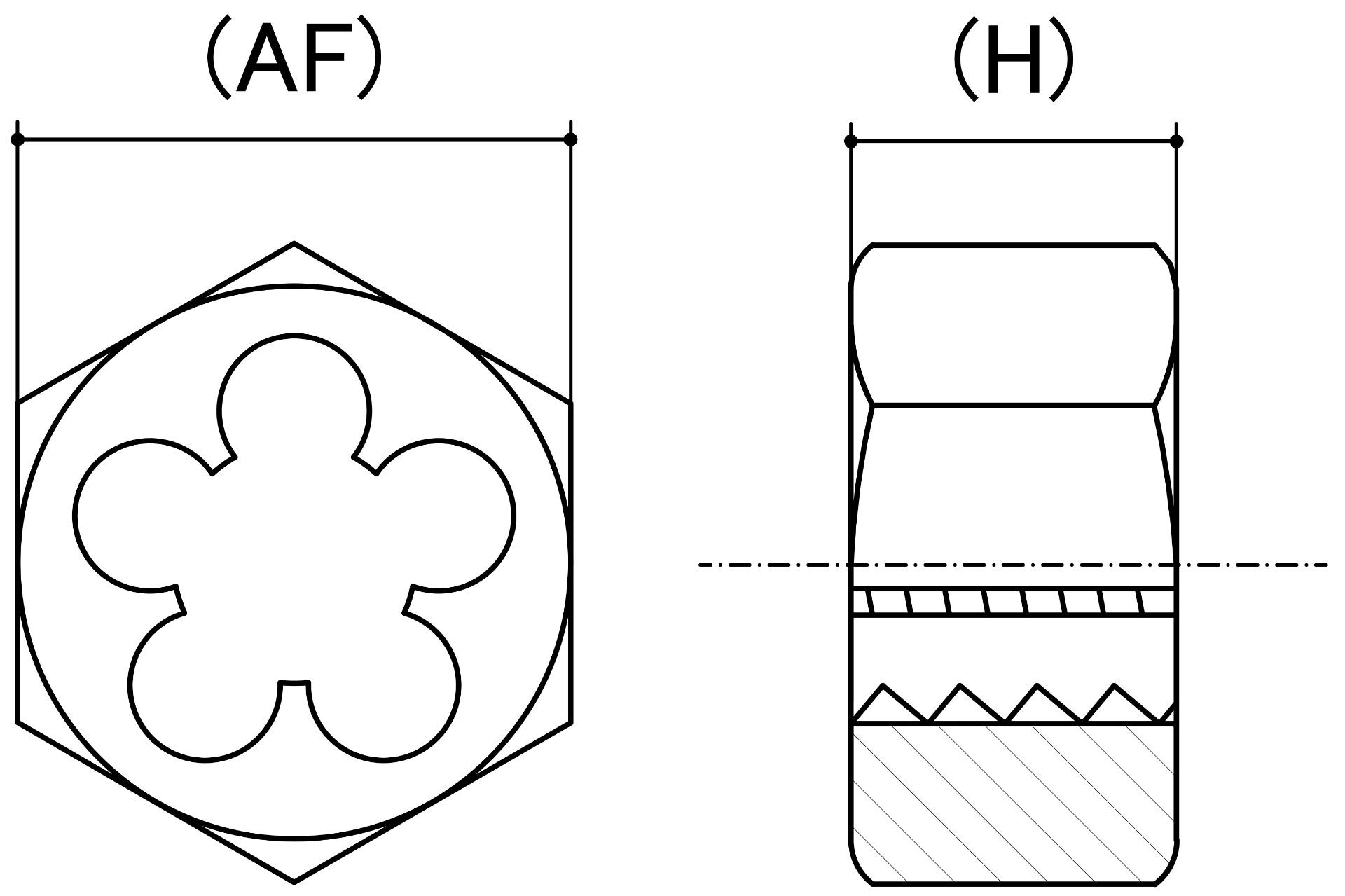

| Across Flats Af | 18.00mm |
| Hex Height H | 7.00mm |
| Packaging | Supplied in a Plastic Pack |
| Material | Carbon |
| Country of Origin | Europe |
| Standard | ISO529 |
| Brand | Alpha |
| MPN | DNBSWC316 |
| UPC | 9342386034462 |
| Delivery | Free Shipping |
| Package Quantity | 1 |
