Feature:

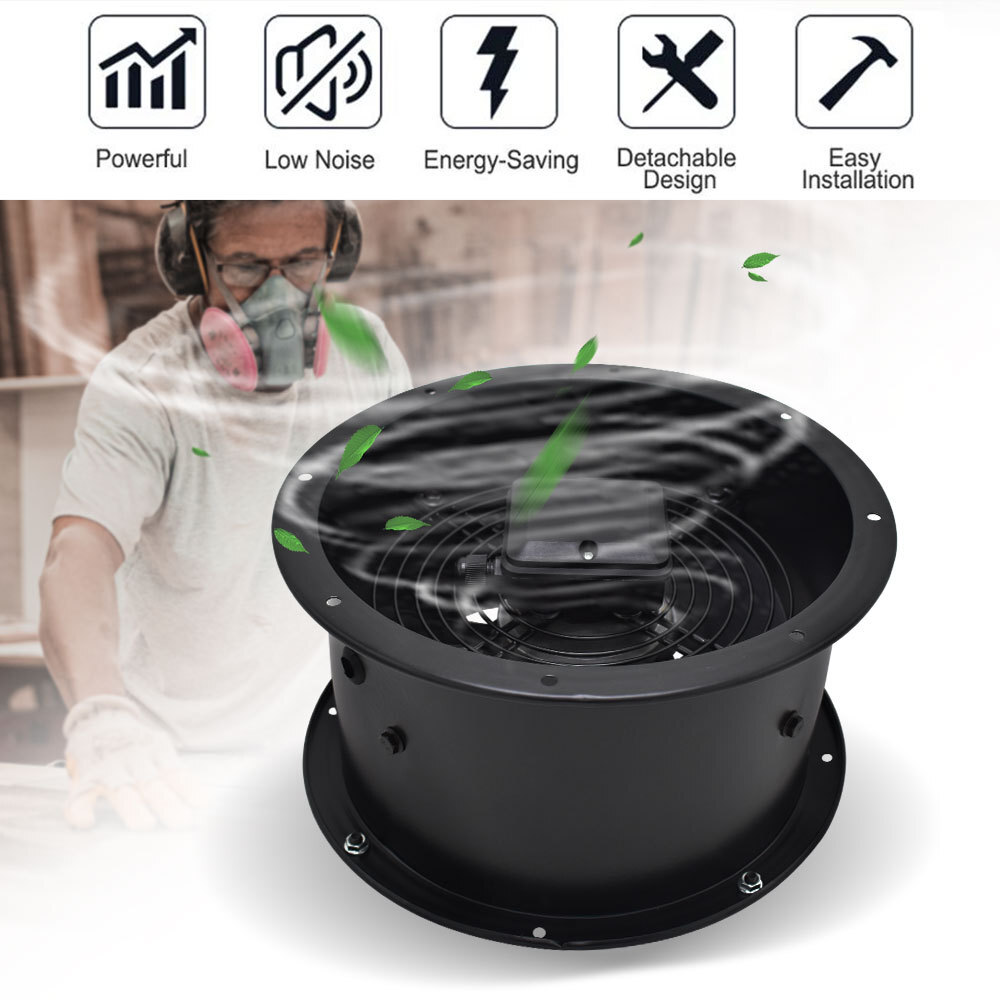

The exhaust fan is made of high-quality metal material, is not easy to be deformed, has excellent workmanship, durable frame and long service life.

It is durable and has a built-in copper motor with thermal protection for continuous operation.

The ventilation fan has high ventilation efficiency and very low noise during operation.

Suitable for all types of workshops, restaurants, warehouses.

Easy to install.



Specification:

Color: Black

Material: Carbon  steel, metal

Voltage: 220VAC 50HZ



Technical Information:

2 Pole- 8  Inches 200mm: 2350RPM,  Power 55W, Input current 0.26A, Capacitance 2uF, Air  Volume 1050m3/hr, Full pressure 180Pa, Noise 65dba

2 Pole-10  Inches 250mm: 2200RPM,  Power 155W, Input current 0.71A, Capacitance 4uF, Air  Volume 2100m3/hr, Full pressure 200Pa, Noise 69db

2 Pole- 12  Inches 300mm: 2100RPM,  Power 165W, Input current 0.75A, Capacitance 4uF, Air  Volume 2700m3/hr, Full pressure 260Pa, Noise 69db

4 Pole- 14  Inches 350mm: 1400RPM,  Power 95W, Input current 0.46A, Capacitance 4uF, Air  Volume 2850m3/hr, Full pressure 140Pa, Noise 65dba

4 Pole- 16 Inches 400mm: 1420RPM,  Power 140W, Input current 0.67A, Capacitance 6uF, Air  Volume 4150m3/hr, Full pressure 150Pa, Noise 68dba

4 Pole- 18  Inches 450mm: 1450RPM,  Power 215W, Input current 1.05A, Capacitance 8uF, Air  Volume 5150m3/hr, Full pressure 160Pa, Noise 73dba

4 Pole- 20  Inches 500mm: 1400RPM, Power 245W, Input current 1.14A, Capacitance 10uF, Air  Volume 6500m3/hr, Full pressure 165Pa, Noise 74dba

4 Pole- 22  Inches 550mm: 1350RPM, Power 500W, Input current 2.4A, Capacitance 12uF, Air  Volume 8700m3/hr, Full pressure 240Pa, Noise 75dba

4 Pole- 24  Inches 600mm: 1350RPM, Power 680W, Input current 3.1A, Capacitance 16uF, Air  Volume 12000m3/hr, Full pressure 300Pa, Noise 76dba



With Speed Control

2 Pole- 8  Inches 200mm: 1950-2350RPM,  Power 55W, Input current 0.26A, Capacitance 2uF, Air  Volume 1050m3/hr, Full pressure 180Pa, Noise 65dba

2 Pole-10  Inches 250mm: 1800-2200RPM,  Power 155W, Input current 0.71A, Capacitance 4uF, Air  Volume 2100m3/hr, Full pressure 200Pa, Noise 69db

2 Pole- 12  Inches 300mm: 1700-2100RPM,  Power 165W, Input current 0.75A, Capacitance 4uF, Air  Volume 2700m3/hr, Full pressure 260Pa, Noise 69db

4 Pole- 14  Inches 350mm: 1200-1400RPM,  Power 95W, Input current 0.46A, Capacitance 4uF, Air  Volume 2850m3/hr, Full pressure 140Pa, Noise 65dba

4 Pole- 16 Inches 400mm: 1220-1420RPM,  Power 140W, Input current 0.67A, Capacitance 6uF, Air  Volume 4150m3/hr, Full pressure 150Pa, Noise 68dba

4 Pole- 18  Inches 450mm: 1250-1450RPM,  Power 215W, Input current 1.05A, Capacitance 8uF, Air  Volume 5150m3/hr, Full pressure 160Pa, Noise 73dba

4 Pole- 20  Inches 500mm: 1300-1400RPM, Power 245W, Input current 1.14A, Capacitance 10uF, Air  Volume 6500m3/hr, Full pressure 165Pa, Noise 74dba

4 Pole- 22  Inches 550mm: 1250-1350PM, Power 500W, Input current 2.4A, Capacitance 12uF, Air  Volume 8700m3/hr, Full pressure 240Pa, Noise 75dba

4 Pole- 24  Inches 600mm: 1250-1350RPM, Power 680W, Input current 3.1A, Capacitance 16uF, Air  Volume 12000m3/hr, Full pressure 300Pa, Noise 76dba



Package included:

1x Extractor Fan

1x User Manual
