VXSCAN F04 Underground Cable Wire Locator Tracker Lan With Earphone

1. VXSCAN F04 Overview

• WIRE TRACING MULTIFUNCTION - Fast to locate the breakpoint without wire's cover damage, Find wire on all types of connected operating Ethernet switch /Router/PC terminal. Perfect for tracking RJ11, RJ45, cables or other metal wire (via adapter)；And also with the Battery（10V-110V） positive and negative measurements function.




• WIRE TRACKER - The Line Finder can trace not only Ethernet LAN wires, but also electrical and speaker wires when connecting to the alligator clip; In this situation, the wires must be in power-off status, otherwise the units will be damaged; It is recommended to stripe down some of the wires when connecting through the clip; Select "SCAN"; Emitter works properly if the "SCAN" indicator is on; Use the receiver to find target wires.




• NETWORK & TELEPHONE LINE TEST - The Line Finder testes physical connection status of network cable, such as open circuit, short connection, miswire and reverse connection; Use the emitter to test the status of working of telephone lines (such as judging TIP or RING line), test the line level, positive and negative polarity detection; Adjust the volume of receiver by pressing the volume rotary knob.




• EARPHONES DESIGN - With a pair of Earphone, you can just connect the earphone to the headset jack of receive to get clear information in a noise environment, Adjust the volume knob to make the volume proper and avoid being interfered. Notice that if the sound is low, you should check whether the battery is powered off or not, and the LED flashlight allows operation in dark situation.


2. VXSCAN F04Underground Cable Non-Destructive Locator 8 features:

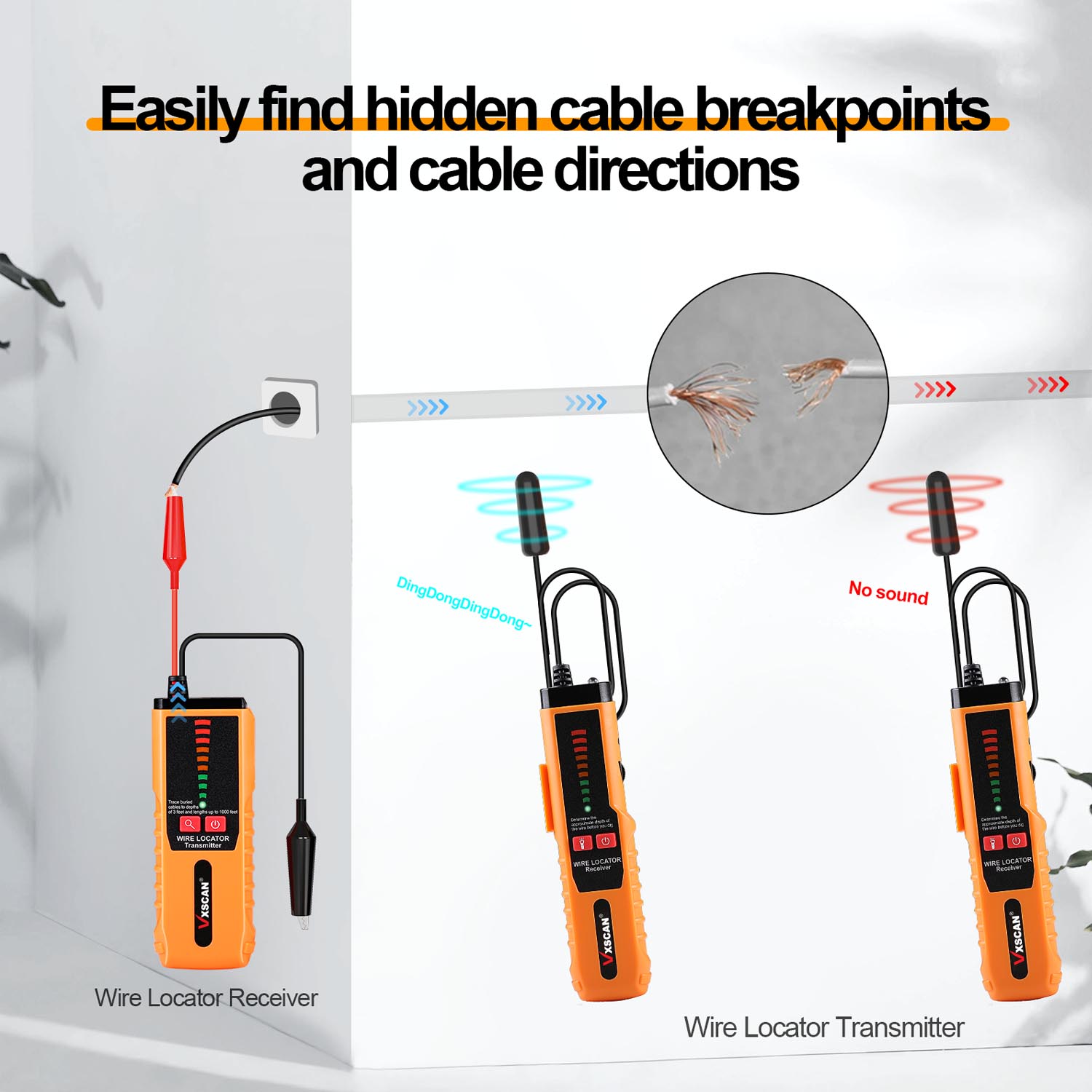

1) With new wireless signal transmitting & receiving technology, it can quickly locate breakage point, short-circuit point and direction of underground cables and no need to break insulators on the surface of cables

2) Reduce electromagnetic noise interference to enhance users’ judgement via simulating digital communication mode

3) Adjustable wireless transmission power, adjustable sound-receiving controller and high-sensitivity earphone bring more convenience and comfort

4) The receiver with lighting function also applies to low-light conditions.

5) Movable detecting head relieves users’ stoop work intensity, and improve detecting depth of blind ditch.

6) Lower-power consumption extends prolong working hours.

7) Supplied power by 9V electronic technology battery. Easy to replace.

8) Detection reaches 2000 feet in distance and 2 feet in depth. Portable, easy and fast.

3.Applicable scenarios

VXSCAN F04 Underground Cable Non-Destructive Locator,It is especially convenient to locate the direction of the breakpoint of the network communication wire, digital signal wire, underground cable, wall-through cable, dark ditch pipeline cable, underground irrigation cable, and cable in the construction area.The product is suitable for wiring underground cables in courtyards, underground cables for garden irrigation, underground cables for industrial power, underground cables for communications, underground cables for urban roads, underground cables for agricultural and forestry irrigation, and underground cables for wiring in livestock areas

4. What’s wrong with your?

1) When it comes to no lighting, no power supply, no communication, motor stopping etc., make sure other switch accessories are normal and troubleshoot problems of wires and cables before use.

2) Avoid damaging cables when searching cables direction on construction site.

5. How to Use & Using Tips

1) Open battery compartment by a screwdriver, and install batteries to transmitter and receiver.

2) Hold power button for at least 3 seconds to turn on transmitter and receiver respectively.

3) Keep the transmitter away before adjusting receiver’s volume.(To prevent users from loud voices)

4) Press transmitter’s signal-output search button. Adjust transmitter’s power.

5) Get the receiver slowly close to the transmitter until the user can hear and judge the sound in search of cables. Meanwhile, users can hear the sound varying in volumes (louder voice means it gets closer to cables). Easy to locate and track cable breakage point.

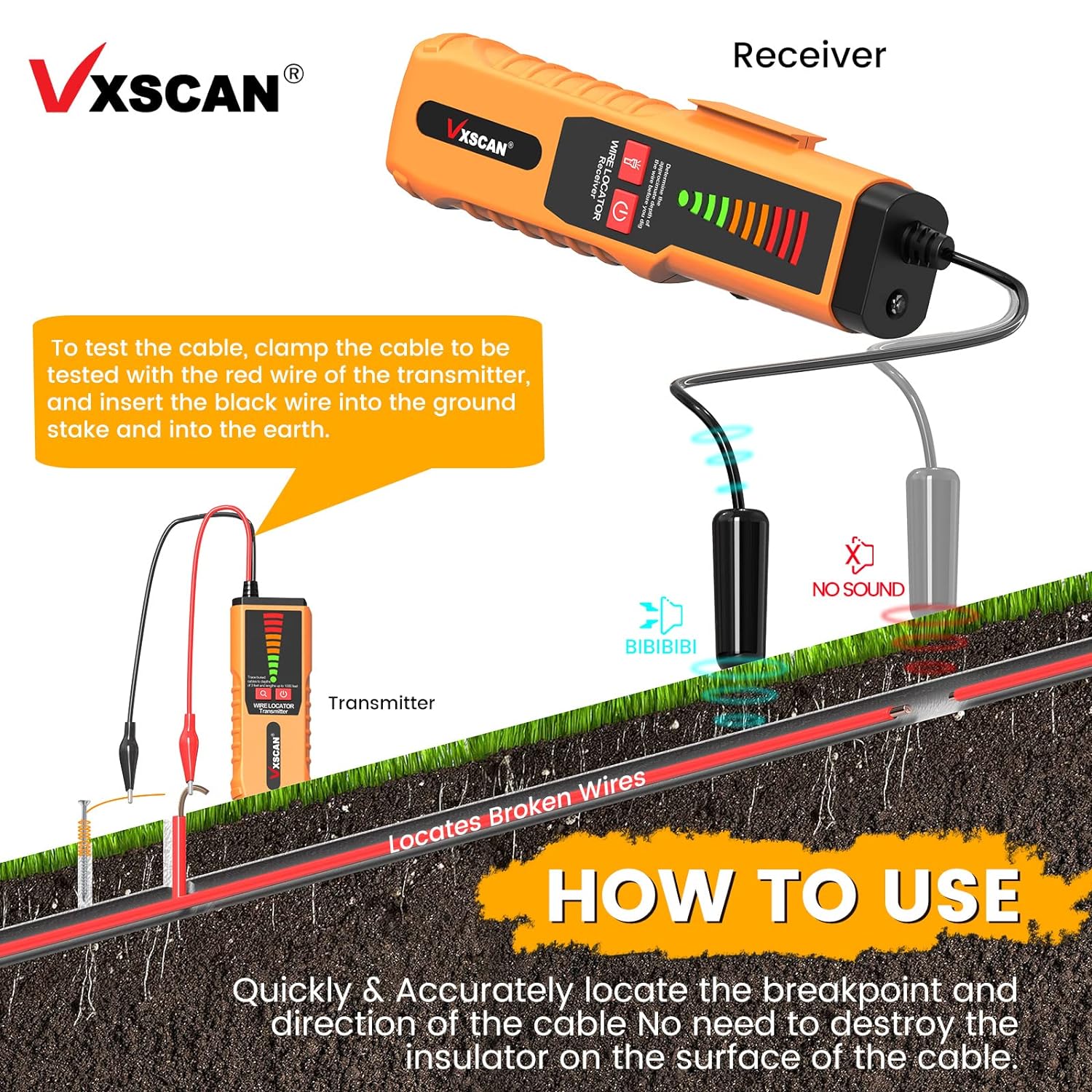

6) Red line of transmitter clips the cable to be detected, black line doesn’t have to be connected. (To improve detecting distance and anti-interference capability, users can connect black line to the earth. It can be a grounding pile or a grounding pile made by a metal rod into the earth)

7) Turn on lamp in low-light environment.

8) Using tips: adjust transmitter’s power and receiver’s volume, and then swing detecting head to locate cable breakage position by receiver’s volume.

(Result judgment: receiver keeping sounding indicates cables are connected. Weakened sounds indicate detector getting away from tested cables.

Short-circuit judgment: if receiver sounds by detecting an untested cable, this cable is short-circuited.)

6. Other Features

1) Integrated sound and display, professional signal indicator and adjustable power and sound. Personalized operation.

2) High-sensitivity + flexible wire reduce stoop working intensity.

3) assembly and non-slip structure for easy storage.

4) Silica gel button brings comfortable use and long service life.

5) Lamp applies to dark environments.

7. User manual language  : EN user manul

8.Warrenty  One-year warranty

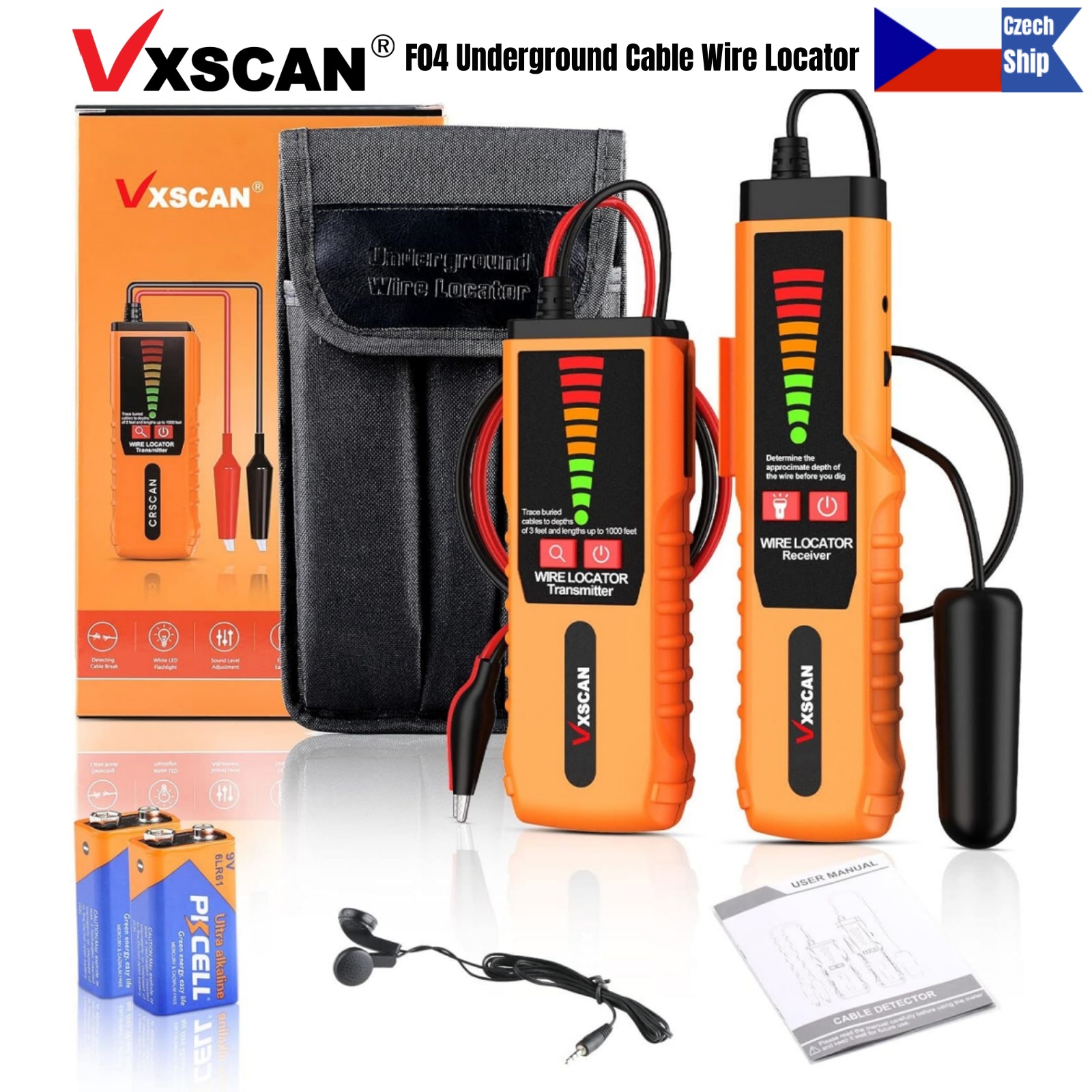

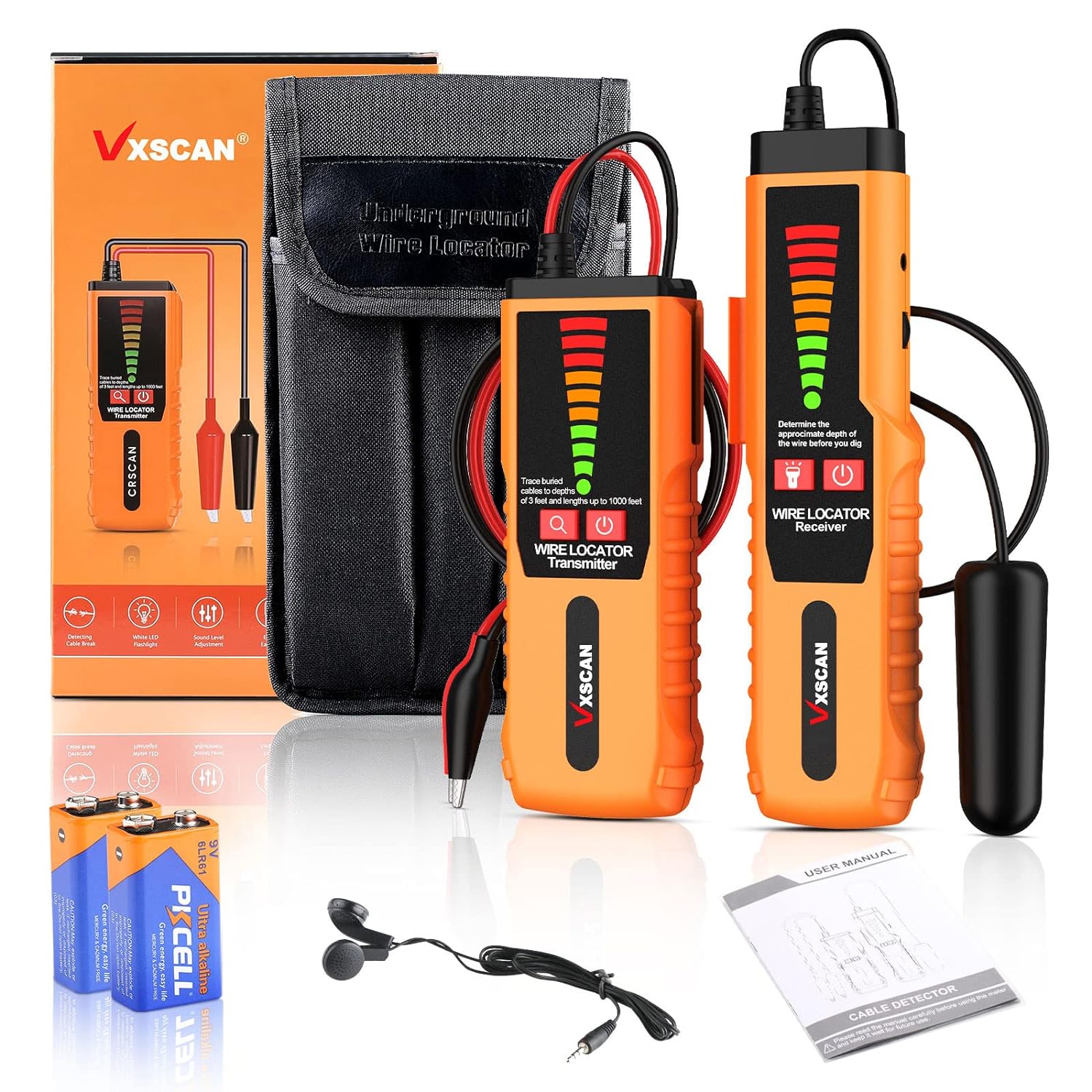

Package includes:

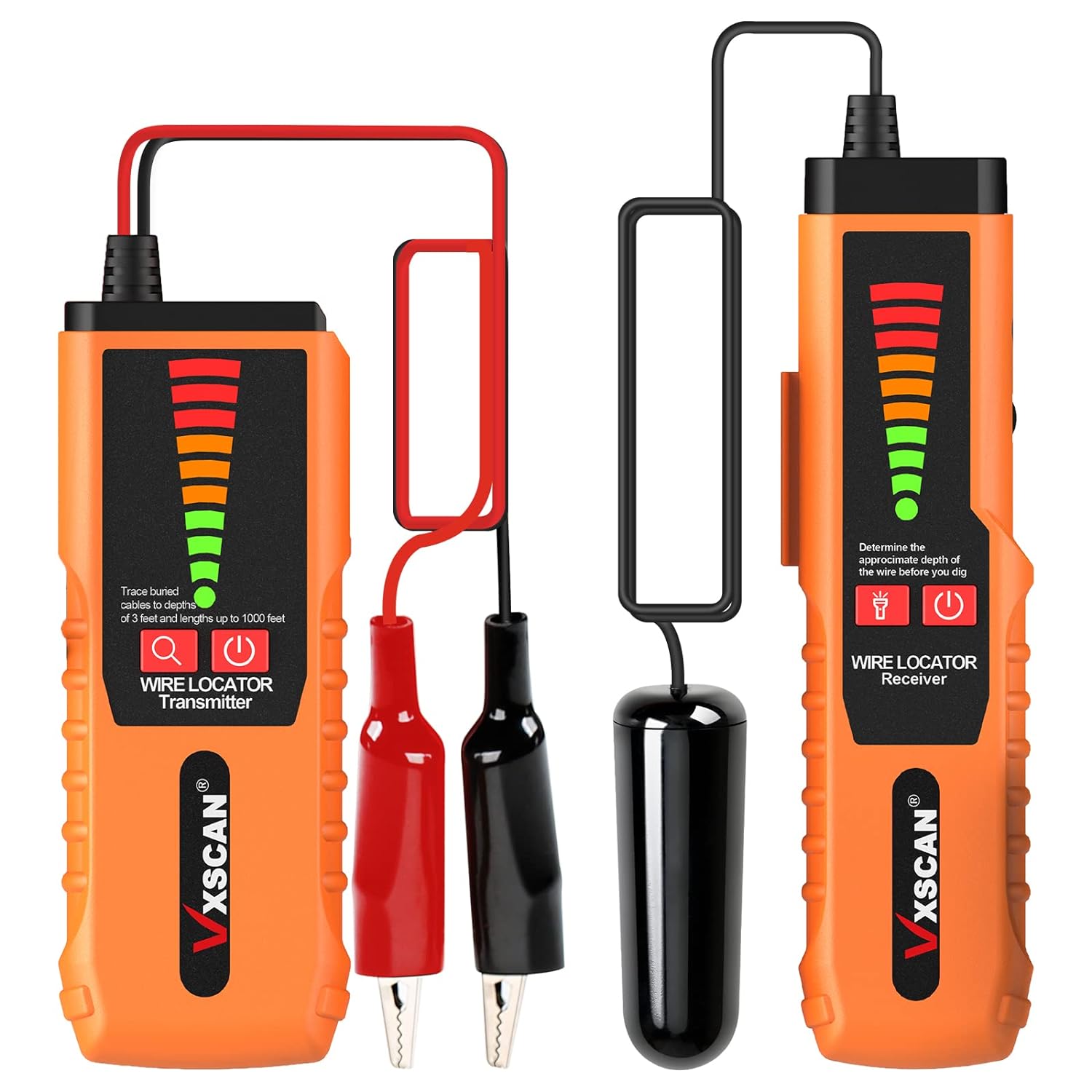

1pc x  Transmitter

1pc x  Receiver

1pc x  2.5mm headphone

2pc x  9V 6LR61 high-quality battery

1pc x  Storage bag

1pc x  User manual
