DESCRIPTION
This Listing Is Including:
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Vehicle Fitment
For 1980-1993 Ford Mustang All Engines
For 1981-1982 Ford Granada All Engines
For 1980-1983 Ford Fairmont/Futura All Engines
For 1980-1988 Ford Thunderbird All Engines
For 1983-1986 Mercury Marquis All Engines
For 1980-1988 Mercury Cougar/XR7 All Engines
For 1980-1986 Mercury Capri All Engines
For 1980-1983 Mercury Zephyr All Engines
For 1982-1987 Lincoln Continental All Engines
For 1984-1992 Lincoln Mark Vii All Engines

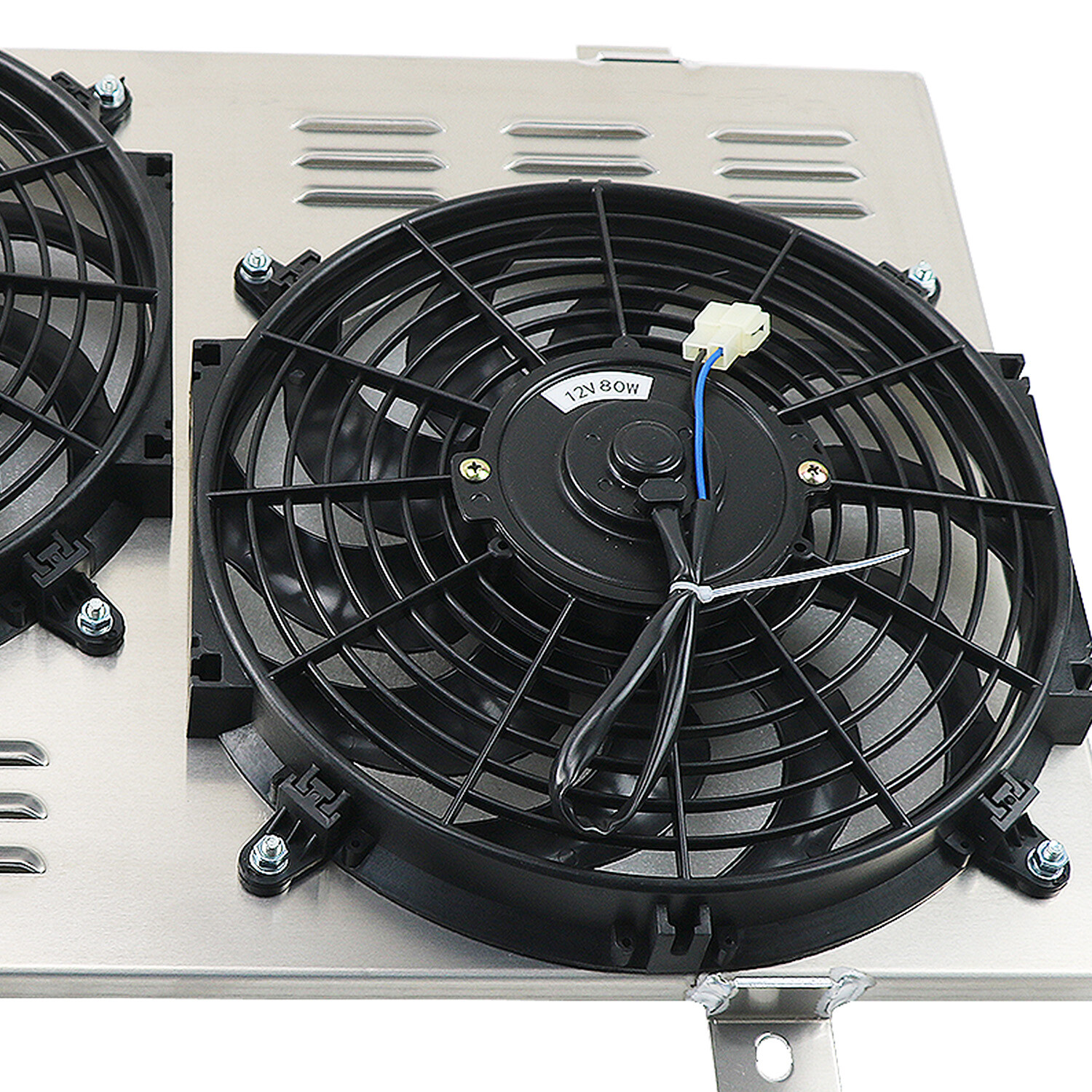

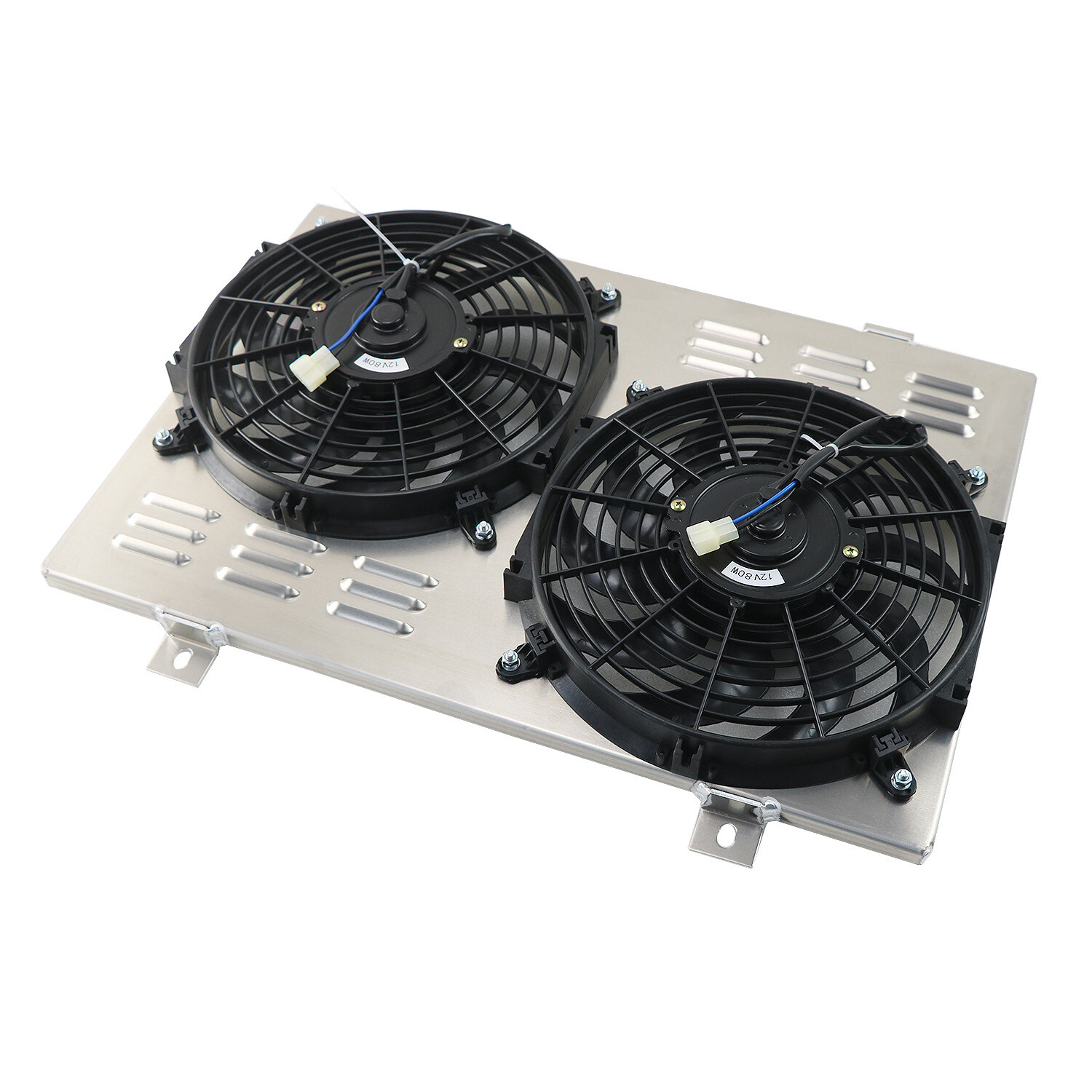

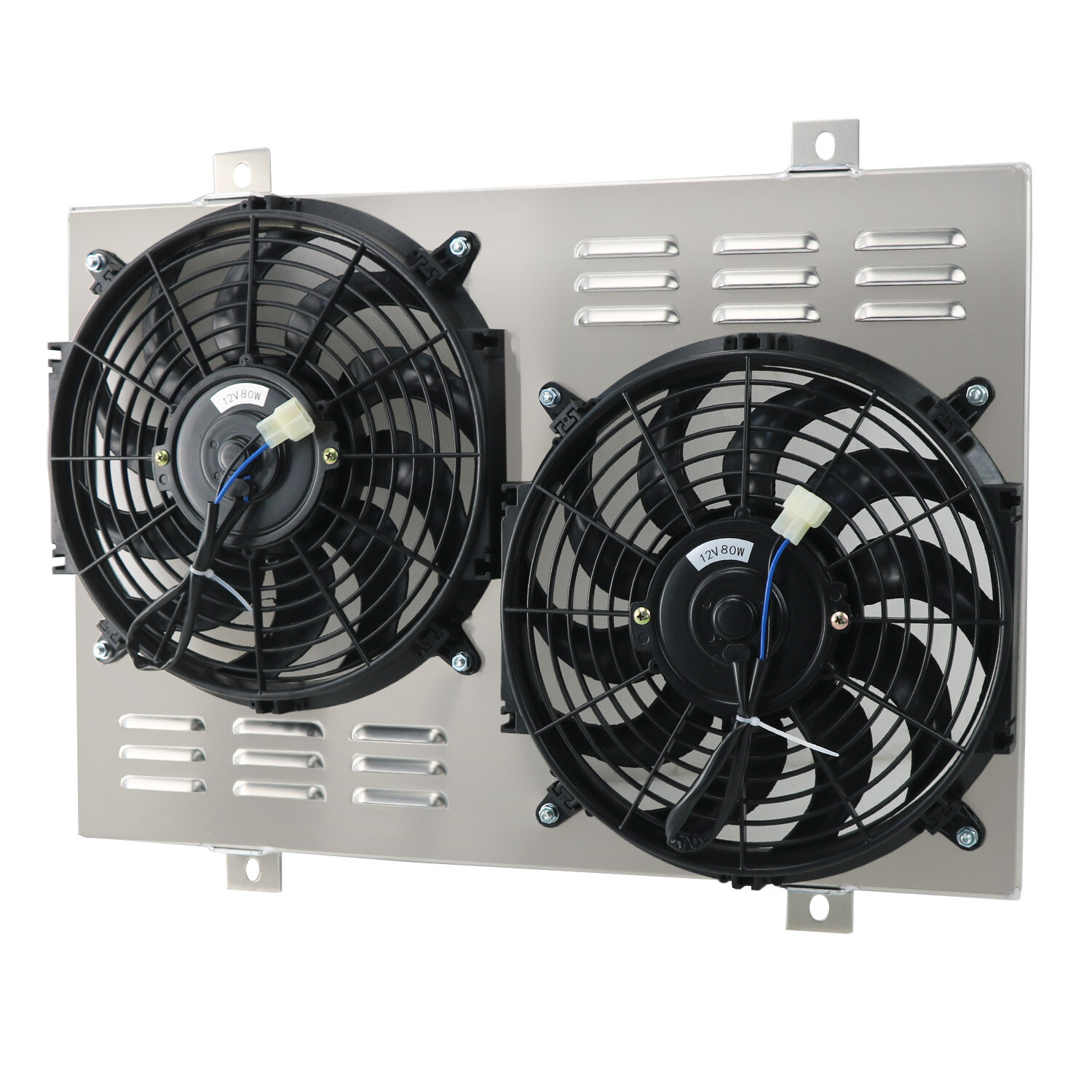

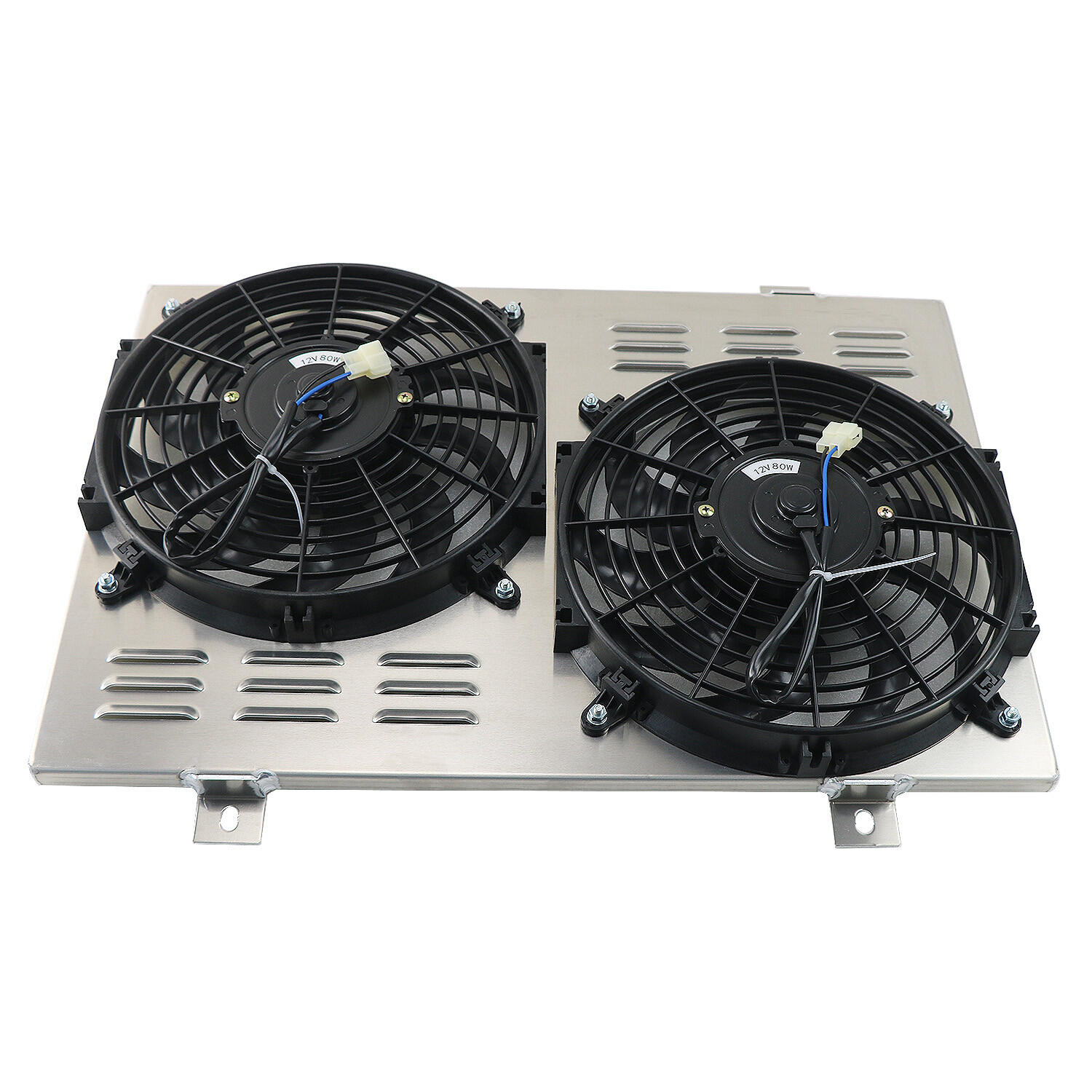

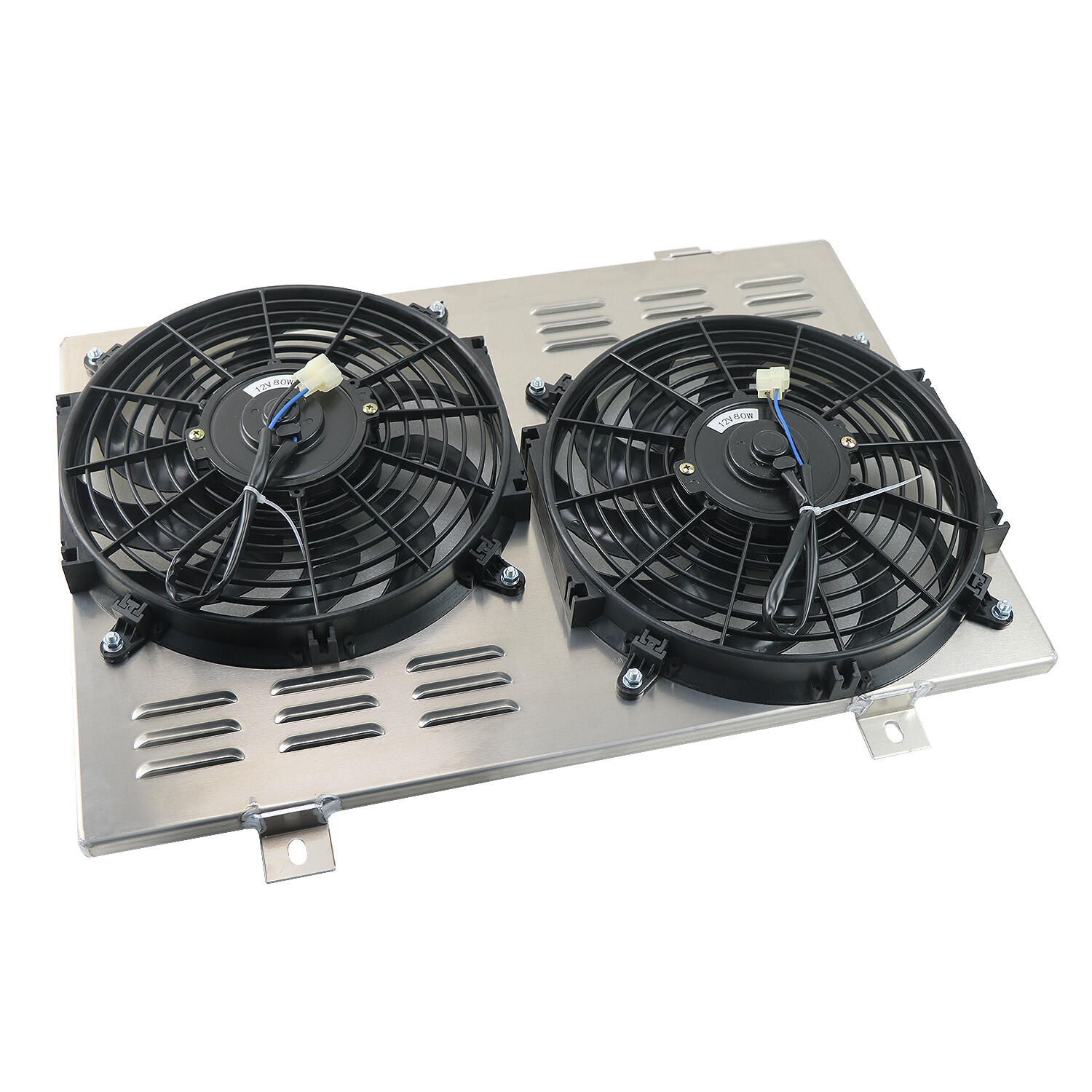

AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

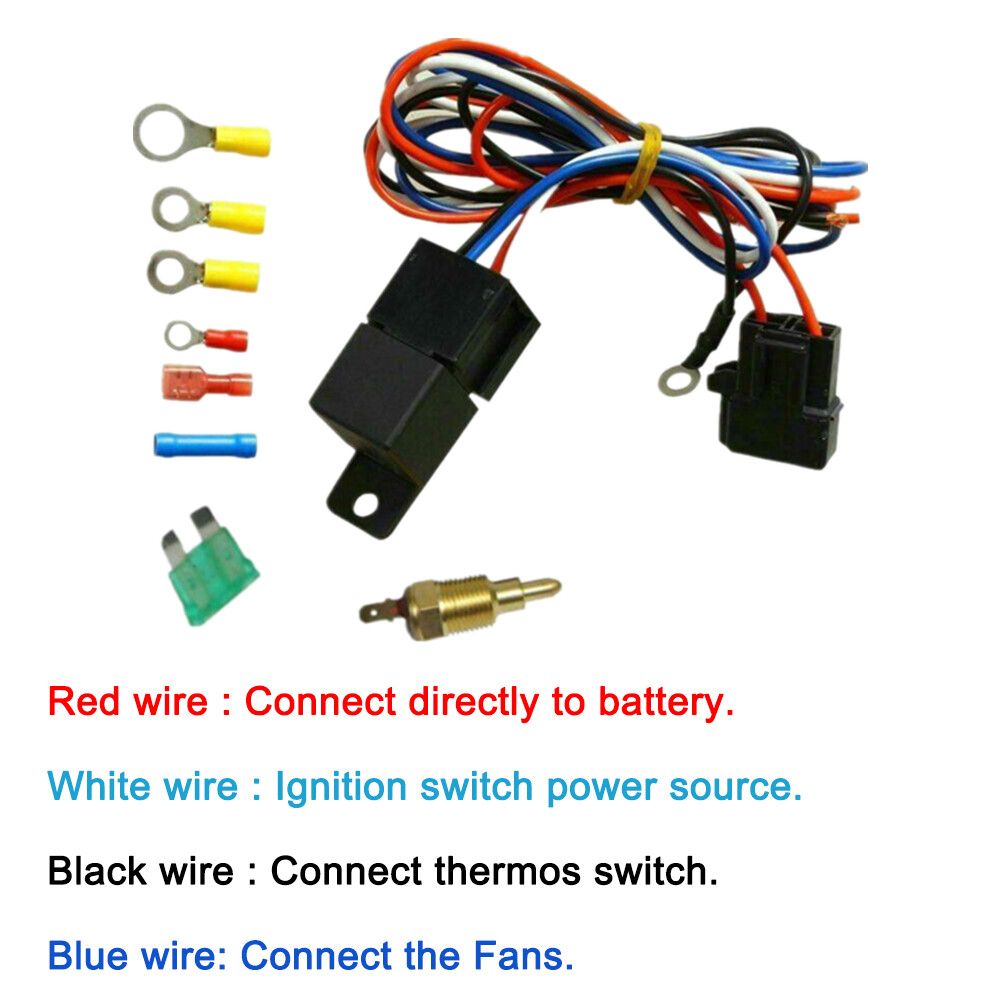

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.

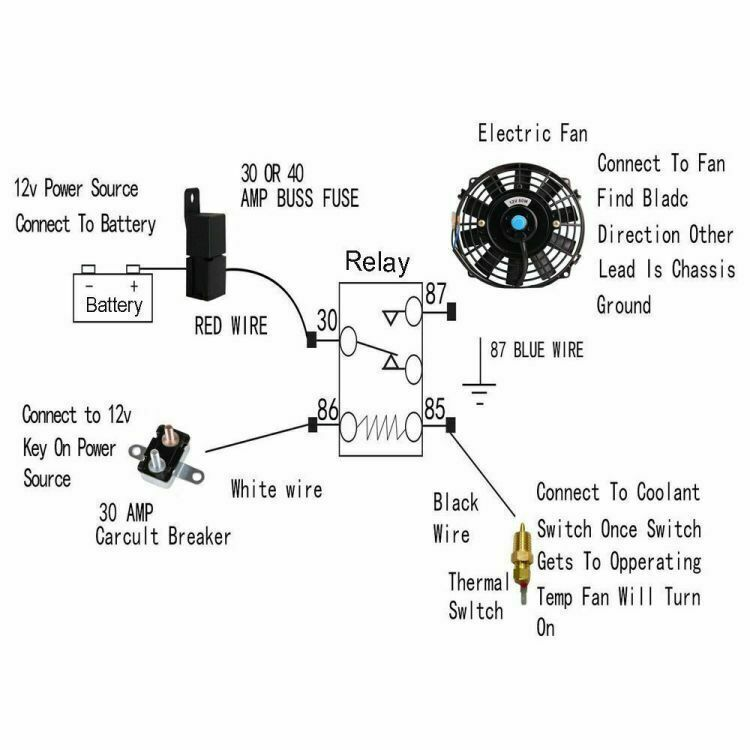

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
alloyworks_us_cool have a professional R&D team. We have our own brand---alloyworks. Our Radiator is designed to be identical to many factory units of OEMs.
It offers affordable replacement that does not compromise quality and performance. Additionally, we provide other car accessories for you, welcome to purchase.
