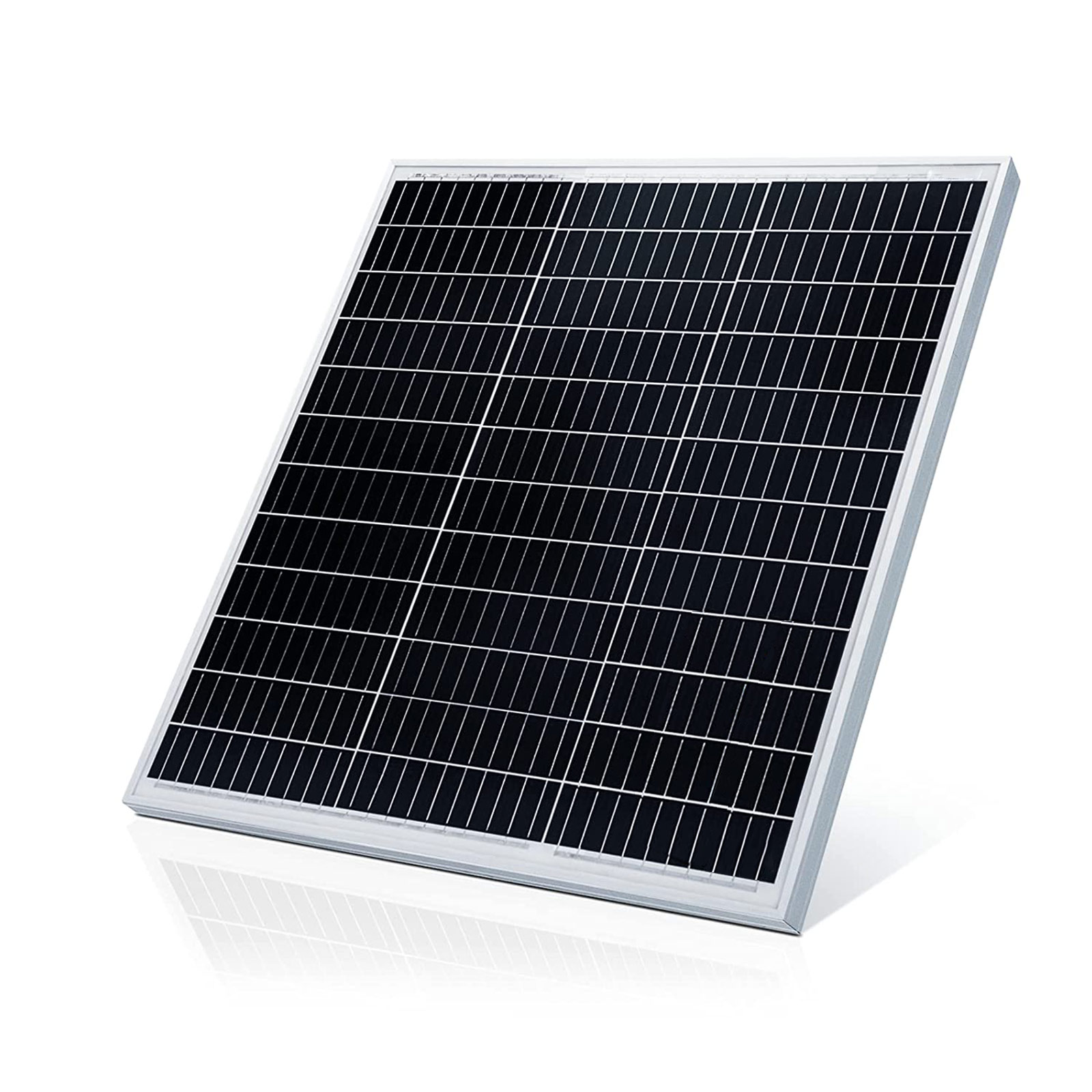

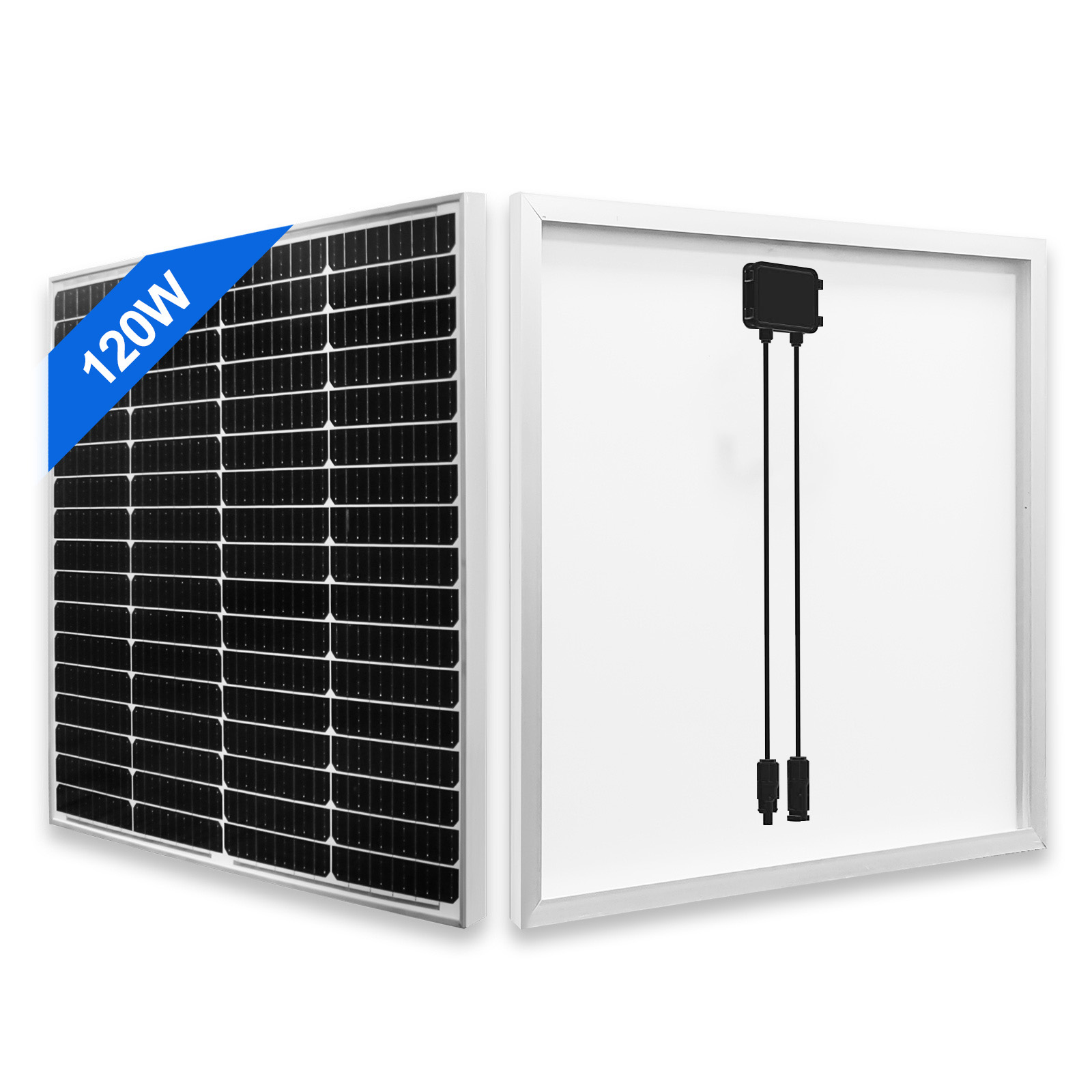

120W Mono Solar Panel kit 12V for Off Grid RV Caravan boat shed Trailer Van Home

PRODUCT DESCRIPTION

【Upgraded Design】

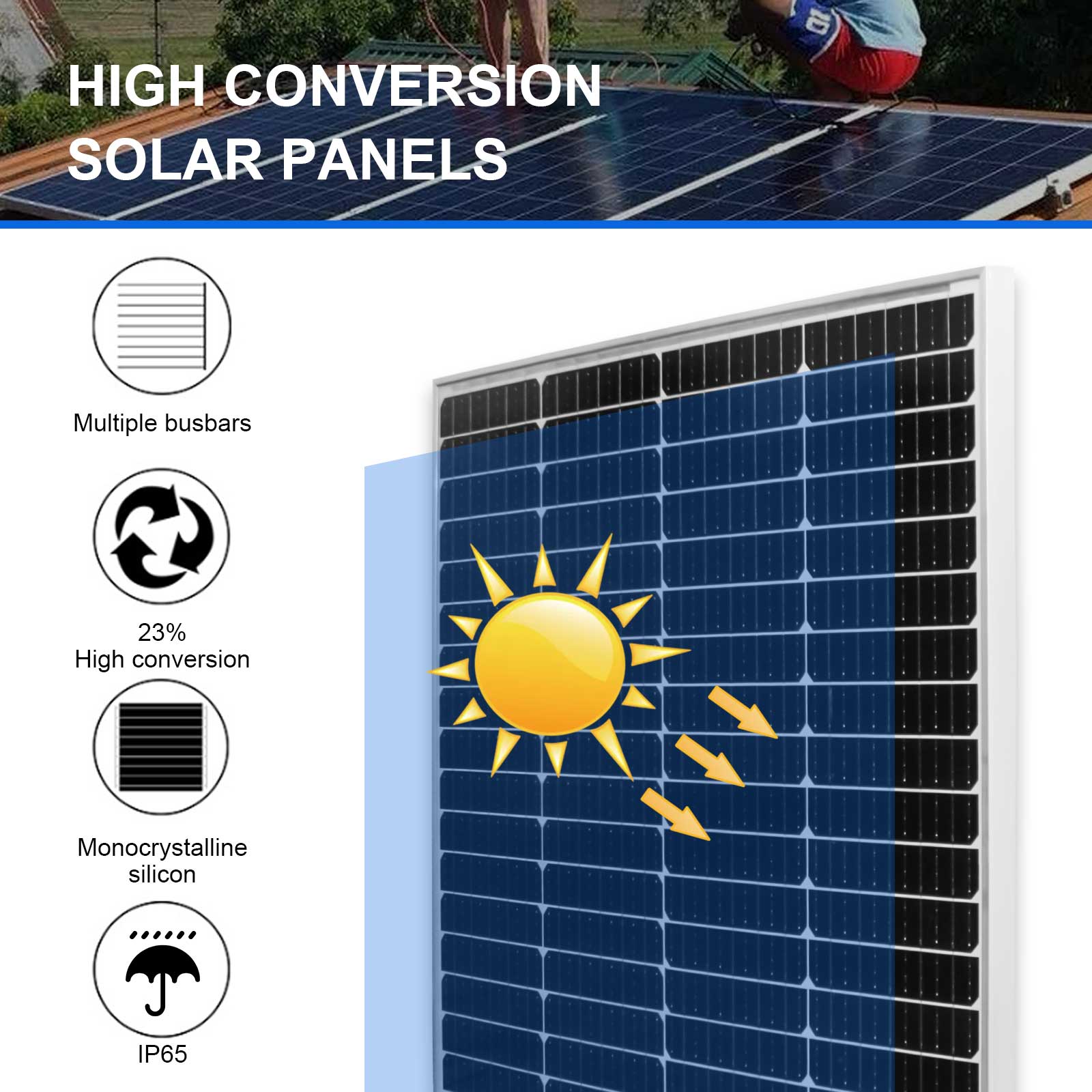

PFCTART monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

【Easy to install】

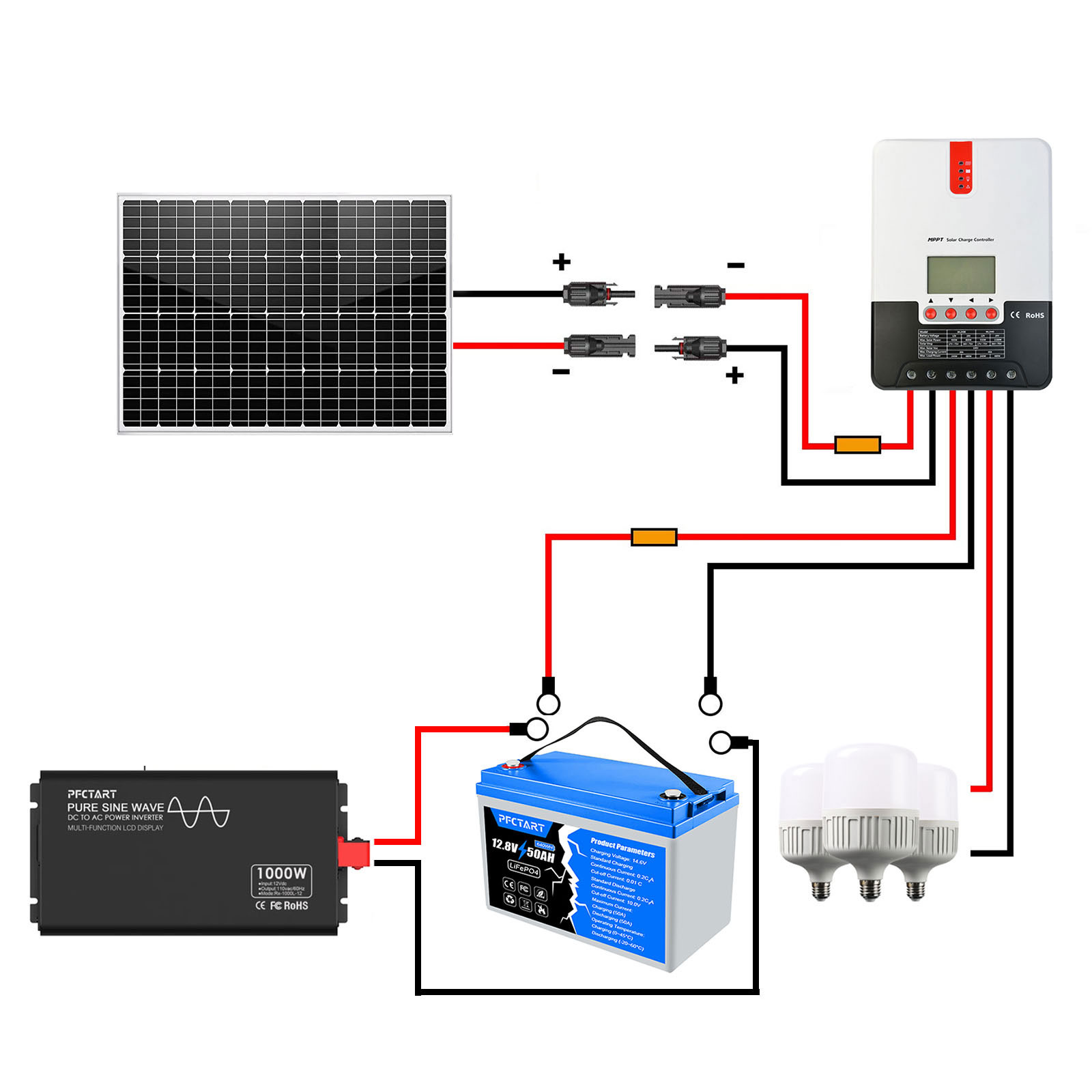

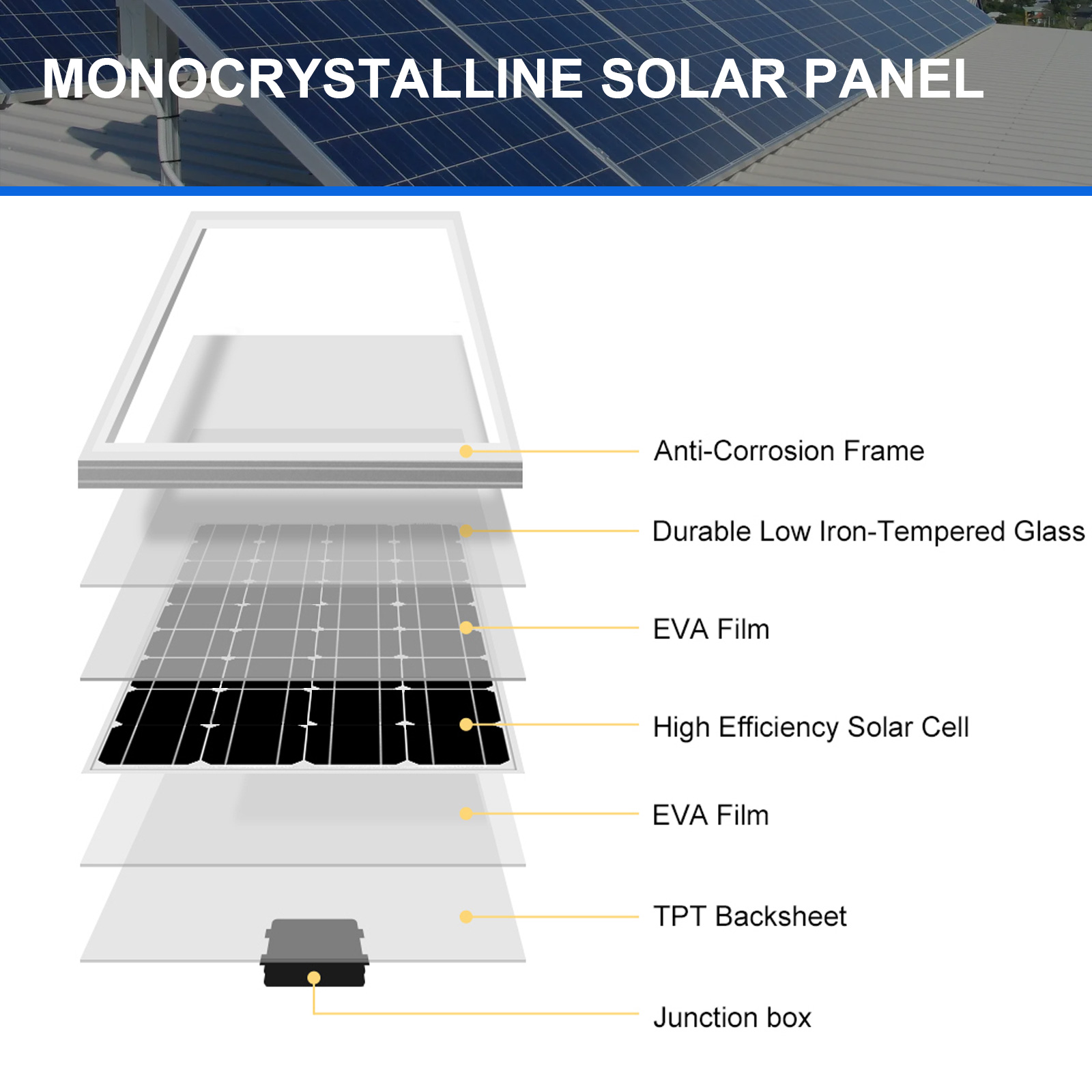

It comes with solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

【High Quality】

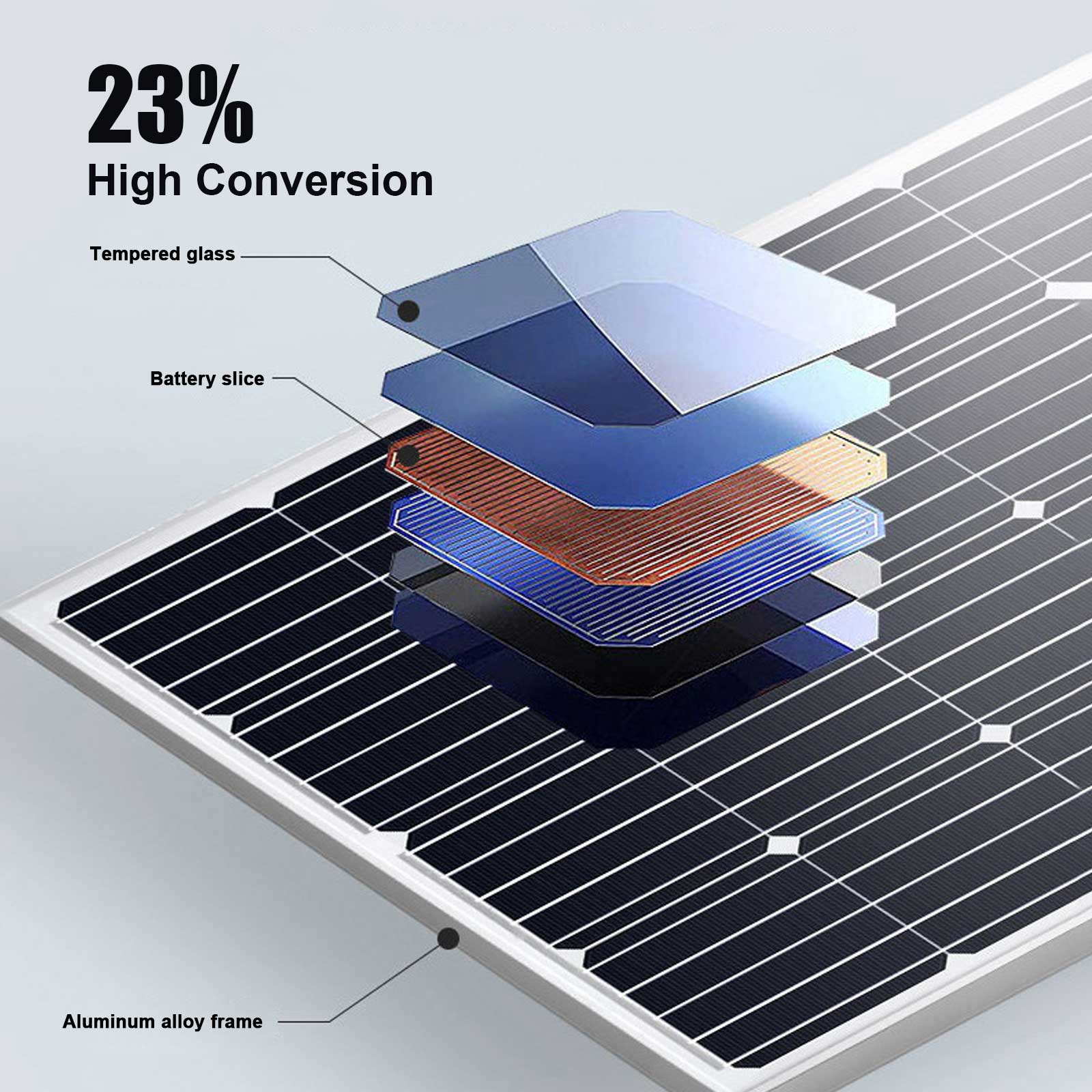

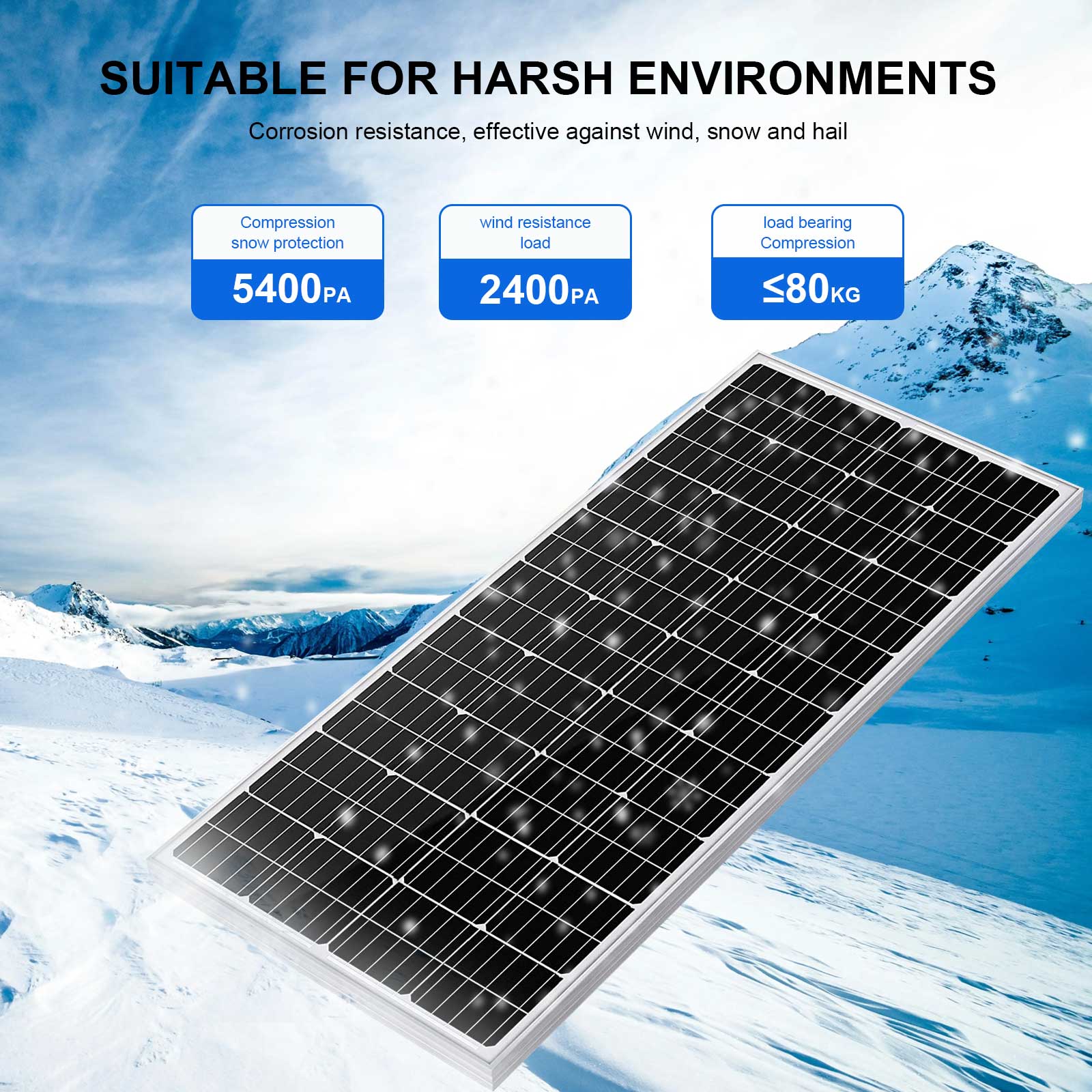

The panel is covered with a special glass to protect against the bad environmental conditions. Good quality frame, withstands high winds (2400Pa) and snow loads (5400Pa).

【Built to Last】

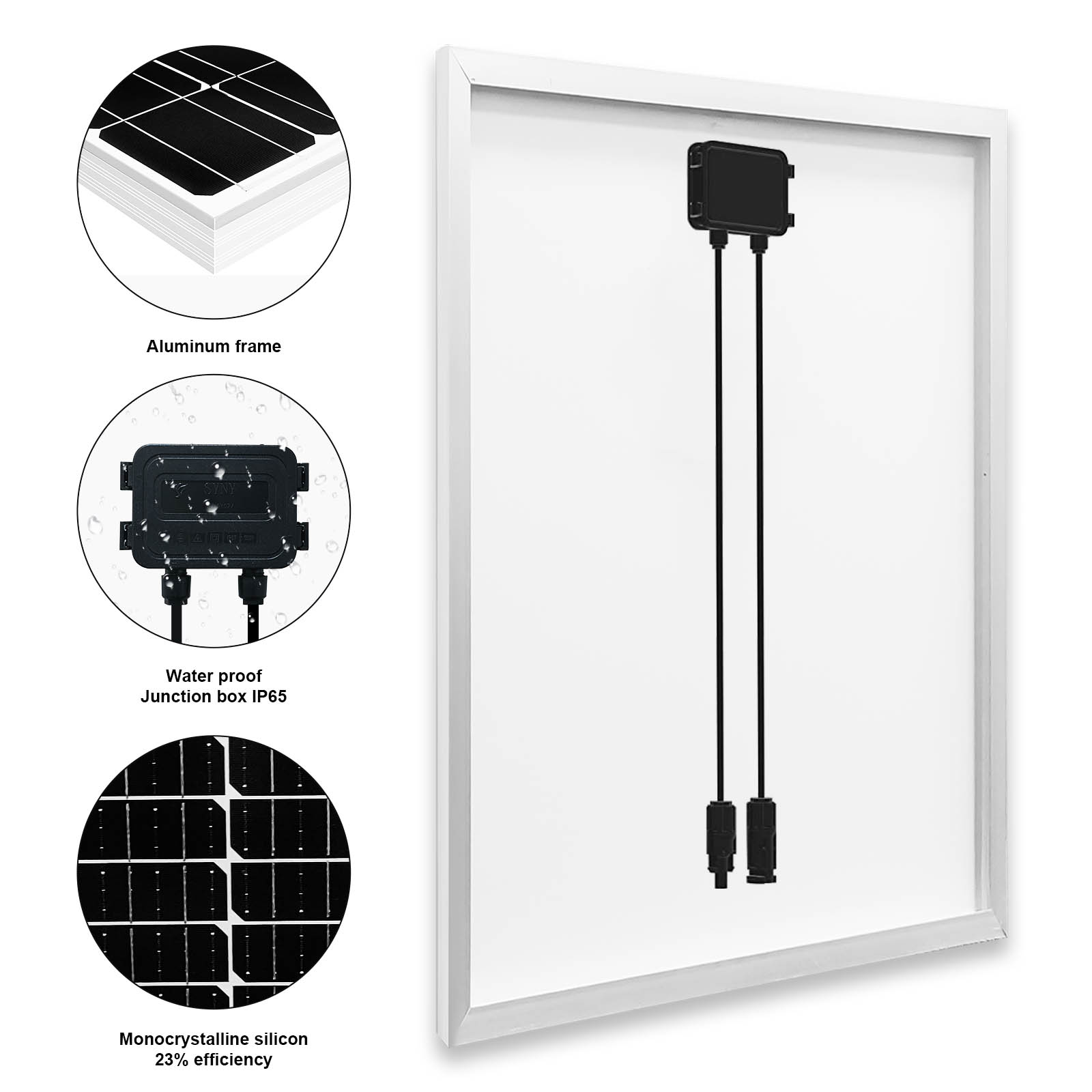

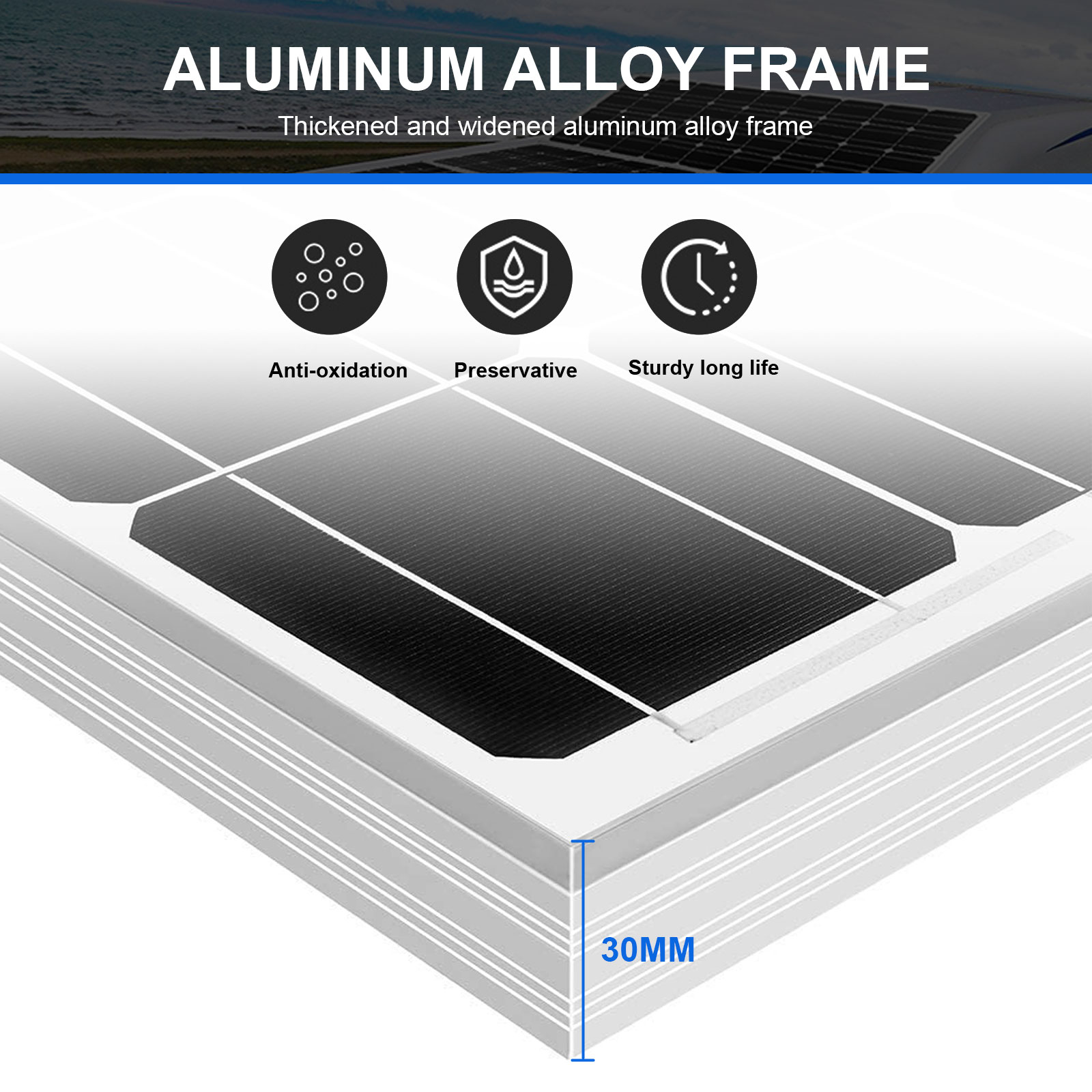

Corrosion-resistant aluminum frame of this solar panel  provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.

Specification：

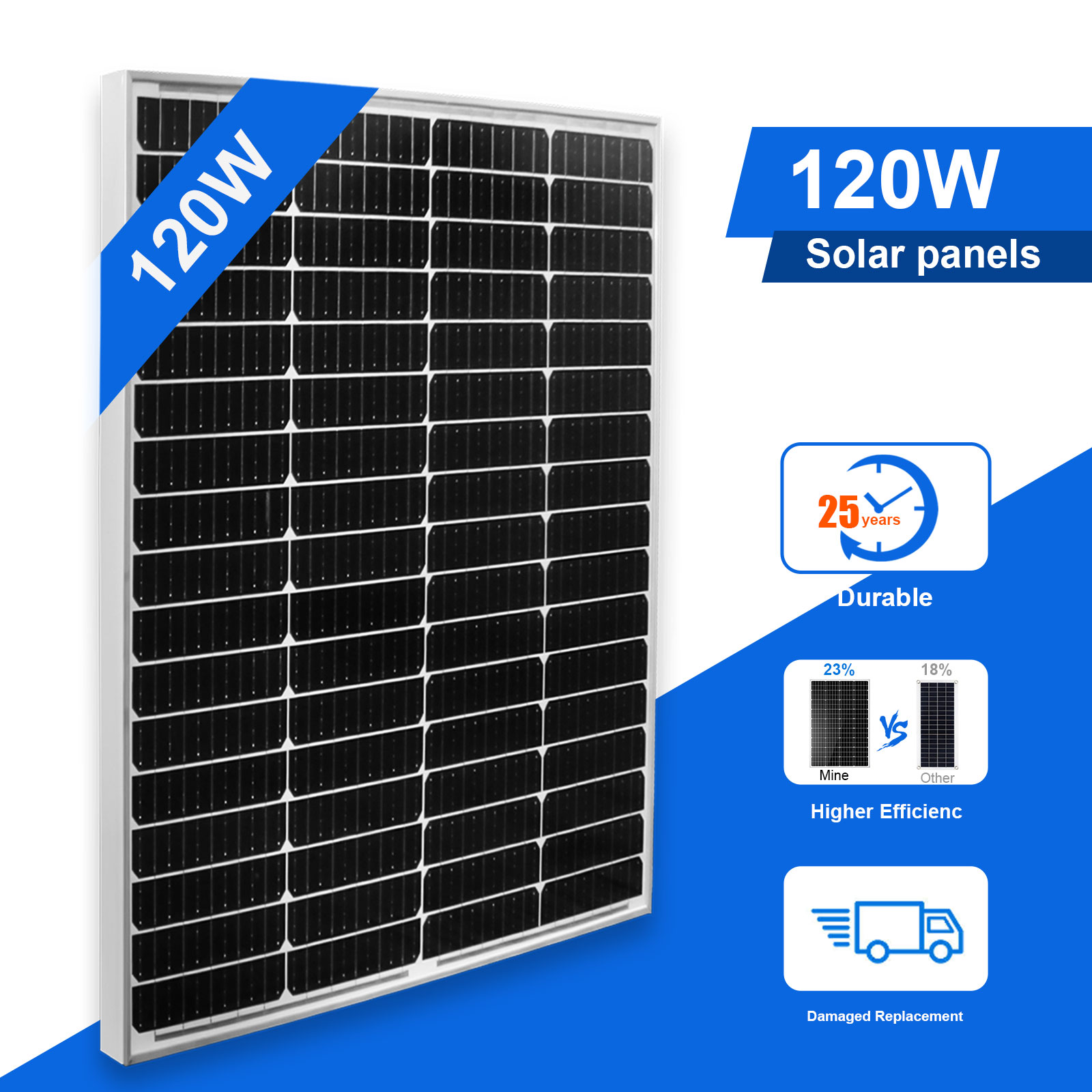

120W Solar Panel

High Efficient Monocrystalline

Maximum Power: 120W

Open Circuit Voltage (Voc): 21.6V

Maximum/Peak Voltage(Vmp): 18V

Short Circuit Current (Isc): 7.2A

Working Current (Iop): 6.66A

Output Tolerance: ±3%

Charge Voltage: 12V

Frame: Aluminum alloy frame

Temperature Range： -40℃ to +80℃(-40°F to +176°F)

J-Box IP Rating: IP65

Product size：760 × 730 × 30 mm (29.92 × 28.74 × 1.18 in)

Product weight：5.9 kg (13 lbs )

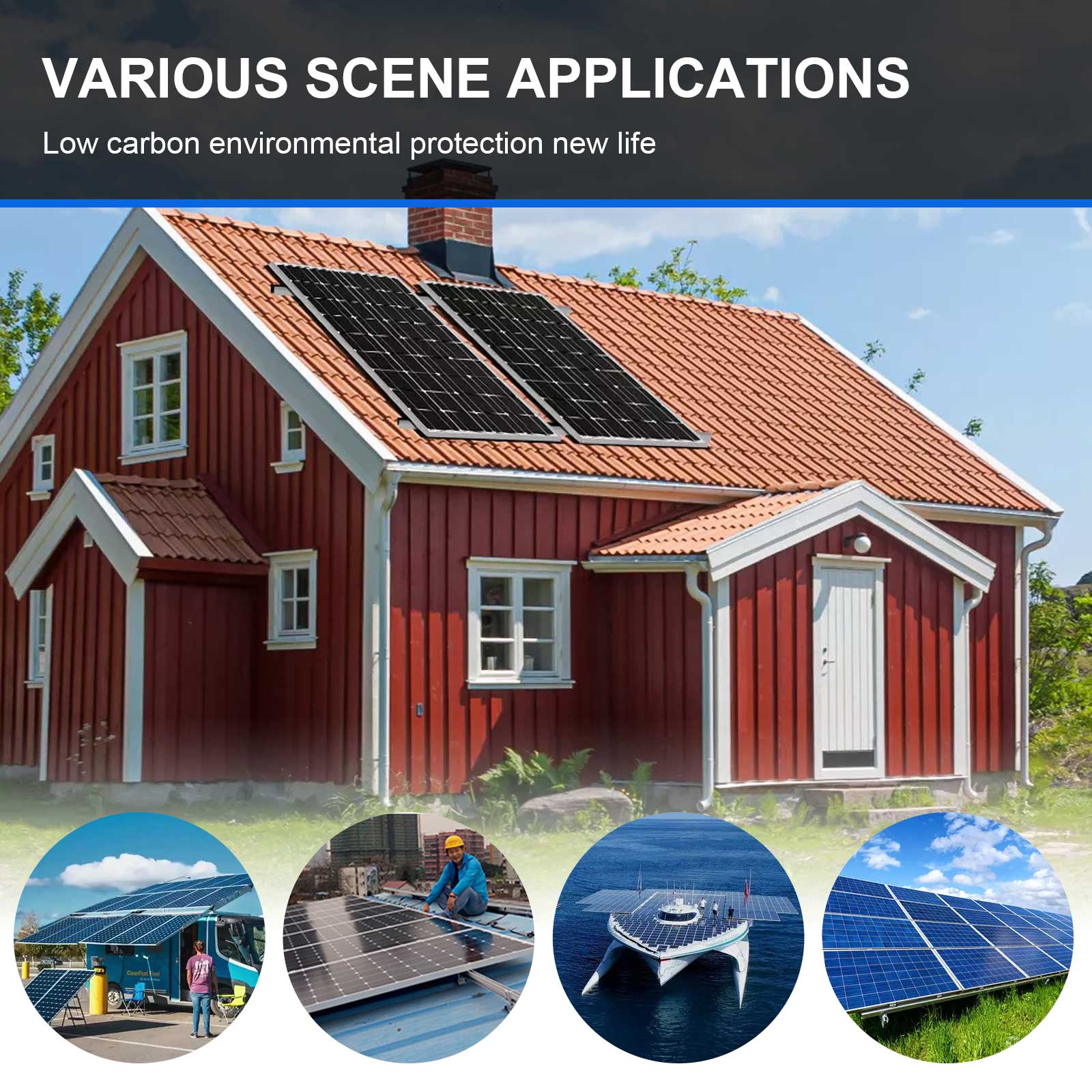

How Many Solar Panels Do You Need To Buy?
1-4 Solar Panels For Boat power generation

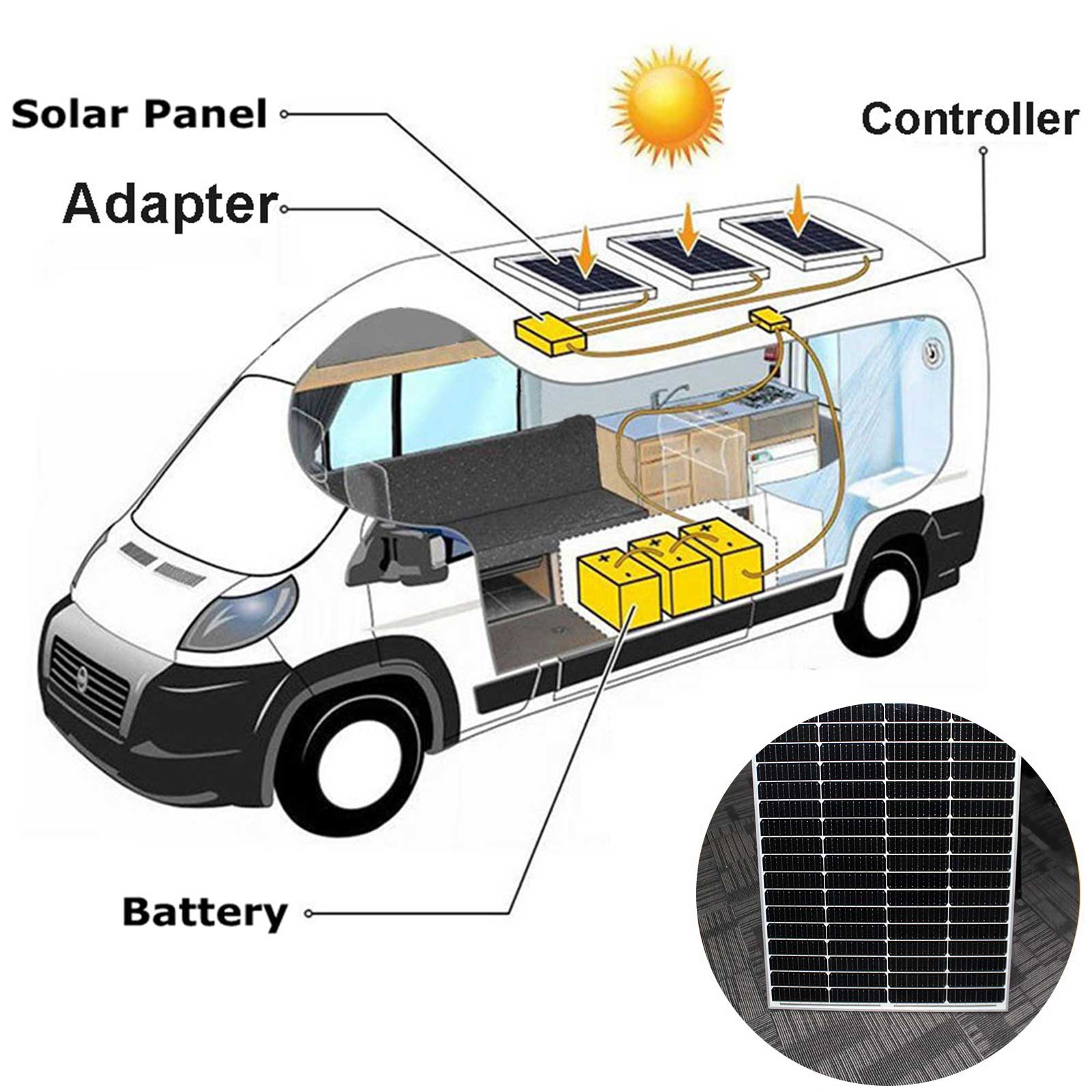

1-6 Solar Panels For RV Power Generation
1-30 Solar Panels For House power generation
More Welcome to consult !

Packages Includes
1 x 120W Mono Solar Panel
