DC 24V 150MM 6inch 120RPM Reciprocating Linear Actuator Motor with Stand DIY US

Product Description

  • 【Features】: Stroke: 30-160mm 1.2inch-6.2inch (Adjustable); No load Speed:12-120RPM(Adjustable); Rated Voltage: DC24V;
  • 【Powerful Motor 】The motor is tiny but have plenty of power. Pushing force: 2-15kg.
  • 【Aluminum Alloy Material】: The surface has been polished 27 times, the aluminum body efficiently dissipated the DC motor heat, it can make the motor stays cool to the touch even under load.
  • 【The Angle Can Be Adjusted】: The angle can be changed quickly, and it can be used in a true vertical 90°with flexible angle adjustment. it can offer you plenty of options for assembly.
  • 【With Remote Controller and DC Power Adapter】Remote control distance up to 100 meters in an open environment. You can control it more easily, it makes the Speed Variable.

  • The aluminum alloy bracket provides 3 fixing holes for easy installation. Adjustable Speed: Speed can be adjusted by adapter or remote control.


The Material of the Stand

Bracket Made of Aluminum Alloy, very sturdy construction inside and outside.

The installation is convenient and simple, it only takes a few minutes to complete.

Motor

The motor is tiny but with plenty of power.

The diameter of the motor is 35mm/1.38” and the height is 48mm/1.89”.

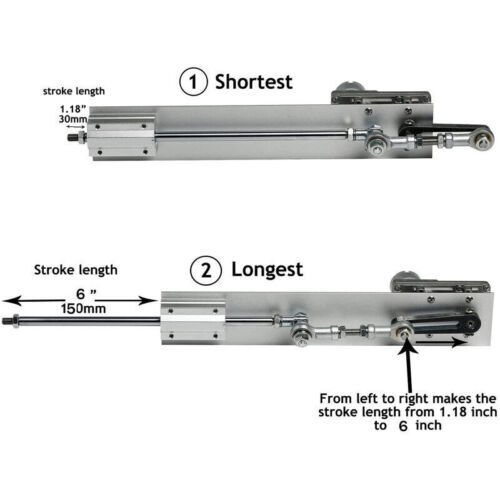

Adjustable Stroke

The stroke can be adjusted by changing the position of the screw on the slide rail.



Stand Kit with Angle Adjustable

The stand kit is adjustable. The black handle design is easy to install.

If you cannot tighten the black handle here, please use the installation tool to loosen the screw on the opposite side of the handle. In this case, it can be tightened with the handle.


Remote Control

The motor is equipped with a remote control. After installing the remote control board, the remote control can be used to control the motor from a distance.
（There is no battery in the remote controller. Please purchase before use. Battery Model: 23A 12V）

Remote control pairing method:



Package List
