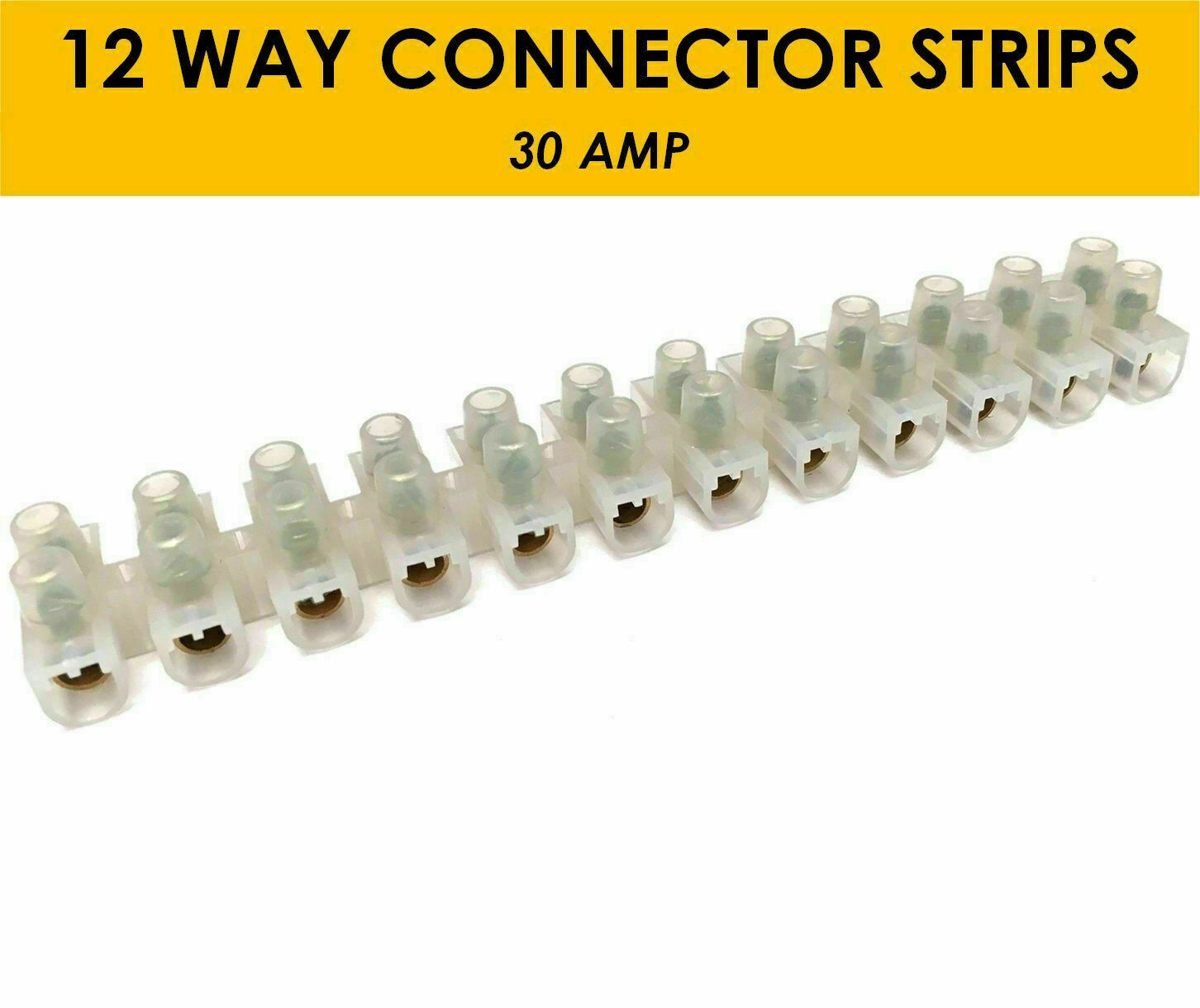

This is the listing for 5 pack of 12way  3/5/15/30/60 Amp Strips only


   Amp - 12 Way Terminal Block Strip - Electrical Wire Connector

Item specifics:

  • Screw clamp fixing
  • Material: Brass and plastic
  • Brass contacts and screw clamp fixing in chrome-plated steel.
  • Terminal blocks (12-way strips) in polythene insulation, heat resistant up to 65°C.
  • Each terminal block has 2 rows of 12 positions (24 connection screws) Making wiring connections easy.
  • Each terminal block is manufactured using brass conductor inserts with electro-tin plated connector screws.
  • Suitable for quick and east joining of vehicle wiring, boats and caravan wiring, modelling electrics, household lighting, general mains power connections.
Choose From 3/5/15/30/60 Amp Strips - Various Quantities
  • Easy To Cut Terminals
  • Natural Colour
  • Plastic Casing
  • Flat Head Screw Driver Terminal Block
  • Buy More Save More!

Dimensions : Approx

    • 3 Amp:
    • Length: 95mm / 3.5"
    • Height: 15mm / 0.5"
    • Depth: 15mm / 0.5"
  • 5 Amp:
    • Length: 115mm / 4.5"
    • Height: 15mm / 0.5"
    • Depth: 15mm / 0.5"
  • 15 Amp:
    • Length: 140mm / 5.5"
    • Height: 20mm / 0.75"
    • Depth: 20mm / 0.75"
  • 30 Amp:
    • Length: 165mm / 6.5"
    • Height: 20mm / 0.75"
    • Depth: 20mm / 0.75"
  • 60 Amp:
    • Length: 180mm / 7"
    • Height: 25mm / 1"
    • Depth: 25mm / 1"
Delivery times can vary depending on destination location. We would advise against booking an Electrician or fitter until you have received all items in satisfactory condition.

    Cross Section

    Current Range

    Rated Voltage

    Dimensions (mm)

    L

    W

    f1

    f2

    D

    d

    H

    h

    4mm2

    2 ~ 24 A

    380 V

    93

    17

    2.8

    2.1

    8

    6

    14

    7

    6 mm2

    5 ~ 32 A

    380 V

    114

    19

    3.3

    2.6

    10

    8

    16

    9

    10 mm2

    10 ~ 57 A

    400 V

    125

    21

    4.3

    2.7

    11

    9

    17

    9

    12mm2

    15 ~ 61 A

    400 V

    138

    23

    4.5

    3

    12

    10

    19

    11

    14 mm2

    20 ~ 69 A

    400 V

    145

    25

    5

    3

    13

    10

    20

    12

    16 mm2

    30 ~ 76 A

    400 V

    165

    26

    5.5

    3

    14

    11

    20

    12

    25 mm2

    60 ~ 101 A

    400 V

    186

    30

    7.1

    3.3

    16

    13

    26

    15
