Fits front, right (passenger side) on the following Can-Am ATVs (excluding any XMR models) * 2019-2022 Outlander 650/Max 650 4x4 & 6x6, 2019-2022 Outlander 850/Max 850, 2019-2022 Outlander 1000/Max 1000 4x4 & 6x6, 2019-2022 Renegade 570/850, & 2019-2022 Renegade 1000 * Features a stronger than OEM chromoly forged steel axle bar * Greased with a moly based grease to provide superior joint lubrication * Fitted with neoprene CV boots for added wear and puncture resistance * inobard CV joint spline count: 21 * outboard CV joint spline count: 26 * Compressed overall axle length: 573 mm.

Free Shipping - Same Day If Ordered Before 3 EST

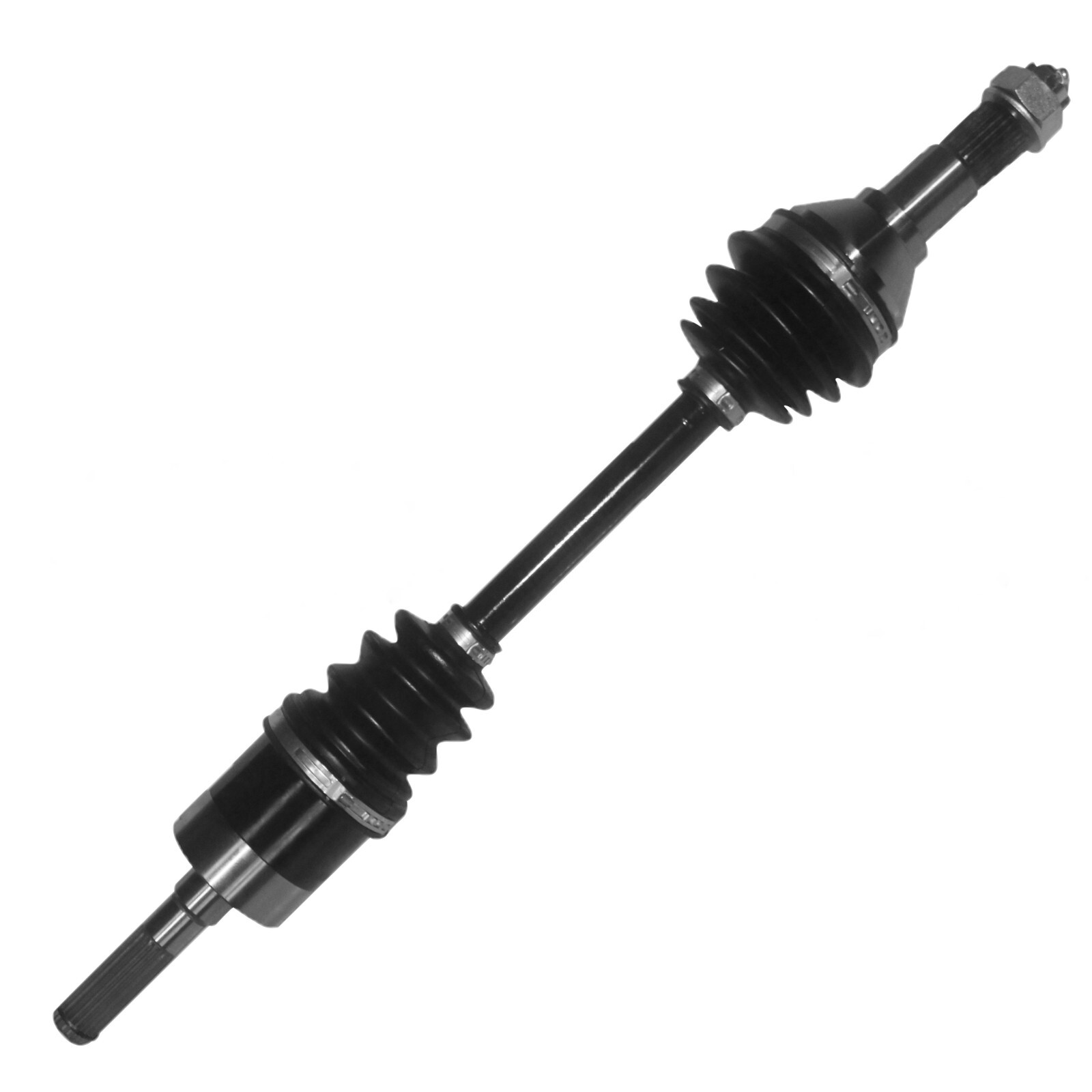

This is a new OE type CV axle.

Precision machined and made as a direct replacement, no modifications necessary.

Quality tested for smooth articulation and reliable performance.

Ships fully-assembled and ready to install.

*made as an OE replacement, and not guaranteed to work with lifted vehicles or modifications of any kind

Product details:

  • Fits front, right (excluding any XMR models) on the following Can-Am ATVs: 2019-2022 Outlander 650/Max 650 4x4 & 6x6, 2019-2022 Outlander 850/Max 850, 2019-2022 Outlander 1000/Max 1000 4x4 & 6x6, 2019-2022 Renegade 570/850, & 2019-2022 Renegade 1000.
  • Built with chromoly steel from end to end for superior strength and longevity. Made to OEM specs for easy installation. Ships fully-assembled and ready to install.
  • Each axle is engineered using the latest technology and is tested vigorously for quality assurance. CV Boots are packed with high-temperature, high-performance moly grease and fastened with stainless steel straps.
  • Replaces OEM # 705402236. Inboard CV joint spline count: 21, Outboard CV joint spline count: 26, Compressed overall axle length: 573 mm.
  • Warranty: 1 year. Please note lift kits, oversized tires or other modifications will void warranty, for use with stock equipment only. Torn boots are also excluded from warranty.
