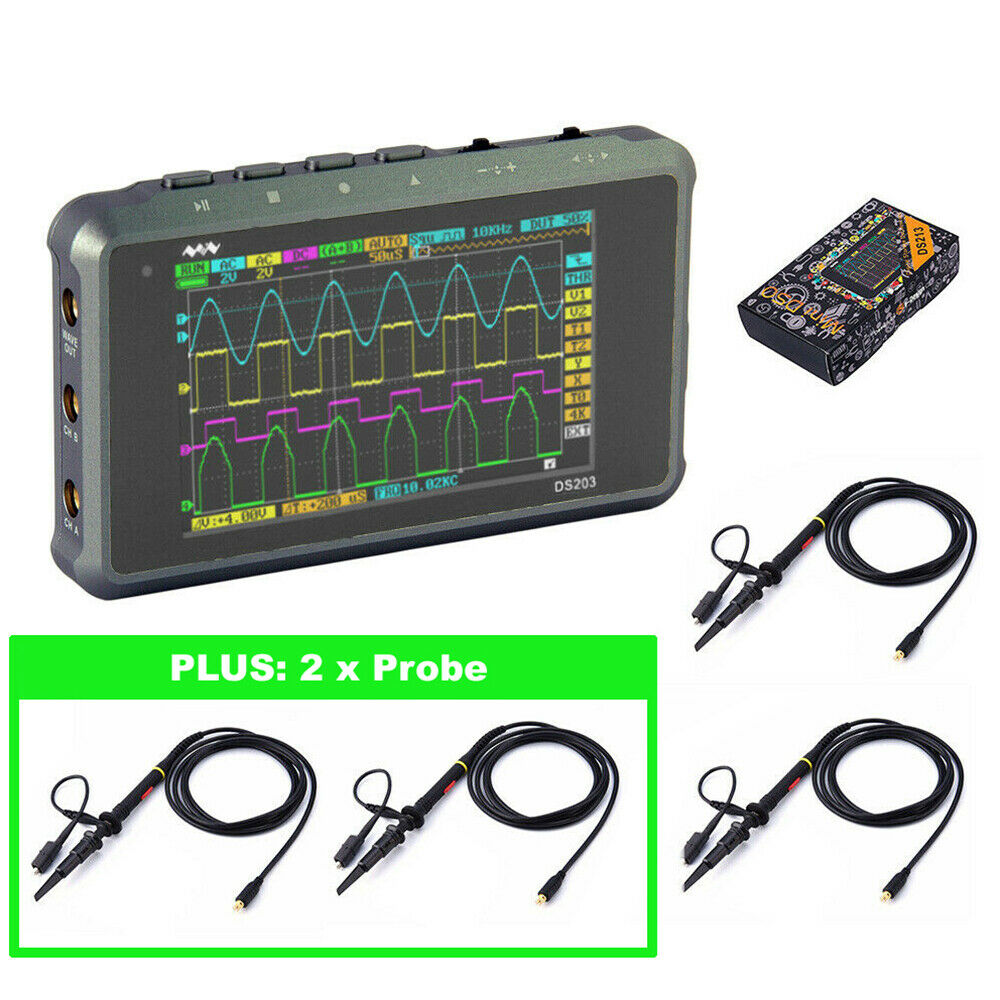

DSO213 (+4 PROBES ) Handheld Mini Portable PocketSized Digital Oscilloscope

Features:

• comply with FCC (ANSI C63.4 & CFR 47 FCC PART 15)
• company with CE (EN61326-1:2006)
• NEW
• 4-channel digital (2 analog & 2 digital)
• USB disk enables store waveforms & upgrade firmware
• Max Bandwidth 15MHz, Sampling rate reach 100 MS/s
• 8M Hz bandwidth, 8-bit precision
• Various measurement markers
• Various trigger mode
• Open source



Specification:

Analog channel * 2	CH_A,  CH_B
Digital channel * 2	CH_C,  CH_D
Bandwidth	15MHz
Max Sample Rate	100MSa/s
Vertical Scale	20mV-10V/div (1-2-5 step) on 1x probe / 200mV -100V/div (1-2-5 step) on 10x probe
Vertical resolution	8 bit
Input coupling	AC/DC
Max input voltage	80Vpp (x1 probe) / 400Vpp (x10 probe)
Storage	4K per channel / 8K on single channel
Software trigger type	edge, pulse, level (to be added)
Hardware trigger type	edge
Trigger source	CH1/CH2/EXT
Trigger mode	Auto, Normal, Single, Slow
Test Signal generater	10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave
Storage	internal 2MB USB disk, BMP, DAT file
Auto measure	Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Math Wave	INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD
Cursor measurement	Level, Voltage
Display mode	CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode	real time
Sampling rate	30S/s - 100MS/s
Power	Lipo battery
Dimension	98 * 60 * 14.5 (mm)
Weight	80g (without battery)
Accessories within Pack	4 mcx osilloscope probe



Package (airbubble envelop):

• 1 x DSO203 mini oscilloscope
• 4 x oscilloscope probe
• 1 x mini USB cable
