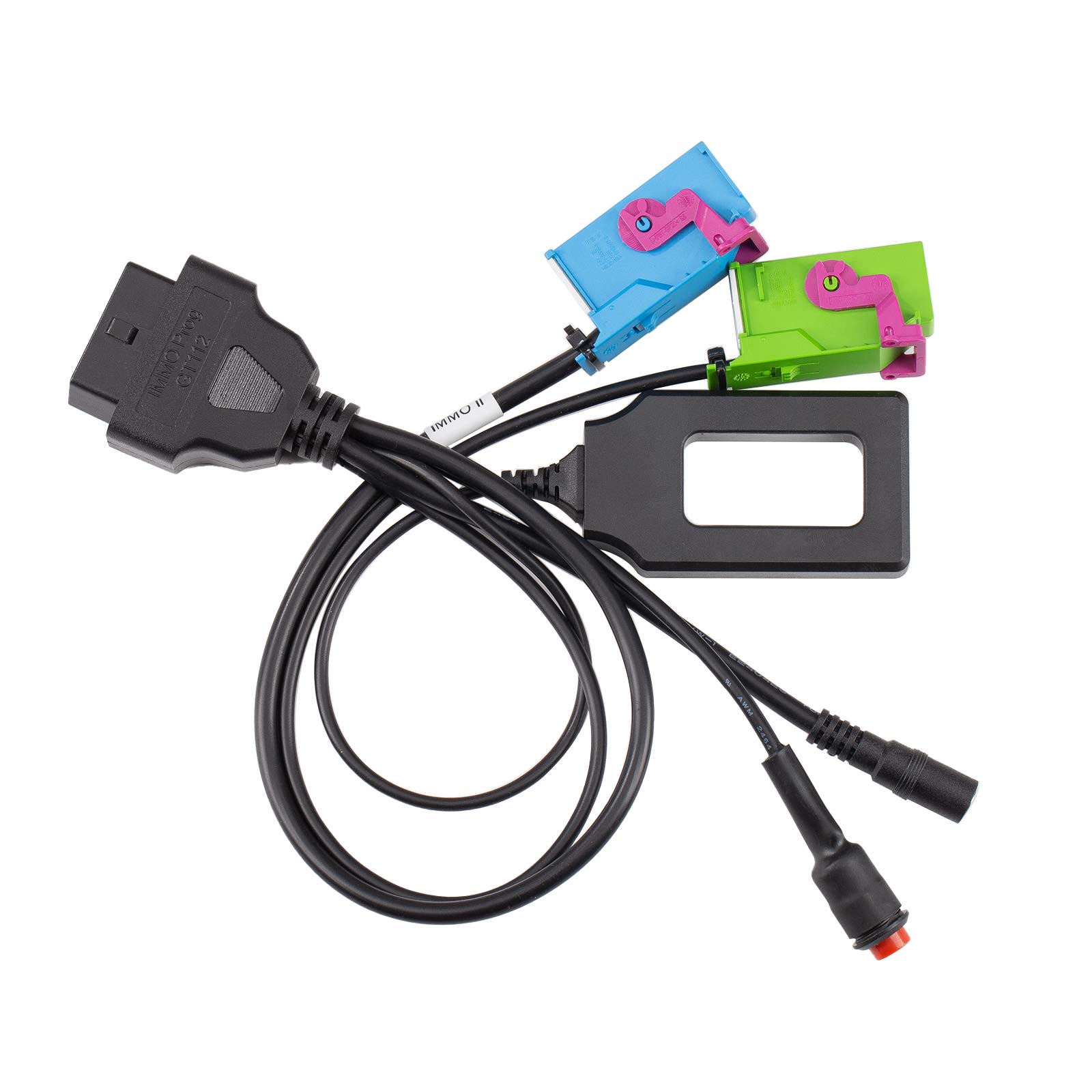

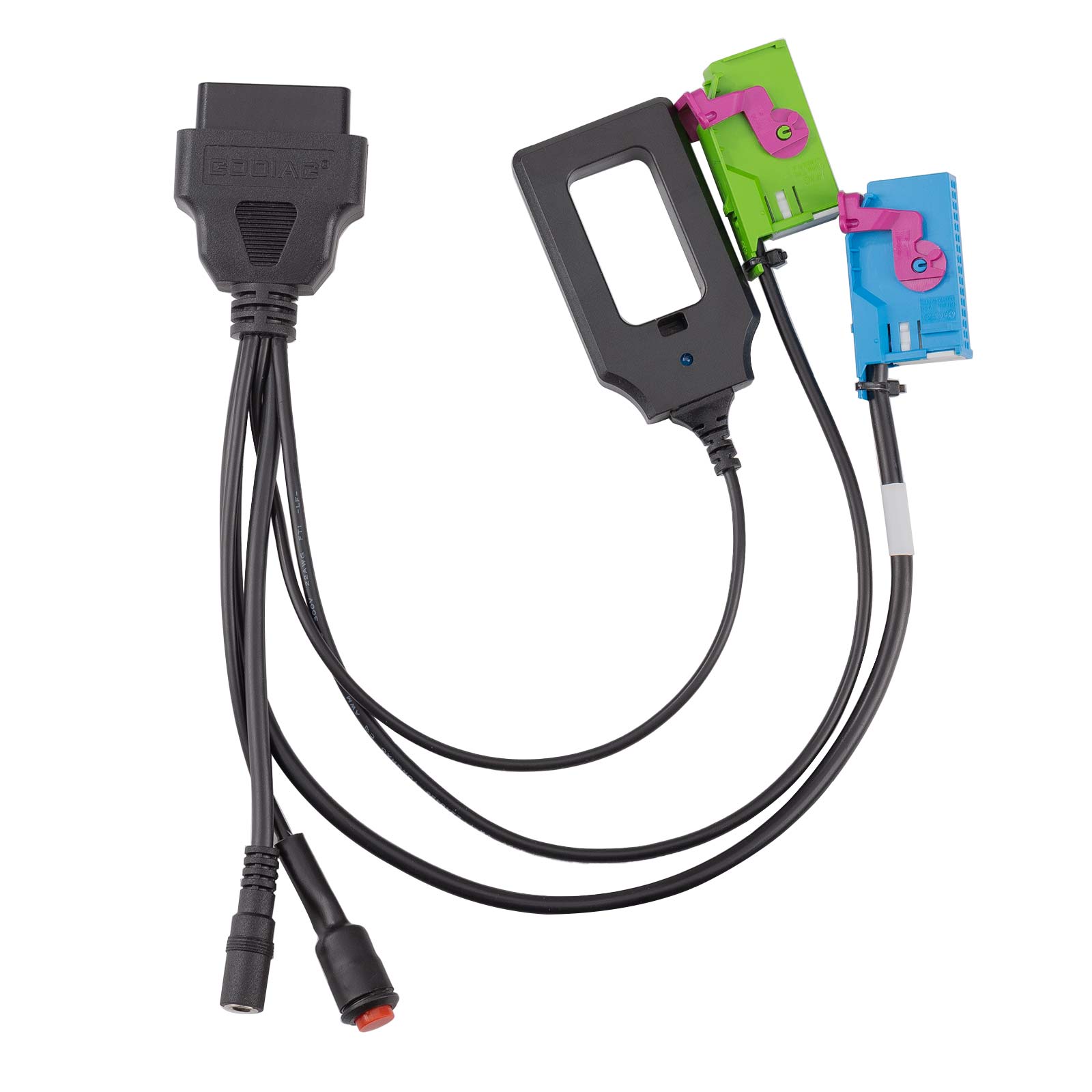

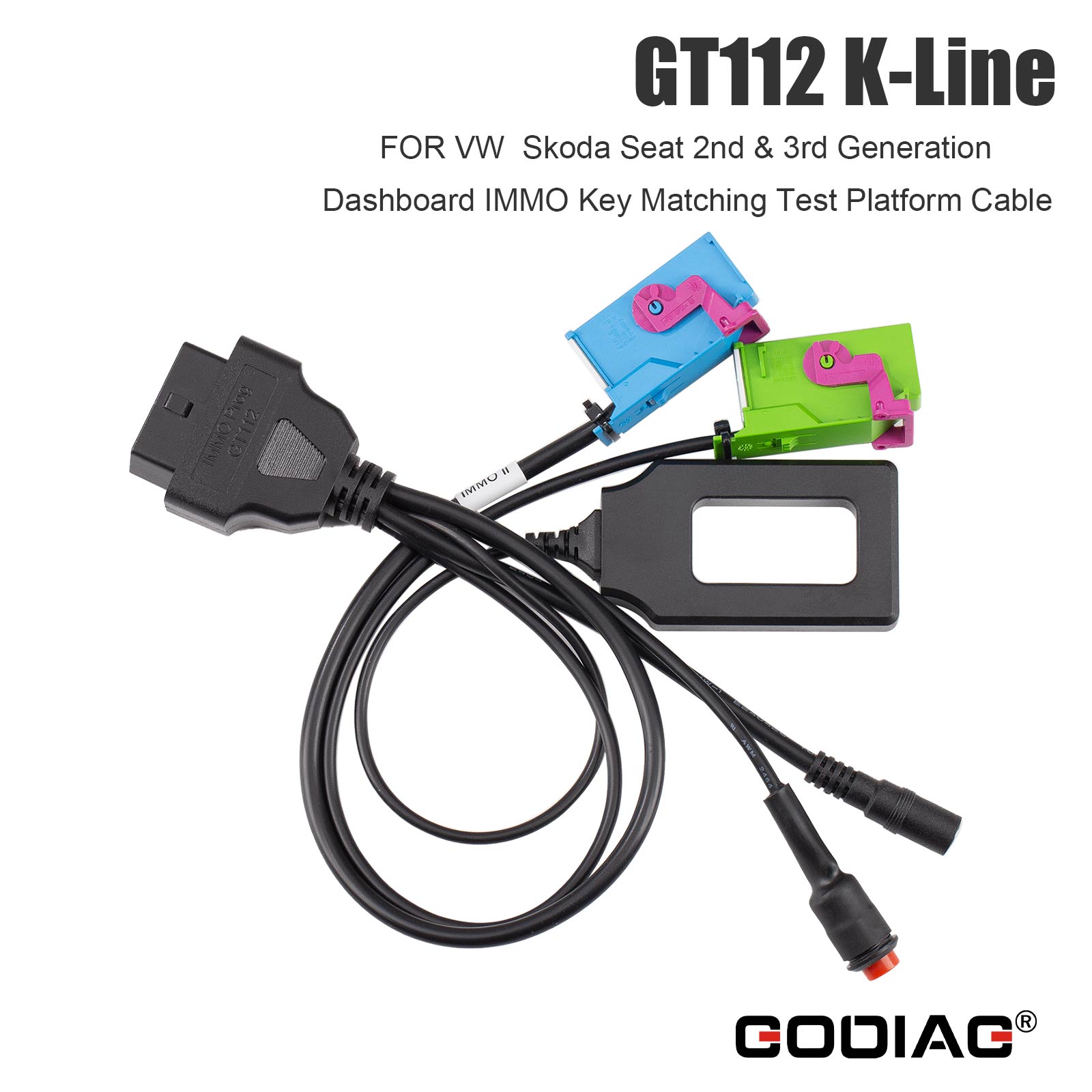

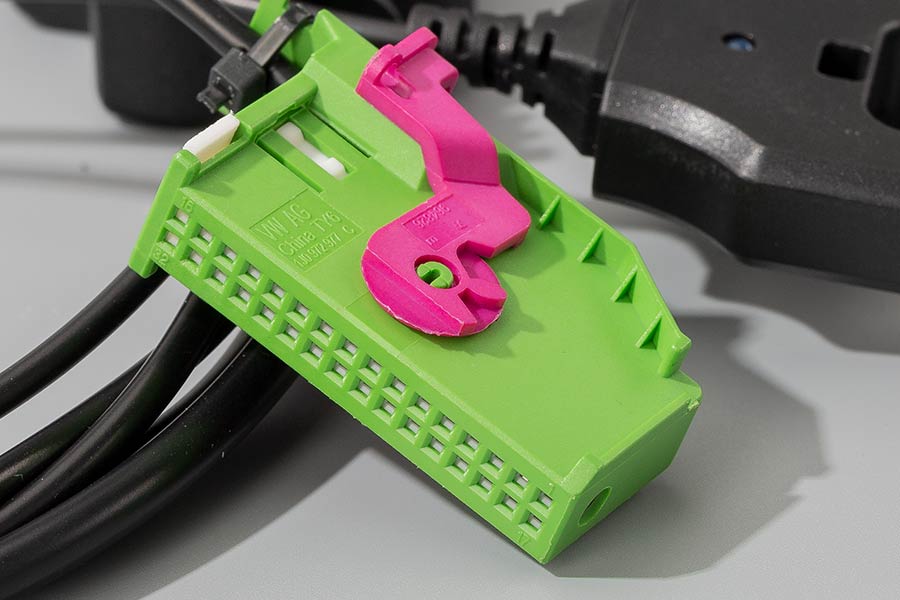

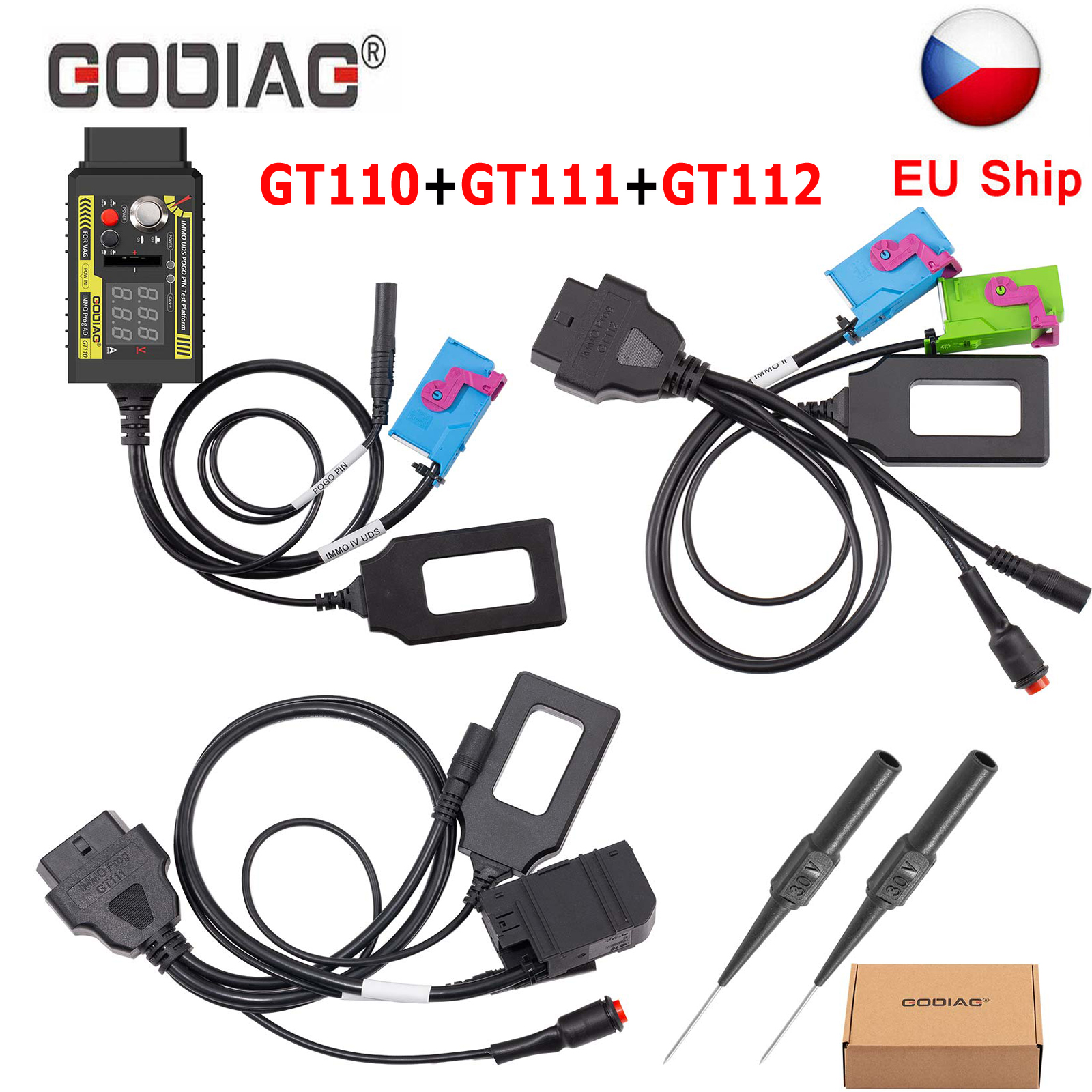

GODIAG GT112 K-Line FOR V.W Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable
Product Introduction:
GODIAG GT112 K-Line for V.W Skoda Seat 2nd & 3rd generation dashboard IMMO key matching test platform cable performs offline key and IMMO instrument synchronization test, intelligent IMMO system emergency start area sensing detection, IMMO dashboard offline diagnosis, instrument IMMO data reading and writing, instrument mile-+age repair, key matching... It supports for V.W Skoda Seat and other models.
It can be used with devices like HEX V2, V-A-GCOM VCDS 5-0-5-3, V-A-S5-0-5-4-A, V-A-S-6-1-54, SUPER V-A-G K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER V-A-G, AUTEL, etc.
Product Features:

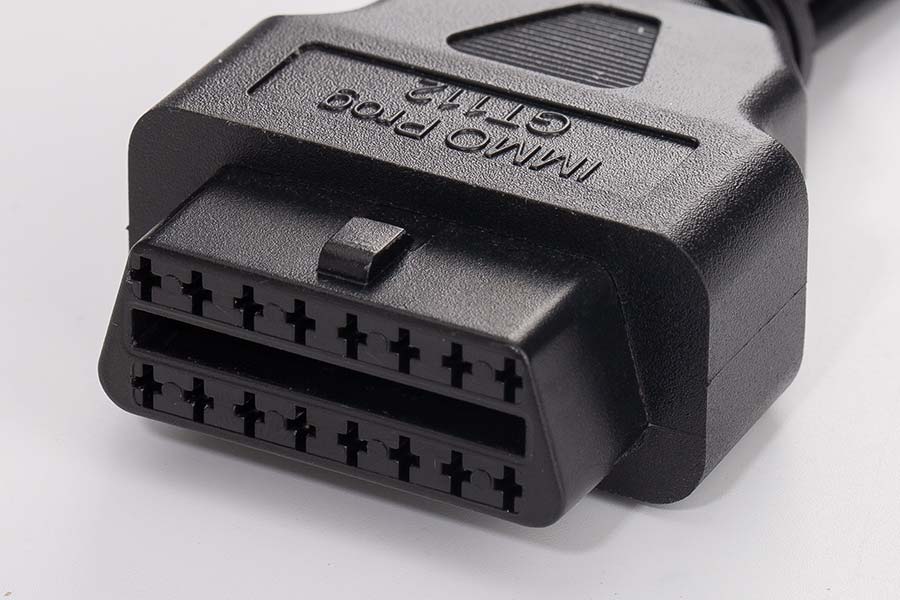

1. Offline connection to the dashboard to convert to standard OBD2.
2. Perform key chip and instrument synchronization test.

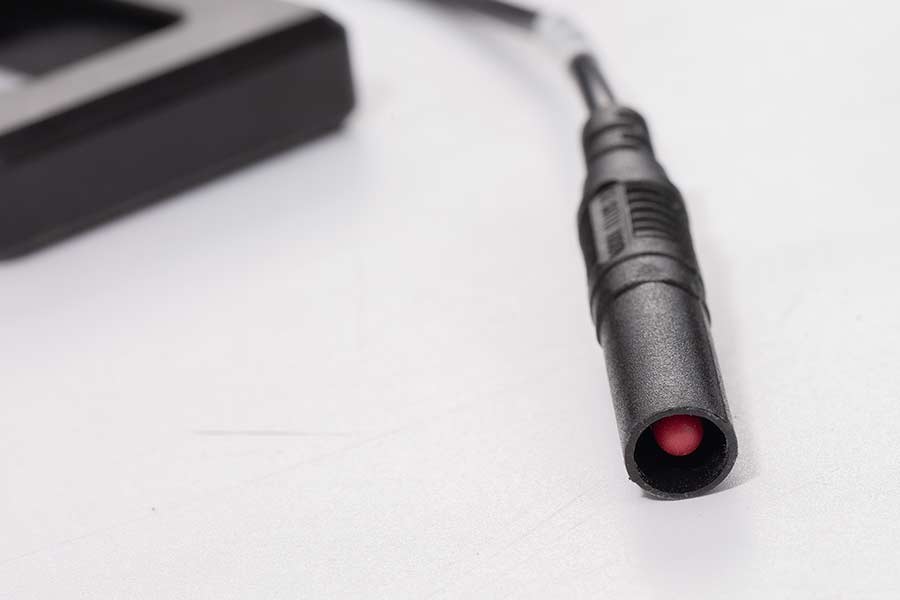

3. Independent ignition switch

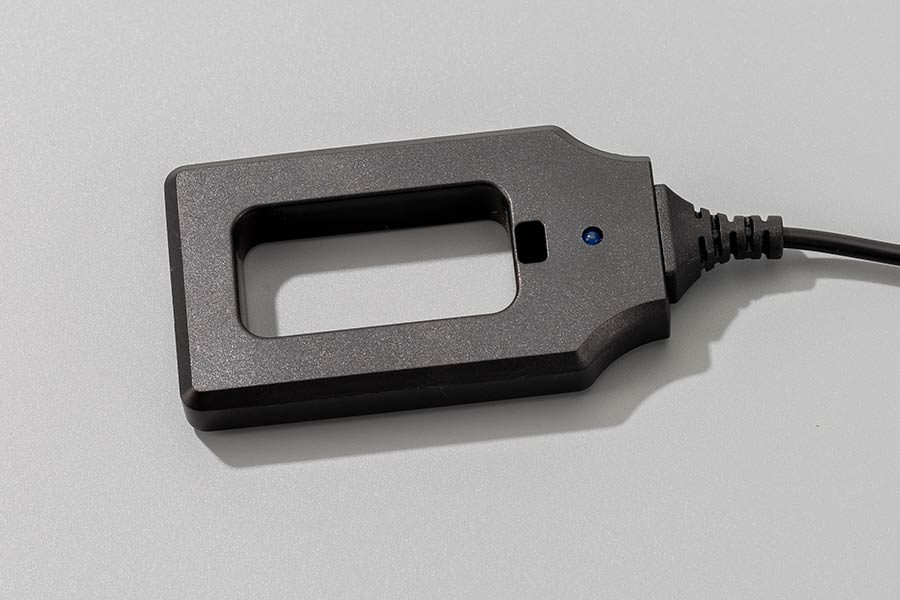

4. Key induction adapter with light
Intelligent IMMO System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
Car IMMO Start and Start Key Chip Detection
Test Result Analysis:
1. The light of the key identifier flashes and then goes out, indicating that the IMMO chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMMO system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.
Package includes:
1pc x GODIAG GT112 K-Line FOR V.W Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable

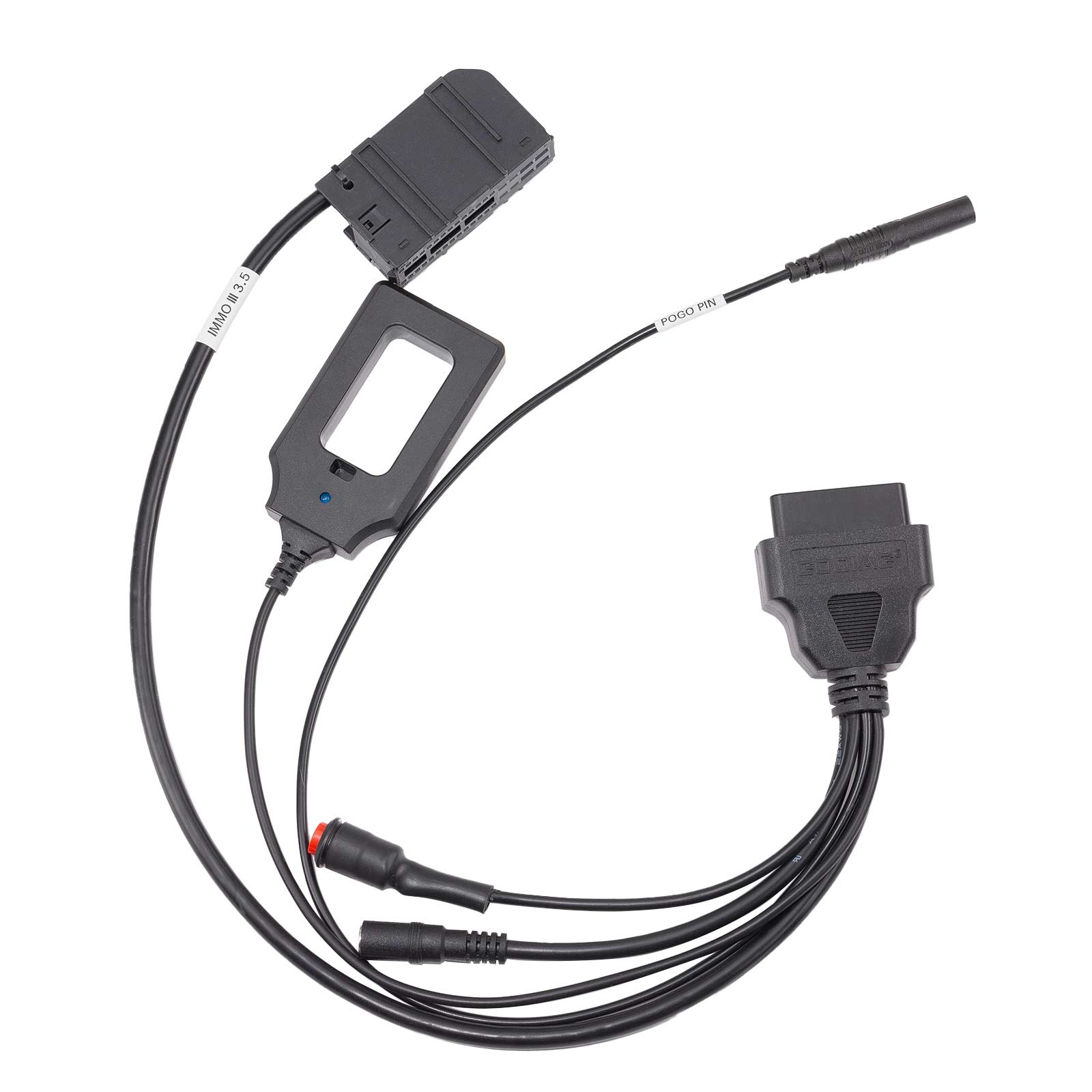

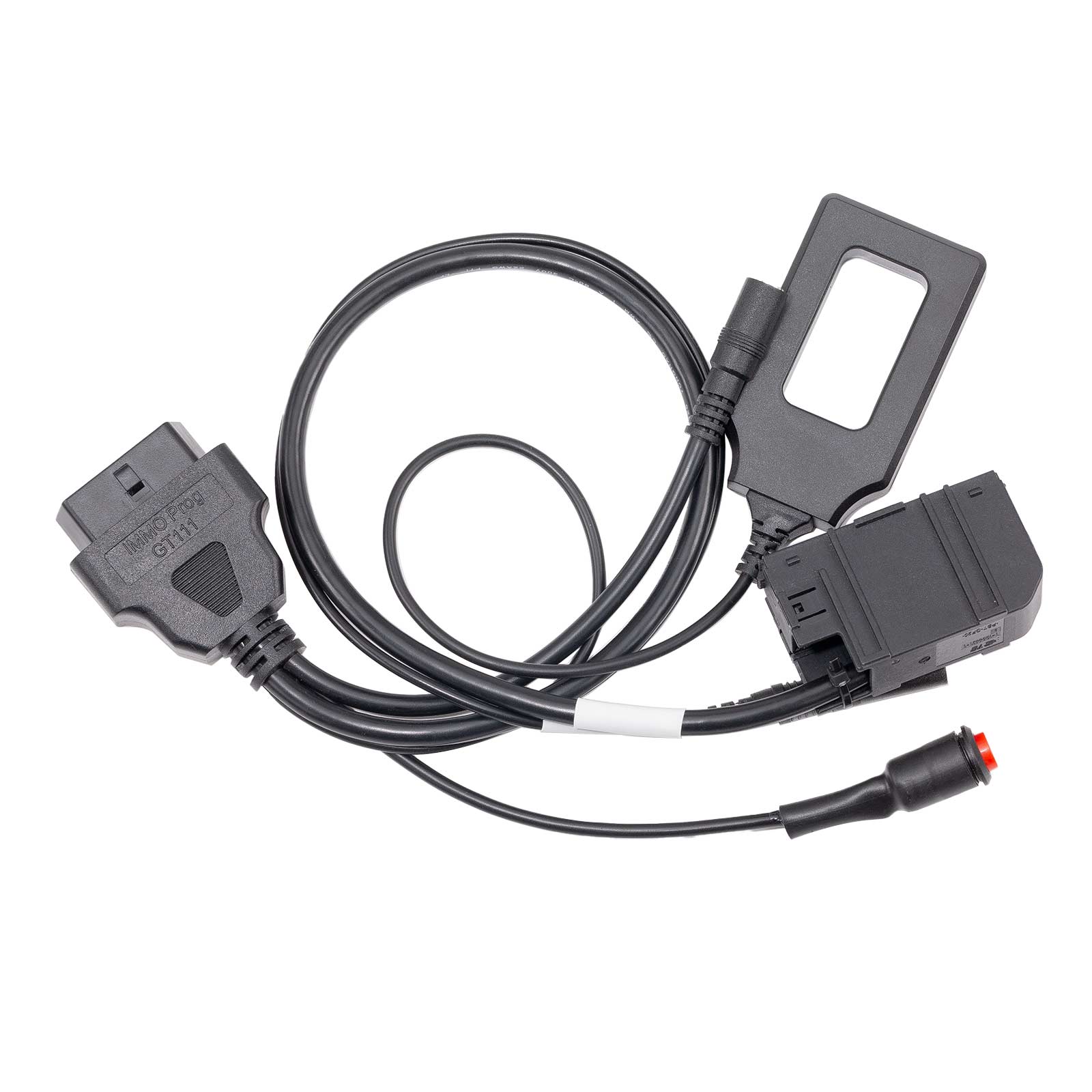

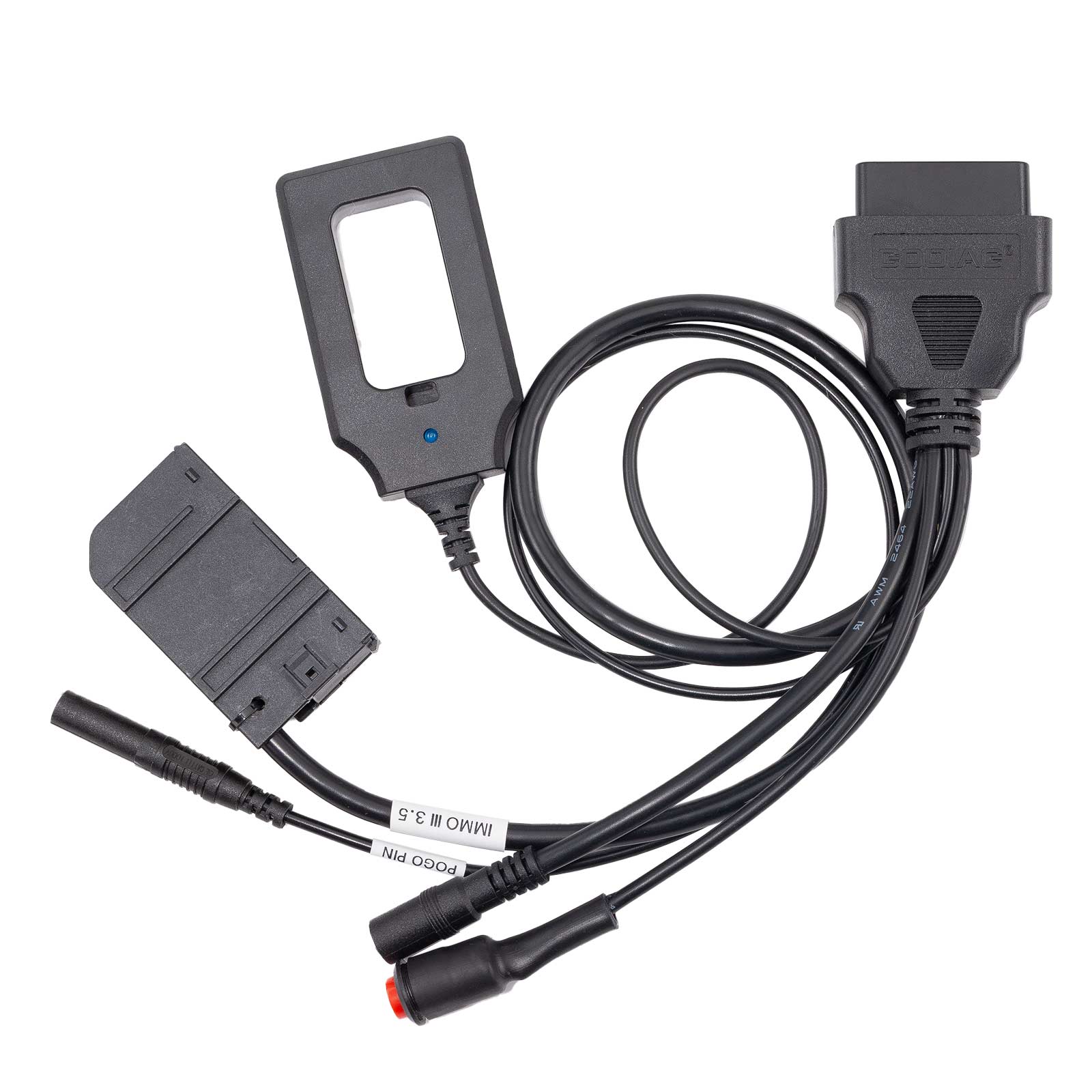

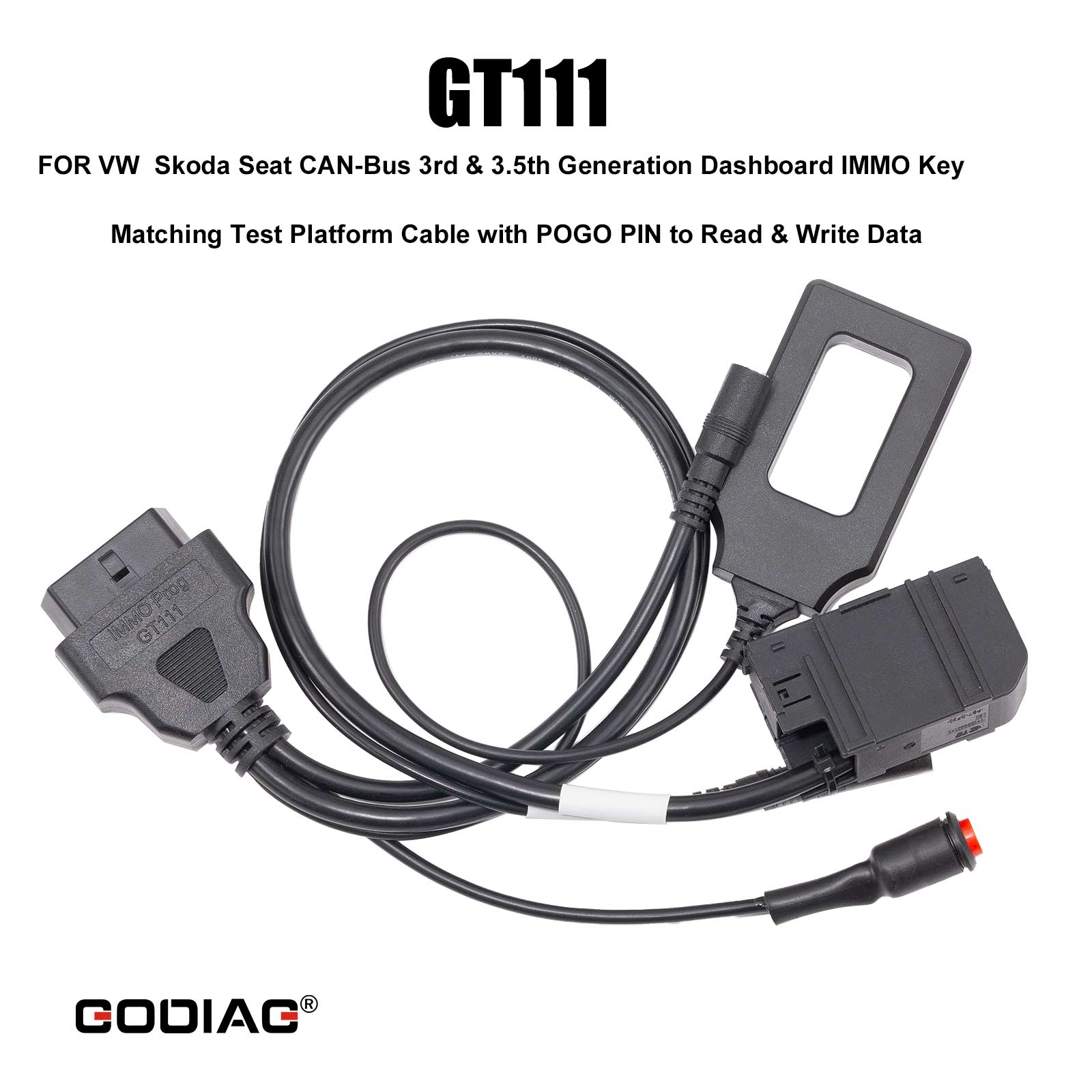

GODIAG GT111 FOR V-.W Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Ke/y Matching Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
Product Introduction:
GODIAG GT111 for V-.W Skoda Seat CAN-Bus 3rd & 3.5th generation dashboard IMMO Ke/y matching test platform cable with POGO PIN supports V-.W, Skoda, Seat and other models, using POGO PIN for offline data reading and writing. The product supports synchronization testing of Ke/ys and IMMO instruments, intelligent IMMO system emergency start area sensing detection, IMMO combination instrument offline diagnosis, instrument IMMO data reading and writing, instrument mileage repair, Ke/y matching and other functions.
It can be used with devices like HEX V2, V-A-GCOM V-CDS 5-0-5-3, V-A-S5-0-5-4-A, V-A-S-6-1-5-4, SUPER V-.A-G K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Ke/y Tool Plus, X300 DP Plus, Lonsdor, SUPER V-.A-G, AUTEL, etc.
Product Features:
1. Use POGO PIN to read and write data on the dashboard
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform Ke/y chip and instrument synchronization test.
4. Independent ignition switch
5. Ke/y induction adapter with light
6. The POGO PIN is more stable to hold and it does not damage the cable.
Intelligent IMMO System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's Ke/y identifier close to a certain area. If the Ke/y identifier light flashes or lights up, it means that the area is the vehicle's Ke/y emergency start sensing area. If the customer's smart Ke/y is out of power, just put the dead smart Ke/y in the Ke/y emergency start sensing area to start the vehicle.
Car IMMO Start and Start Ke/y Chip Detection
Test Result Analysis:
1. The light of the Ke/y identifier flashes and then goes out, indicating that the IMMO chip and the chip Ke/y are working properly.
2. The light of the Ke/y identifier flashes for a long time, indicating that the chip Ke/y and the vehicle's IMMO system do not match, and the chip Ke/y needs to be re-matched.
3. The light of the Ke/y identifier does not flash, which means that the vehicle's IMMO system is faulty. Please check the vehicle's IMMO system.

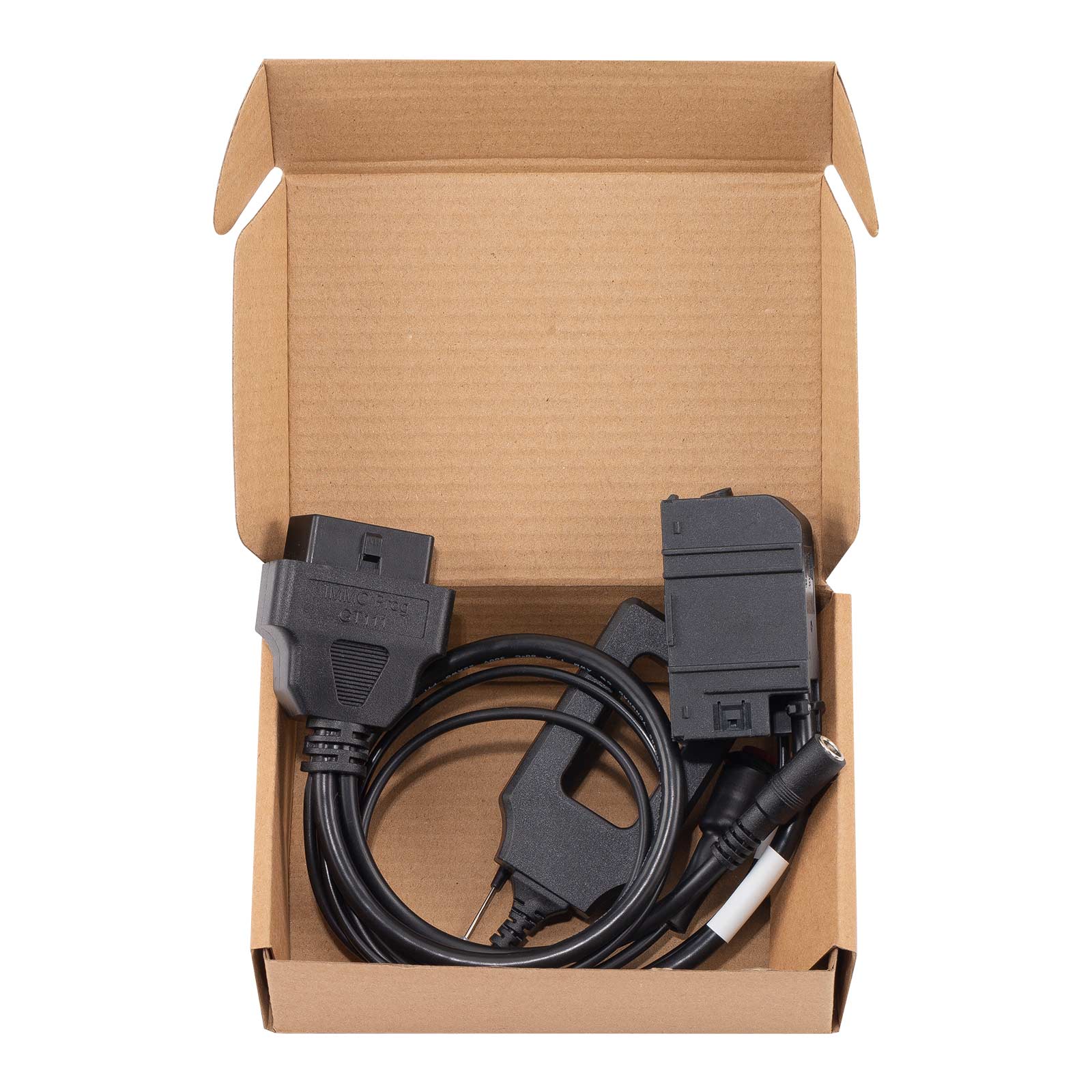

Package includes:

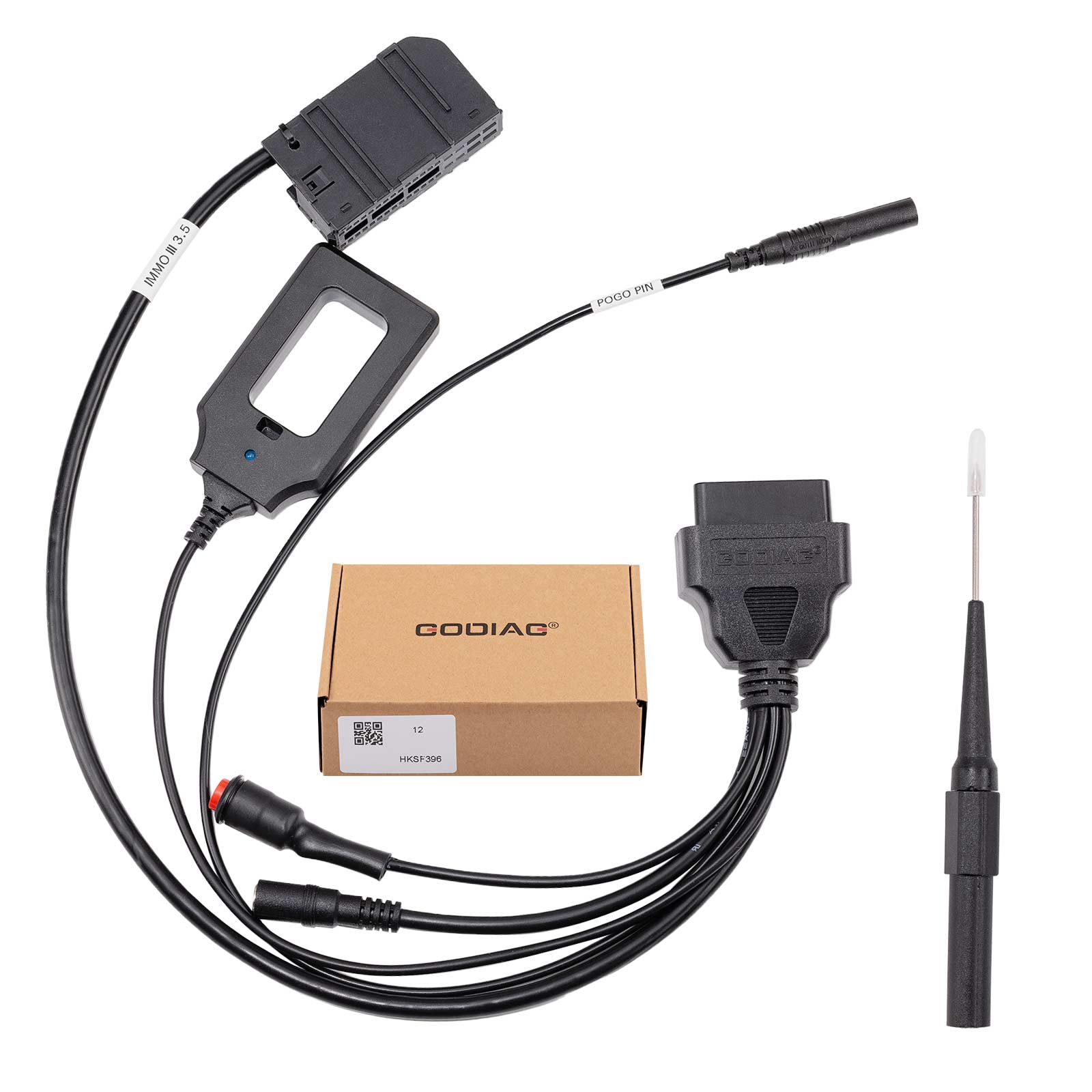

1pc x GODIAG GT111 FOR V-.W Skoda Seat CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Ke/y Matching Test Platform Cable with POGO PIN to Read & Write POGO PIN Data

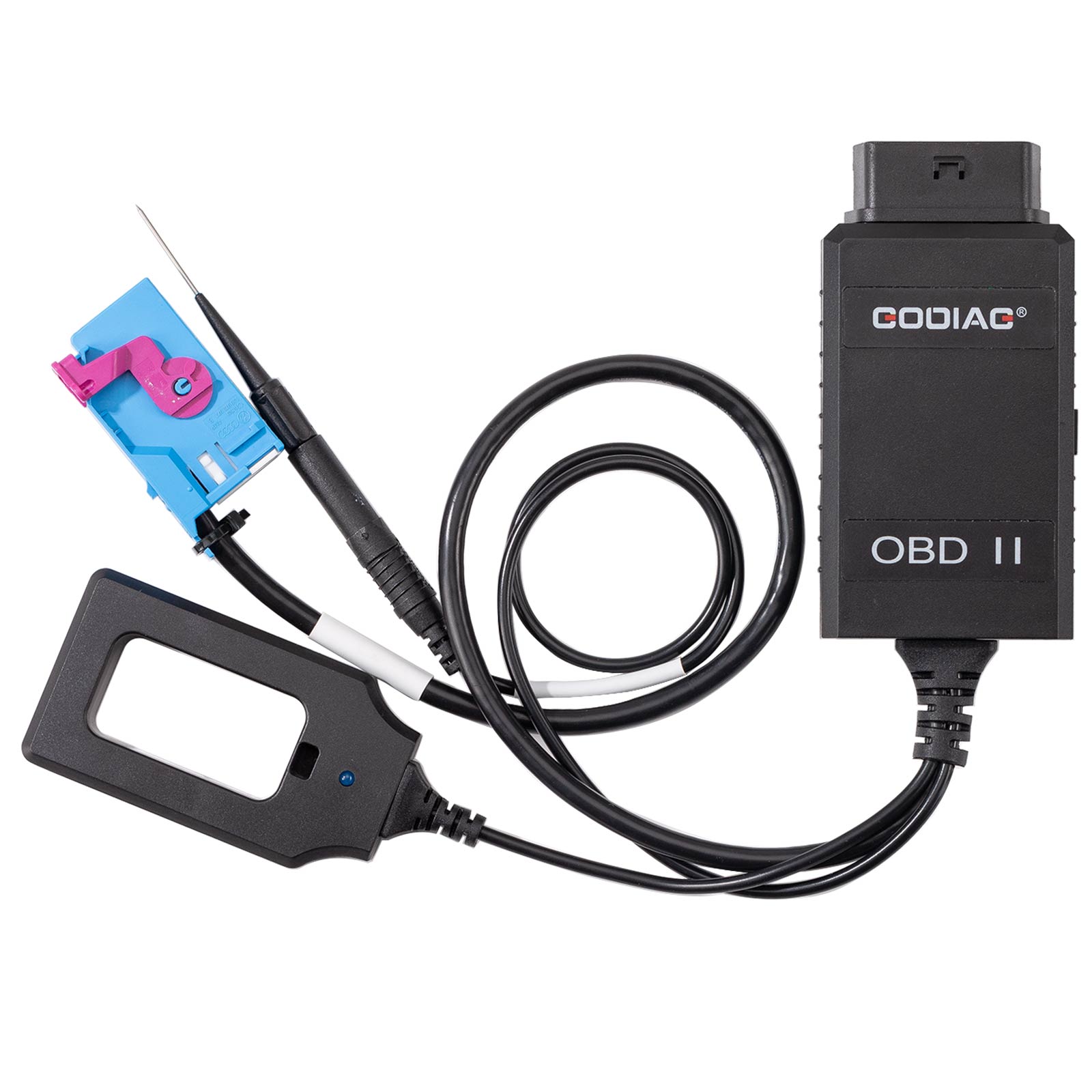

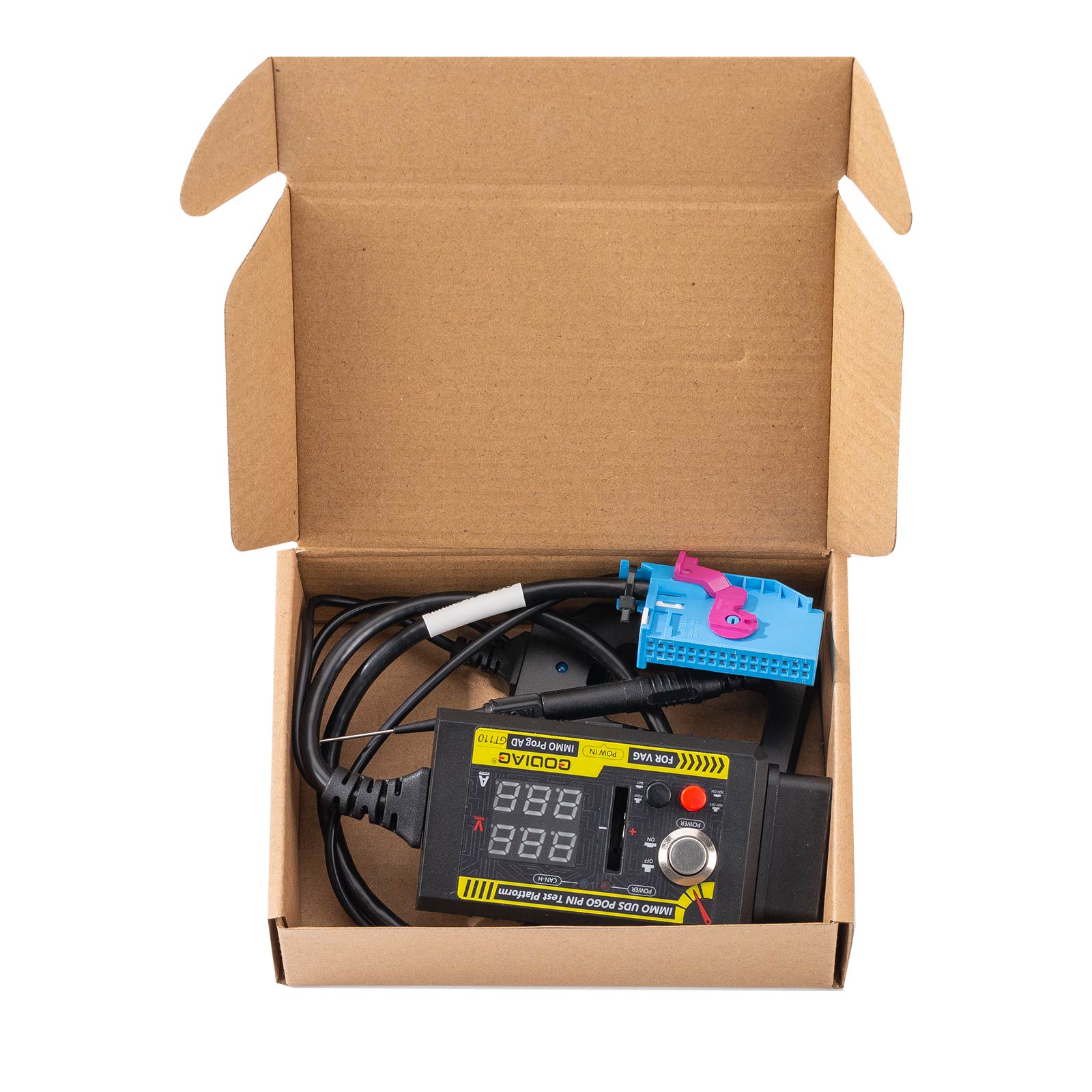

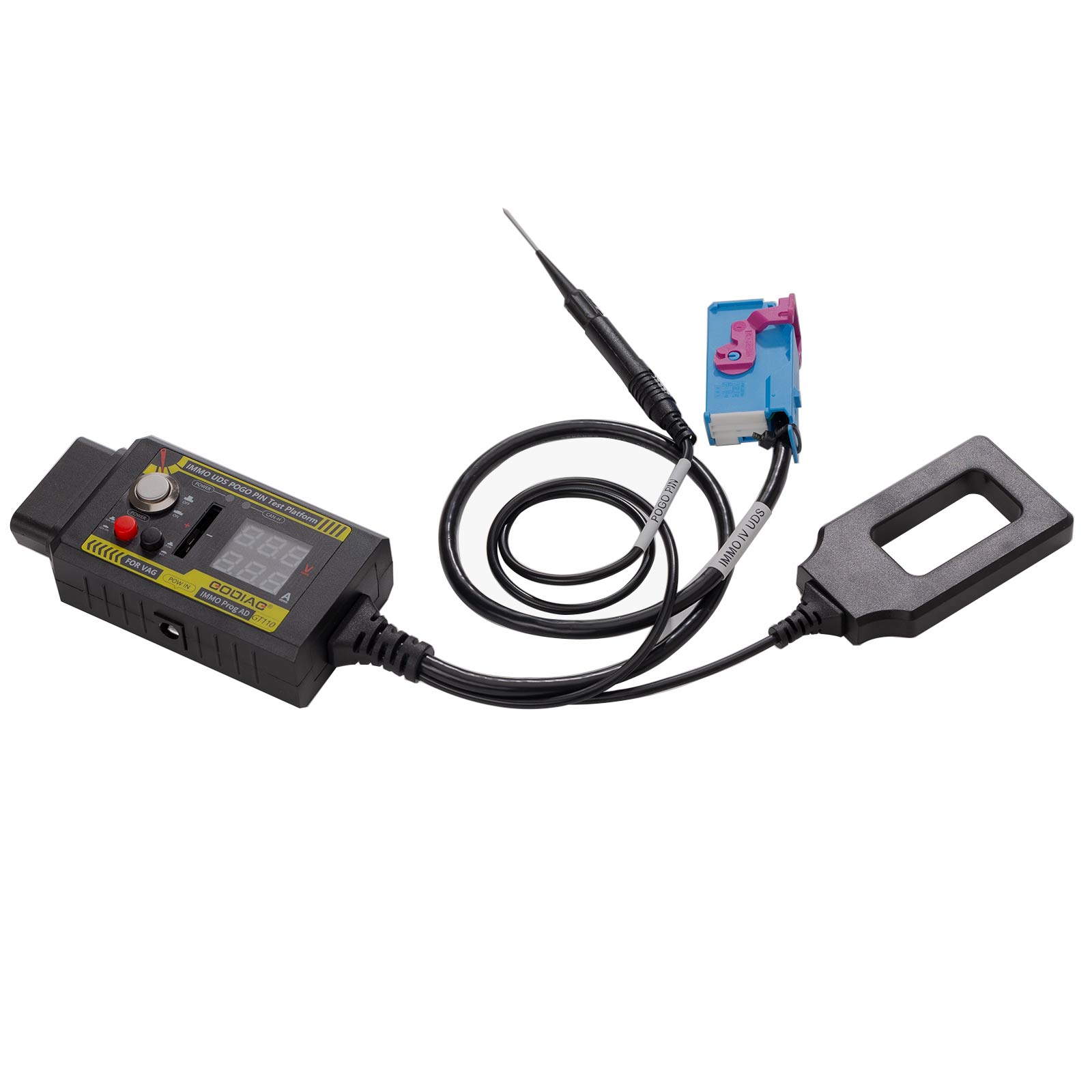

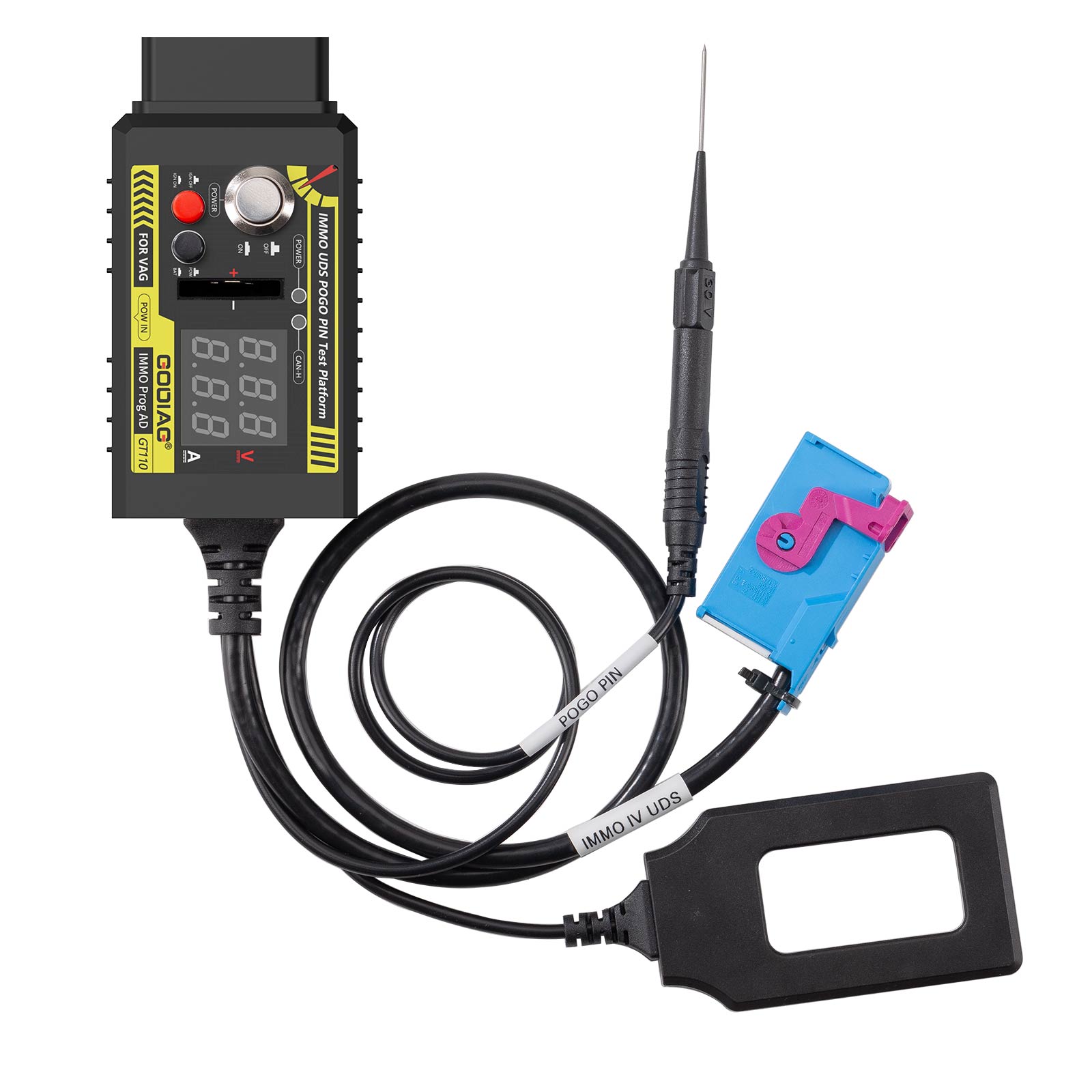

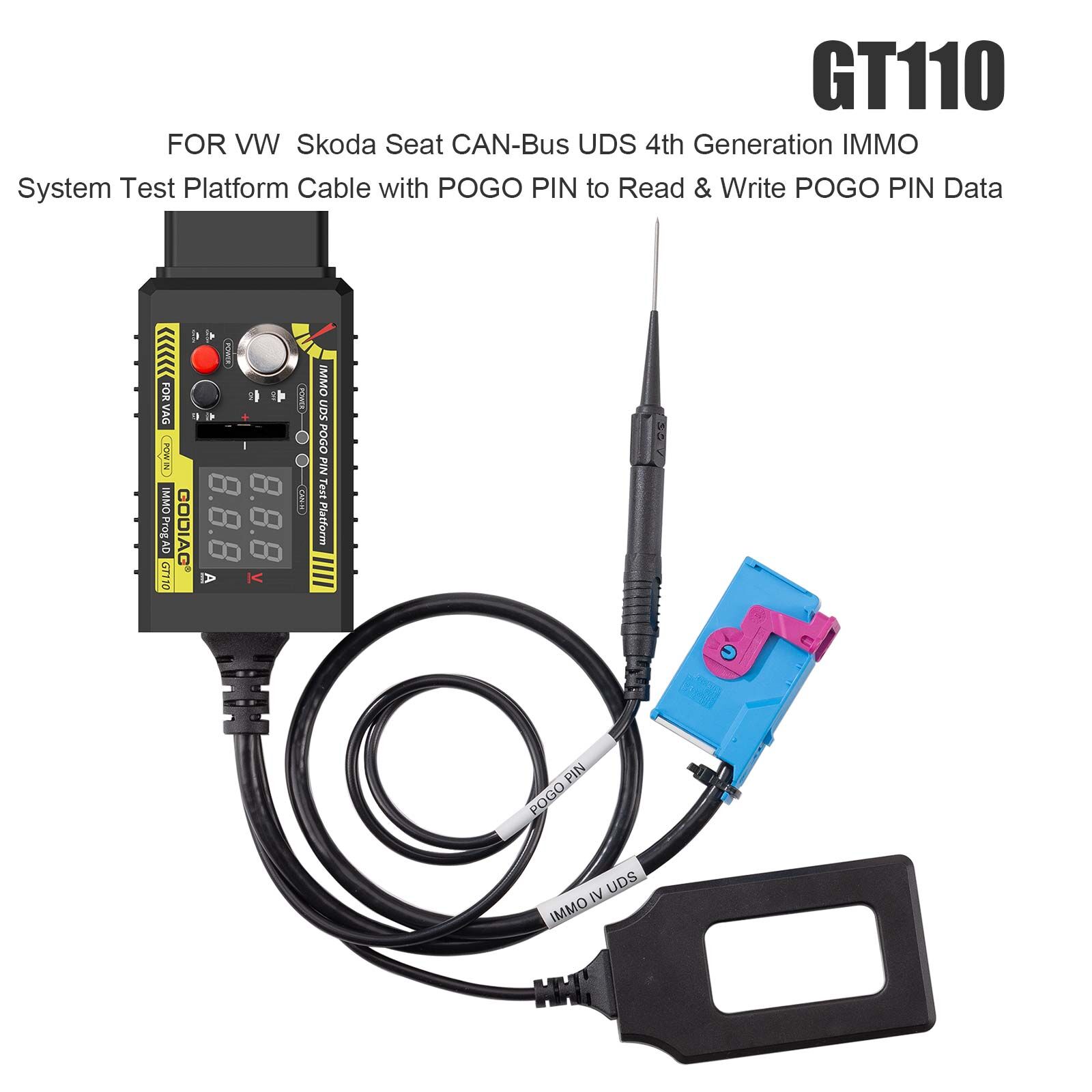

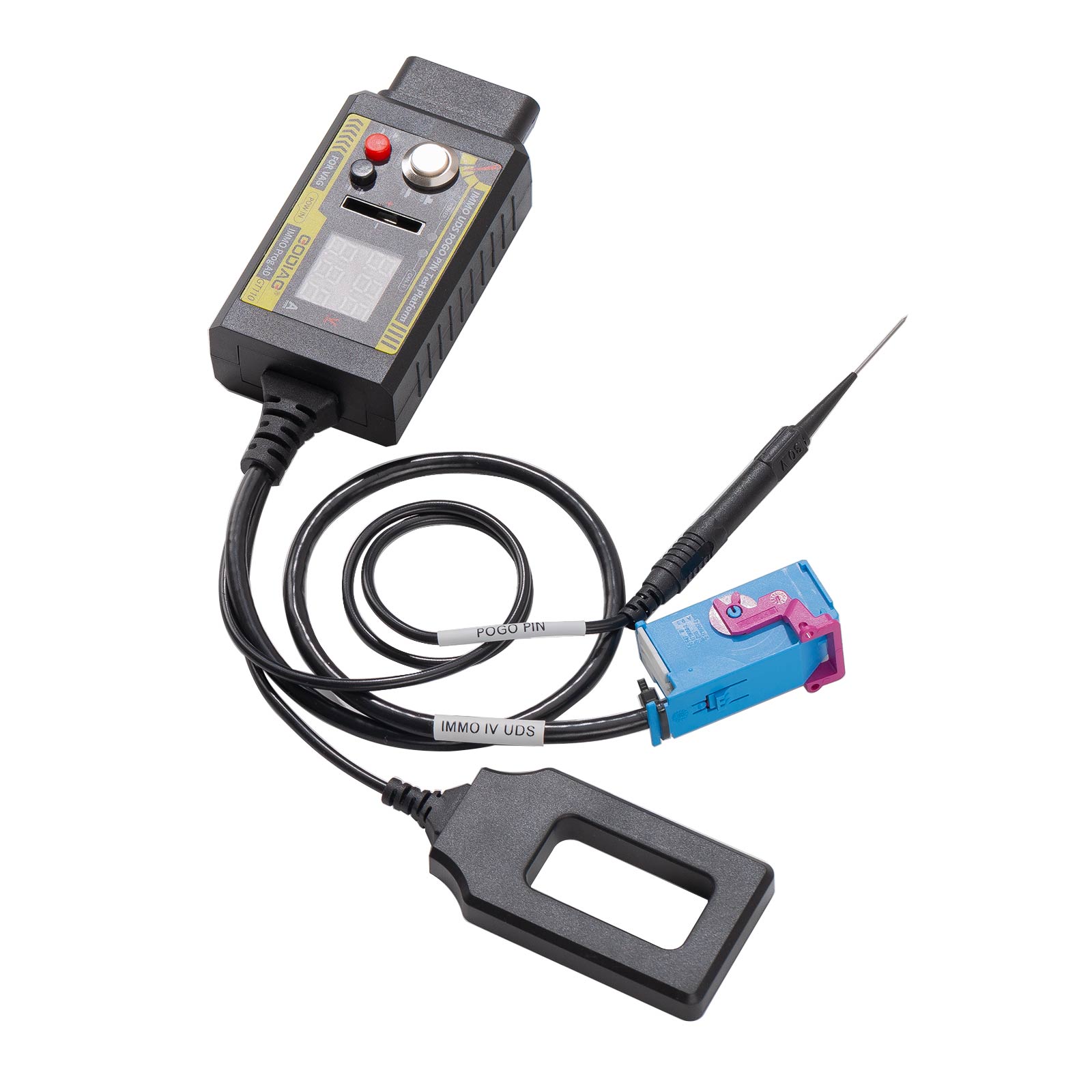

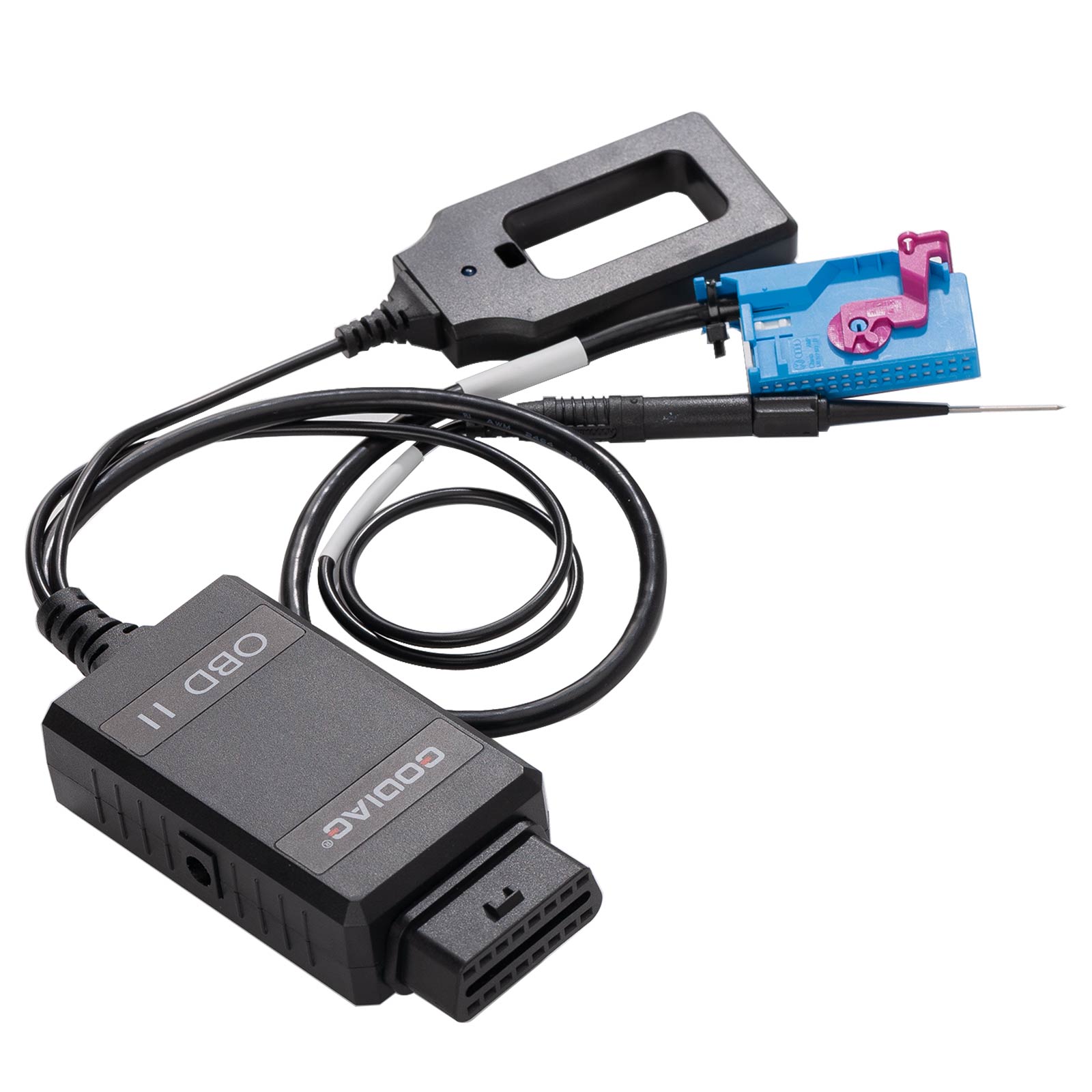

GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
Product Introduction:
GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable supports V.W Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards k-ey prog-ramming (including Boot Probe).of all UDS systems of Volkswagen, Skoda and Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMM0 instrument synchronization test, intelligent IMM0 system emergency start area induction detection, IMM0 combination instrument offline diagnosis, instrument IMM0 data reading and writing, instrument mileage repair, key matching and other functions.
It can be used with devices like HEX V2, V-A-GCOM VCDS 5-0-5-3, V-A-S5-05-4-A, V-A-S6-1-5-4, SUPER V-A-G K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER V-A-G, AUTEL, etc.

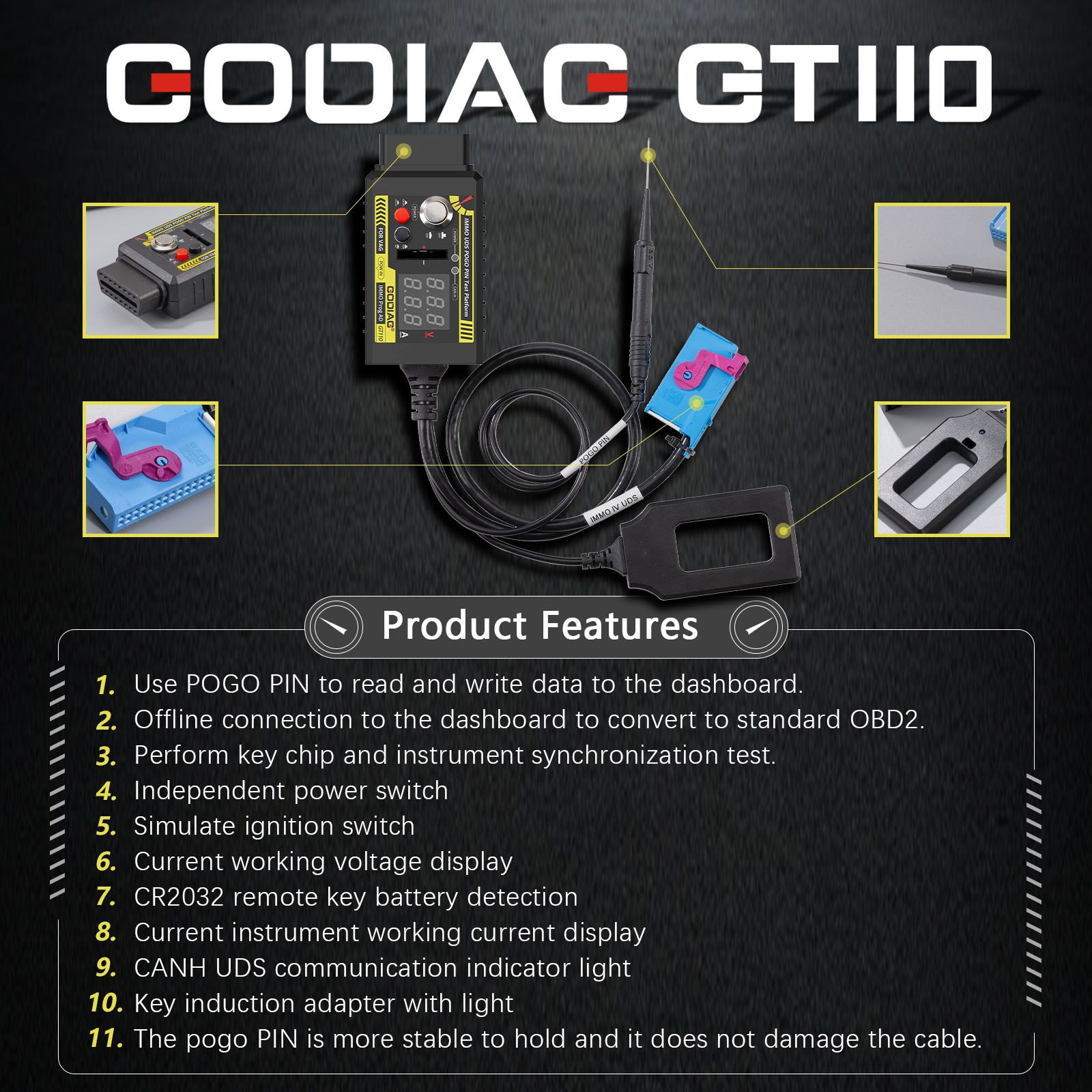

Product Functions:
1. Use POGO PIN to read and write data to the dashboard.
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform key chip and instrument synchronization test.

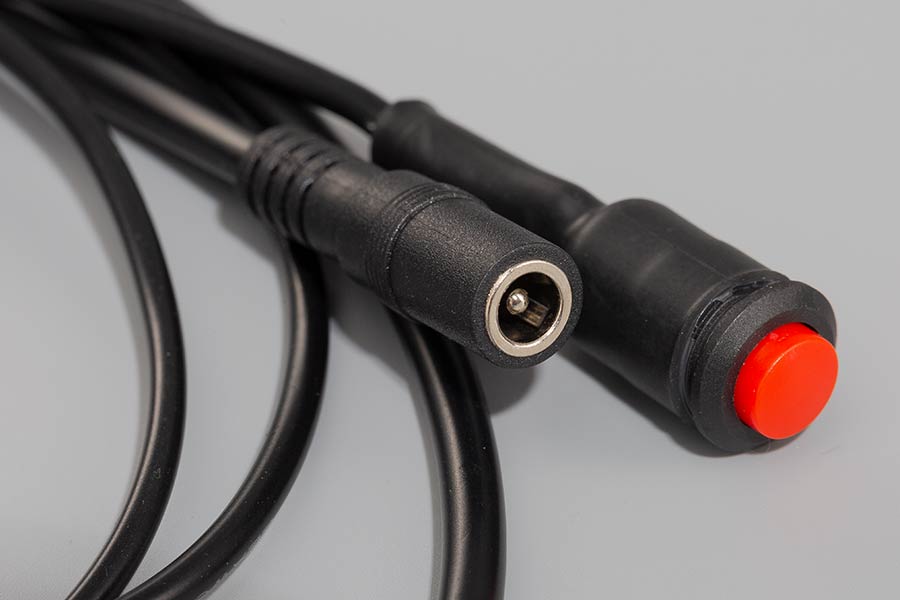

4. Independent power switch
5. Simulate ignition switch
6. Current working voltage display
7. CR2032 remote key battery detection
8. Current instrument working current display
9. CANH UDS communication indicator light
10. Key induction adapter with light
11. The pogo PIN is more stable to hold and it does not damage the cable.

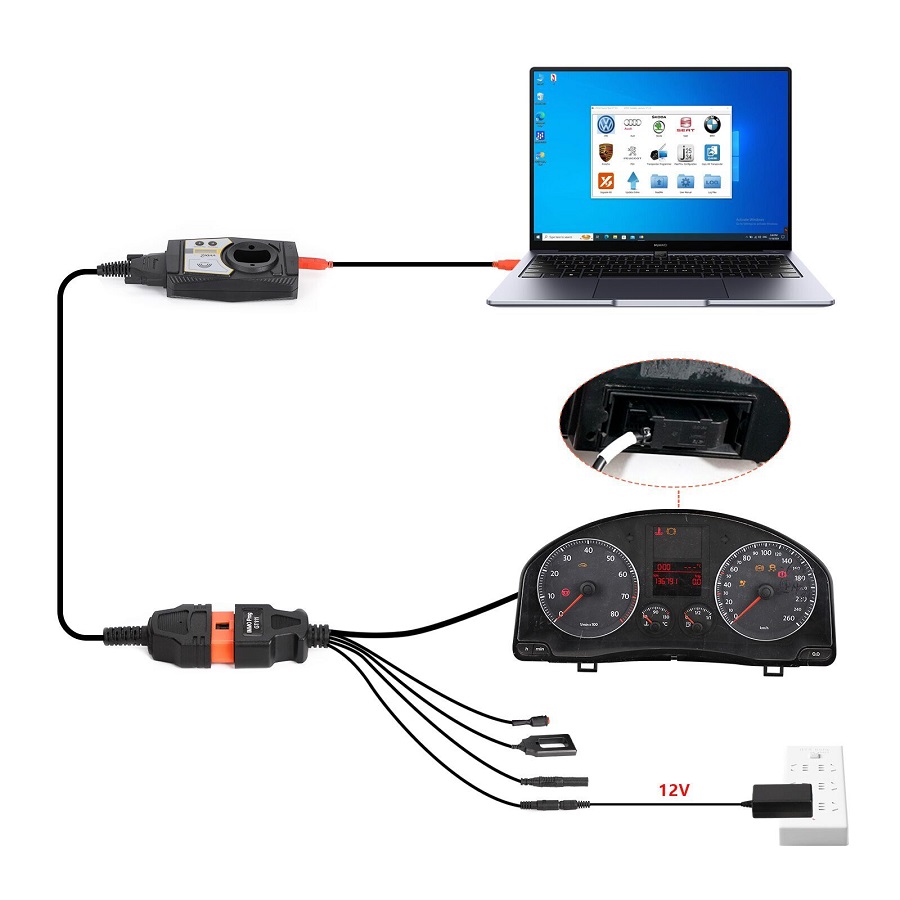

POGO PIN usage steps:
1. Connect the power supply [Note: the power switch must be off].
2. Press the IGN ignition power [the IGN ignition switch must be turned on].

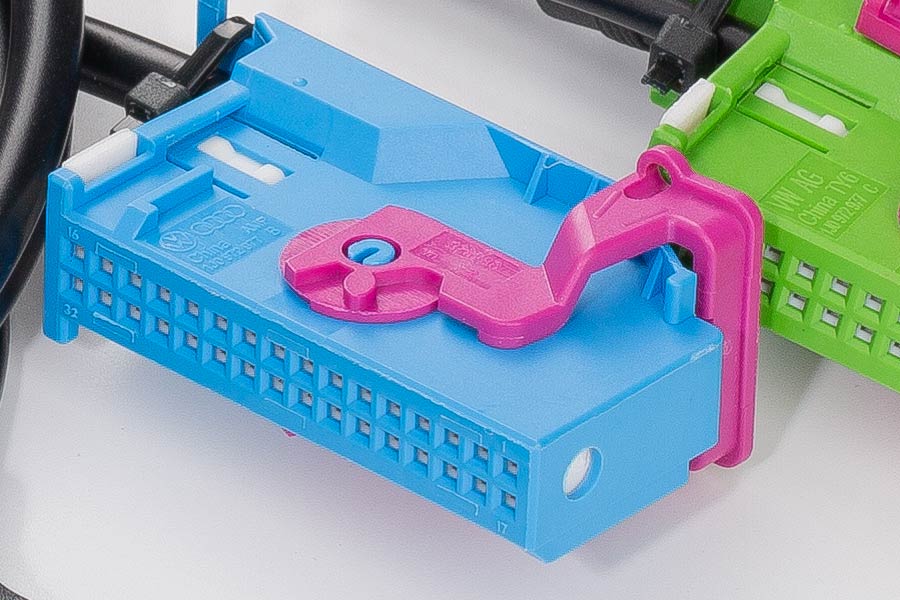

3. Connect the instrument plug.
4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
5. Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.
Intelligent IMM0 System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
Car IMM0 Start and Start Key Chip Detection
Test Result Analysis:
1. The light of the key identifier flashes and then goes out, indicating that the IMM0 chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMM0 system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMM0 system is faulty. Please check the vehicle's IMM0 system.
Package includes:
1pc x GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
