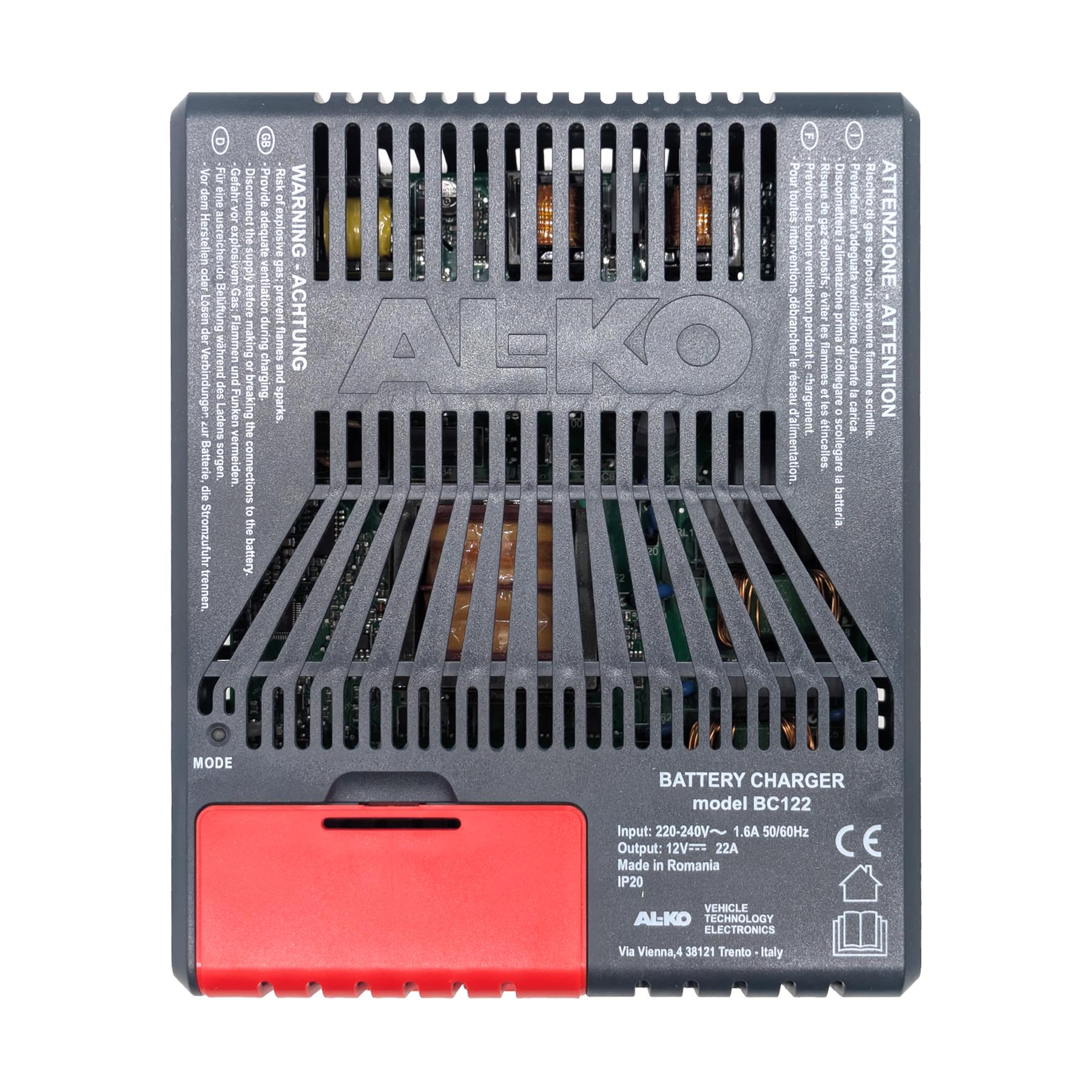

CBE (AL-KO) Battery Charger BC122

The BC122 is a high-efficiency, fanless battery charger and power supply designed for 12V lead-acid, gel, lithium and AGM batteries. The charger uses a selectable charging algorithm, configured via DIP switch according to the battery type, combining Constant Current and Constant Voltage charging to reduce charging times while protecting the battery, even when permanently connected to a 230V mains supply.

When a battery is connected and mains power is available, the unit operates as a battery charger; in lithium mode, it can also initiate charging when the battery is not detected at start-up.

The BC122 can simultaneously supply connected loads, delivering the required current up to its maximum output and helping prevent unnecessary battery discharge. A temperature probe can also be connected directly to the charger and positioned on the battery, allowing the charging algorithm to automatically adapt to battery temperature.

The charger is suitable for batteries with a 12V rated voltage and a capacity compatible with its maximum charging current.

Features:

• Short-circuit protection
• Overload protection
• Output overvoltage protection
• Overtemperature protection
• Battery overtemperature protection
• Thermal protection (with NTC sensor)
• No internal fan

Rated Voltage	230Vac +-10%
Frequency	50Hz+60Hz
Max Power	320W
Protection Fuse	4A
Output Technical Data
Maximum Current	22A continous
Short-Circuit Protection	Yes
Overload Protection	Yes
Output Overvoltage Protection	Yes
Overtemperature Protection	Yes
Battery Overtemperature Protection	Yes
Thermal Protection	Yes (with NTC sensor)
Battery Type Selector	Dip-switch
Charging Line	IUoU - AGM / GEL / Pb / LiFePO4
Number of Charging Lines	8
Network Presence Signal	12V (MAX 150mA)
General Technical Data
Efficieny	93%
Ambient Temperature	-20 to 40°C
Internal Fan	None
Protection Rating	IP 20
Mains Connection	3 poles IEC EN60320 C14
Battery Connection	"M6" screw
Dimensions (mm)	146mm x 183mm x 65mm
Weight	<0,8kg
