| Title： | 650nm 100mW Red Large Circle Laser Module 16X90mm Infrared Positioning Lamp w/Adapter US/EU/AU/UK DIY | ||
| Wavelength: | 650nm | Output power: | ≤100mW |
| Supply voltage: | DC 2.8-5.2 (V) | Operating current: | ≤200mA |
| Spot pattern: | Big Circle | Working temperature: | -10～50℃ |
| Storage temperature: | -40～85℃ | Laser class: | Class ⅢB (5-500mW) |
| Size: | Φ16×90mm | Working life: | 8000 hours |
| Structural features: | imported laser diode + metal shell + high-quality lens + constant power circuit board | ||
| Features: | 650nm100mw red light big circle laser, using imported big circle glass lens and laser diode, the diameter of the big circle is 1:1 ratio to the irradiation distance Such as: Installation height is 1 meter, the diameter of the circle is 1 meter The installation height is 5 meters, the diameter of the circle is 5 meters The drawn circle is a perfect circle, the red line is thin and uniform, and the stability is very high The installation height can be used from 0 meters to 10 meters (external adjustment structure, adjustable line width, simple and convenient to use) |
||
| advantage: | ◆ The imported large circle glass lens is used, and the diameter of the large circle is 1:1 ratio to the irradiation distance. ◆ Dedicated 1-3V adjustable power supply for laser products, you can adjust the brightness of the red line at will. ◆ The width of the red line is adjustable from 0.4 mm to several centimeters to meet your different requirements. ◆ The 650nm wavelength laser is pure red, the light is clear and bright, and it is soft and not dazzling. ◆ The shell is made of aviation aluminum-plated insulating paint, which can not only fully dissipate heat, but also resist shock, drop and static electricity. ◆ The imported laser diode emits light directly, which is extremely stable and can be turned on 24 hours a day. ◆ Intelligent driver board with imported IC, 2.8-5.2V ultra-wide range power supply (other voltages can be customized). ◆ High temperature resistant, corrosion resistant DC pl |
||

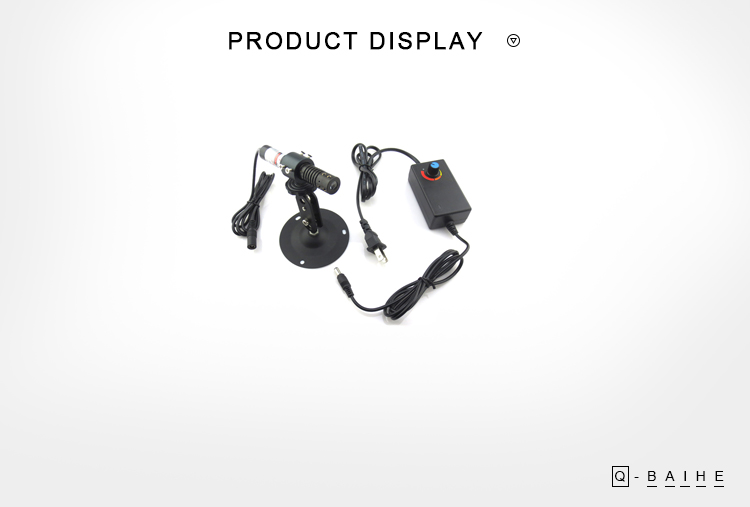

| Package: |
1*Laser module |
||
On Aug 16, 2022 at 22:43:03 PDT, seller added the following information:
