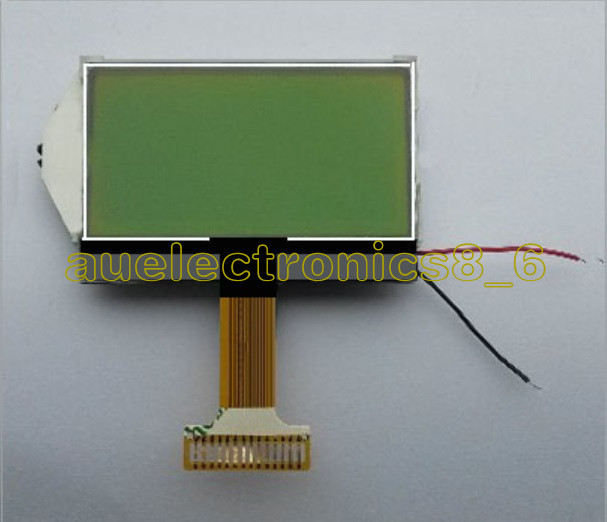

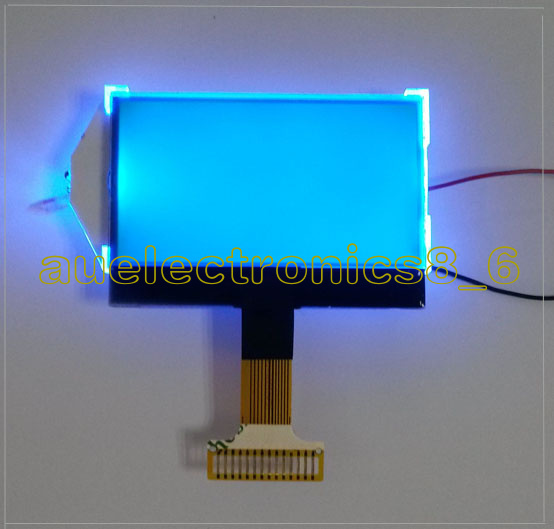

1X 12864 COG dot matrix COG LCD display COG12864 standard screen with backlight
Product introduction:

 The company focuses on R & D and manufacturing of LCD screens and LCD modules. The 12864B5 LCD module produced is widely used in various man-machine communication panels due to its small size, light weight, convenient use, and clear display. This section can display 128-column * 64-line dot-matrix monochrome pictures, or display 8 / row * 4 rows of 16 * 16 dot Chinese characters, or display 16 / row * 8 rows of 8 * 8 dot-matrix English and numbers ,symbol. The input instruction is strong, and it can be combined into various input, display, and displacement modes to meet different requirements. Low power consumption and long service life of 50,000 hours (25 ° C). Can be widely used in various instruments, time and attendance systems, access control systems, etc.

Features of the module:
1. Firm structure: The backlight has a retaining wall, and the display is connected to the welded FPC method.
2. Low power consumption: 5-100mW (5mW without backlight, no more than 100mW with backlight);

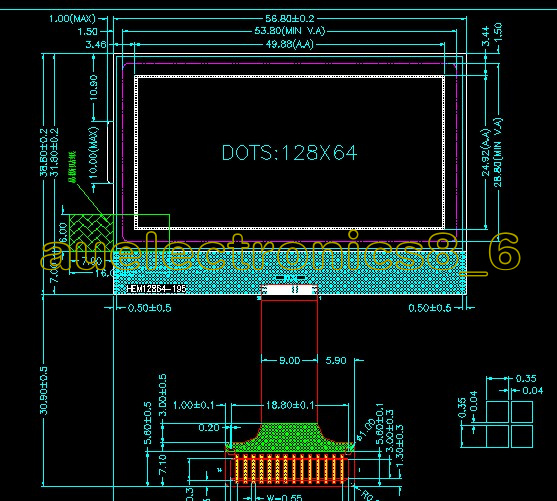

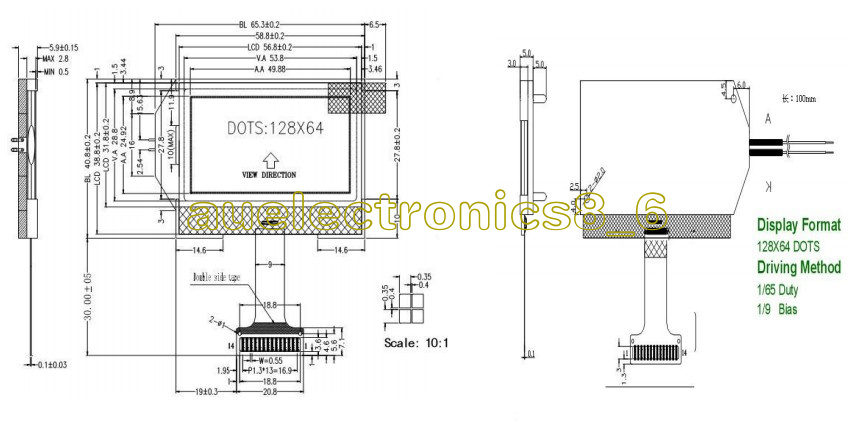

3.Display content: 128 * 64 dot matrix monochrome picture;
● Optional 16 * 16 dot matrix or other dot matrix pictures are used to compile Chinese characters. According to 16 * 16 dot matrix Chinese characters, 8 characters / line * 4 lines can be displayed. According to 12 * 12 dot matrix Chinese characters, it can display 10 characters / line * 5 lines.
4.Strong command function: can be combined into various input, display and shift modes to meet different requirements;

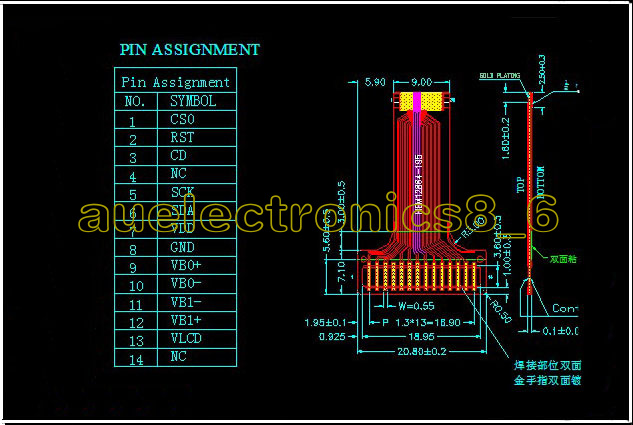

5. Simple and convenient interface: 4-wire SPI serial interface can be used.
6.Wide working temperature: -20 ℃-70 ℃;
7. High reliability: 50,000 hours (25 ° C) life.




Package Included: 1pcs
