Product Information

ACL Race Series STD Performance Conrod bearing set fits Nissan TD42T TD42Ti Patrol GU Y61

Item Specifics
SKU: 6B2966H-STD
Price: $140.04
Returns: 30 Days
Ships From: Melbourne

Description

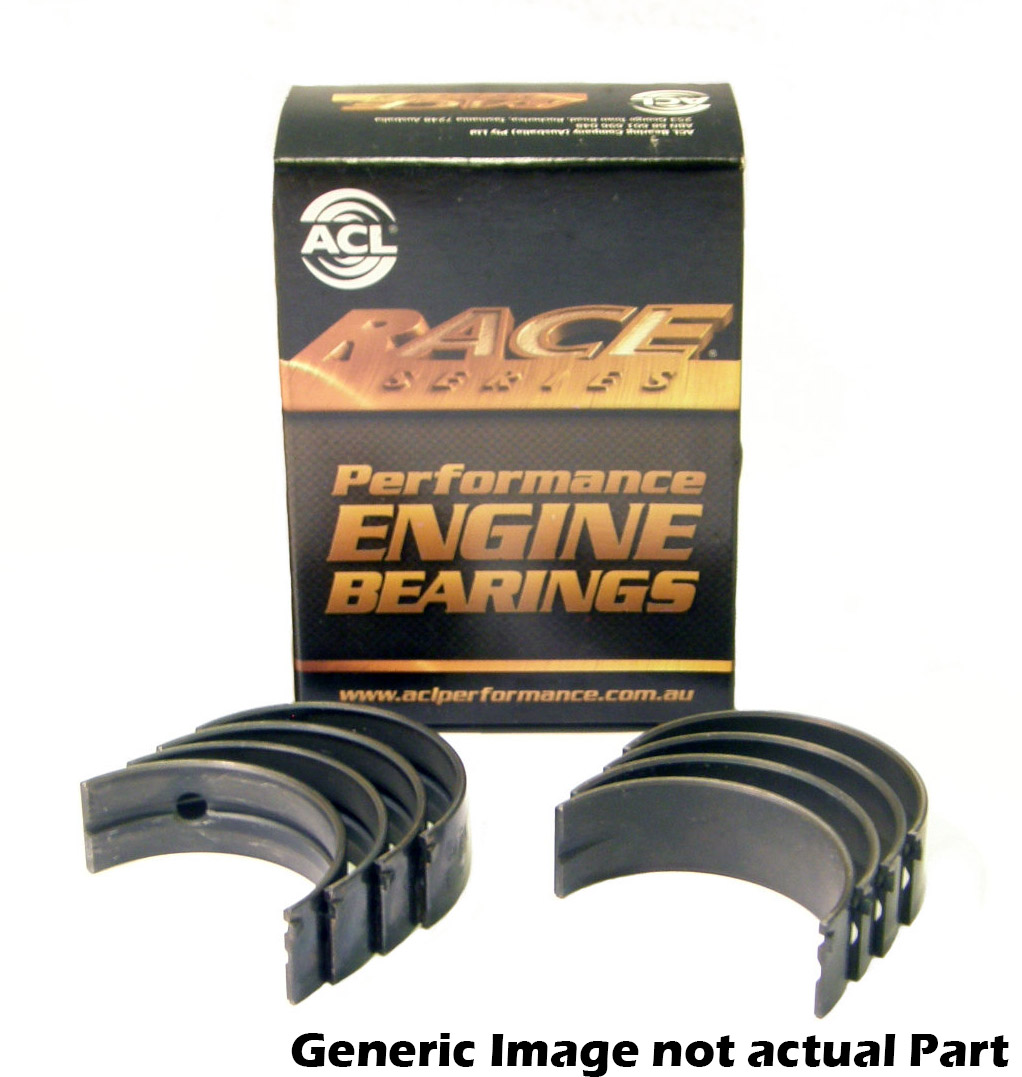

ACL Race Series Performance Conrod bearing set fits Nissan 4.2L TD42T TD42Ti 6 Cyl OHV Patrol GU Y61 Diesel

ACL Race Series Performance Conrod bearing set
Over Size: STD

Notes

Material Race Series (Tri-Metal)
*
Position All
Std Shaft Diam 2.2407"/2.2412" (56.913mm/56.926mm)
Oil Clearance TBA
Maximum Wall 0.0594" (1.510mm)
Housing Bore 2.3617"/2.3622" (59.987mm/60.000mm)
Max Length 1.0280" (26.100mm)

Variations for this Engine

These are the different Variations for the Ford TD42 OHV 4.2L 6 Cyl Diesel Engine. Please check carefully you have selected the right part for your vehicle.

Taiho (R096H 0.25) Set of 6 +010 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $59.81
Taiho (R096H 0.50) Set of 6 +020 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $59.81
Taiho (R096H 0.75) Set of 6 +030 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $61.36
Taiho (R096H 1.00) Set of 6 +040 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $61.36
Taiho (R096H) Set of 6 STD Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $49.80

Suitable For

Ford
Maverick TD42 4.2L OHV 6 Cyl
Maverick DA TD42 4.2L OHV 6 Cyl
Nissan
Patrol GQ TD42 4.2L OHV 6 Cyl
Patrol GU Y61 TD42 4.2L OHV 6 Cyl
Patrol GU Y61 TD42T TD42Ti 4.2L OHV 6 Cyl
Patrol Y60 TD42 4.2L OHV 6 Cyl

Other Parts for this Engine

These are the different parts available for the Ford TD42 OHV 4.2L 6 Cyl Diesel Engine

Chassis and Driveline
Mackay A2520 Engine Mount Bush Engine mount left hand and right hand side
(2 required)
Suits models with manual transmission
AU $38.90

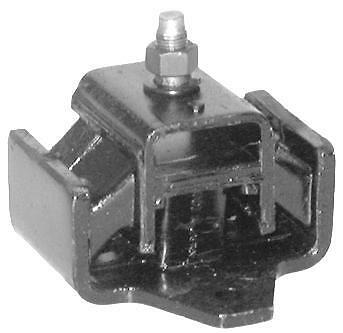

Mackay A5288 Engine Mount Bush Engine mount rear of engine left hand and right hand side
(2 required)
Suits models with manual transmission
AU $41.69
Cogged V-Belts
Conrod Bearings
Taiho (R096H 0.25) Set of 6 +010 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $59.81
Taiho (R096H 0.50) Set of 6 +020 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $59.81
Taiho (R096H 0.75) Set of 6 +030 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $61.36
Taiho (R096H 1.00) Set of 6 +040 Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $61.36
Taiho (R096H) Set of 6 STD Conrod Bearings Set STD 010 020
Shaft 56.910/56.940mm 2.2406/2.2417¨
Tunnel 59.987/60.000mm 2.3617/2.3622¨
AU $49.80
Cooling
Tridon Thermostat Opening Temp: 77°C Flange Dia: 54mm - TT233-170 Thermostat
Suits Maverick (excludung 10/1991-5/93 models)
AU $25.26
Tridon Thermostat Opening Temp: 77°C Flange Dia: 54mm Foot Dia: - - TT241-170 Thermostat
Suits Maverick 10/1991-5/93 only
AU $22.58
Cylinder Heads

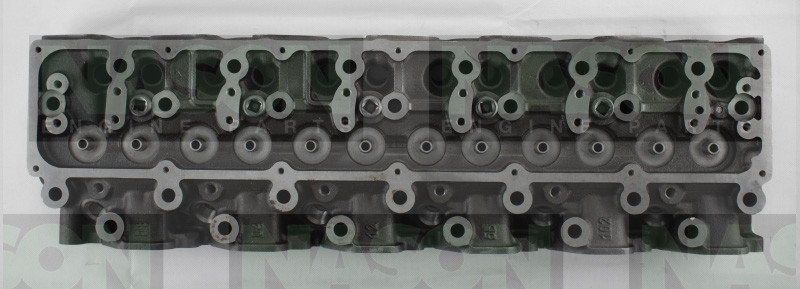

Nason 959976 Cylinder head bare Bare Head AU $949.94

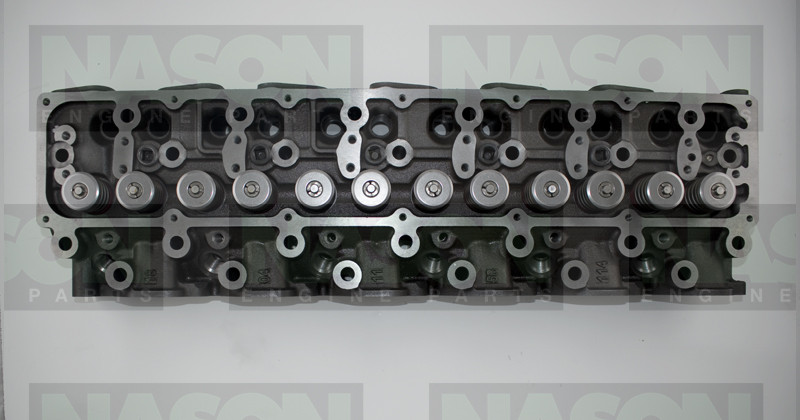

Nason 959976-A Cylinder head - assembled Assembled Head AU $1,787.13
Exhaust Gaskets

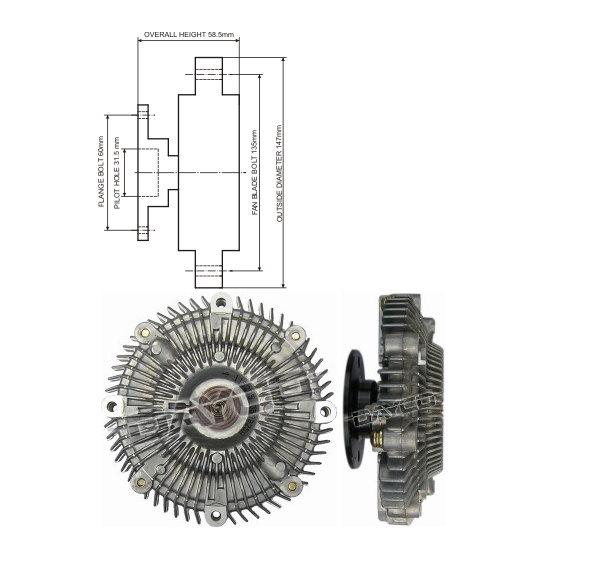

Fan Clutches
Filters

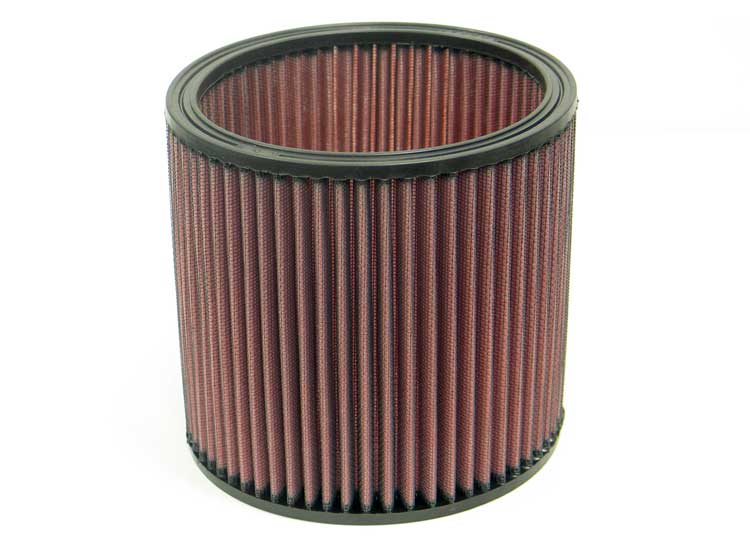

K&N E-3346 Air Filter Air filter (reusable) AU $112.44
K&N HP-3001 Oil Filter Performance oil filter
Height 145mm
AU $32.86
K&N PS-3001 Oil Filter Oil filter
Height 145mm
AU $22.08
Full Gasket Sets
Durapro (GSF2009SSND) Stainless Steel Full Gasket Set Does not include head gasket AU $320.67
Harmonic Balancers

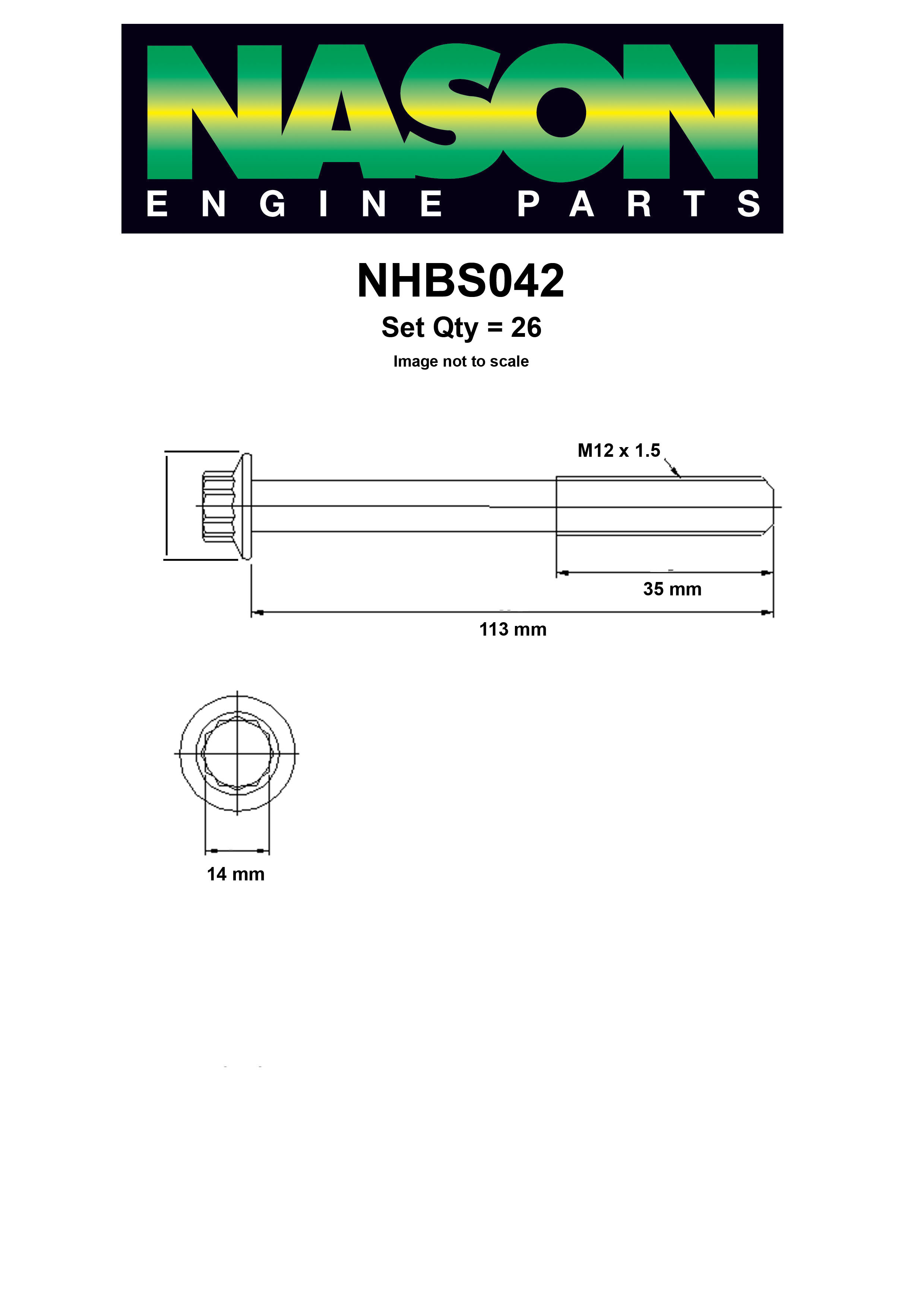

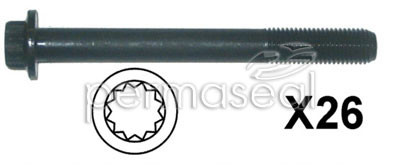

Head Bolts and Studs
Head Gaskets

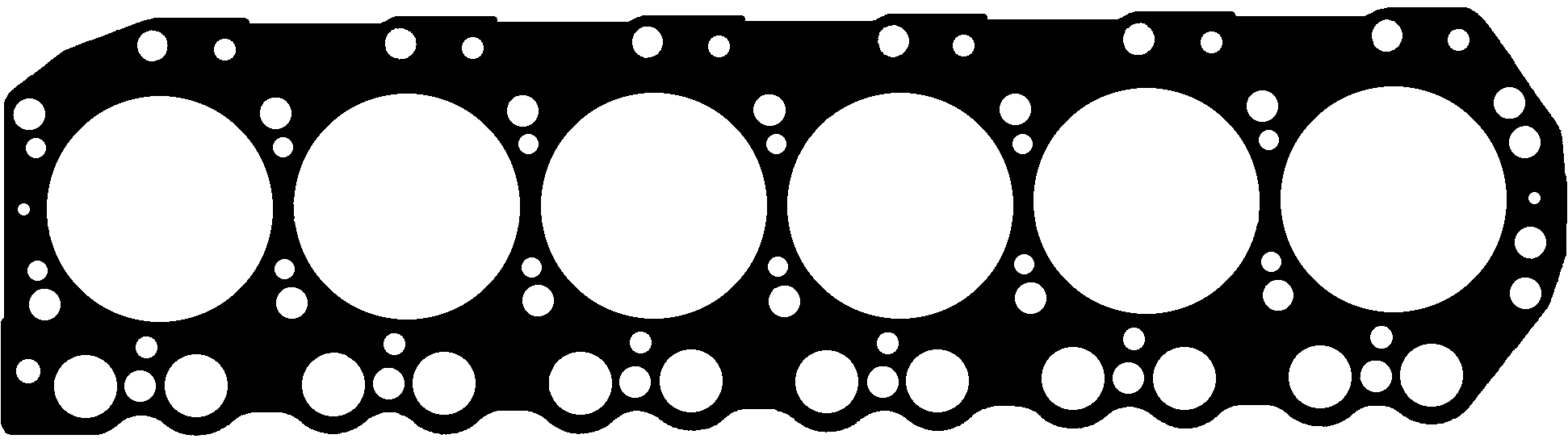

Durapro (GSS2009SSD) Graded Head Gasket 1.15mm thick (piston protrusion up to 0.118mm) AU $145.06
Durapro (GSS2010SSD) Graded Head Gasket 1.20mm thick (piston protrusion between 0.118-0.168mm) AU $145.06
Durapro (GSS2011SSD) Graded Head Gasket 1.25mm thick (piston protrusion greater than 0.168mm) AU $137.19
Endurotec (GSS2011SSE) Graded Head Gasket 1.25mm thick (piston protrusion greater than 0.168mm) AU $140.95

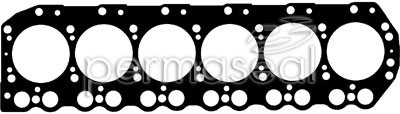

Permaseal S2009SS Head gasket Grade 1 1.15mm Thick AU $162.35
Permaseal S2011SS Head gasket Grade 3 1.25mm Thick AU $155.60

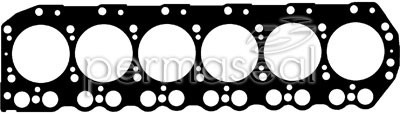

Permaseal S2117SS-3 Head gasket S2117SS-3 Grade 3 1.25mm AU $173.16
Inlet Manifold Gasket
Lifters
12 x Nason HT6040 Lifter Includes one 3mm oil hole AU $334.64
Nason HT6040 Lifter Includes one 3mm oil hole AU $38.43
Nason HT6040 Lifter Includes one 3mm oil hole AU $38.43
Nason HT6040 Lifter Includes one 3mm oil hole AU $38.43
Main Bearings
NDC (MS-1195GP 0.75m) +030 Set of 7 Main Bearings STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $68.69
Taiho (M096H 0.25) Set of 7 +010 Main Bearings Set STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $79.00
Taiho (M096H 0.50) Set of 7 +020 Main Bearings Set STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $79.00
Taiho (M096H 0.75) Set of 7 +030 Main Bearings Set STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $44.39
Taiho (M096H 1.00) Set of 7 +040 Main Bearings Set STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $44.39
Taiho (M096H) Set of 7 STD Main Bearings Set STD 010 020 030
Shaft 70.900/70.925mm 2.7913/2.7923¨
Tunnel 74.981/75.000mm 2.9520/2.9528¨
AU $62.82
Misc Gaskets
Permaseal WO138 Thermostat housing gasket Thermostat Housing To Timing Cover. AU $17.21
Permaseal WO139 Thermostat housing gasket Thermostat Housing To Head. AU $15.22
Miscellaneous

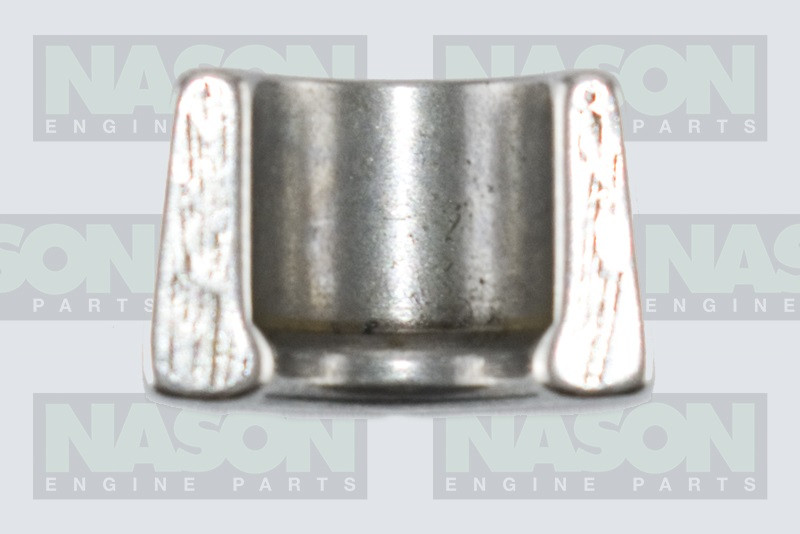

12 x Nason VK1009 Valve collet Suits 8mm Stem, 1 Round Bead AU $37.90
12 x Nason VK1009 Valve collet Suits 8mm Stem, 1 Round Bead AU $37.90
Nason VK1009 Valve collet Suits 8mm Stem, 1 Round Bead AU $37.90
Piston and Rings

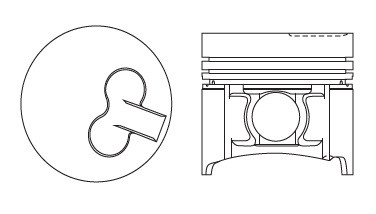

Nason STD PKNTD42L-STD Pistons set 30mm Gudgeon pin AU $704.40
Nason STD PKNTD42-STD Pistons set 28mm Gudgeon pin AU $706.75
Piston Cylinder Sleeves
6 x Nason NTD42-SF Sleeve Semi-Finished AU $383.08
Nason NTD42-SF Sleeve Semi-Finished AU $73.43
Nason NTD42-SF Sleeve Semi-Finished AU $73.43
Nason NTD42-SF Sleeve Semi-Finished AU $73.43
Piston Rings Cast
Nason STD RSNTD42-3.0-STD Piston Ring set 3 Ring: 2.5mm/2mm/3mm AU $407.50
Nason STD RSNTD42-4.0-STD Piston Ring set 3 Ring: 2.5mm/2mm/4mm AU $323.90
Piston Rings Chrome
TP (34098-STD) STD Piston Rings Chrome STD
2.5mm/2mm/4mm
AU $245.38
Pistons
Hypatec (PNITD42A60001H) STD Pistons Set Of 6 STD (set of 6) Rings not included
Use RS4951 piston rings
(28mm pin) (up to 8/1995)
Includes alfin inserts on 1st compression rings)
Compression height 50.3mm -1.8mm
AU $599.03
Precombustion Chambers
6 x Nason PCNTD42 Pre-combustion chamber Suits TD42 2/88-7/95 AU $333.58
6 x Nason PCNTD42LATE Pre-combustion chamber Suits TD42 8/95-97 AU $205.41
Nason PCNTD42 Pre-combustion chamber Suits TD42 2/88-7/95 AU $333.58
Nason PCNTD42LATE Pre-combustion chamber Suits TD42 8/95-97 AU $205.41
Rear Main Seals
Durapro (GSRMS026D) Crankshaft Seal Rear Lip type
ID 86mm x OD 100mm x depth 10mm
AU $55.78
Permaseal RMS026 Crankshaft seal rear See notes for models
Size 86x100x10
AU $60.69
Small End Bushes

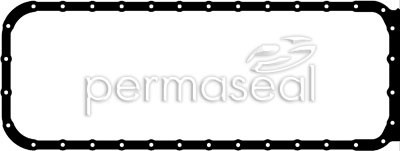

Sump Gasket Sets
Thrust Washers
Timing Cover Seals
Durapro (GSNJ831D) Crankshaft Seal Front ID 58mm x OD 80mm x depth 12mm AU $40.56
Valve Cover Gaskets
Valve Guides
JCMC (VGND-25-Z) Valve Guide Cast iron
OD 12mm x ID 8mm x length 47.2mm
AU $20.08
Valve Regrind Gasket Set (VRS)
Crossfire XV2009LS VRS Gasket set Includes Head Gasket AU $276.85
Durapro (GSV2009SSND) VRS Gasket Set Does not include head gasket AU $216.87
Permaseal V2009SSN VRS Gasket set Does not include head gasket AU $165.90

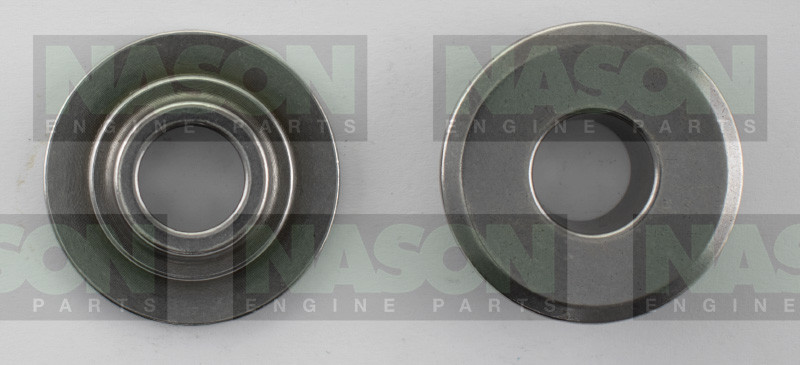

Valve Spring Retainers
Valve Springs
Valve Stem Seals
Valves-Exhaust
Valves-Inlet
JCMC (EVNI-45-I) Inlet/Intake Valve Head 43.4mm x length 117mm x stem 8mm AU $41.24
Water Pumps
