Non Contact Earth Ground Resistance Detector Online Earth Resistance Tester 200Ω



Non Contact Earth Ground Resistance Detector Online Earth Resistance Tester 200Ω

Instruction:

ETCR2800C Non-Contact Grounding resistance Online Detector used for on-line monitoring the earthing resistance of earthing system, measure range: 0.010Ω~200Ω. The detector adopts non-contact measurement technology, and the grounding down lead goes  through the perforation of the detector directly, which will not affect the lightning protection grounding effect and the normal operation of the facilities.The detector has strong structure, rain and dust proof, and can be installed outdoors.Ensure the high stability and reliability of outdoor, mine and indoor on-line inspection for a long time.

ETCR2800C Non-contact Earth Resistance Online Detector, equipped with display screen and alarm lamp, can observe the value of earth resistance at any time , and can set alarm critical value ,  when the value of earth resistance is larger than the setting critical value , alarm lamp will flashes , it`s suitable for independent installation and use no need to build network. the detector  equipped with GPRS communication and RS485 interface , can build a network system to realize real-time detection and remote monitoring.

QQ截图20200323161230

Product Main Function

1. On - line monitoring the earth resistance of grounding system
2. Measure Range: 0.010Ω~200Ω
3. RS485 interface
4. 47mm×28.5mm LCD

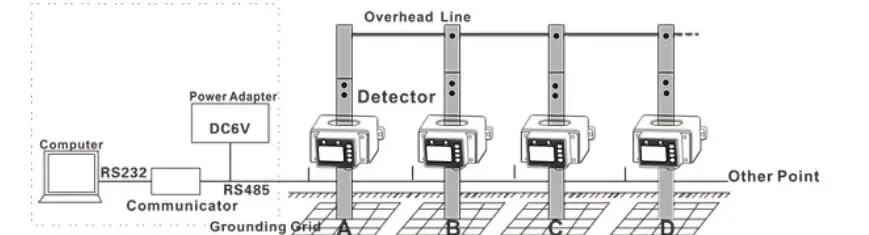

5. Network system can be built to realize real-time detection and remote monitoring
6. EX-Mark: ExiaⅡBT3Ga
7. Explosion Proof Certification: CE18.2332X

 Specification：

  Power Supply

 DC 6V～9V，50mA Max.（External power supply）

 Grounding Cable Perforation Size

 60mm×30mm  closed mode (60mm×4mm steel flat or external diameterФ30mm electric cable)

 LCD Size

 47mm×28.5mm LCD

 Range

 0.010Ω～200Ω

 Resolution

 0.001Ω

 Accuracy

 ±2%rdg±3dgt(20±5)℃，below 70%RH

 Auto Power-off

 No

 Power consumption

 ≤50mA

 Working environment

 -20℃~55℃；20%rh~90%rh

 Store the environment

 -20℃~60℃；below 90%rh

 Explosion mark

 Ex ia ⅡB T3 Ga

 Protection Level

 IP54

 Communication method

 Wired network：RS232、RS485(support MODBUS-RTU  communication protocol)

 Wireless network：RS485(support MODBUS-RTU communication protocol) or GPRS communication (Optional)

 Overflow Indication

 Measure value larger than Max range, systme software display"OL Ω" symbol

 Data Display

 System software display

 Alarm Indication

 The detector audible and visual alarm and system software alarm indication

 Alarm Setting

 The detector panel settingor system software setting

 Single Measurement Time

 0.5 second/time

 Shift

 Automatic shift

 External Magnetic Field

＜40A/m

 External Electric Field

＜1V/m

 GND Interference Current

 avoid

 Protection Level

 PCB,Sensor completely seal

 Power and Communication Cable

 1M/PCS(5 core wire)

 Mounting Screw Hole Size

 Φ8mm

 Installation

 Grounding cable through detector centre bore

 Installation Requirements

 Avoid rain and water logging

 Connection Identifier

 Red/brown---power supply input anode;

 Black--- Power input ground;

 Blue---RS485 Positive signal;

 Grey---RS485 Negative signal

 White--- Shield ground (power input ground can connects with Shield ground by short circuit)

 Detector weight

 960g

 Detector Dimensions

 175mm×170mm×130mm

 Packing：

 Package

 Outer package

 Carton

 Inner package

 None

 Accessory

 Meter

 1 pcs

 Power and Communication Cable

 1 pcs

 Manual

 1 pcs

 Certificate

 1 pcs

 Warranty Card

 1 pcs
