PRODUCT DESCRIPTION

JALTEST OHW - Diagnostic tool for off-highway and construction machinery

Jaltest OHW stands as a benchmark in the repair sector of off-highway and construction machinery due to its great advantages and possibilities when it comes to carry out diagnostics and maintenance services in an efficient way in cranes, excavators, dumpers, stationary engines, cleaning machines or road maintenance equipment, among others. It offers complete coverage, including new, brands, models and systems three times a year, which guarantees a constant update of its capabilities.

Jaltest Diagnostics software surprises for its:

1. Easy handling
2. Most advanced diagnostic functions
3. Component technical data
4. Wiring diagrams
5. Maintenance data
6. Vehicle Service Data
7. Troubleshooting Guides
8. Releases and technical procedures
9. Additional modules

The Jaltest Off Highway Diagnostic Tool is an advanced diagnostic system designed to cater to the needs of off-highway equipment. This cutting-edge tool is designed to help technicians and equipment operators troubleshoot and repair various systems in off-highway equipment.

The diagnostic tool is equipped with advanced software that enables it to read and diagnose errors in the engine, transmission, hydraulic systems, and other critical components of off-highway machinery. With its user-friendly interface, the Jaltest Off Highway Diagnostic Tool provides an easy-to-use platform that enables operators to quickly and accurately identify and rectify faults in their equipment.

Construction, earth moving, cleaning and road maintenance machinery (street sweepers)… are vehicles exposed to extreme working conditions for long work days and, consequently, they are exposed to numerous failures. Stationary engine is another type of machinery manufactured to withstand long work cycles. All these types of vehicles need a multi-brand diagnostics tool which is able to repair the fault quickly and to perform continuous maintenance tasks. Jaltest OHW is the best option in the market.

Just like the rest of Jaltest Diagnostics modules, it offers a wide coverage of brands, models and systems, as well as a large variety of cables to carry out direct connections.
Jaltest OHW includes complete technical information and troubleshooting guides, which make it the benchmark diagnostics tool of the sector.

Jaltest OHW includes advanced functions such as:

1. Calibrations
2. Parameter modification
3. System checks
4. Component actuation
5. And much more…

In conclusion, the Jaltest Off Highway Diagnostic Tool is a highly efficient diagnostic system designed to cater to the needs of off-highway equipment. Its advanced features and user-friendly interface make it an indispensable tool for both technicians and equipment operators.

PASS-THRU

Jaltest has the additional Pass-Thru module, which enables communication through the SAE J2534 protocol with the manufacturer’s software to perform:

1. Control unit updates
2. Calibrations
3. Unit reprogramming
4. Special equipment analysis

This makes it possible to reduce dependence with proprietary hardware, decreasing costs and increasing the productivity.

Features:

MORE THAN DIAGNOSTICS



Jaltest OHW (Off-highway) is an easy to use and handling tool that can be transported to the place where the damaged machinery is to diagnose. Moreover, it combines the Diagnostics software with a large technical information database, workshop management module.



• Troubleshooting guide by error code
• System Technical Data
• Diagrams
• Vehicle Technical Data
• Vehicle maintenance data
• Troubleshooting guides by symptoms
• Releases and Procedures
• Manual Diagnosis



DIAGNOSTICS

• Automatic detection of systems and error codes. SYSTEM DISPLAY
  Real-time live data display of special equipment diagrams, enabling fast assessment of the system performance.

• Real-time sensor monitoring. DATA RECORDER
  This function allows the user to make tests while the special equipment is moving and, at the same time, to record measurements and diagnostics errors. This way, it is possible to know the exact moment at which an error occurred.

• Actuation and adaptation of components. VIRTUAL INSTRUMENTS / GRAPHS
  Visual aid for the technician to check values and understand the current status of any system available in the special equipment.

• Maintenance data reset.
• Operating time and consumption of the vehicle reading.
• Components adaptation and calibration.
• SYSTEM SCAN
  This function allows the user to auto-detect the available systems in the selected model. During the Auto-detection, error reading of every available system takes place including their identification data. Later, every error found can be cleaned.

• VEHICLE VIN DETECTION
  It allows the detection of the VIN or chassis number of special equipment with just one click.

• SHORTCUT TO SPECIAL FUNCTIONS
  Optimize repair times at the shop with direct access to relevant repair processes.

TECHNICAL INFORMATION

• System Technical Data
  Specific OEM standards for the most common adjustments of special equipment.

• Interactive wiring diagram. Wiring, system and fuse diagrams.
  More than 3,600 simple, interactive and easy-to-navigate diagrams for the different system configurations.

• Technical releasses. Vehicle Technical Information:
  A complete data base with all the information needed to perform the proper maintenance of the selected special equipment.

• Troubleshooting Guides by symptoms:
  Step-by-step guides that allow to perform diagnostics by symptoms on special equipment.

• Technical Releases:
  Bulletin on technical service, launches and procedures with updated information, published by the OEMs, about any modification of the
  service and procedures, reviewed parts, etc.

• Repair Times
  In order to improve the time management and productivity in the workshop, Jaltest Info includes a function to estimate times.

• Troubleshooting Guides by Fault Codes.
  Intuitive and easy-to-follow troubleshooting guides, for both mechanical and electronical problems, linking directly to the actions to be carried out.

• Maintenance data.
• Machine technical data (Engine type...)
• Data synchronisation with data backups on the external servers
• Task management between the garage staff members
• Management and reporting of diagnosis, maintenance and task reports.
• Access to the history of the machinery

SOFTWARE WITH EASY, INTUITIVE AND VISUAL NAVIGATION

• Visual and intuitive
• Quick installation and use
• Customizable
• All in one screen
• Elegant design with brighter colors



JALTEST INFO

Obtain all the additional information through this module and speed up the repair by accessing detailed technical information, images, graphs and diagrams for each diagnosed machinery model. This information will help you identify the error code, part, location, etc.



EXPERT MODE

Coverage:

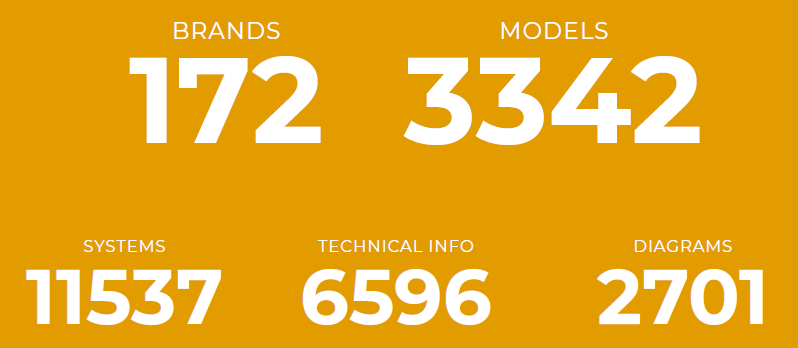

LARGEST COVERAGE IN DIAGNOSTIC OF OFF-HIGHWAY MACHINERY

Construction and earthmoving machinery: BAE SYSTEMS, BOSCH REXROTH, CASE CONSTRUCTION, CATERPILLAR, FIAT KOBELCO, GROVE, HITACHI, JOHN DEERE, KOMATSU, LIEBHERR, NEW HOLLAND CONSTRUCTION, TERBERG, TEREX - DEMAG, VOLVO CONSTRUCTION, XCMG.

Cleaning and road maintenance machinery: ASH, AUSA, EUROVOIRIE, MATHIEU-YNO, RAVO.

Stationary engines: CATERPILLAR, CUMMINS, DEUTZ, IVECO-FPT, KUBOTA, MAN, MERCEDES-BENZ, MTU, PERKINS, SCANIA, SISU, VOLVO PENTA.

Package contains:

Optional:

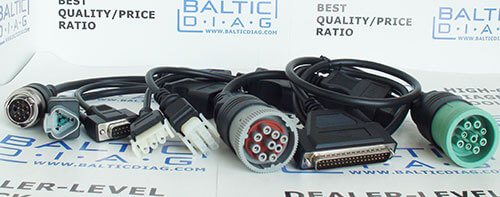

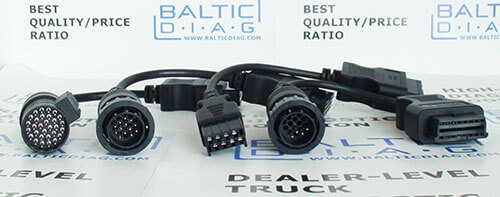

• (OPTION VERSION 1) 70002004 OHW Cable Kit:
• JDC201A - Volvo diagnostic cable
• JDC203A - Mercedes-Benz diagnosis cable
• JDC206A - Iveco diagnosis cable
• JDC217M3 - Deutsch 9 pin type 2
• JDC303A - ZF diagnosis cable
• JDC504A - Deutz Engines diagnosis cable
• JDC505A - CAT/ Perkins diagnosis cable
• JDC509A - Volvo Construction diagnosis cable
• JDC518A - SISU Engine diagnosis cable


• (OPTION VERSION 2) 70002026 OHW Cable Kit:
• JDC203A - Mercedes-Benz, MTU diagnostics cable
• JDC217.9 - Deutsch 9 pin type 2 green diagnostics cable
• JDC504A - Deutz Engines diagnostics cable
• JDC505A - CAT / Perkins diagnostics cable
• JDC509A - Volvo Construction diagnostics cable
• JDC546A - ZF Ergopower 6 pin diagnostics cable
• JDC535.9 - Hitachi diagnostics cable
• JDC536A - Komatsu diagnositics cable
• JDC542.9 - Liebherr diagnostics cable
