Features: 1.High torque, More smooth movement 2.High efficiency, energy-saving, low noise, low vibration, high start torque, low start current and reliable performance. 3.We offfer mach 3 software by free,if you want please download on our website. After you payment,I will send electronic manual to your e-mail,if you not receive,you tell me your e-mail,I iwll send to you.
This item includes: 3 pcs Nema 34 stepper motor 1700 oz.in 6A with single Shaft 3pcs Stepper motor driver, DM860HA, 3 pcs Power Supply 350W-60VDC 1 pc Breakout Board & 1 pc parallel cable 1. Stepper motor
Technical Specifications Part No.: 34HS5460 Frame Size: NEMA34 Phase: 2 Phase Step Angle: 1.8 degree Current: 6 A Rated Voltage: 3.6 V Resistance: 0.6 Ohm/phase Inductance: 8 mH/phase Holding torque: 1700oz-in (12 N.m) Detent torque: 24.5N.cm Rotor inertia: 4000 g.cm² Number of wire leads: 4 (Red A+ ,Green A- ,Yellow B+ ,Blue B-) Weight: 5kg Length: 151mm Front shaft length 37mm The diameter for motor shaft is 14mm Matched drive:DM860A

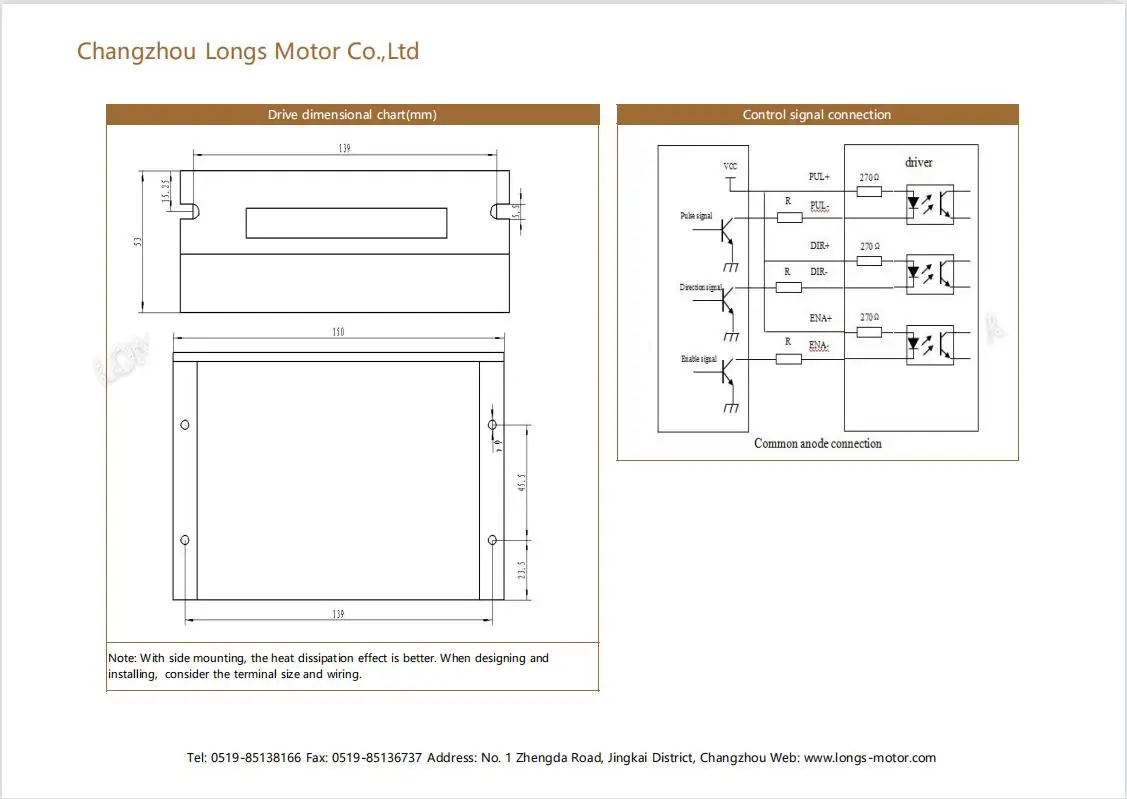

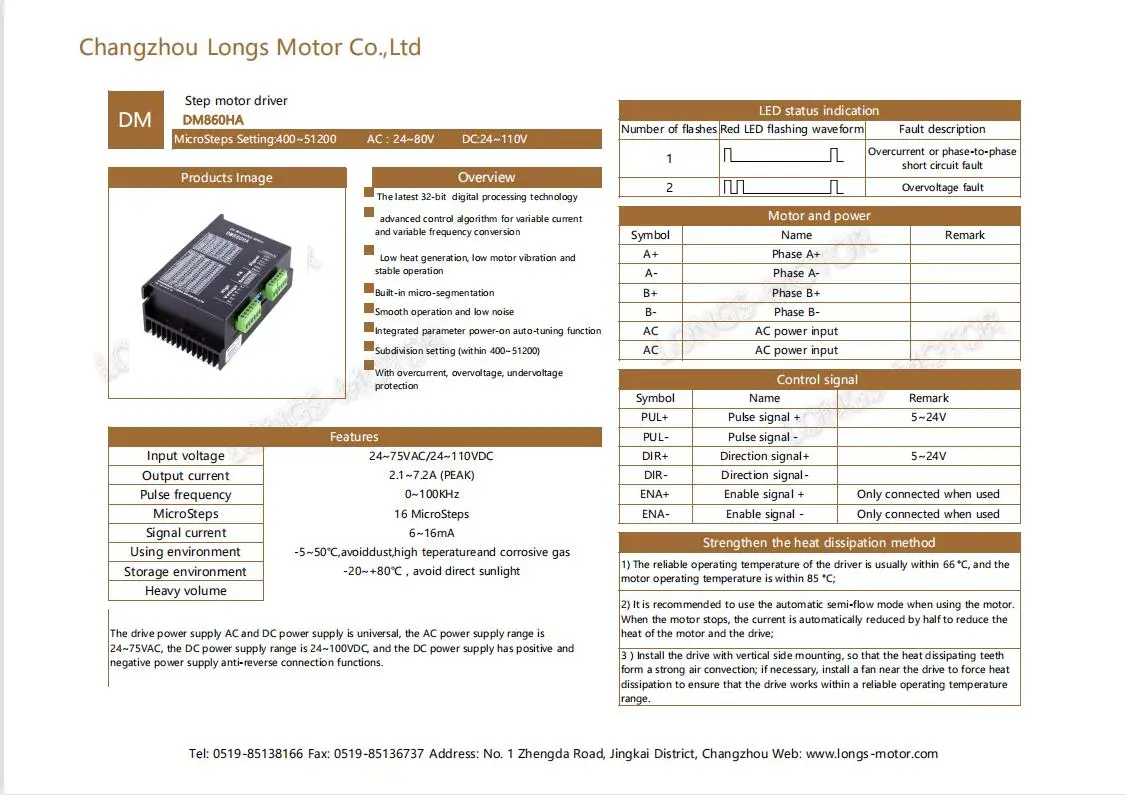

2. Stepper motor driver DM860HA:
3. Power Supply: The power is 350W, the output voltage is 60VDC.
4. Breakout Board: General in the software P2 P3 is set to X-axis for the X-axis pulse P4 P5 is set to Y-axis, Y axis pulse P6 P7 is set to Z-axis Z-axis pulse The other can be set to A B C axis A-axis pulse P8 P9 is set as the A axis P14 is set to B-axis B-axis pulse P1 P16 P17 is set to C-axis, C axis pulse Can also be set to the spindle control signal \ electrical permit Input interface for the P10 P11 P12 P13 P15 Description:- Built in DB25 male connector.
- DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
- DB25 Input Pin: P10,P11,P12,P13,P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
Application:Our Stepper Motors are used on small to mid-sized CNC mills or milling machines, CNC lathes, Pick-n-place machines,Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. Carver machine ,Dispenser,Automazation,3D Printer,Stage lighting,instrument,laser equipment,scanner and so on.These motors have been used in precision telescope positioning systems and robots.
|
|
|
|
