MCSADVENTURES plug and play turn signal kit for 14+ RZR, 18+ Ranger: Rocker switch (blue), replacement fang lights (clear lens)

MCSADVENTURES Rocker turn signal kit with front fang lights

Fits 19-23 RZR xp1000 and 19-21 Turbo

Fits 18-21 RZR Turbo S

Will also fit many 2021+ RZR Trail and Trail S models

Rocker switch snaps into OEM sized .83 X 1.48 cutout

Plug and Play utilizing factory brake lights

Custom rear T harness plugs into the left and right tail light harness

Extended length harness fits 2 and 4 seat models

Includes Pulse bar harness



Description

Looking for a true plug and play way to add turn signals to your  19-23 RZR xp1000, 19-21 Turbo and 18-21 Turbo S  that utilizes the factory tail lights?

We've designed a great plug n play solution at a very reasonable price.



Features

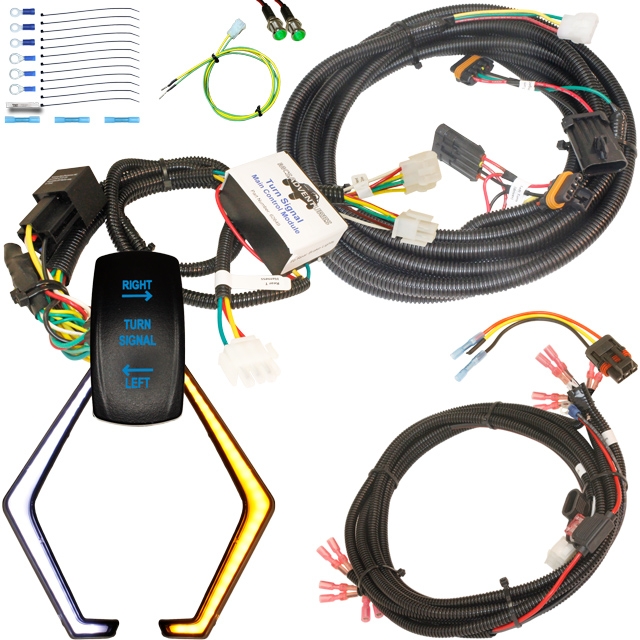

Kit is comprised of a complete switch/control module front harness which connects to a rear T harness.

Rocker switch harnesses are prewired into the main control module and simply plug onto the back of the rocker switch. No fumbling with qd terminals.

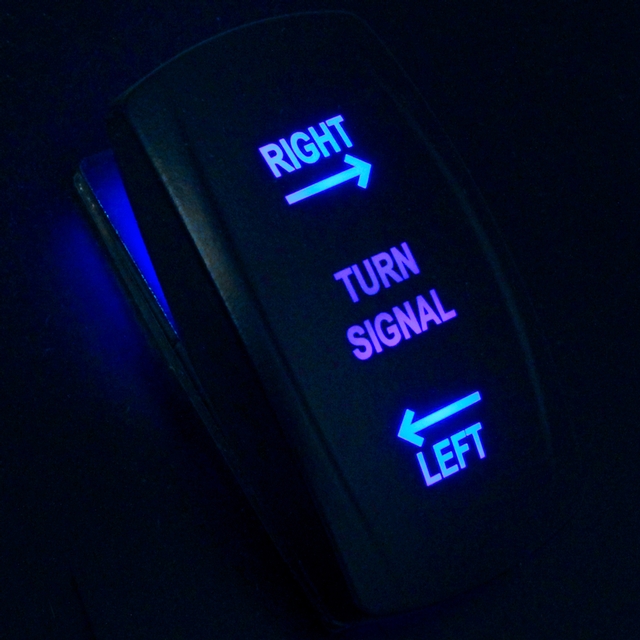

Blue illuminated Left / Right rocker lights up with key on and also flashes when selected thus indicating direction.

Includes optional instrument cluster integration for machines with the instrument cluster shown.

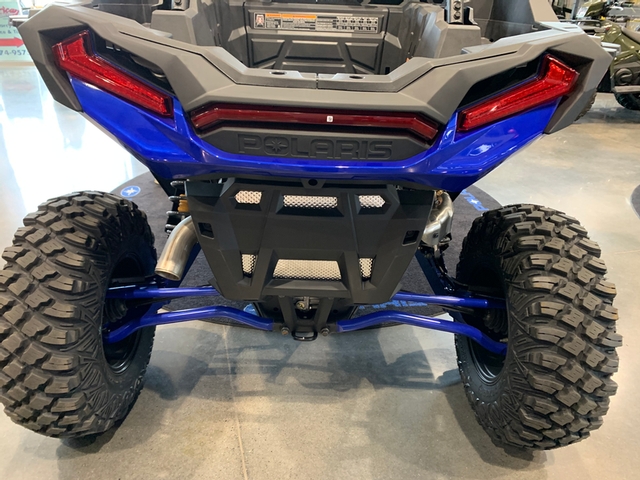

A custom rear T harness plugs into the left and right factory tail lights and converts the factory brake lights for use as brake AND turn signals. We also supply a license plate light pigtail that can activate your license plate light with key on.

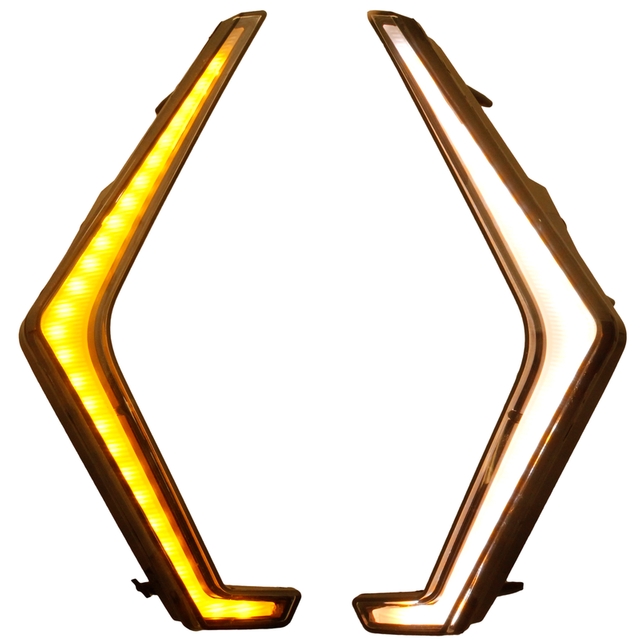

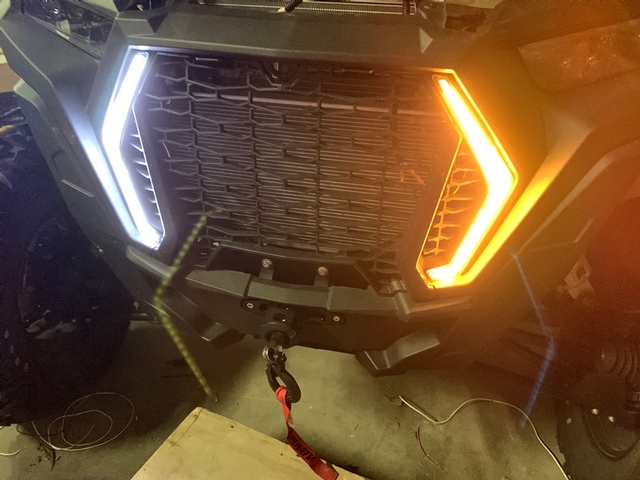

Front fang lights quickly mount in place of the factory plastic fang accent blanks and plug into factory connector on the machine. Each fang light has a 3rd wire prepped with a connector ready to plug into the harness to provide turn signal function. No splicing or crimping wires. It simply all plugs together.



Installation Info

Painfully simple to install. All components terminated with connectors allowing for full plug and play operation.

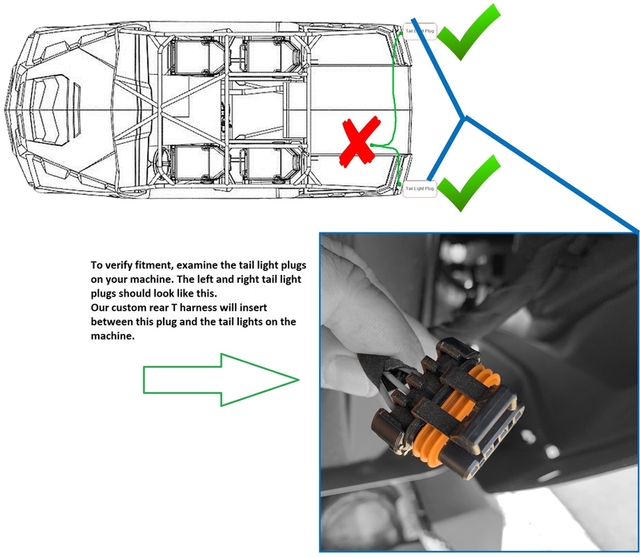

Rear T harness plugs into the left and right tail lights utilizing the rear brake lights as turn signals. This custom harness feeds from the rear of machine through tunnel and up into hood compartment where it feeds through firewall into dash and plugs into the control module

A complete front end harness feeds through firewall into dash and also plugs into the control module.

For power only 3 connections to the machine are required:  12v+ batt    12v+  keyed ignition    12v-ground

A pulse power harness is included for machines with the pulse power bar.

Total install time:  approx 1 hour
